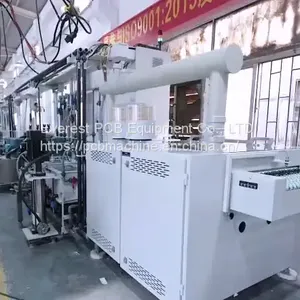

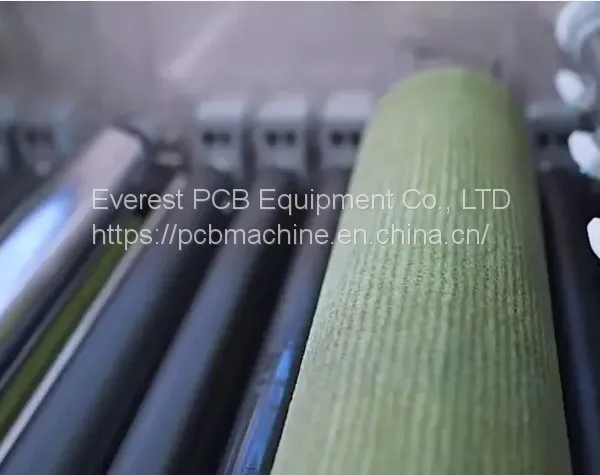

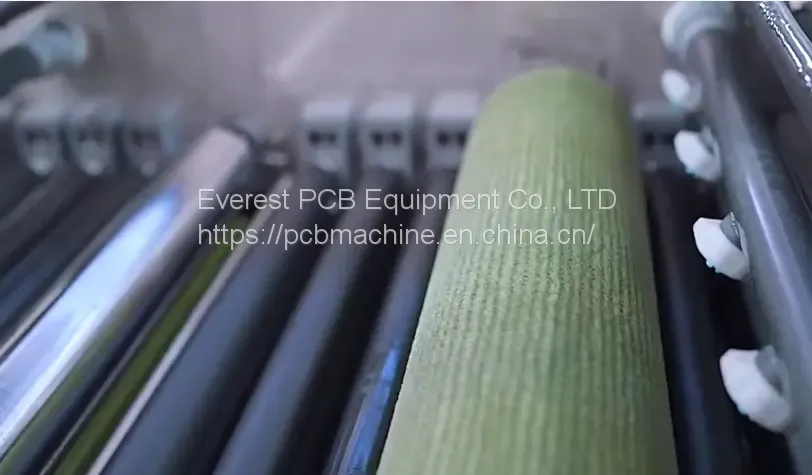

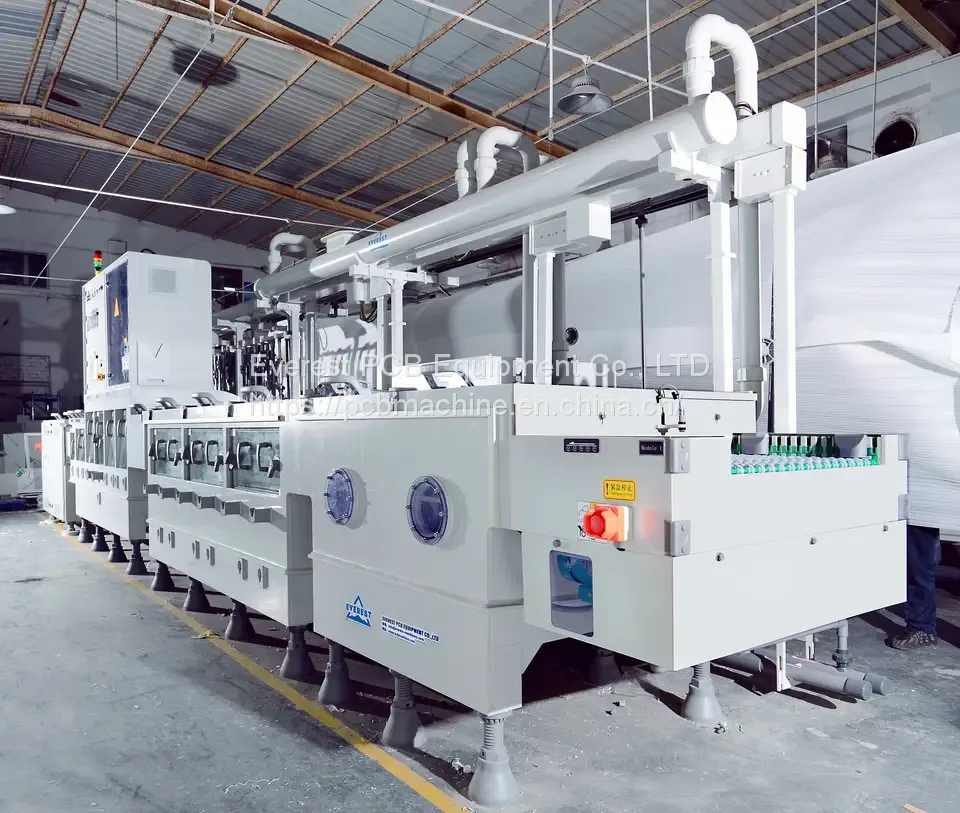

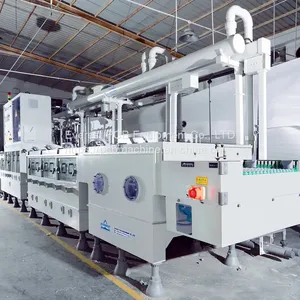

PCB Scrubbing Brushing Machine Remove Dust And Static Electricity Deburring High Quality Machine

FOB Price

US$ 19000 - 25000 / Set

1 Set(Min. Order)

Port Guangzhou
Payment TermsT/T L/C Credit Card PayPal Cash

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Everest		Place of Origin	China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Product Description

Details Images

Products Description

Technical Data:

Dimension:	7820mm×2300mm×2000mm
Working height:	900mm±25mm
Working width:	650mm
Wheel base:	28mm 35mm 48mm 70mm
Working speed:	2m/mm(preset working speed)
Supply voltage:	Three phase four wire,380V/50Hz
Total power:	41KW
Max work piece:	610mm×460mm
Min work piece:	150mm×150mm
Working thickness:	0.1-3.2mm
Water consumption:	8~12 L/min
Machine Size	218416231570mm
Weight	About 450kgs

Working process:

Load → Etching → Overflow water rinse → Fresh water rinse → Blot up →Unload

Features:

Adopt touch screen device and PLC control system , simple operation and more convenient
Various wheelbase of 28mm, 35mm 48mm 70mm are saitisfy for your different requirement, Special arrangement are very fit for
processing thin plate.
Spraying uniformly by special design nozzles, displayed and controlled individually
The control cabinet was above on the equipment, maintenance more convenience and security.

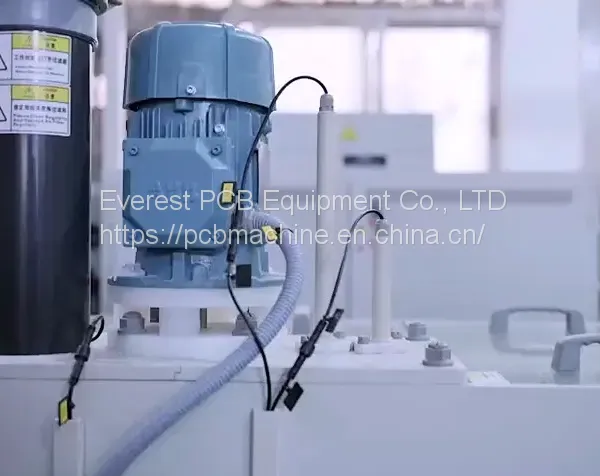

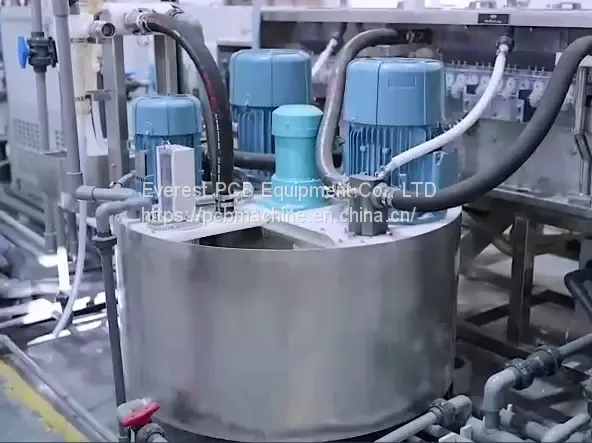

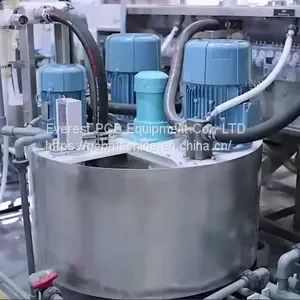

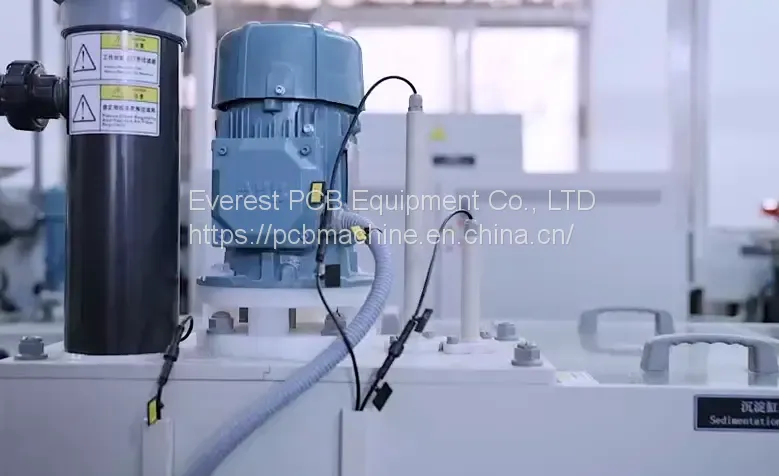

Imported frequency conversion device and pump.
The concentration of air exhaust and drainage, make appearance more clean and easy to installation
The etching accurate of line width can reach 0.04mm.
