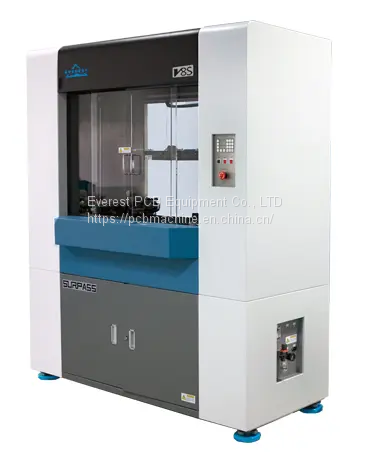

ESL High Speed 4 Probes Flying Probe Tester

Everest PCB Equipment Co., LTD
ESL High Speed 4 Probes Flying Probe Tester thumbnail-1
ESL High Speed 4 Probes Flying Probe Tester thumbnail-2
ESL High Speed 4 Probes Flying Probe Tester thumbnail-3
ESL High Speed 4 Probes Flying Probe Tester thumbnail-4
ESL High Speed 4 Probes Flying Probe Tester thumbnail-5
ESL High Speed 4 Probes Flying Probe Tester photo-1

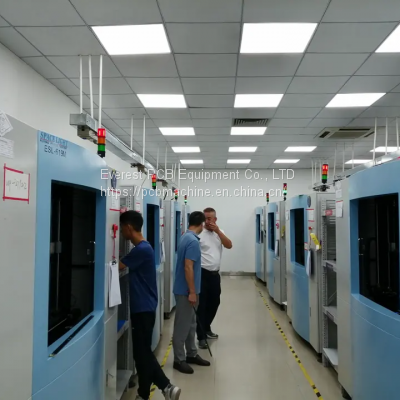

ESL High Speed 4 Probes Flying Probe Tester photo-2

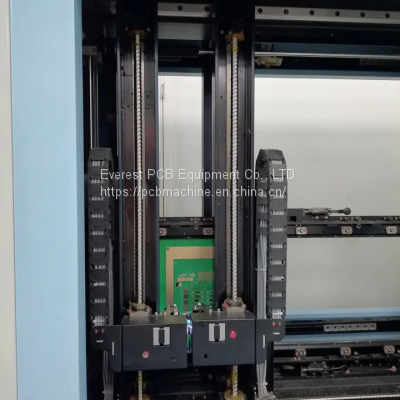

ESL High Speed 4 Probes Flying Probe Tester photo-3

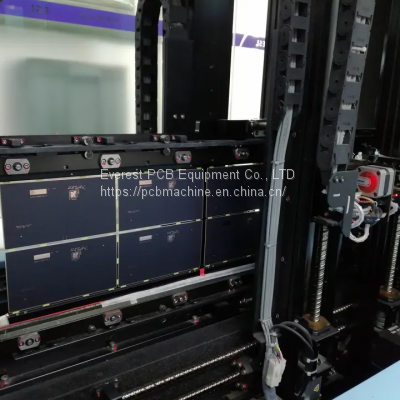

ESL High Speed 4 Probes Flying Probe Tester photo-4

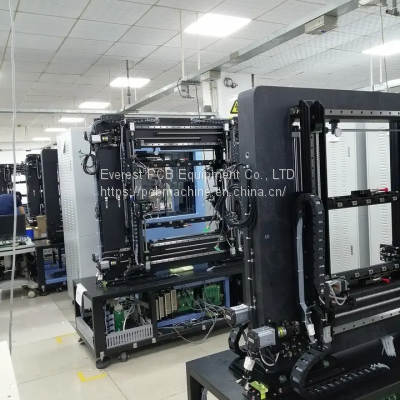

ESL High Speed 4 Probes Flying Probe Tester photo-5
US$ 23000 - 40000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Everest
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Everest
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Condition New

Details Images



Products Description

Main parameters:
Specification
V8S
Test method
Resistance, phase deviation
Max. Test area
710x610mm
Min. test area
35X65mm(no limit when use fixture)
No. of Flying Probe
2 front, 2 Rear
No. of CCD
2 front, 2 Rear
Board Thickness
0.3-9mm
Repeatability
±3μm
Resolution
2μm
Min. Pad pitch
80μm
Min. Pad size
50μm
Open circuit resistance
2Ω- 8KΩ（Optional 4 terminals：0.4mΩ-800kΩ）
Isolation resistance
5MΩ- 100MΩ
Open circuit test current
2.65μA-125mA
Isolation test voltage
250V（optional : 500V）
Power requirement
Single Phases AC220V,10A
Air requirement
0.5MPa,5.7L/min
Board mount system
Four said fixtures mounting
machine weight
1800kg
Machine size
1740（W）×790（D）×2110（D）mm
*4 terminals test function
Optional
*Build in resistance and capacitor
Optional
*Vacuum system
Optional
*Easy Connect
Optional
*Auto marking system
Optional
