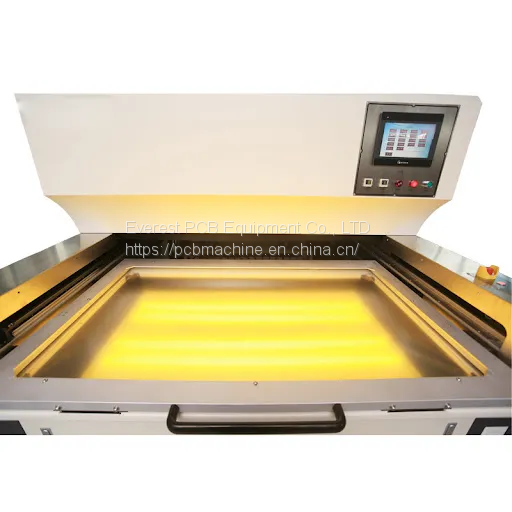

PCB Solder Mask Exposure Machine With High Precision Performance

Everest PCB Equipment Co., LTD
PCB Solder Mask Exposure Machine With High Precision Performance thumbnail-1
PCB Solder Mask Exposure Machine With High Precision Performance thumbnail-2
PCB Solder Mask Exposure Machine With High Precision Performance photo-1
PCB Solder Mask Exposure Machine With High Precision Performance photo-2
US$ 19000 - 25000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Everest
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Everest
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Condition New

Details Images


Products Description

Exposure machine for solder mask:
Item
Specification
Model No.
NL2500-MSL-LED
Effective exposure size
1550*650mm
Equipment advantages
Energy saving LED light source, three years without replacing the lamp, energy saving, save 80% compared to traditional circuit
exposure device, this machine has eight new utility patents.
Power supply
220V 50HZ, 50A
Energy uniformity
≥85% (nine points measurements)
Line resolution
75UM / 75UM (ink thickness required)
Energy control
Patent Energy PLC man-machine interface controller can
implemented with an exposure energy adjustment multilevel.
Light Transmission Group
Servomotor + guide screw (patented a unique set of lifting the
LED lamp device in the industry), the advantage is, when the
upper and lower frame exposure, the exposure frame from the
position lamps is always consistent, stable and consistent
energy intensity.
cooling system
Hot wheel:‘80mm*760mm, the electric power 1.5KW(about 19Kg)
The degree of vacuum
Adjustable 90-95KPA
HMI
True color HMI 10 #
Protective function
Leakage protection, fault alarm circuit, the alarm lamps do not
light, pressure fault alarm, fault alarm water
power
About 5 kWh per hour
Exposure frame surface type
Smooth Mylar glass
type of light source
LED cold light
Exposure mode
Parallel scanning
The thickness of the substrate
0.075-3.0mm
Operational framework
Unilateral linear guide
Frame transmission
Drive motor with belt
Dimensions
About 2200 * 2200 * 1800mm
electricity demand
50A, 220V, 50HZ
Pressure Demand
7KG constant external pressure dry air supply pipe 10MM
equipment weight
1000KG
Environmental requirements
Temperature 20 ℃ ± 3 ℃, humidity of 55 ± 10%
