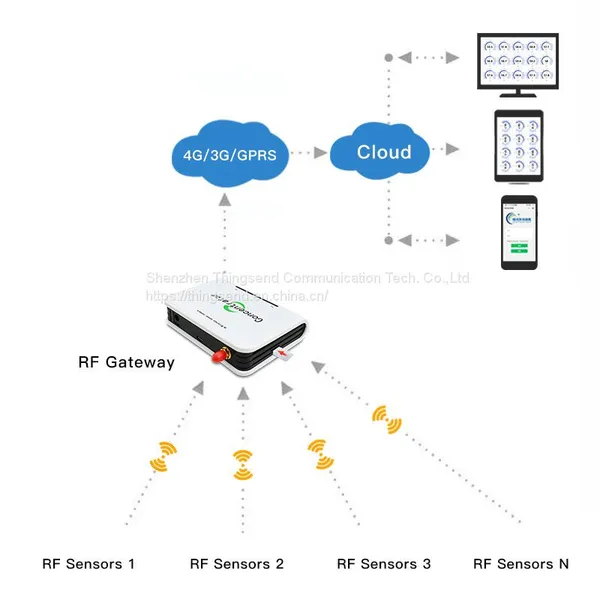

Help CenterWireless Temperature Humidity Sensor With 4G Gateway
Related Products
-
8-in-1 Wireless Soil Tester With Built-in Battery LoRa Soil Moisture Temperature Salinity EC PH NPK Sensor Environmental SensorsUS$ 76 - 135MOQ: 1 Piece -
Solar Powered 8-in-1 Soil PH Moisture Temp EC Salinity NPK Lora Wireless Soil Sensor for AgricultureUS$ 75 - 130MOQ: 1 Piece
-
Indoor and Outdoor Iot LoRa Wireless Temperature and Humidity Sensor for Farming Warehouse Greenhouse UseUS$ 42 - 48MOQ: 1 Piece
-
Thingsend Long Distance Battery Powered LoRa Wireless Temperature and Humidity Sensor XZ-DS01-TH2DUS$ 38 - 42MOQ: 1 Piece
-
Thingsend Wireless Temperature and Humidity Sensor and Gateway LoRa to RS485 Modbus RTU OutputUS$ 48 - 136MOQ: 1 Set
Features
Track Temperature (-40°C to 80°C)
Track Humidity (0 - 100%）
Battery operated, place it anywhere
Wireless transmission distance is more than 1600 feet in open field
Easy 3 minutes setup
Receive alarm sound and email alert
Set high-low threshold value for alert
Monitors /alerts battery levels
Monitors /alerts if wireless signal lost
Unlimited history of readings for 6 months
Monitor every 5 mins default,customized in factory
No fees or subscription
Free software
Alert multiple users
One concentrator can work with more than 100pcs sensors
Requires 1/2 x AA lithium batteries (included)
Battery life: 5+ Years @5mins data sending time
Manufacturing,support OEM/ODM service
Product parameter
XZ-TH10 operation process:
Switching different operation modes according to using way. The modes as following:
1） Sleeping mode: Sensor no working, no transmission, and sleeping with low consumption totally.
2） Trigger mode: Detecting sensor every second and transmit signal, LED flashes; User can send command to set the ID of sensor through PC software or serial port. And the trigger only last 20 seconds.
3） Normal mode: Detecting sensor per 5mins and transmit signal, LED flashes.
4） Switching mode: There are 3 modes can be switched by pressing the button. The switching time sequence as the following chart:
a.Sleeping mode will enter trigger mode by pressing the button for 5 seconds;
b.Trigger mode will enter normal mode automatically after 20 seconds;
c.Normal mode will enter trigger mode by pressing the button for 2 seconds;
d.Normal mode will enter sleeping mode by pressing the button for 5 seconds
XZ-TAG4 operation process
XZ-TAG4：with 4G function and local Micro USB to serial port，115200bps,8N1,external 5VDC power

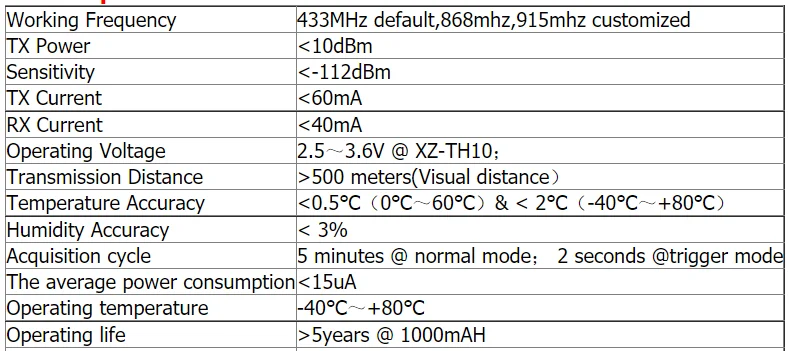

Technical parameters
