Long Distance Smart Wireless Monitor System for Temperature and Humidity Measurement

FOB Price

US$ 48 - 158 / Set

1 Set(Min. Order)

Payment TermsT/T PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Installation Type	Wall-Mounted Type		Output Signal Type	Digital Type
Customized	Customized		IP Rating	IP65

Product Description

Welcome to our store,we're manufacturer of wireless sensors and wireless transceivers.Please feel free to contact Mrs.Sarah Yuan:WhatsApp +86 18820739215/sarah@thingsend.com

Product Introduction

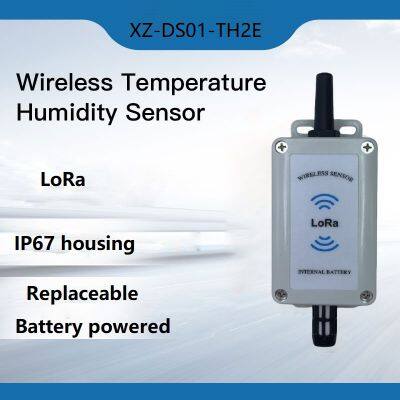

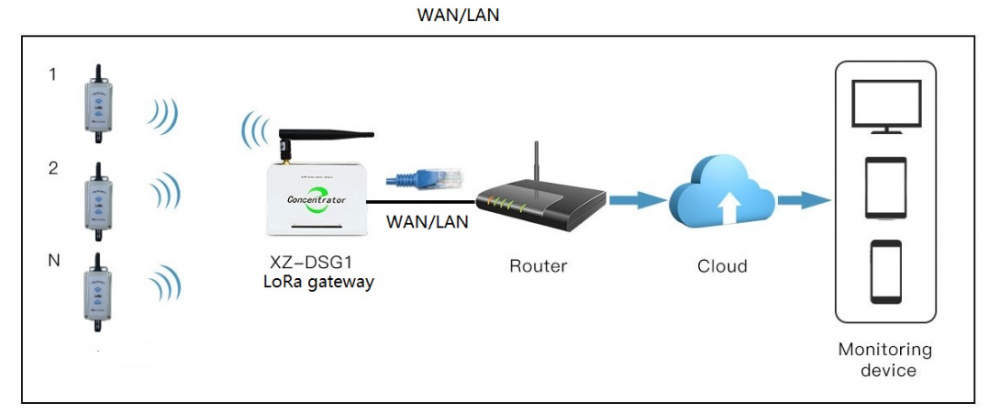

TH1 lora wireless temperature humidity sensor is a low-power wireless temperature humidity measuring instrument.It consists of temperature and humidity sensor, signal processing circuit, lora communication module and battery.Working with our LoRa WAN/LAN Ethernet gateway DSG1 can realize remote temperature and humidity data acquisition. One gateway can work with more than 100pcs sensors.

Product Features

♦High-precision temperature and humidity collection.

♦Built-in antenna and IP67 waterproof housing for indoor and outdoor use

♦Using LORA spread spectrum communication technology, long wireless transmission
distance and strong anti-interference ability
♦Temperature and humidity notification, set high-low threshold value for alert

♦LoRa Wireless transmission distance maximum 5KM line of sight

♦Large battery works up to 5 years and the battery can be replaced by user

♦Monitor every 5mins default,1-240mins can be changed by user

♦Free software and cloud server for remote monitoring
♦One lora gateway can work with more than 100pcs sensors.
♦Open gateway protocol, API interface, cloud platform and other multiple access methods.
♦Manufacturing,support OEM/ODM service

Product Parameters

General Parameters
Transmitting Power:<1 7dBm	Receiving Current:<20mA
Sensitivity:<-136dBm	Average power consumption:<15uA
Transmitting Current :<1 20mA	Battery Life:5 years@8700mAH
Transmission Distance: up to 5KM(L OS)	Power supply:1pc ER26500 3.6V Li-SOCl2 battery
Operating Temperature:-40°C~80°C	Working Frequency:480/868/433/915/925mhz
Sensor Parameters
Temperature Measurement Range:-40℃～80℃	Temperature Accuracy:±0.2℃（0℃～65℃）& <±0.6℃（<40℃,>65℃）
Humidity Measurement Range:0～100%RH	Humidity Accuracy:< ±2% (10% -90%) & < ±3% (<10%, >90%)
Sensor chip: SHT40(customized)	Resolution for temp&humidity: 0.1
Transmission Interval:5mins default, 1 ~ 240mins settable by user
Gateway Parameters
Wired network: RJ45	Working frequency: 480(433/868/915/923mhz)
TCP/IP communication interface Socket	Working Voltage: DC 5V @1A
Fixed IP and server domain name resolution	Receiving sensitivity: -136dBm

Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols and API for you to build your own platform.
