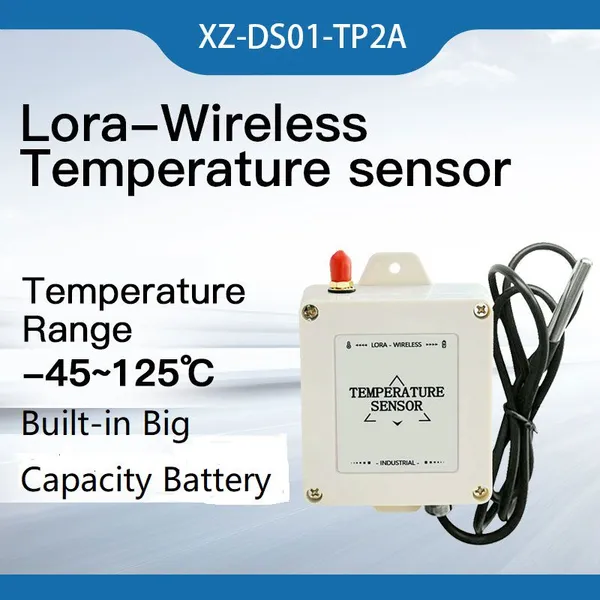

Thingsend Strong Signal Warehouse Freezer Refrigerator LoRa Wireless Iot Temperature Sensor XZ-DS01-TP2A

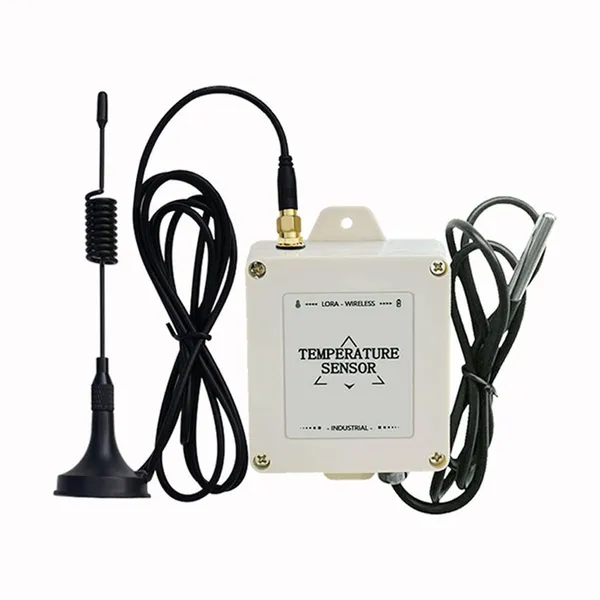

Thingsend Strong Signal Warehouse Freezer Refrigerator LoRa Wireless Iot Temperature Sensor XZ-DS01-TP2A photo-1
Thingsend Strong Signal Warehouse Freezer Refrigerator LoRa Wireless Iot Temperature Sensor XZ-DS01-TP2A photo-2
Thingsend Strong Signal Warehouse Freezer Refrigerator LoRa Wireless Iot Temperature Sensor XZ-DS01-TP2A photo-3
Thingsend Strong Signal Warehouse Freezer Refrigerator LoRa Wireless Iot Temperature Sensor XZ-DS01-TP2A photo-4
Thingsend Strong Signal Warehouse Freezer Refrigerator LoRa Wireless Iot Temperature Sensor XZ-DS01-TP2A photo-5
US$ 40 1 - 99 Piece
US$ 38 ≥100 Piece
Key Specifications
Get Latest Price
Installation Type:
Wall-Mounted Type
Output Signal Type:
Digital Type
Customized:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Installation Type Wall-Mounted Type
Output Signal Type Digital Type
Customized Customized
IP Rating IP56

Welcome to our store,we're manufacturer of wireless sensors and wireless transceivers.Please feel free to contact Mrs.Sarah Yuan:WhatsApp +86 18820739215/sarah@thingsend.com

Product Introduction

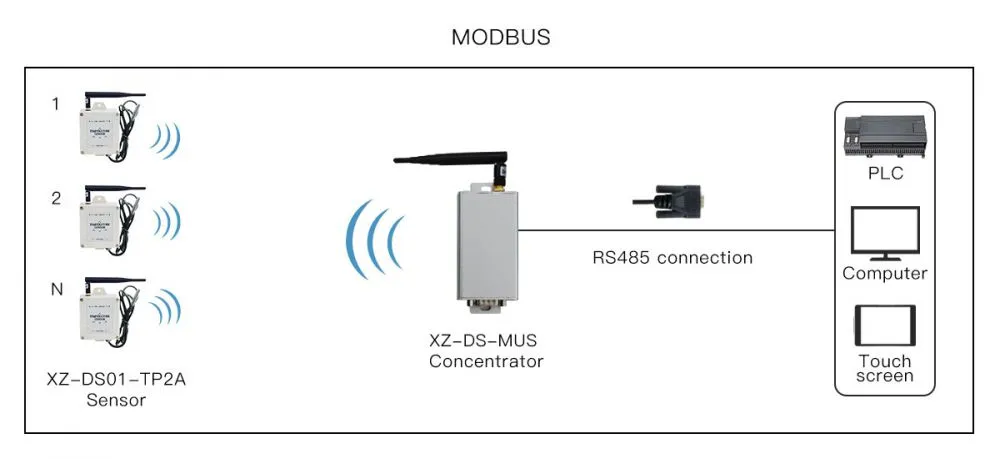

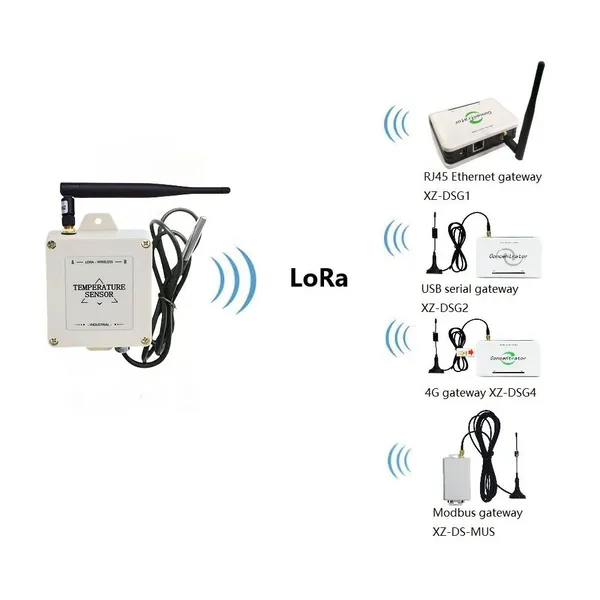

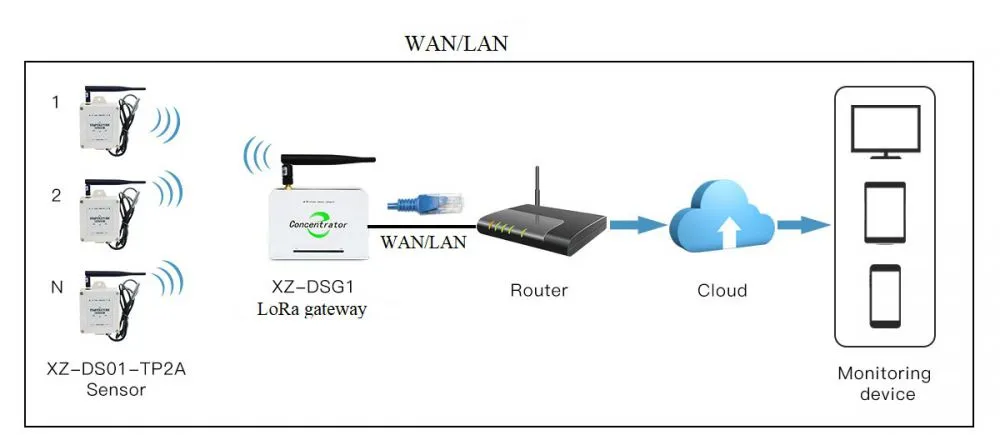

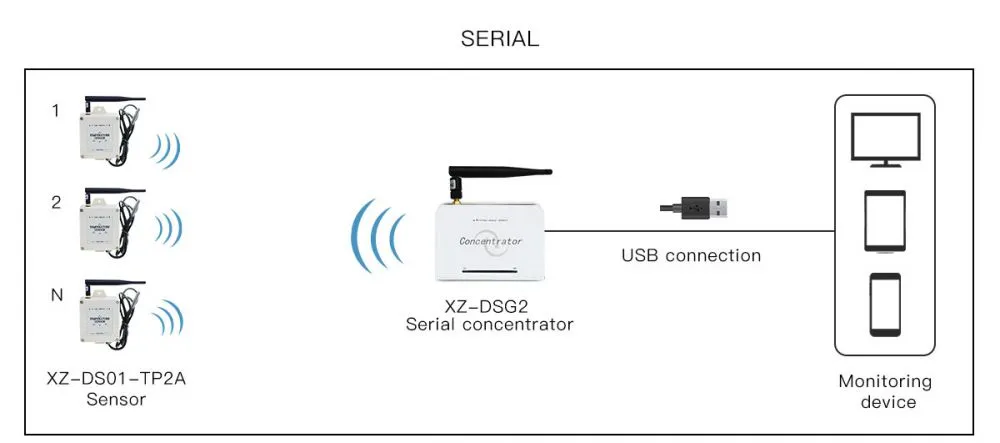

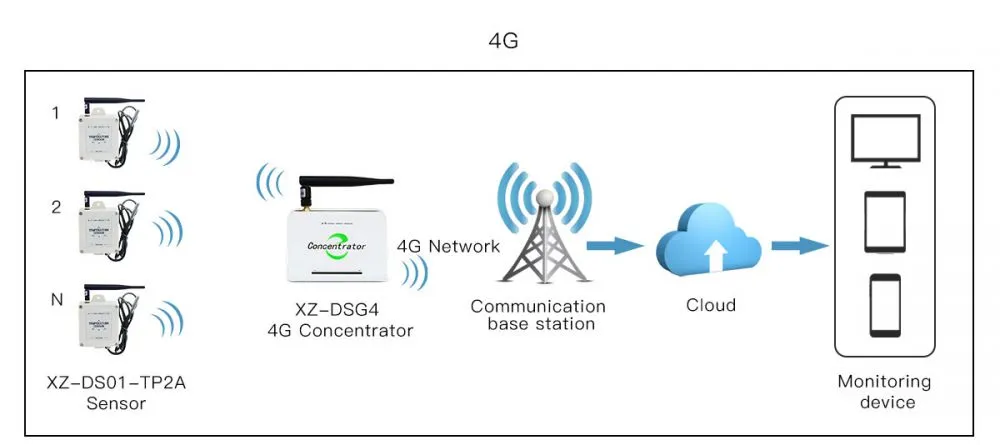

TP2A lora wireless temperature sensor is a low-power wireless temperature measuring instrument.It consists of temperature sensor, signal processing circuit, lora communication module and battery.Working with our lora gateway can realize remote temperature data acquisition. LoRa gateway sends data to a third party data acquisition equipment by using USB serial/ethernet/4G/RS485 Modbus way, each gateway can work with more than 100pcs sensors.
Product Features
♦Big battery works up for 5years,and battery can be replaced by user
♦Using LORA spread spectrum communication technology, long wireless transmission
distance and strong anti-interference ability
♦Temperature notification, set high-low threshold value for alert
♦LoRa Wireless transmission distance maximum 5KM line of sight
♦Monitor every 5mins default,1-240mins can be changed by user
♦Free software and cloud server for remote monitoring
♦One lora gateway can work with more than 100pcs sensors.
♦Open gateway protocol, API interface, cloud platform and other multiple access methods.
♦Manufacturing,support OEM/ODM service
Product Parameters
General Parameters
Transmitting Power:
Receiving Current:
Sensitivity:
Average power consumption:
Transmitting Current :
Battery Life:5 years@8700mAH
Transmission Distance: up to 5KM(L OS)
Power supply:1pc ER26500 3.6V Li-SOCl2 battery
Operating Temperature:-40°C~80°C
Working Frequency:480/433/868/915/925mhz
Sensor Parameters
Temperature Measurement Range:-40℃~80℃
Temperature Accuracy:85℃)


Transmission Interval:5mins default, 1 ~ 240mins settable by user
Software &Cloud Server for Remote Monitoring
We provide free software and cloud server for remote monitoring,and we can also provide protocols and API for you to build your own platform.
