Freezer Temperature Sensor Data Logger Wireless Refrigerator Temperature Monitoring System With Lora Gateway

Freezer Temperature Sensor Data Logger Wireless Refrigerator Temperature Monitoring System With Lora Gateway photo-1

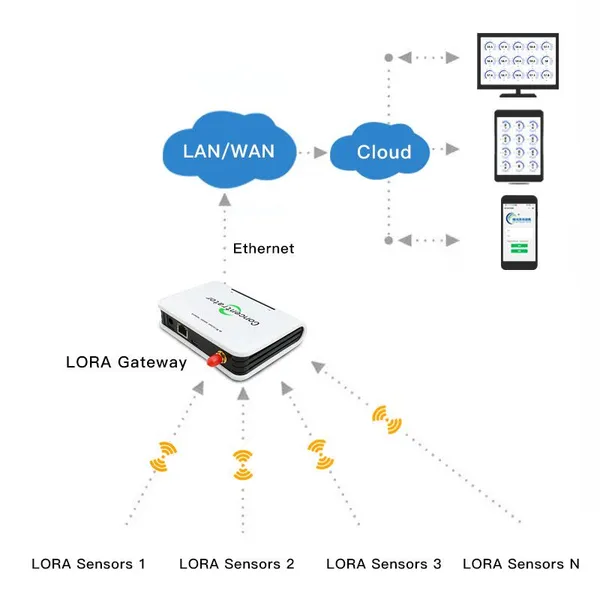

Freezer Temperature Sensor Data Logger Wireless Refrigerator Temperature Monitoring System With Lora Gateway photo-2

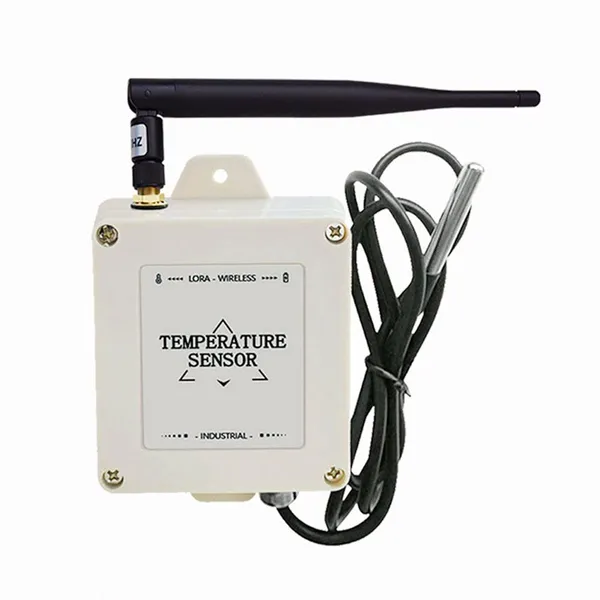

Freezer Temperature Sensor Data Logger Wireless Refrigerator Temperature Monitoring System With Lora Gateway photo-3
Freezer Temperature Sensor Data Logger Wireless Refrigerator Temperature Monitoring System With Lora Gateway photo-4

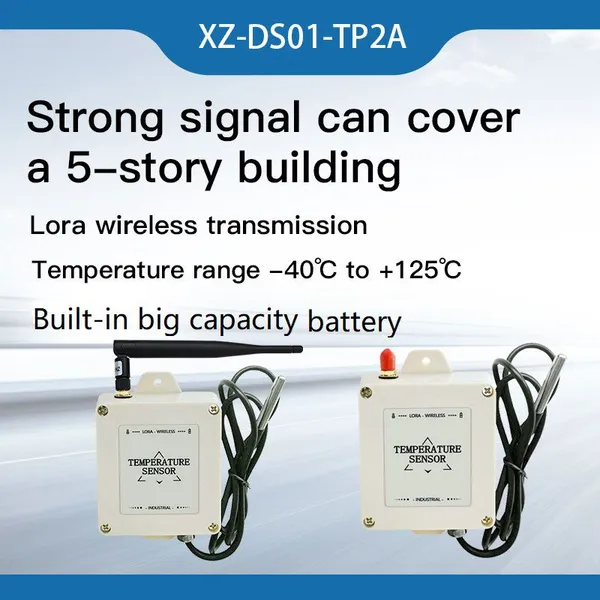

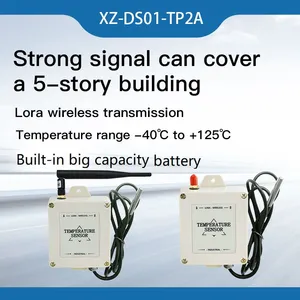

Freezer Temperature Sensor Data Logger Wireless Refrigerator Temperature Monitoring System With Lora Gateway photo-5
US$ 38 - 150 MOQ: 1 Set
Key Specifications
Get Latest Price
Installation Type:
Wall-Mounted Type
Output Signal Type:
Digital Type
Customized:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Installation Type Wall-Mounted Type
Output Signal Type Digital Type
Customized Customized
IP Rating IP56

Welcome to our store,we're manufacturer of wireless sensors and wireless transceivers.Please feel free to contact Mrs.Sarah Yuan:WhatsApp +86 18820739215/sarah@thingsend.com

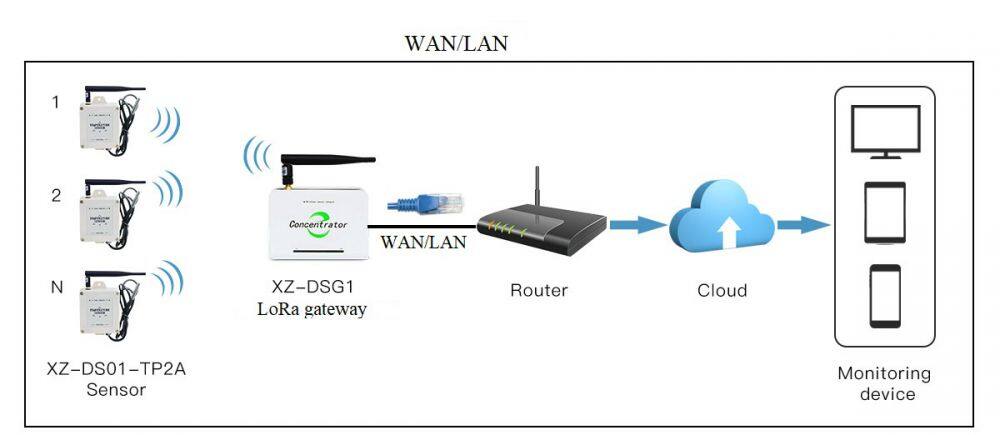

XZ-TP2A-网关拓扑图_01

Product Introduction

TP2A lora wireless temperature sensor is a low-power wireless temperature measuring instrument.It consists of temperature sensor, signal processing circuit, lora communication module and battery.Working with our LoRa WAN/LAN Ethernet gateway DSG1 can realize remote temperature data acquisition. One gateway can work with more than 100pcs sensors.

Product Features
♦Using LORA spread spectrum communication technology, long wireless transmission
distance and strong anti-interference ability
♦Temperature notification, set high-low threshold value for alert

♦LoRa Wireless transmission distance maximum 5KM line of sight

Large battery works up to 5 years and the battery can be replaced by user

♦Monitor every 5mins default,1-240mins can be changed by user

♦Free software and cloud server for remote monitoring
♦One lora gateway can work with more than 100pcs sensors.
♦Open gateway protocol, API interface, cloud platform and other multiple access methods.
♦Manufacturing,support OEM/ODM service

Product Parameters

General Parameters
Transmitting Power:
Receiving Current:
Sensitivity:
Average power consumption:
Transmitting Current :
Battery Life:5 years@8700mAH
Transmission Distance: up to 5KM(L OS)
Power supply:1pc ER26500 3.6V Li-SOCl2 battery
Operating Temperature:-40°C~80°C
Working Frequency:480/868/433/915/925mhz
Sensor Parameters
Temperature Measurement Range:-40℃~125℃
Temperature Accuracy:85℃)




Transmission Interval:5mins default, 1 ~ 240mins settable by user
                                                                      Gateway Parameters
Wired network: RJ45
Working frequency: 480(433/868/915/923mhz)
TCP/IP communication interface Socket
Working Voltage: DC 5V @1A
Fixed IP and server domain name resolution
Receiving sensitivity: -136dBm

Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols and API for you to build your own platform.
