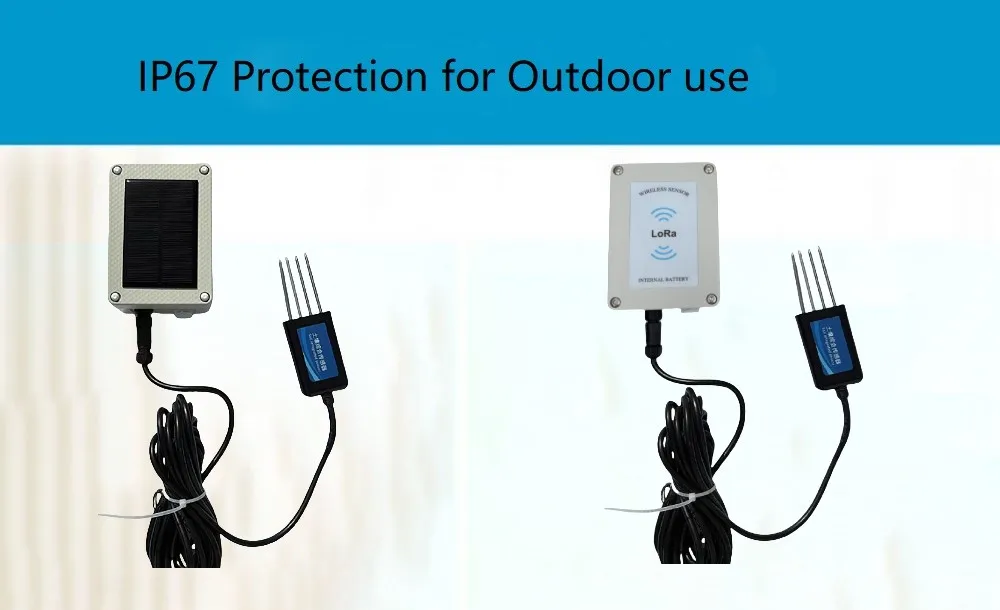

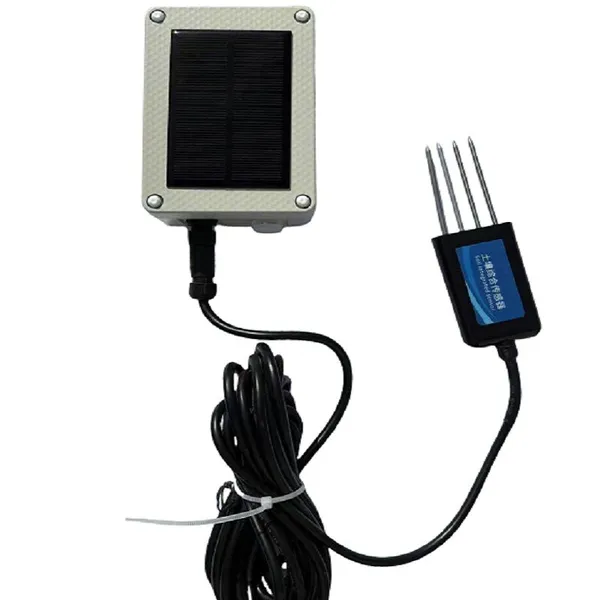

Soil Moisture Sensor Lora Wireless Soil Temperature and Humidity Detector

1.Product Features:

• Track Temperature (-30℃ to 80℃）

• Track Moisture(0-100%）

• Electrode detection, high reliability;

• Battery operated, place it anywhere

• Wireless transmission distance is more than 2km in open field(no obstacles)

• Receive alarm sound and email alert

• Alert multiple users

• Set high-low threshold value for alert

• Monitors /alerts battery levels

• Unlimited history of readings for 6 months

• Monitor every 5 mins default,customized in factory

• No fees or subscription

• Free software

• One concentrator can work with more than 100pcs sensors.

• LED light on when taking readings

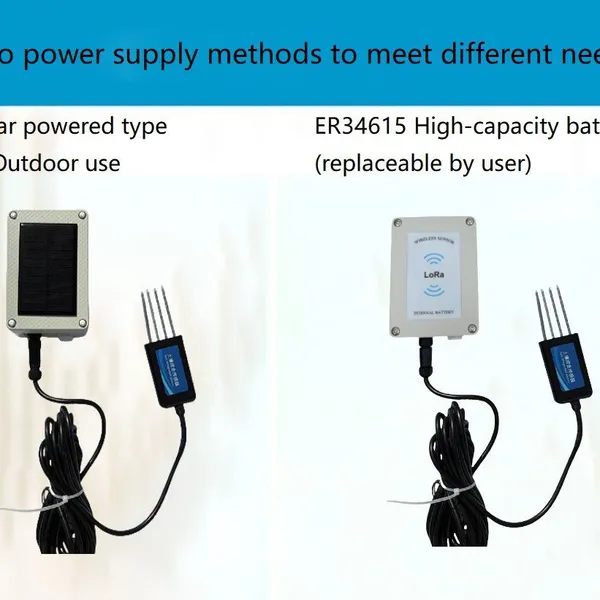

• Requires 1/2 x AA lithium batteries (included)

• Battery life: 5+ Years @5mins average data sending time

• Manufacturer,support OEM/ODM service

2.Data Protocol

Example：GW_ID:12345,TYPE:WT,ID:1,STAT:11000000, T:14.5℃,H:53.3%, PH: 7.0, E: T ST: 5M,

V:3.66v,SN:2,RSSI:-79dBm,E:160.2020,N:110.2020,Time:2018-2-4 14:20:39

Explanation：

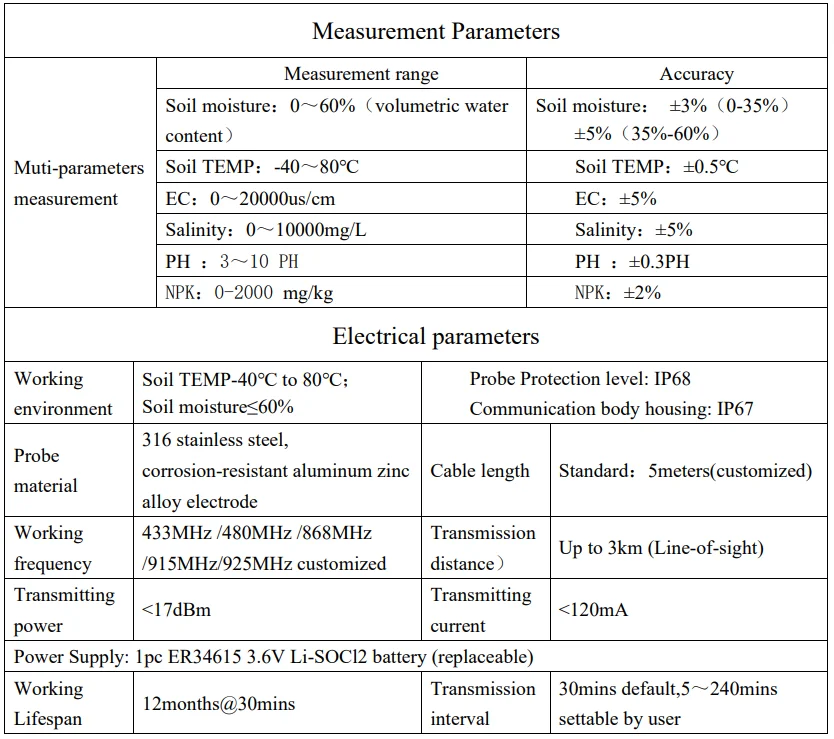

3. Technical parameter

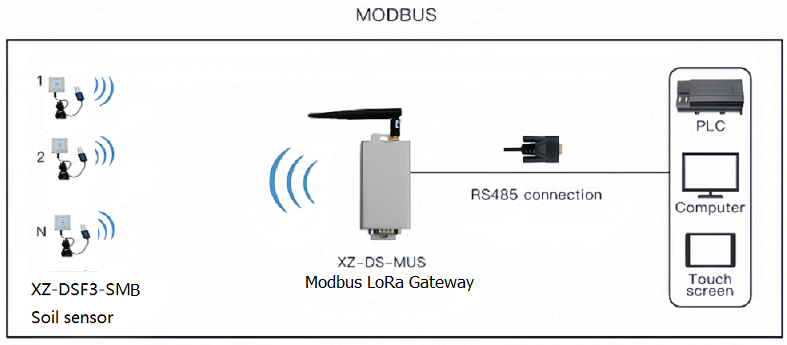

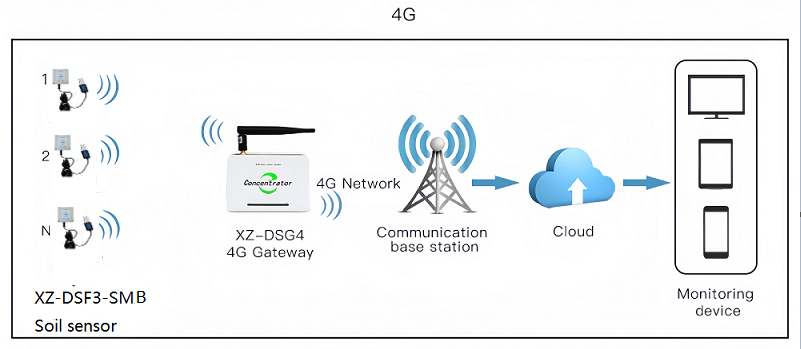

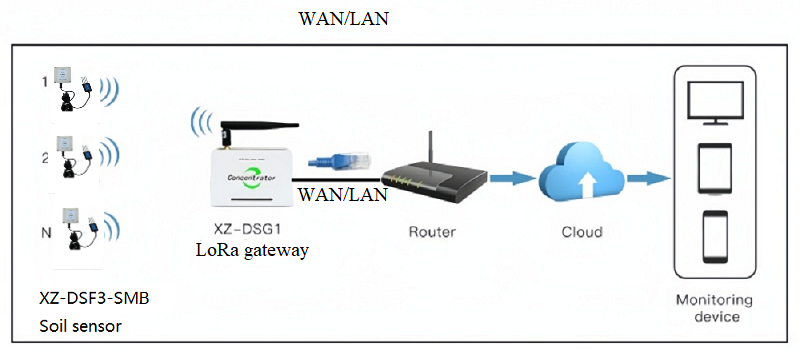

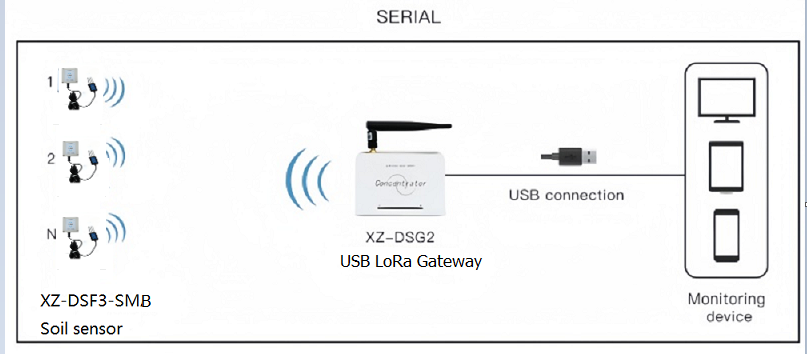

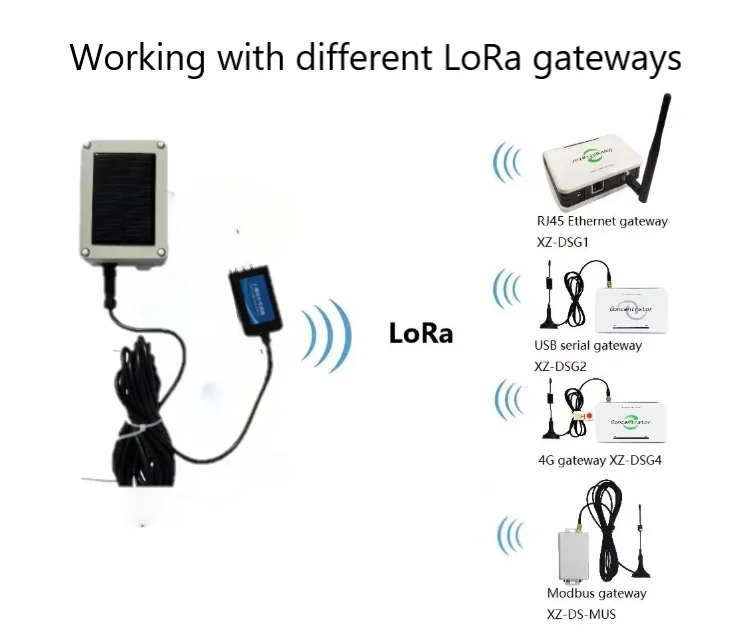

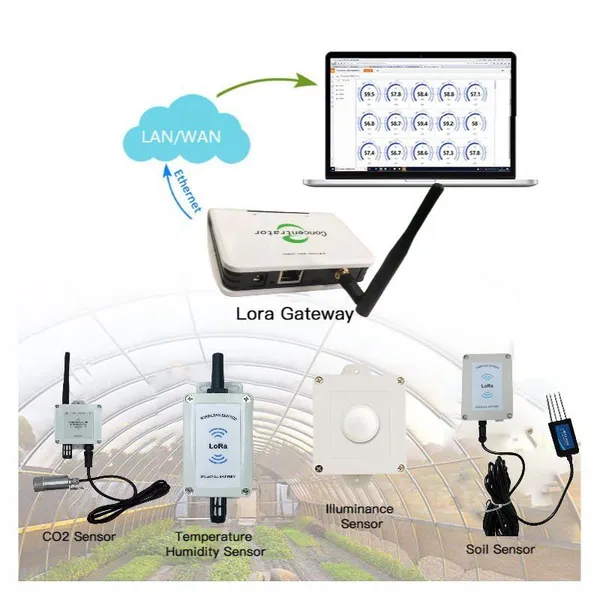

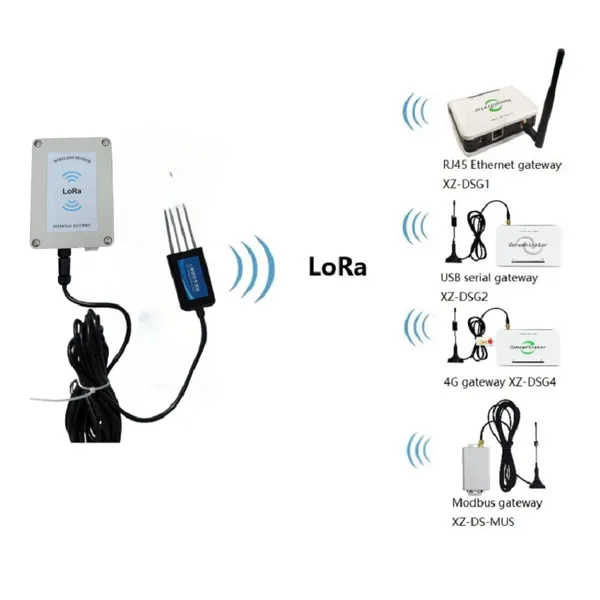

4.Various Concentrators/Gateways for Choosing

5.Free Software for Monitoring

Using the browser to configure the remote IP, port or domain name, local IP or dynamic IP; one can use our company's Galaxy platform software, which can provide CS stand-alone version and BS cloud service version; we can also provide communication protocol and users build their own platforms.

6.Application Field

● Agriculture and forestry soil testing

● Vegetable and greenhouse soil monitoring

● Orchard and planting soil monitoring

7. XZ-DS04-WT Dimension：
