LoRa WAN/LAN Gateway and Sensor for Wireless Temperature and Humidity Monitoring System

LoRa WAN/LAN Gateway and Sensor for Wireless Temperature and Humidity Monitoring System photo-1

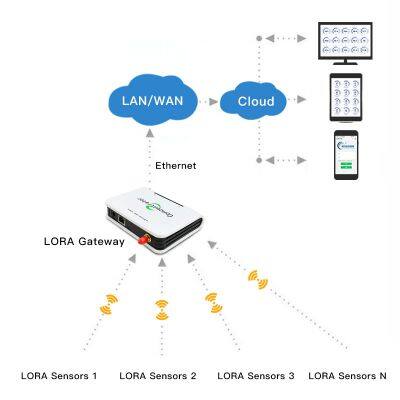

LoRa WAN/LAN Gateway and Sensor for Wireless Temperature and Humidity Monitoring System photo-2
LoRa WAN/LAN Gateway and Sensor for Wireless Temperature and Humidity Monitoring System photo-3
LoRa WAN/LAN Gateway and Sensor for Wireless Temperature and Humidity Monitoring System photo-4

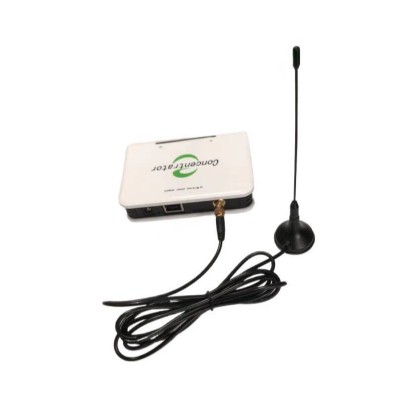

LoRa WAN/LAN Gateway and Sensor for Wireless Temperature and Humidity Monitoring System photo-5
US$ 42 - 152 MOQ: 1 Set
Key Specifications
Get Latest Price
Installation Type:
Wall-Mounted Type
Output Signal Type:
Digital Type
Customized:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Installation Type Wall-Mounted Type
Output Signal Type Digital Type
Customized Customized
IP Rating IP56

Welcome to our store,we're manufacturer of wireless sensors and wireless transceivers.Please feel free to contact Mrs.Sarah Yuan:WhatsApp +86 18820739215/sarah@thingsend.com

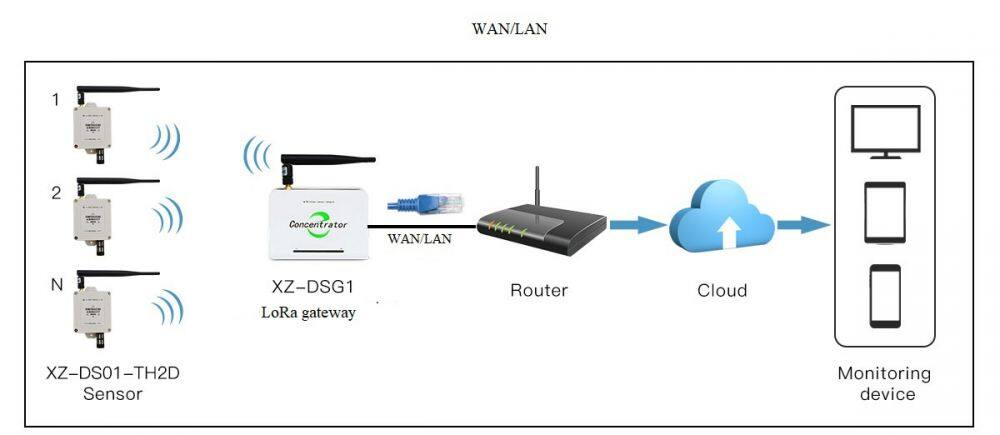

TH2D网关拓扑图_01

Product Introduction

TH2D lora wireless temperature humidity sensor is a low-power wireless temperature humidity measuring instrument.It consists of temperature and humidity sensor, signal processing circuit, lora communication module and battery.Working with our LoRa WAN/LAN Ethernet gateway DSG1 can realize remote temperature and humidity data acquisition. One gateway can work with more than 100pcs sensors.

Product Features
♦Using LORA spread spectrum communication technology, long wireless transmission
distance and strong anti-interference ability
♦Temperature and humidity notification, set high-low threshold value for alert

♦LoRa Wireless transmission distance maximum 5KM line of sight

Large battery works up to 5 years and the battery can be replaced by user

♦Monitor every 5mins default,1-240mins can be changed by user

♦Free software and cloud server for remote monitoring
♦One lora gateway can work with more than 100pcs sensors.
♦Open gateway protocol, API interface, cloud platform and other multiple access methods.
♦Manufacturing,support OEM/ODM service

Product Parameters

General Parameters
Transmitting Power:<1 7dBm
Receiving Current:<20mA
Sensitivity:<-136dBm
Average power consumption:<15uA
Transmitting Current :<1 20mA
Battery Life:5 years@8700mAH
Transmission Distance: up to 5KM(L OS)
Power supply:1pc ER26500 3.6V Li-SOCl2 battery
Operating Temperature:-40°C~80°C
Working Frequency:480/868/433/915/925mhz
Sensor Parameters
Temperature Measurement Range:-40℃~80℃
Temperature Accuracy:±0.5℃(0℃~65℃)& <±1℃(<40℃,>65℃)
Humidity Measurement Range:0~100%RH
Humidity Accuracy:±3% (10% -90%) & < ±4.5% (<10%, >90%)


Transmission Interval:5mins default, 1 ~ 240mins settable by user
                                                                      Gateway Parameters
Wired network: RJ45
Working frequency: 480(433/868/915/923mhz)
TCP/IP communication interface Socket
Working Voltage: DC 5V @1A
Fixed IP and server domain name resolution
Receiving sensitivity: -136dBm

Software &Cloud Server for Remote Monitoring

We provide free software and cloud server for remote monitoring,and we can also provide protocols and API for you to build your own platform.
