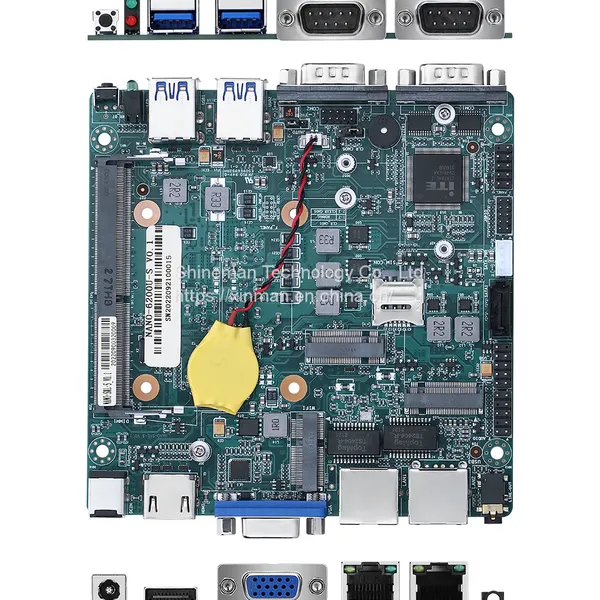

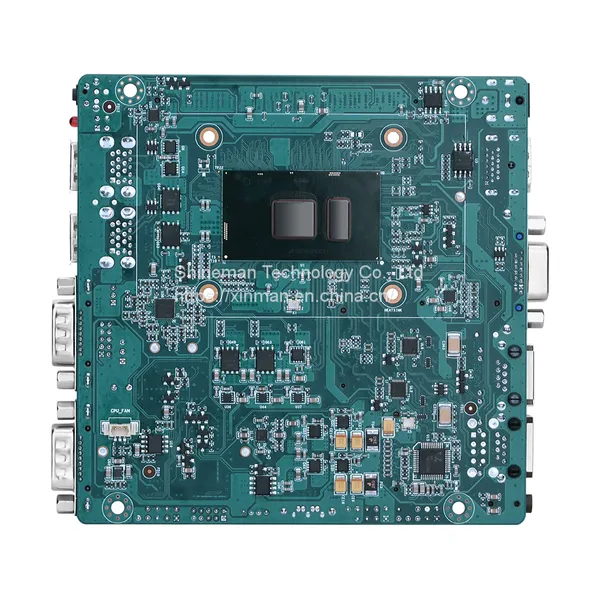

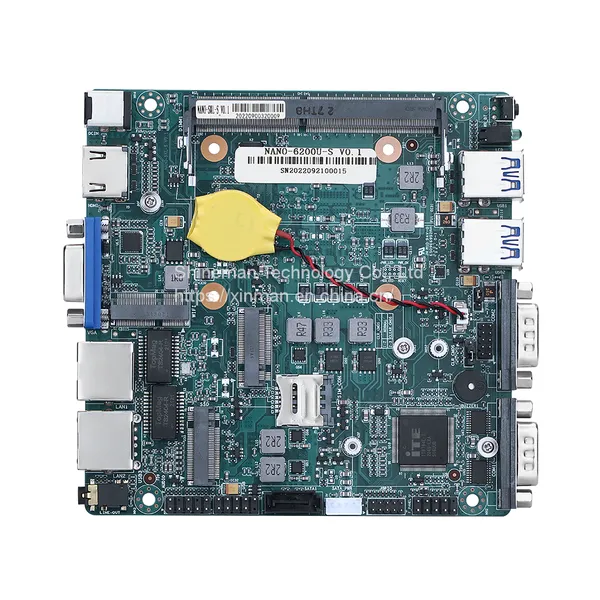

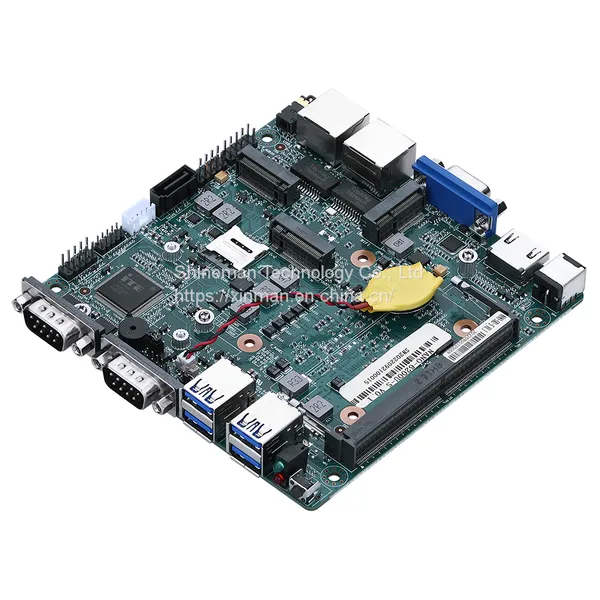

Intel Kaby-Lake/Sky-Lake Nano PC Motherboard w/ Dual 4K Display DDR4 2 Gigabit LAN 2 COM 6 USB GPIO
Spotlight Features
●Soldered down Intel Sky Lake-U/Kaby Lake-U/Kaby Lake-R Processor
●Integrated Intel UHD Graphics 520/620
●With HDMI,VGA,Supports Dual Display
●Single Channel DDR4,Max.32G/2400MHz
●1*M.2 Key B,Supports SSD/4G/5G
●1*M.2 Key E,Supports 2230 WiFi+BT
●1*M.2 Key M,Supports 2242/2280 SSD
●Dual Gigabit LAN，10/100/1000 Base-Tx Gbe Compatible
●Realtek ALC897 5.1 Channels HDA Codec
●8bit Programmable GPIO
●12V Power supply
Specification
Processor |
Intel Sky Lake-U/Kaby Lake-U/Kaby Lake-R Processor |
Graphics |
Intel UHD Graphics 520/620 |
Display |
1*VGA Port |
1*HDMI1.4, Max Reslution 4096X2304@24Hz | |
Memory |
1*DDR4 SO-DIMM，Max.32GB DDR4/2400MT/s |
Ethernet |
2*Realtek RTL8111H Gbe， Supports WOL、PXE Boot |
AUDIO |
1*Realtek ALC897，Whit MIC_IN/HP_OUT 2 in 1 |
Storage |
1*SATA3.0 |
1*M.2 KEY M，Supports M.2 2242/2280 SATA/NVME SSD | |
1*M.2 KEY B，Supports M.2 2242 SATA SSD | |
Expansion |
1*M.2 KEY B，Supports M.2 3042/3052 4G/5G Module |
1*M.2 Key E，Supports M.2 2230 WiFi+BT Module | |
Front Panel I/O |
1*PWR_BTN |
1*LED(PWR_LED+HDD_LED) | |
4*USB3.0 | |
2*COM RS232 | |
Rear Panel I/O |
1*DC_IN |
1*HDMI | |
1*VGA | |
2*RJ45 | |
1*HP_OUT/MIC_IN | |
Internal I/O |
1*F_USB2.0 Header（2*USB2.0 Via Internal Header） |
1*SIM Card | |
1*SATA_PWR | |
1*SATA3.0 6Gbps | |
1*CLR_CMOS | |
1*AUTO_ON | |
1*GPIO(8bit） | |
1*F_PANEL | |
1*F_AUDIO | |
1*CPU_FAN | |
BIOS |
64M Flash ROM |
Power Supply |
DC 12V |
OS |
Windows7/10/Linux |
Heat Sink |
Smart FAN |
OTR |
-10℃～60℃ |
STR |
-20℃～70℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing
|
Dimension |
120*120mm |
The motherboard is compatible with Intel Sky Lake-U/Kaby Lake-U/Kaby Lake-R processors as below:
Model |
CPU |
Thread |
Frequency |
Memory |
Storage |
LAN |
USB |
COM |
Power |
NANO-3965U-S |
3965U |
2C2T |
2.20GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
NANO-4417U-S |
4417U |
2C4T |
2.30GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
NANO-6006U-S |
6006U |
2C4T |
2.00GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
NANO-6200U-S |
6200U |
2C4T |
2.30GHz-2.80GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
NANO-7200U-S |
7200U |
2C4T |
2.50GHz-3.10GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
NANO-7500U-S |
7500U |
2C4T |
2.70GHz-3.50GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
NANO-8130U-S |
8130U |
2C4T |
2.20GHz-3.40GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
NANO-8250U-S |
8250U |
4C8T |
1.60GHz-3.40GHz |
1*DDR4 SODIMM |
1*SATA3.0，1*M.2 KEY M/B |
2 |
6 |
2 |
DC 12 |
