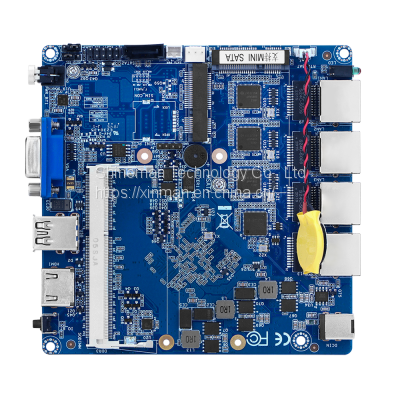

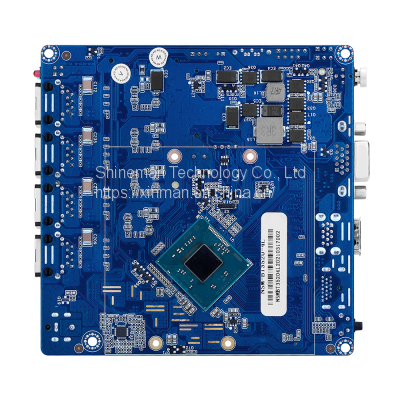

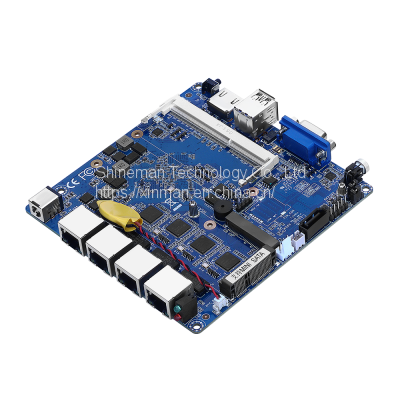

Embedded Intel Baytrail N3540 Motherboard for Network Server/Firewall Windows 7/10/Linux PfSense Router
Spotlight Features
●Soldered down Intel Baytrail Celeron/Pentium Processor
●Integrated Intel HD Graphics
●With HDMI, VGA, Supports Dual Display
●Single Channels DDR3，Max.8G/1333MHz
●1*mPCIE, Supports 3G/4G Module
●4*Gbe LAN, 10/100/1000 Base-Tx Gbe Compatible
●12V Power supply
Specification
Processor |
Intel Baytrail |
Graphics |
Intel HD Graphics |
Display |
1*VGA |
1*HDMI1.4 | |
Memory |
1*DDR3 SO-DIMM, Max.8GB DDR3L/1333MT/s |
Ethernet |
4*Intel i211 LAN, Supports WOL、PXE Boot |
Storage |
1*SATA 3Gbps |
1*mSATA | |
Expansion |
1*mPCIE, Supports 3G/4G Module |

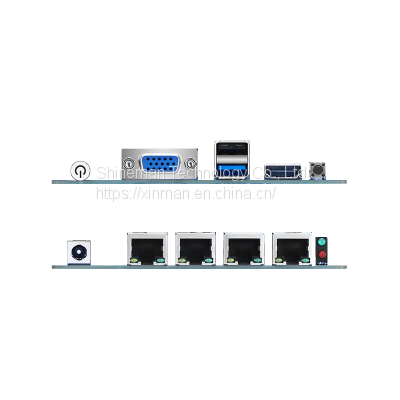

Rear Panel I/O |
1*DC_IN |
4*RJ45 | |
1*PWR_LED/HDD_LED | |
Front I/O |
1*PWR_BTN |
1*USB3.0 | |
1*USB2.0 | |
1*HDMI | |
|
1*VGA
| |
|
1*RST_BTN
| |
Internal I/O |
1*SATA2.0 |
1*SATA_PWR | |
1*F_Panel | |
1*F_USB | |
1*AUTO_ON | |
1*CLR_CMOS | |
BIOS |
AMI UEFI BIOS |
Power Supply |
DC 12V |
OS |
Windows7/10/Linux |
Heat Sink |
Fanless |
OTR |
-10℃～60℃ |
STR |
-20℃～70℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing
|
Dimension |
120*120mm |
