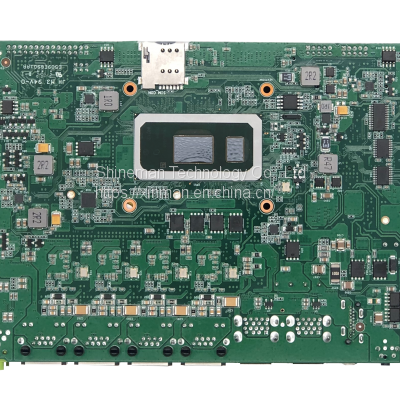

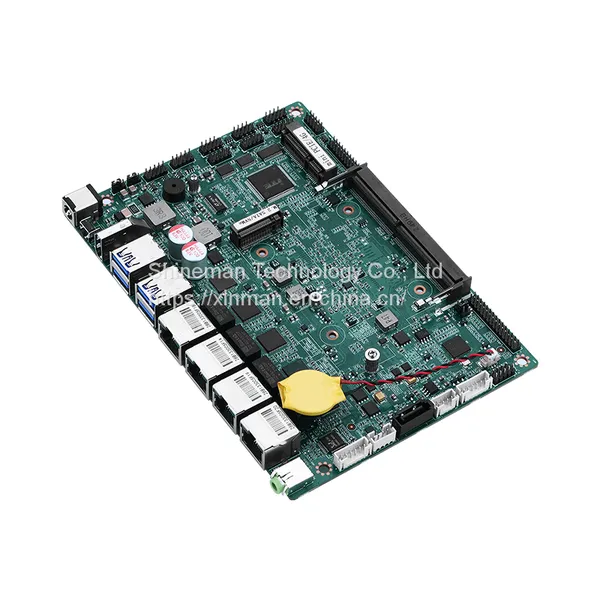

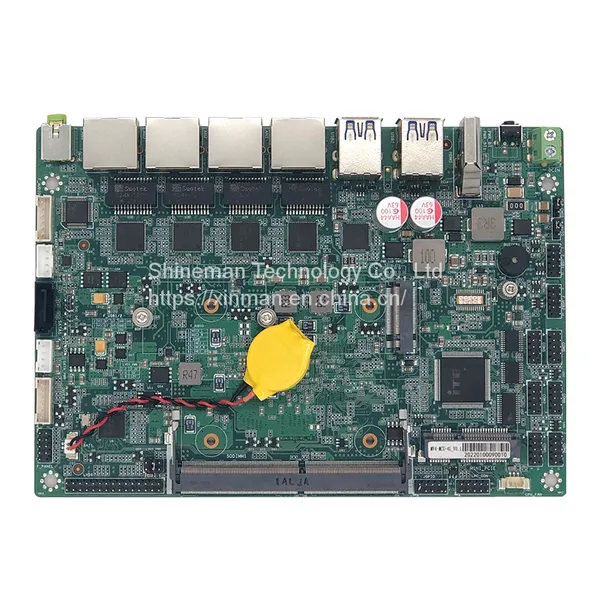

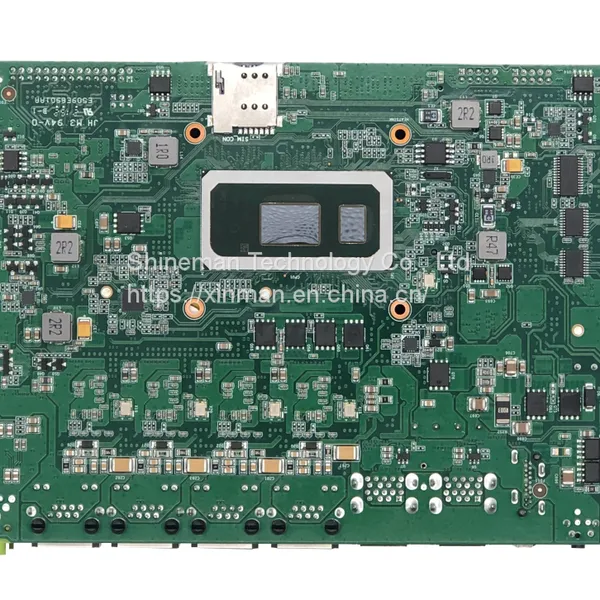

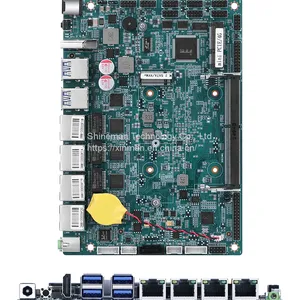

Embedded Intel 10th GEN Quad Core i7 10510U 4.2GHz Nano EPIC PC Motherboard HDMI 4K SATA 3.0 4*LAN Gigabit 6*COM R232 R485
Spotlight Features
●Soldered down 10th/8th Generation Intel Celeron/Pentium/Core i3/i5/i7 Processor
●Integrated Intel UHD Graphics
●With HDMI，LVDS,Supports Dual Display
●Single CHs DDR4，Max.32G/2666MHz
●1*mPCIE，Supports WiFi+BT/4G Module
●1*M.2 Key M，Supports 2242/2280 SSD
●4*Gigabit LAN，10/100/1000 Base-Tx Gbe Compatible,Support POE
●Realtek ALC662 5.1 Channels HDA Codec
●1*16bit programmable GPIO Header
●9V-36V Power supply
Specification
Processor |
Intel Whiskey Lake-U/Coffee Lake-U/Comet Lake-U |
Graphics |
Intel UHD Graphics |
Display |
1*HDMI1.4, Max Reslution 4096X2304@24Hz |
1*LVDS/eDP(Optional） | |
Memory |
1*DDR4 SO-DIMM，Max.32GB DDR4/2666MT/s |
Ethernet |
4*Intel i211AT Gbe， Supports WOL、PXE Boot |
AUDIO |
1*Realtek ALC662，5.1 CHs HDA Codec，Whit MIC_IN/HP_OUT |
Storage |
1*SATA3.0 |
1*M.2 KEY M，Supports M.2 2242/2280 SATA/NVME SSD | |
Expansion |
1*mPCIE，Supports WiFi+BT/4G Module |
1*SIM Card Slot | |

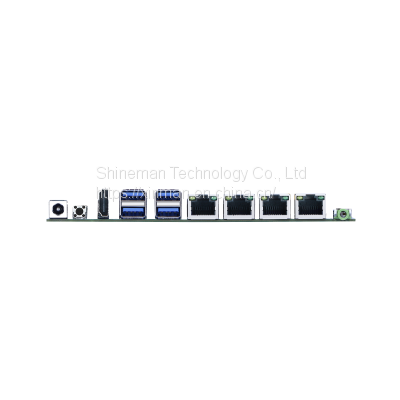

Rear Panel I/O |
1*DC_IN |
1*PWR_BTN | |
1*HDMI | |
4*USB3.0 | |
4*RJ45 | |
1*AUDIO | |
|
Internal I/O
|
2*F_USB2.0 Header（4*USB2.0 Via Internal Header） |
1*SATA_PWR | |
1*SATA3.0 | |
1*CLR_CMOS | |
1*AUTO_ON | |
1*GPIO(16bit） | |
6*COM， COM1/COM2 Supports RS232/RS422/RS485 Option | |
1*F_PANEL | |
1*F_AUDIO | |
1*LVDS/1*eDP | |
1*LVDS_PWR | |
1*INVERT | |
1*SPEAKER | |
1*CPU_FAN | |
1*SIM Card Slot | |
BIOS |
AMI UEFI BIOS |
Power Supply |
DC 9-36V Range |
OS |
windows10/11/Linux |
Heat Sink |
Fanless |
OTR |
-10℃～60℃ |
STR |
-20℃～70℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing
|
Dimension |
165*115mm |
