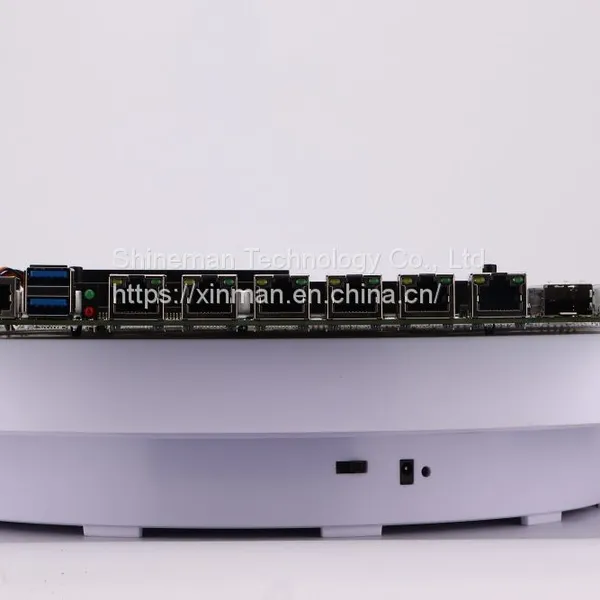

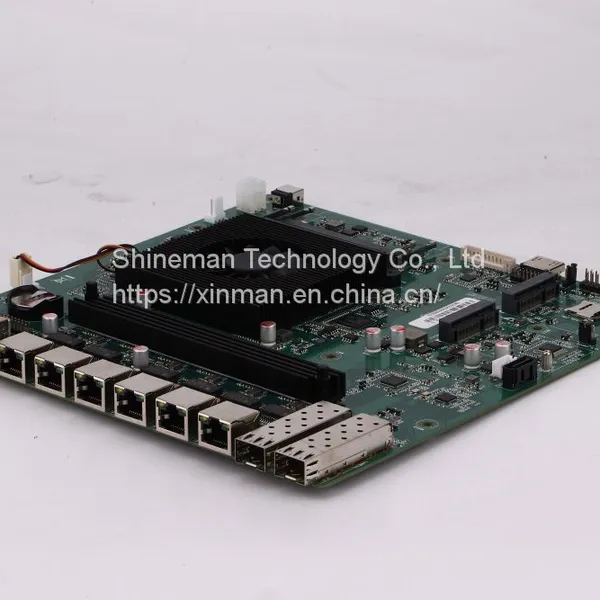

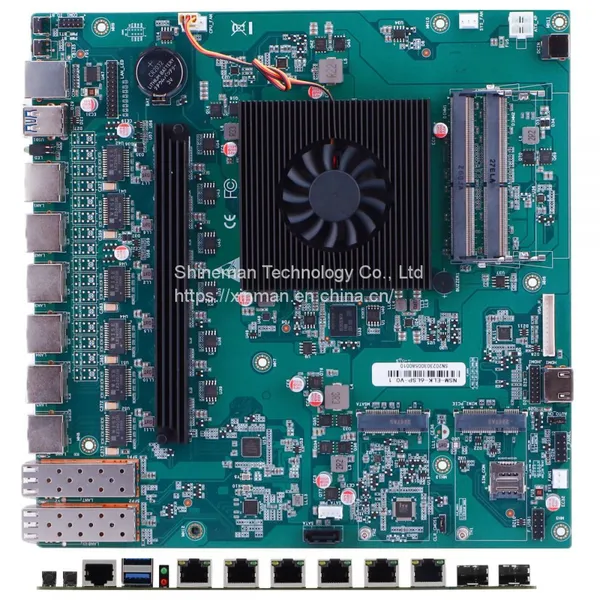

Help CenterIntel Gemini Lake J4125 Embedded Motherboard 2.5G 6*LAN for Network PC PfSense Router Windows 7/10/Linux/Ubantu
Related Products
-
Mini-ITX Motherboard Intel Jasper Lake Quad Core N5095 CPU Dual DDR4 HDMI VGA RJ45 12VDC MainboardUS$ 61 - 73MOQ: 10 Pieces -
Mini-ITX Motherboard Intel Jasper Lake Quad Core N5105 CPU 16GB DDR4 HDMI EDP Mainboard for POSUS$ 61 - 73MOQ: 10 Pieces
-
Intel 12th Gen Alder Lake Quad Core N95 3.4GHz DDR4 HDMI LVDS Mini-ITX Motherboard for POS SYSUS$ 75 - 84MOQ: 10 Pieces
-
Embedded Intel i5 8260U 3.9GHz Turbo Nano EPIC PC Motherboard HDMI 4K Resolution 2.5Gb 4*LAN 6*COM R232 R485US$ 239 - 269MOQ: 10 Pieces
-
Embedded Intel Quad Core i7 8565U 4.6GHz Turbo Nano EPIC PC Motherboard HDMI 4K Resolution 2.5Gb 4*LAN 6*COM R232 R485US$ 254 - 284MOQ: 10 Pieces
Spotlight Features
●Soldered down Intel Gemini Lake/Gemini Lake-R Celeron/Pentium Processor
●Integrated Intel UHD Graphics 600
●With HDMI,VGA,Supports Triple Display
●Single Channels DDR4，Max.8G/2400MHz
●1*mPCIE，Supports 4G/3G Moudle
●1*mPCIE，Supports mSATA SSD
●6*2.5Gbe LAN，10/100/1000/2500 Base-Tx Gbe Compatible
●Supports POE（LAN3-LAN6 Optional）
●Supports Bypass(LAN1-LAN2 Optional）
●12V Power supply
Specification
Processor |
Intel Gemini Lake/Gemini Lake-R |
Graphics |
Intel UHD Graphics 600 |
Display |
1*VGA Port |
1*HDMI1.4, Max Reslution 4096X2160@30Hz | |
Memory |
1*DDR4 SO-DIMM，Max.8GB DDR4/2400MT/s |
Ethernet |
6*LAN,Optional i225V/i226V， Supports WOL、PXE Boot |
Storage |
1*SATA3.0 |
1*mPCIE，Supports mSATA SSD | |
Expansion |
1*mPCIE，Supports 4G/3G Module |
1*SIM Card reader | |
Rear Panel I/O |
1*DC_IN |
1*HDMI | |
1*VGA | |
Front I/O |
1*PWR_BTN |
1*RST_BTN | |
2*USB3.0 | |
6*RJ45 | |
1*COM | |
1*PWR_LED | |
1*HDD_LED | |
Internal I/O |
1*CPU_FAN |
1*SYS_FAN | |
1*SATA3.0 | |
1*SATA_PWR | |
1*ATX_4P | |
1*SIM | |
1*VGA_H | |
2*mPCIE | |
1*AUTO_ON | |
1*CLR_CMOS | |
1*LAN_LED | |
1*F_Panel | |
1*F_USB header | |
BIOS |
64M Flash ROM |
Power Supply |
DC 12V |
OS |
windows10/11/Linux |
Heat Sink |
Smart Fan |
OTR |
-10℃～60℃ |
STR |
-20℃～70℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing
|
Dimension |
180*200mm |
