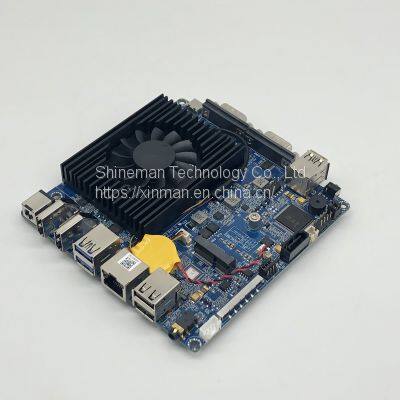

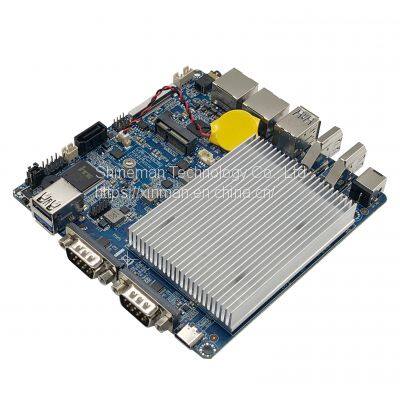

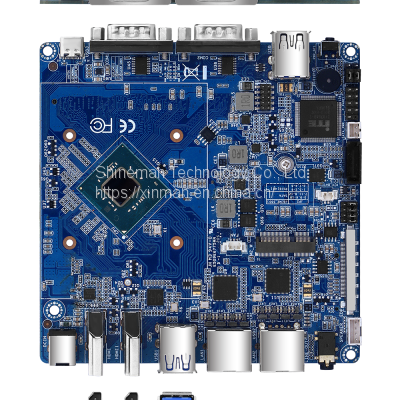

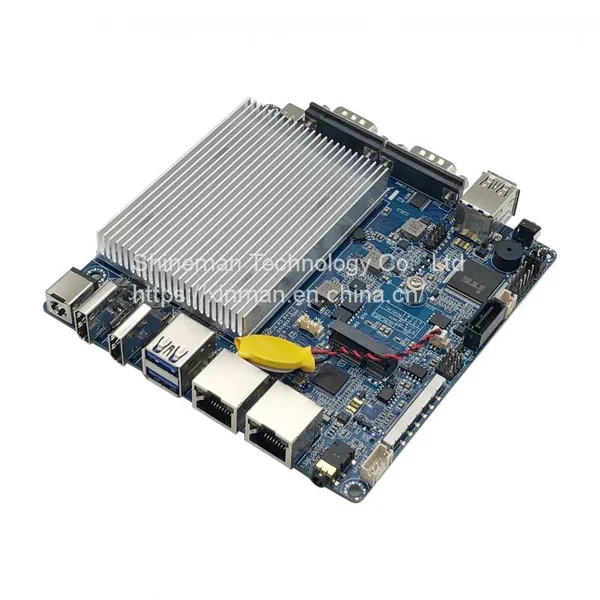

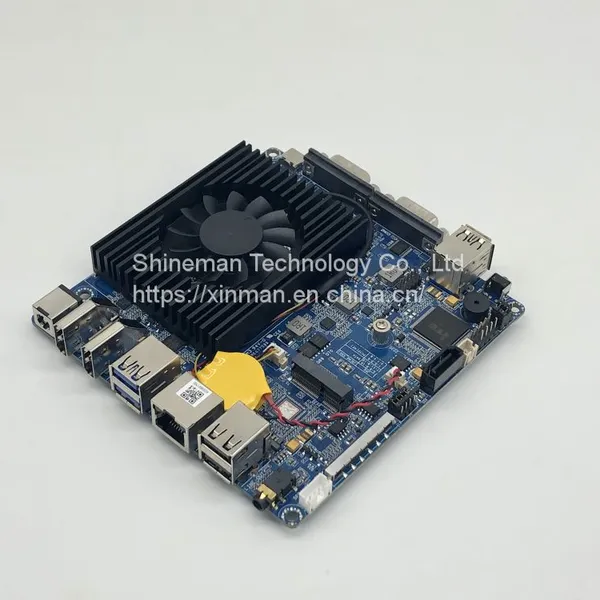

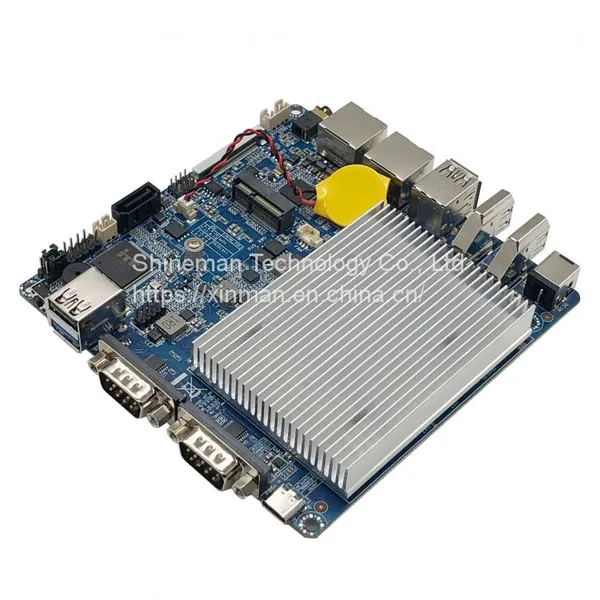

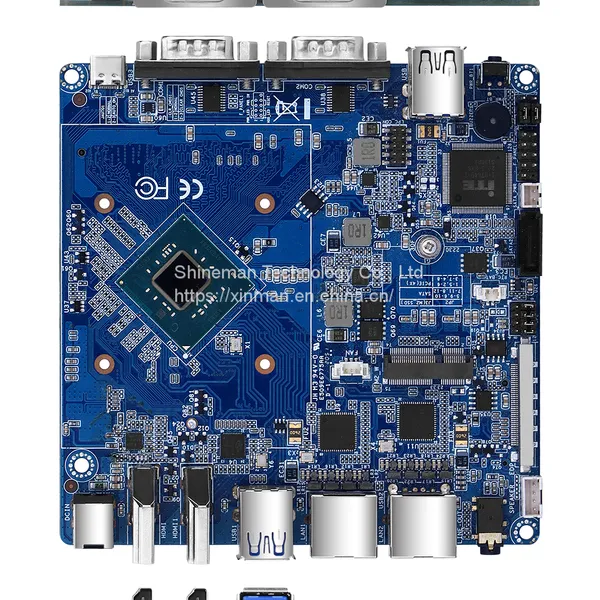

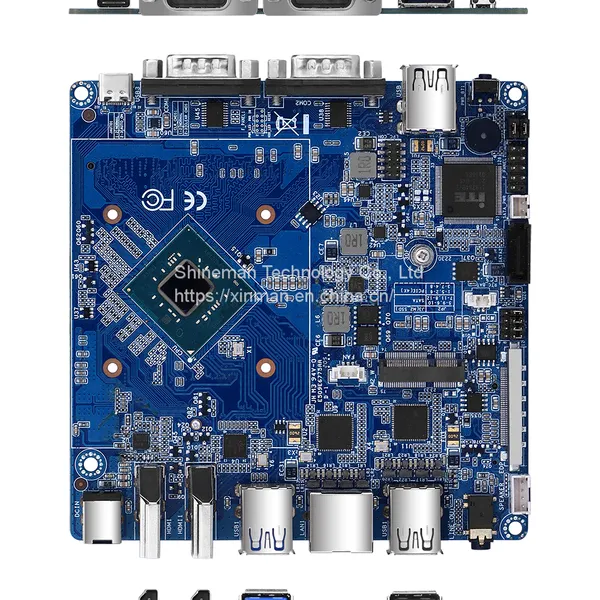

Intel Gemini LakeProcessor Nano PC Motherboard for NUC Computers w/ UHD Graphics 600 Dual 4K Display Fanless Design
Spotlight Features
●Soldered down Intel Gemini Lake/Gemini Lake-R Celeron/Pentium Processor
●Integrated Intel UHD Graphics 600
●With HDMI,DP,Supports Dual Display
●Single Channels DDR4，Max.8G/2400MHz
●1*mPCIE，Supports 3G/4G Module
●1*M.2 Key M，Supports 2242/2280 SSD
●2*2.5Gbe LAN，10/100/1000/2500 Base-Tx Gbe Compatible
●12V Power supply
Specification
Processor |
Intel Gemini Lake/Gemini Lake-R |
Graphics |
Intel UHD Graphics 600 |
Display |
1*DP, Max Reslution 4096X2160@60Hz |
1*HDMI1.4, Max Reslution 4096X2160@30Hz | |
Memory |
1*DDR4 SO-DIMM，Max.8GB DDR4/2400MT/s |
Ethernet |
2*LAN，Optional i225V/i226V， Supports WOL、PXE Boot |
Storage |
1*SATA 6Gbps |
1*M.2 KEY M，Supports M.2 2242/2280 SATA SSD | |
Expansion |
1*mPCIE，Supports 3G/4G Module |
Rear Panel I/O |
1*DC_IN |
2*USB2.0 | |
4*RJ45 | |
1*PWR_LED/HDD_LED | |
Front I/O |
1*PWR_BTN |
1*RST_BTN | |
1*SIM Card Slot | |
1*HDMI | |
1*DP | |
2*USB3.0 | |
Internal I/O |
1*SATA3.0 |
1*SATA_PWR | |
1*F_Panel | |
1*F_USB | |
1*AUTO_ON | |
1*CPU_FAN | |
BIOS |
64M Flash ROM |
Power Supply |
DC 12V |
OS |
windows10/11/Linux |
Heat Sink |
Fanless |
OTR |
-10℃～60℃ |
STR |
-20℃～70℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing
|
Dimension |
120*120mm |
