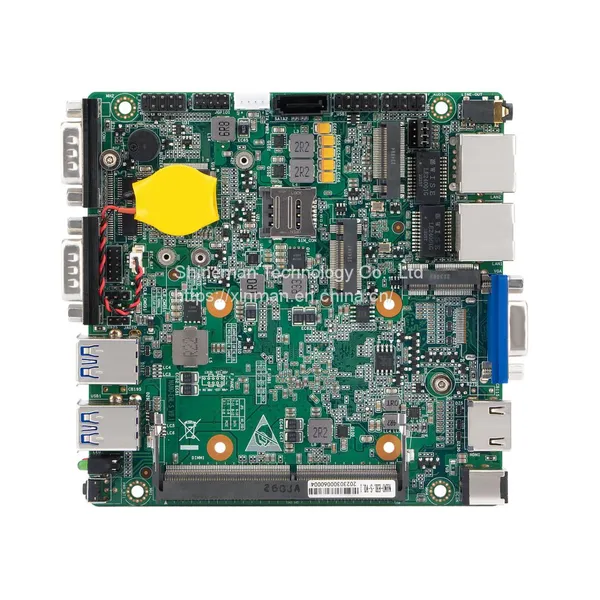

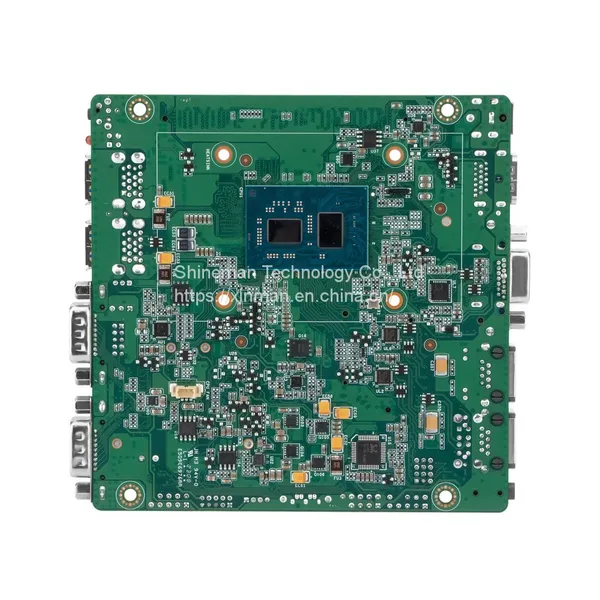

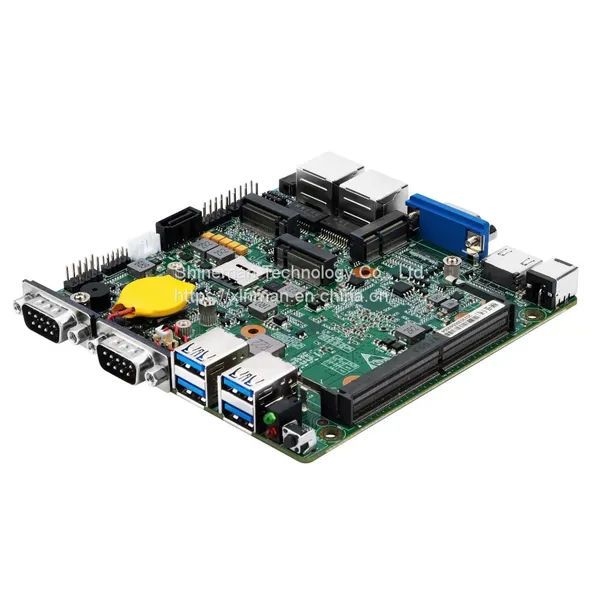

Embedded Intel Quad-Core J6412/6413/6415 Processor Nano PC Motherboard Extensible Computer Mainboard w/ Dual 4K HDMI DDR4
Spotlight Features
●Soldered down Intel Elkhart Lake Celeron Processor
●Integrated Intel UHD Graphics
●With HDMI，DP，Supports Dual Display
●Dual Channels DDR4，Max.32G/3200MHz
●1*PCIE X4，Supports PCIE devices card
●1*M.2 Key M，Supports 2242/2280 SSD
●1*M.2 Key B，Supports 4G Module
●4*2.5Gbe LAN，10/100/1000/2500 Base-Tx Gbe Compatible
●12V Power supply
Specification
Processor |
Intel Elkhart Lake |
Graphics |
Intel UHD Graphics |
Display |
1*DP, Max Reslution 4096X2160@60Hz |
1*HDMI1.4, Max Reslution 4096X2160@30Hz | |
Memory |
2*DDR4 SO-DIMM，Max.32GB DDR4/3200MT/s |
Ethernet |
3*LAN，Optional i225V/i226V， Supports WOL、PXE Boot |
1*2.5Gbe LAN，Optional 2.5G SFP+ (LAN1) | |
Storage |
1*SATA 6Gbps |
1*M.2 Key M，Supports M.2 2242/2280 SATA SSD | |
Expansion |
1*M.2 Key B，Supports 4G Module，Support 5G optional |
1*PCIE X4，Expansible 2*10G SFP+ | |
Rear Panel I/O |
1*DC_IN |
1*Console | |
4*RJ45 | |
1*PWR_LED/HDD_LED | |
Front I/O |
1*PWR_BTN |
1*RST_BTN | |
1*SIM Card Slot | |
1*HDMI | |
1*DP | |
2*USB3.0 | |
2*USB2.0 | |
Internal I/O |
1*SATA3.0 |
1*SATA_PWR | |
1*F_Panel | |
1*F_USB，2*USB2.0 Ports Via F_USB header | |
1*AUTO_ON | |
1*CPU_FAN | |
1*CLR CMOS | |
BIOS |
AMI UEFI BIOS |
Power Supply |
DC 12V |
OS |
windows10/11/Linux |
Heat Sink |
Fanless |
OTR |
-10℃～70℃ |
STR |
-20℃～85℃ |
Humidity |
5%-95% Relative Humidity,Non-condensing |
Dimension |
135*135mm |
