Intel Core i5 10210U 4.2GHz-Turbo Embedded Motherboard ITX Mini PC Mainboard Industrial Computer Hardware Components
Spotlight Features
●Soldered down 10th/8th Generation Intel Celeron/Pentium/Core i3/i5/i7 Processor
●Integrated Intel UHD Graphics
●With HDMI，VGA，LVDS/eDP,Supports Triple Display
●Dual Channels DDR4，Max.64G/2666MHz
●1*M.2 Key B，Supports 3042/3052 4G/5G
●1*M.2 Key E，Supports 2230 WiFi+BT
●1*M.2 Key M，Supports 2242/2280 SSD
●Gigabit LAN，10/100/1000 Base-Tx Gbe Compatible
●Realtek 5.1 Channels HDA Codec
●12V-19V Power supply
●8 Layers PCB
Specification
Processor | Intel Whiskey Lake-U/Coffee Lake-U/Comet Lake-U |
Graphics | Intel UHD Graphics |
Display | 1*VGA Port |
1*HDMI1.4, Max Reslution 4096X2304@24Hz | |
1*LVDS/1*eDP(Option） | |
Memory | 2*DDR4 SO-DIMM，Max.64GB DDR4/2666MT/s |
Ethernet | 1*Realtek RTL8111H Gbe， Supports WOL、PXE Boot |
AUDIO | 1*Realtek ALC897，5.1 CHs HDA Codec，Whit MIC_IN/HP_OUT |
Storage | 2*SATA3.0 |
1*M.2 KEY M，Supports M.2 2242/2280 SATA/NVME SSD | |
Expansion | 1*M.2 KEY B，Supports M.2 3042/3052 4G/5G Module |
1*M.2 Key E，Supports M.2 2230 WiFi+BT Module | |

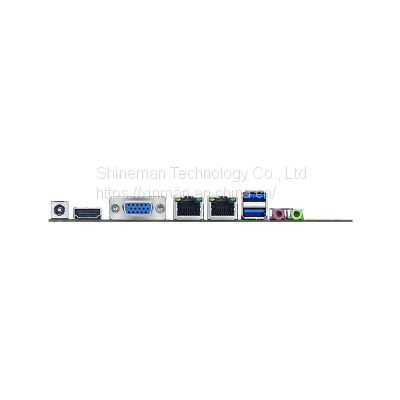

Rear Panel I/O | 1*DC_IN |
1*HDMI | |
1*VGA | |
2*USB2.0 | |
1*RJ45 | |
2*USB3.0 | |
1*HP_OUT，1*MIC_IN | |
Internal I/O | 1*F_USB2.0 Header（2*USB2.0 Via Internal Header） |
1*F_USB3.0 Header（2*USB3.0 Via Internal Header） | |
2*SATA_PWR | |
2*SATA3.0 | |
1*CLR_CMOS | |
1*AUTO_ON | |
1*GPIO(16bit） | |
2*COM， COM2 Supports RS232/RS422/RS485 Option | |
1*F_PANEL | |
1*F_AUDIO | |
1*LVDS/1*eDP（Option） | |
1*INVERT | |
1*SPEAKER | |
1*CPU_FAN，1* SYS_FAN | |
BIOS | 128M Flash ROM |
Power Supply | DC 12-19V Range |
OS | windows10/11/Linux |
Heat Sink | Smart FAN |
OTR | -10℃～60℃ |
STR | -20℃～70℃ |
Humidity | 5%-95% Relative Humidity,Non-condensing
|
Dimension | 170*170mm |
