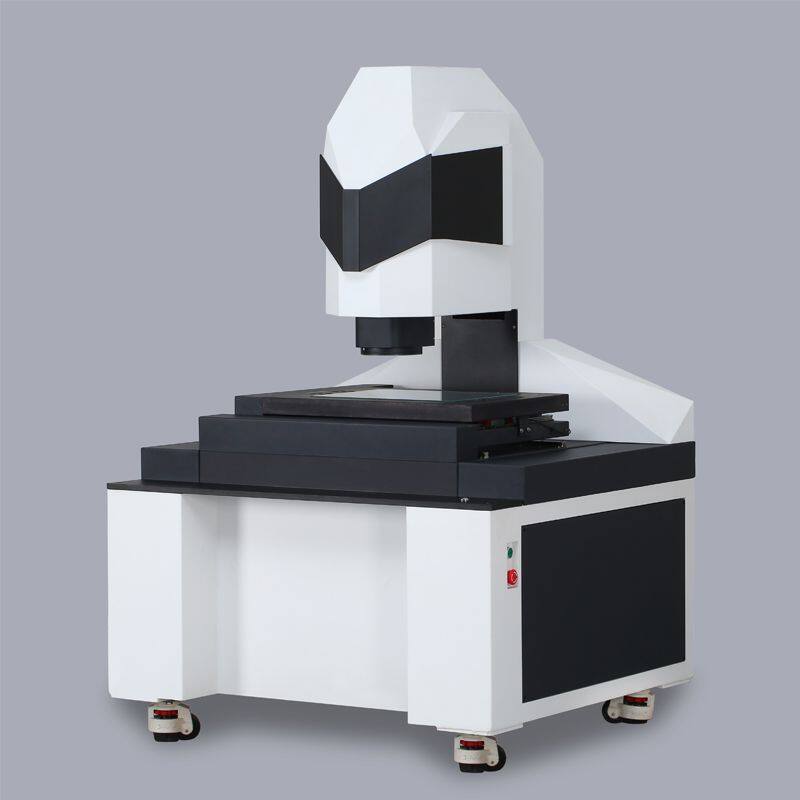

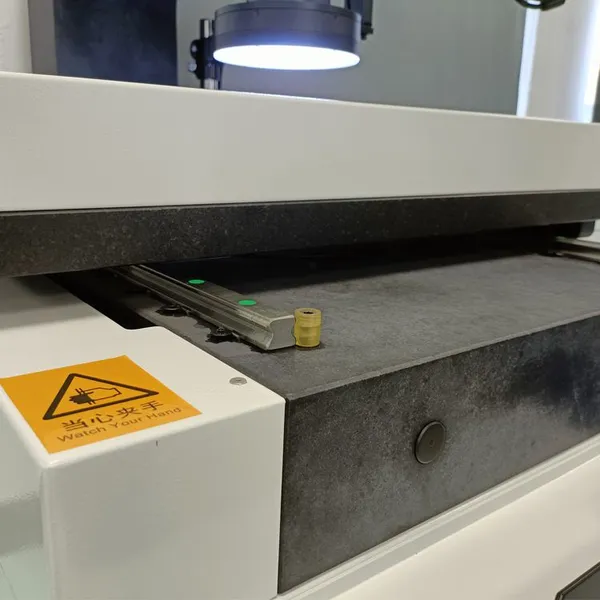

Help CenterThe Splicing Automatic Instant Vision Measurement System Produced in China
Related Products
-
Quick Vision Measuring Machine Manufacturer & Fast Vision Measuring SystemsCNY 88000 - 91000MOQ: 1 Set -
Instant Vision Measurement System(HD-9060D) Video & Optical Measuring SystemCNY 89000 - 95000MOQ: 1 Set
-
Horizontal and Vertical Integrated Instant Vision Measuring Machine HD-9685VHCNY 175000 - 188000MOQ: 1 Set
-
HD-90D Instant Vision Measuring Machine & One-button Vision Measurement SystemsCNY 92000 - 95000MOQ: 1 Set
-
HD-50VH Horizontal and Vertical Integrated Instant Vision Measuring MachineCNY 195000 - 198000MOQ: 1 Set
Model |
HD-432PJ |
|
CCD |
20 Million pixel industrial camera |
|
Lens |
Double rate double telecentric lens |
|
Light source system |
Telecentric parallel contour light, annular surface light, coaxial light and low angle light that can be raised and lowered. |
|
Z-axis working distance |
150mm |
|
Visual field |
Large field of view mode |
90*60mm |
High precision mode |
1.7*11mm |
|
Load-bearing capacity |
25KG |
|
Repeatability accuracy |
Large field of view mode without stitching |
±2μm |
Stitched large field of view mode |
±5μm |
|
High precision mode without stitching |
±2μm |
|
Stitched high precision mode |
±3μm |
|
Measurement accuracy |
Large field of view mode without stitching |
±5μm |
Stitched large field of view mode |
±(5+L/200)μm |
|
High precision mode without stitching |
±3μm |
|
Stitched high precision mode |
±(3+L/200)μm |
|
Measurement software |
FMES-V2.0 |
|
Measurement mode |
It can switch between 2 different fields of view arbitrarily, and can measure single or multiple products at the same time. |
|
Measurement speed |
3 seconds per 100 sizes |
|
Operating environment |
Temperature: 22℃±3℃ Humidity: 50～70% Vibration: |
|
Monitor |
Philips 27” |
|
Main frame |
Intel i7+16G+1T |
|
Power supply |
AC 110-240V,50/60HZ |
|
Warranty |
12 months |
|
