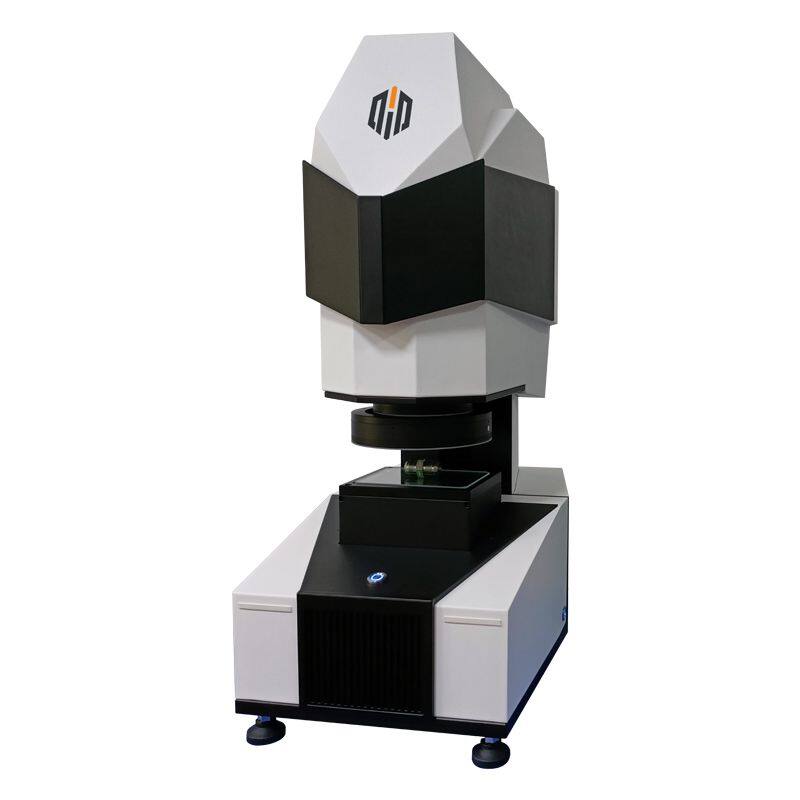

HD-90D Instant Vision Measuring Machine & one-button vision measurement systems

CCD

20 Million pixel industrial camera

Lens

Ultra-clear bi-telecentric lens

Light source system

Telecentric parallel contour light and ring-shaped surface light.

Z-axis movement mode

45mm

55mm

100mm

Load-bearing capacity

15KG

Visual field

42×35mm

90×60mm

180×130mm

Repeatability accuracy

±1.5μm

±2μm

±5μm

Measurement accuracy

±3μm

±5μm

±8μm

Measurement software

IVM-2.0

Measurement mode

It can measure single or multiple products at the same time.

the measurement time: ≤1-3 seconds.

Measurement speed

800-900 PCS/H

Power supply

AC220V/50Hz,200W

Operating environment

Temperature: 22℃±3℃  Humidity: 50～70%

Vibration: <0.002mm/s, <15Hz

Weight

35KG

40KG

100KG

Warranty

12 months
