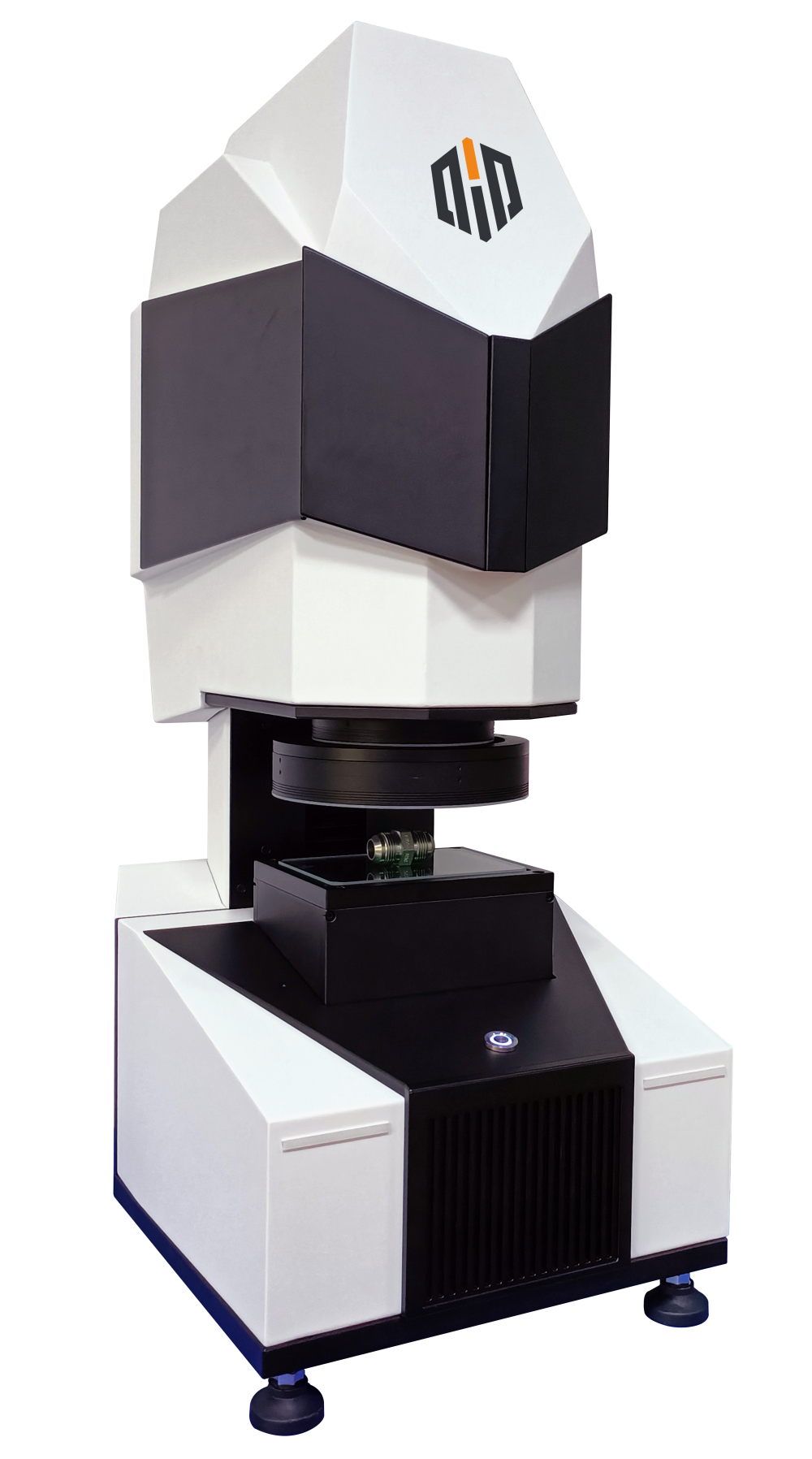

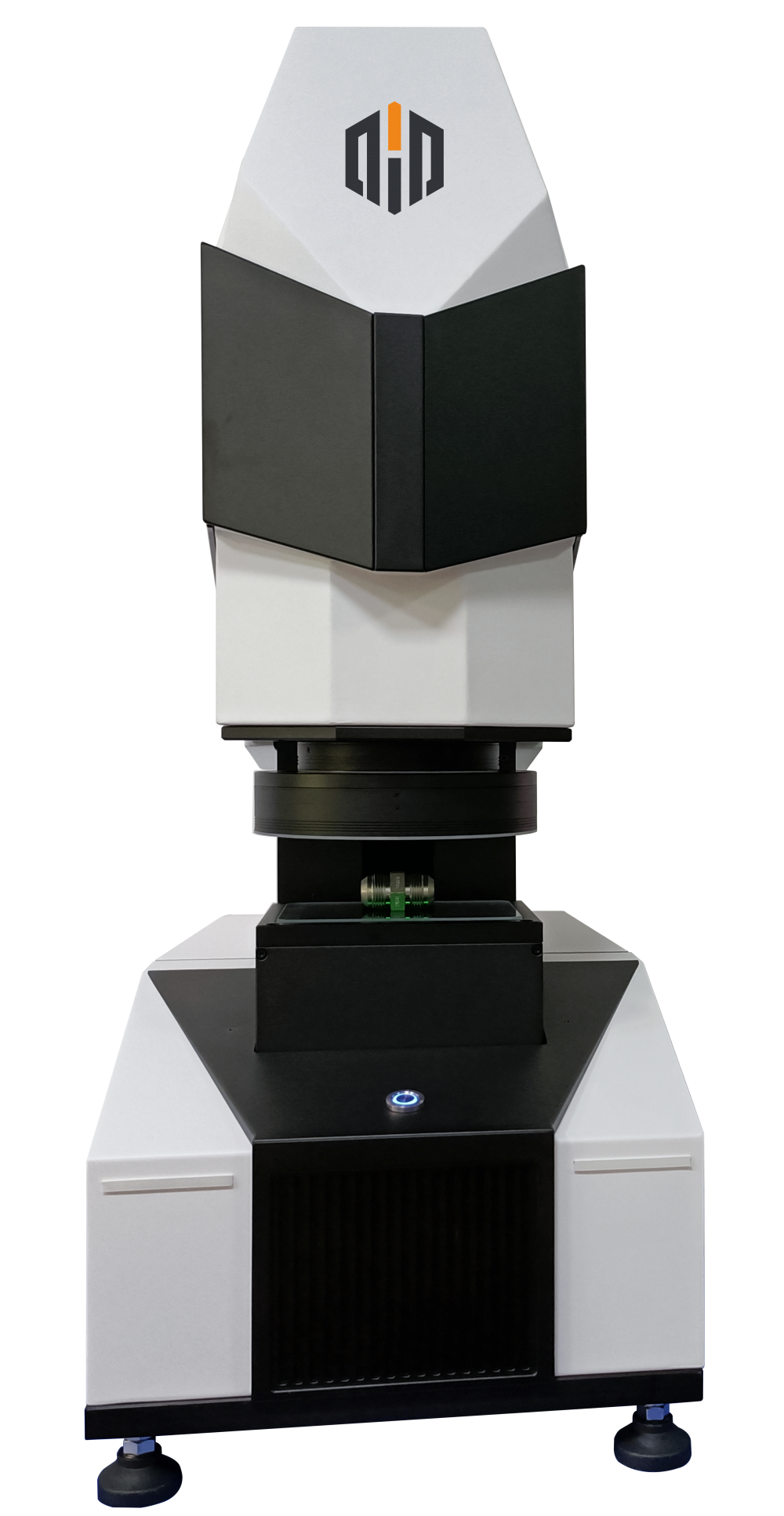

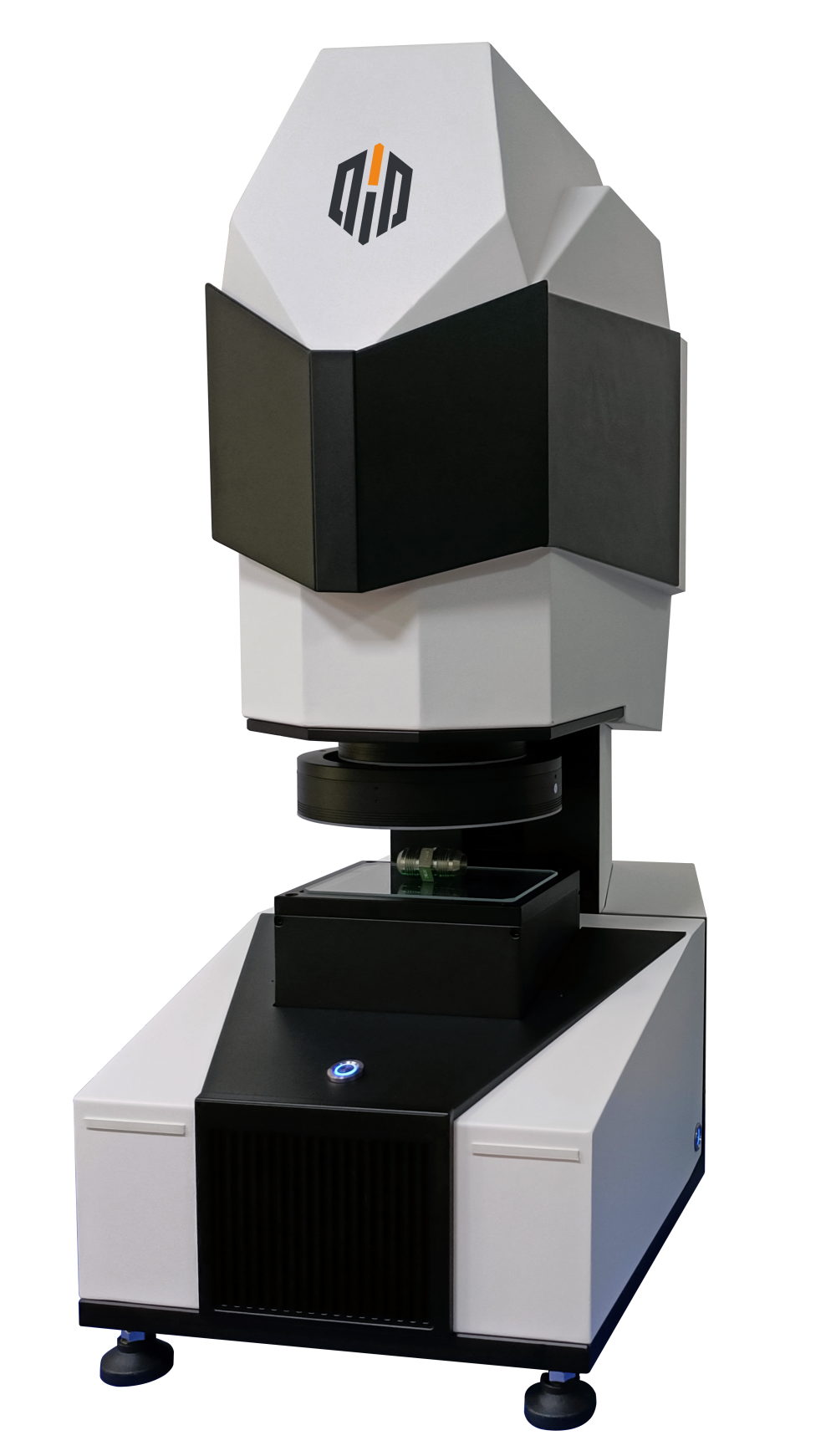

2022 High Quality HD-90D Automatic Vision Measuring Machine With MCP Probe
US$ 195000 - 198000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HanDing
Place of Origin:
China
Model Number:
HD-90D
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
30 days
Related Products
-
High Quality HD-200FV Multi-sensor Vision Measuring MachineUS$ 195000 - 198000MOQ: 1 Set -
Factory Price HD-50VH CNC Vision Measuring Machine Vision Measuring Machine PriceUS$ 195000 - 198000MOQ: 1 Set
-
Instant Vision Measuring Machine Manufacturer & Rapid Vision Measurement System PriceUS$ 92000 - 95000MOQ: 1 Set
-
Horizontal And Vertical Integrated Instant Vision Measurement Machine From HanDing OpticalUS$ 195000 - 198000MOQ: 1 Set
-
Horizontal Instant Vision Measuring Machine Price & Instant Vision Measurement Systems Made in ChinaUS$ 125000 - 128000MOQ: 1 Set
Brand Name
HanDing
Place of Origin
China
Model Number
HD-90D
Model | HD-50D | HD-90D | SMU-180D |
CCD | 20 Million pixel industrial camera | ||
Lens | Ultra-clear bi-telecentric lens | ||
Light source system | Telecentric parallel contour light and ring-shaped surface light. | ||
Z-axis movement mode | 45mm | 55mm | 100mm |
Load-bearing capacity | 15KG | ||
Visual field | 42×35mm | 90×60mm | 180×130mm |
Repeatability accuracy | ±1.5μm | ±2μm | ±5μm |
Measurement accuracy | ±3μm | ±5μm | ±8μm |
Measurement software | IVM-2.0 | ||
Measurement mode | It can measure single or multiple products at the same time. the measurement time: ≤1-3 seconds. | ||
Measurement speed | 800-900 PCS/H | ||
Power supply | AC220V/50Hz,200W | ||
Operating environment | Temperature: 22℃±3℃ Humidity: 50～70% Vibration:<0.002mm/s, <15Hz | ||
Weight | 35KG | 40KG | 100KG |
Warranty | 12 months | ||
