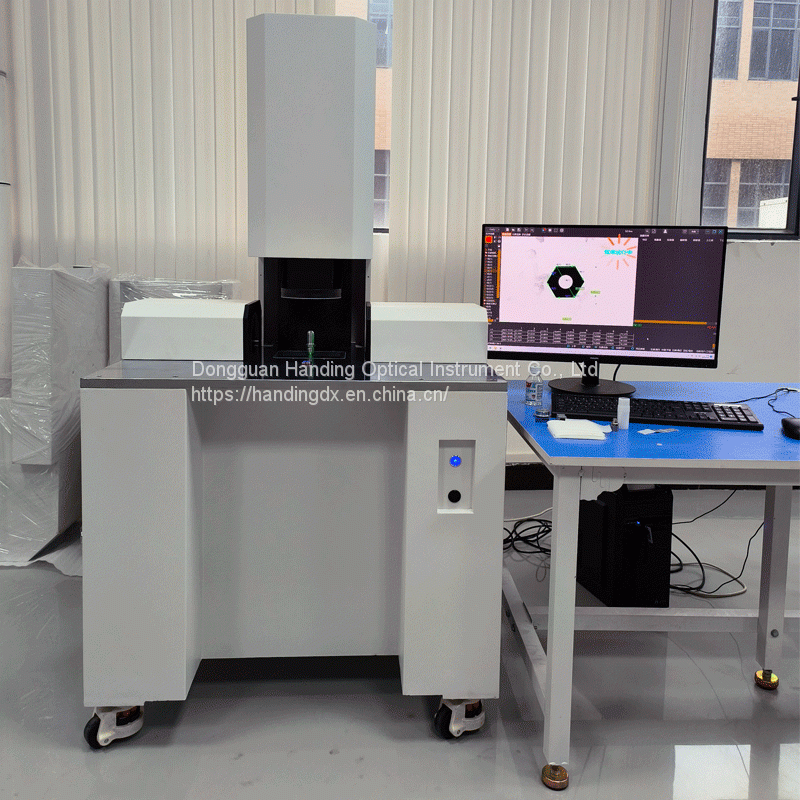

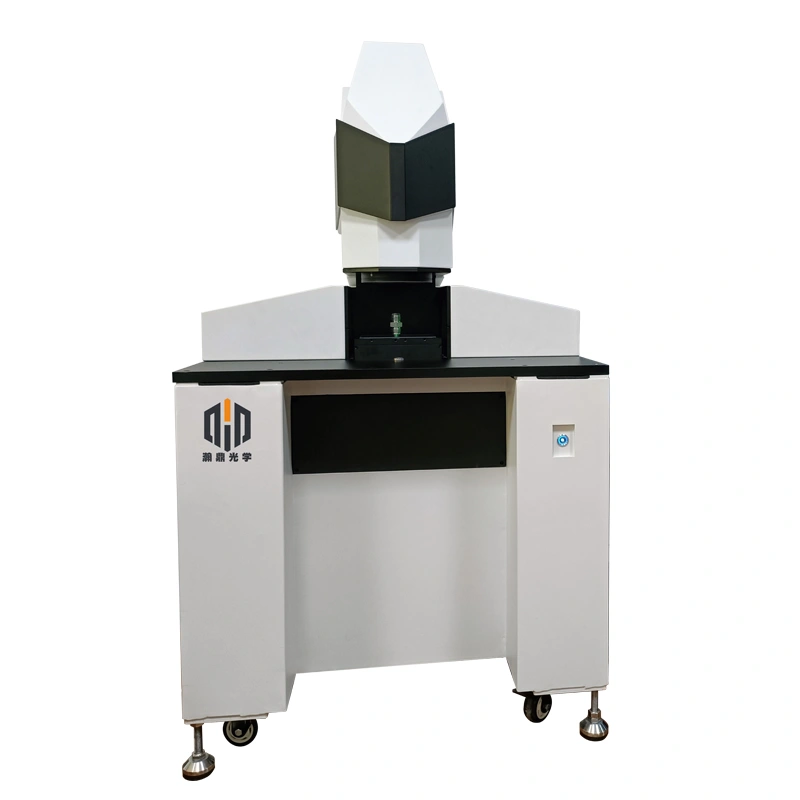

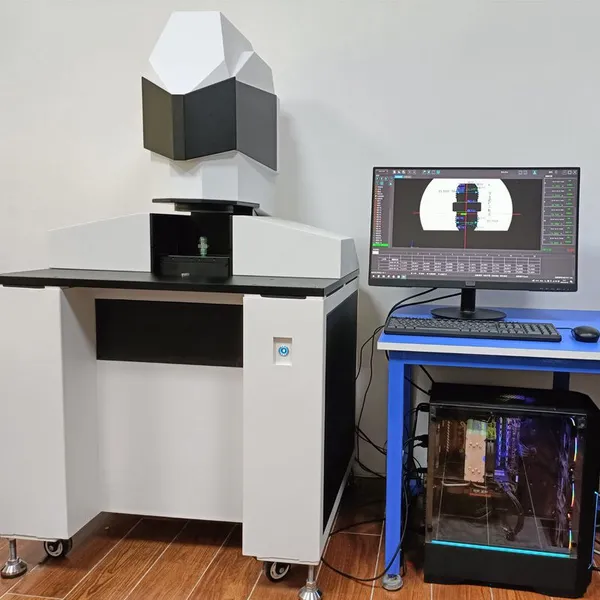

Horizontal and vertical integrated instant vision measuring machine HD-9685VH

Model

HD-9685VH

Image Sensor

20 million pixel CMOS*2

light receiving lens

Bi-telecentric lens

Vertical lighting system

White LED ring spotlight with surface

Horizontal lighting system

Telecentric Parallel Epi-Light

Object view

vertical

90*60mm

horizontal

80*50mm

Repeatability

±2um

measurement accuracy

±3um

Software

FMES V2.0

Turntable

diameter

φ110mm

load

＜3kg

range of rotation

0.2-2 revolutions per second

Vertical lens lift range

50mm，automatic

Power supply

AC 220V/50Hz

Working environment

Temperature:10~35℃，humidity:30~80%

Equipment power

300W

Monitor

Philips 27"

Computer host

intel i7+16G+1TB

Measurement functions of the software

Points, Lines, Circles, Arcs, Angles, Distances, Parallel Distances, Circles with Multiple Points, Lines with Multiple Points, Arcs with Multiple Segments, R Angles, Box Circles, Identify Points, Point Clouds, Single or Multiple Quick Measurement.Intersect, Parallel, Bisect, Perpendicular, Tangent, Highest Point, Lowest Point, Caliper, Center Point, Center Line, Vertex Line,Straightness, roundness, symmetry, perpendicularity, position, parallelism,Position tolerance, geometric tolerance, dimensional tolerance.

Software marking function

Alignment, vertical level, angle, radius, diameter, area, perimeter dimension, thread pitch diameter, batch dimension, automatic judgment NG/OK

Reporting function

SPC Analysis Report, (CPK.CA.PPK.CP.PP) Value, Process Capability Analysis, X Control Chart, R Control Chart

Report output format

Excel
