Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > HD-90D Instant Vision Measuring Machine Auto Focus Vision Measuring Machine

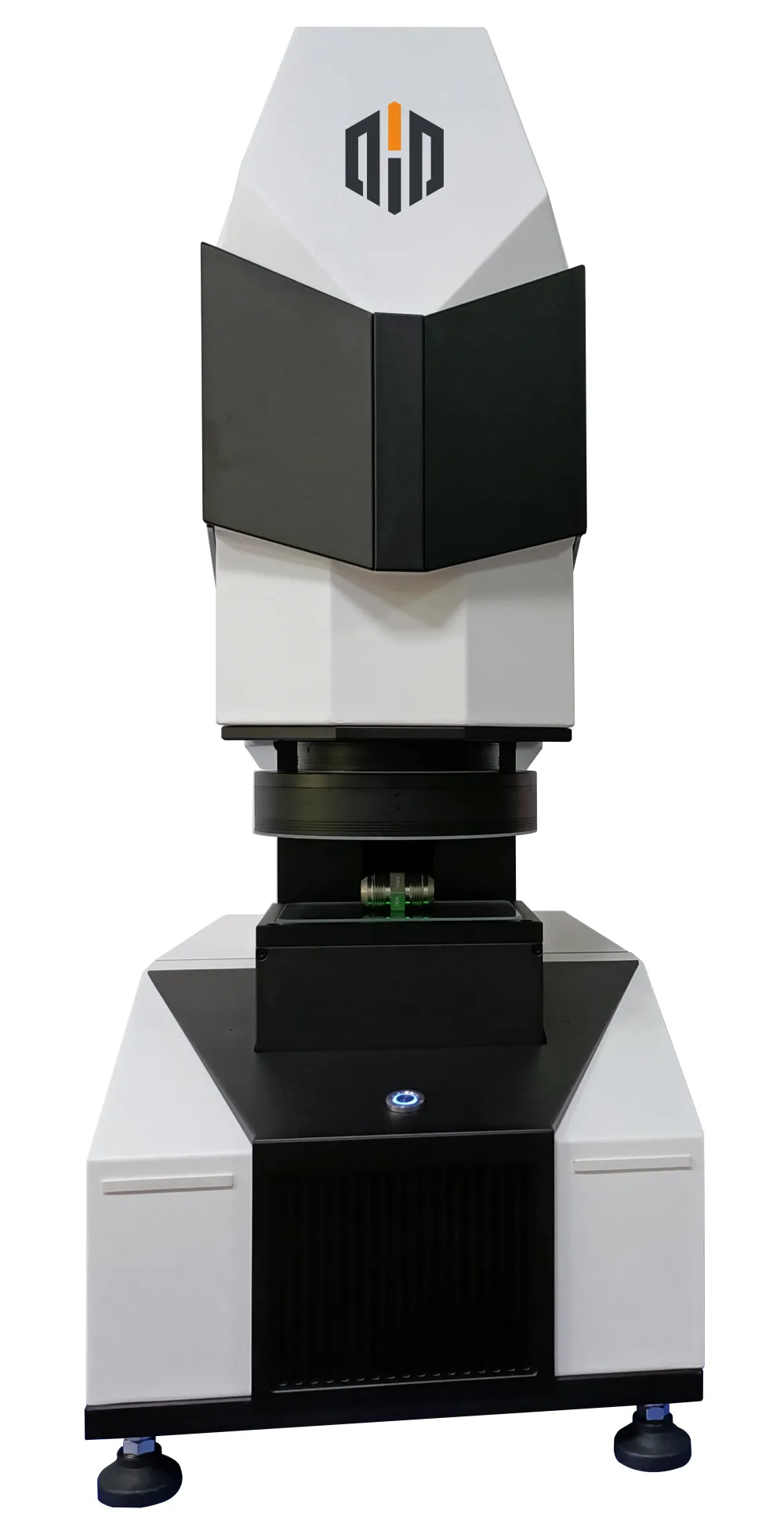

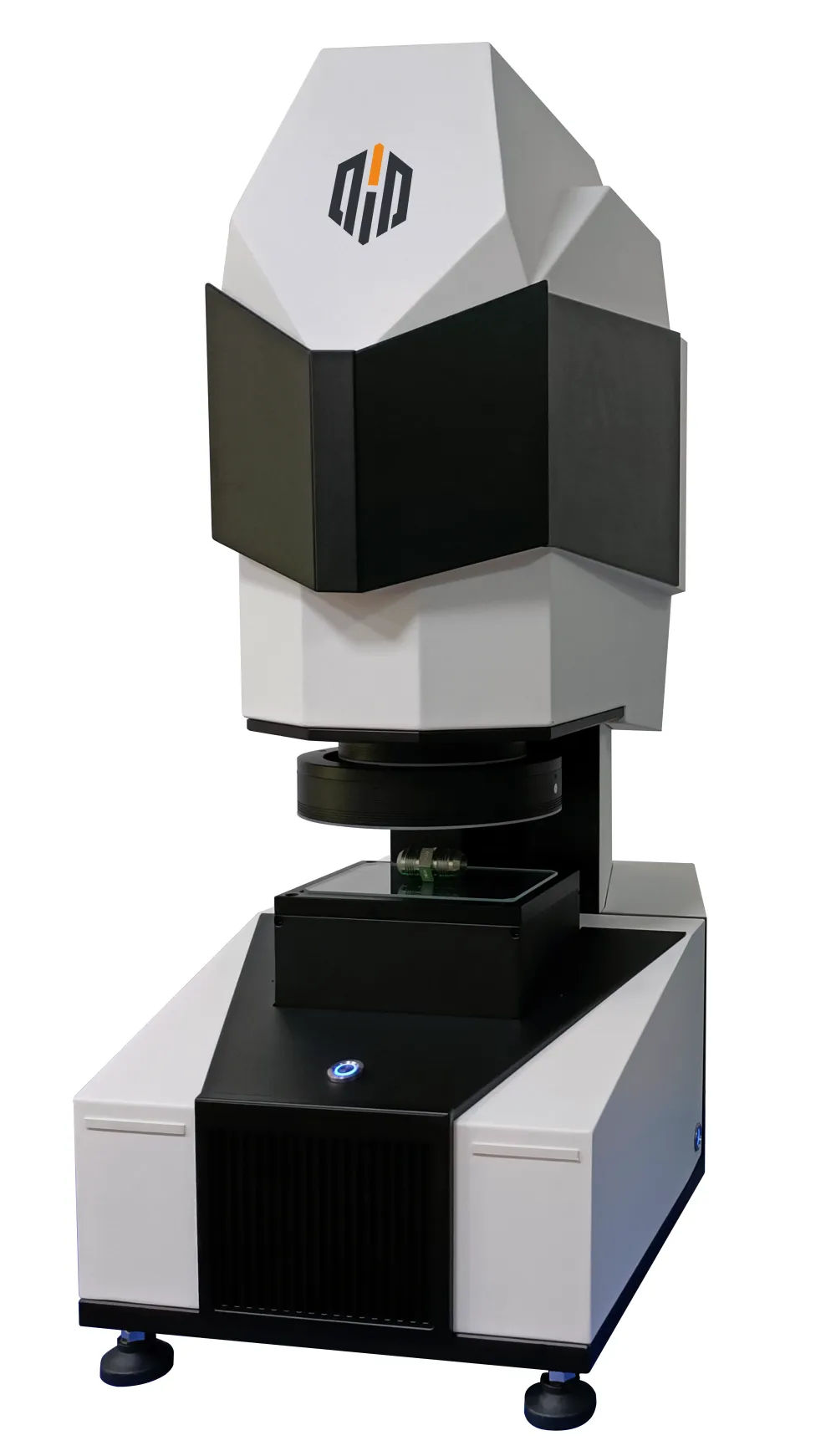

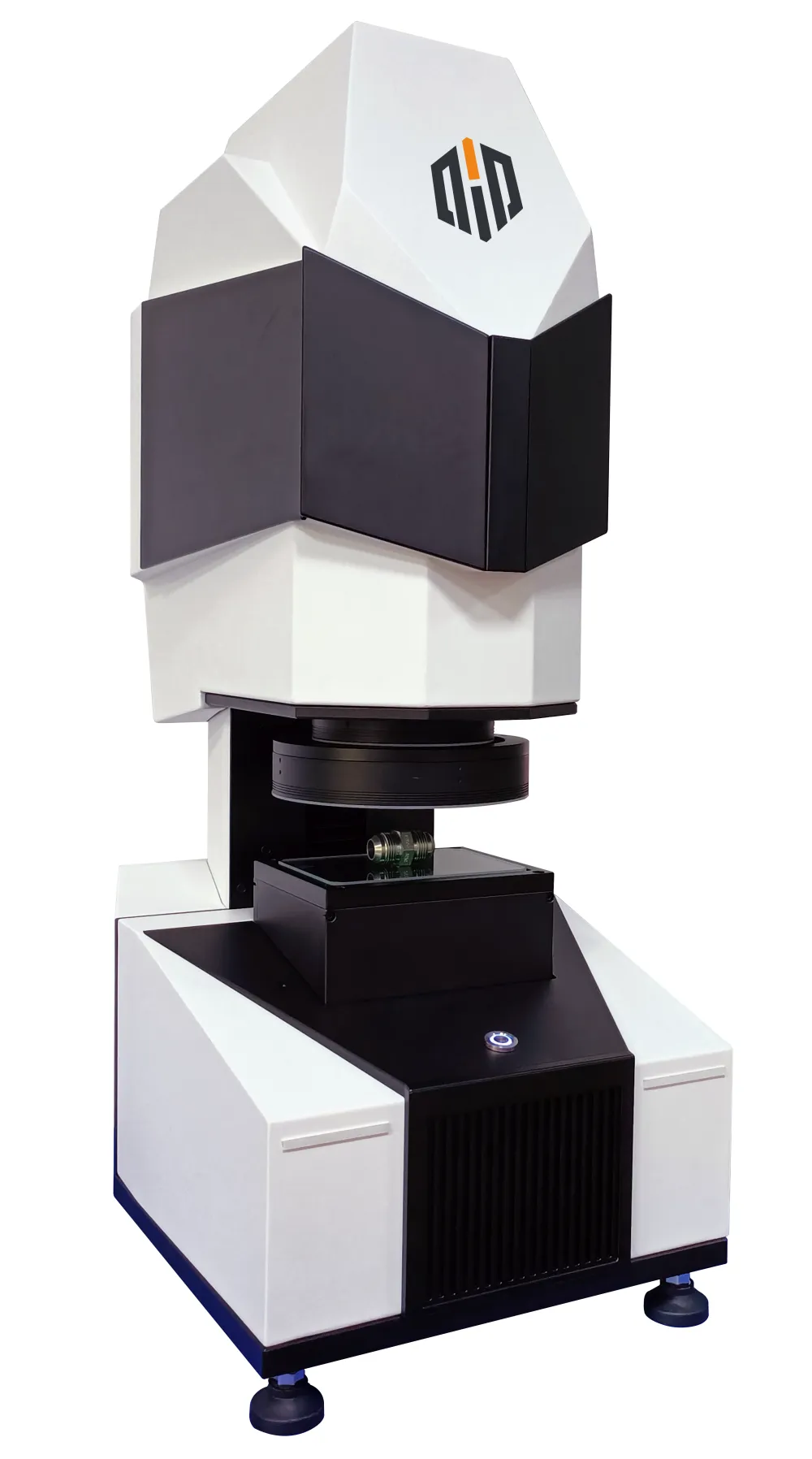

HD-90D Instant Vision Measuring Machine Auto Focus Vision Measuring Machine
CNY 195000 - 198000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HanDing
Place of Origin:
China
Model Number:
HD-90D
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
30 days
Related Products
-
HD-200FV Fully-automatic Vision Measuring Machine CNC Vision Measuring MachineCNY 195000 - 198000MOQ: 1 Set -
Factory Price HD-50VH CNC Vision Measuring Machine Automatic Vision Measurement MachineCNY 195000 - 198000MOQ: 1 Set
-
Hot Selling HD-100hiv Manual Vision Measuring Machine Non-contact Vision Measurement MachineCNY 125000 - 128000MOQ: 1 Set
-
High Purity HD-50VH Fully-automatic Vision Measuring MachineCNY 195000 - 198000MOQ: 1 Set
-
2022 High Quality HD-90D Automatic Vision Measuring Machine With MCP ProbeCNY 195000 - 198000MOQ: 1 Set
Brand Name
HanDing
Place of Origin
China
Model Number
HD-90D
Model |
HD-50D |
HD-90D |
SMU-180D |
CCD |
20 Million pixel industrial camera |
||
Lens |
Ultra-clear bi-telecentric lens |
||
Light source system |
Telecentric parallel contour light and ring-shaped surface light. |
||
Z-axis movement mode |
45mm |
55mm |
100mm |
Load-bearing capacity |
15KG |
||
Visual field |
42×35mm |
90×60mm |
180×130mm |
Repeatability accuracy |
±1.5μm |
±2μm |
±5μm |
Measurement accuracy |
±3μm |
±5μm |
±8μm |
Measurement software |
IVM-2.0 |
||
Measurement mode |
It can measure single or multiple products at the same time. the measurement time: ≤1-3 seconds. |
||
Measurement speed |
800-900 PCS/H |
||
Power supply |
AC220V/50Hz,200W |
||
Operating environment |
Temperature: 22℃±3℃ Humidity: 50～70% Vibration: |
||
Weight |
35KG |
40KG |
100KG |
Warranty |
12 months |
||
