60-12C speed measuring sensor / speed measuring device RCS-CS

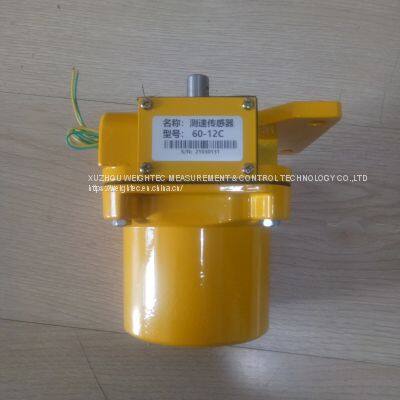

Product name: WEIGHTEC Wittec Ramsey 60-12C speed sensor
Product description: Belt scale speed measuring sensor
The speed measuring sensor is installed on the tail drum of the belt conveyor, the large diameter drum or the speed measuring roller. The speed measuring drum / roller is installed on the upper surface of the return belt, eliminating the influence caused by the belt skid. The speed sensor is a digital carbon-free brush pulse generator. When the belt runs, the speed sensor emits a series of speed pulses, each pulse represents a unit length of the belt stroke, and the pulse frequency is proportional to the belt speed.
The shell is made of cast aluminum, which can be adapted to the open working environment. The AC pulse generator does not need to adjust or replace the carbon brush
No carbon brush AC pulse generator, no need to adjust, calibration, maintenance free soft connection technology, more effectively ensure the speed measurement accuracy, and greatly improve the service life of the equipment.
Gear speed measuring sensor
● Induction iron metal target, accurate measurement of gear speed, stable output, wide adaptive voltage range, and the output voltage amplitude has nothing to do with the speed, specific applications are divided into camshaft position sensor, crankshaft position Chang'an its, gear speed sensor and other speed sensors
● The use of low-speed belt speed measurement, specific application in small transmission, batching system, etc., small structure, flexible operation, maintenance free.
Appearance size: Ф 38-68 * 30-120
Axft diameter: Ф 6-20 / D incision
Number of pulses: 60P / R-3600P / R
Voltage: 5-12V or 12-24
Output signal: phase A. B each other. Z each other
Output form: open collector output, push and pull output
Supply of 60-12C speed measuring sensor and speed sensor.
60-12 (BCDFX) speed measuring sensor
Belt scale 60-12 speed sensor is a device to measure the speed of the belt conveyor, directly connected to the driven drum or large diameter drum, so as to ensure reliable contact with the belt and eliminate the adverse effects of belt skid and other factors on the speed sensor.
Supply of 60-12C speed measuring sensor and speed sensor.
characteristic:
The speed sensor is a carbon-free brush AC pulse generator, without adjustment, calibration, no maintenance;
Cast aluminum shell, with good shielding, sealing, suitable for outdoor installation;
Soft connection technology, more effectively to ensure the speed measurement accuracy, and greatly improve the service life of the equipment;
Speed measurement range: 60-12C 0.5-4.0m/s 60-12B 0.05-1.0m/s
