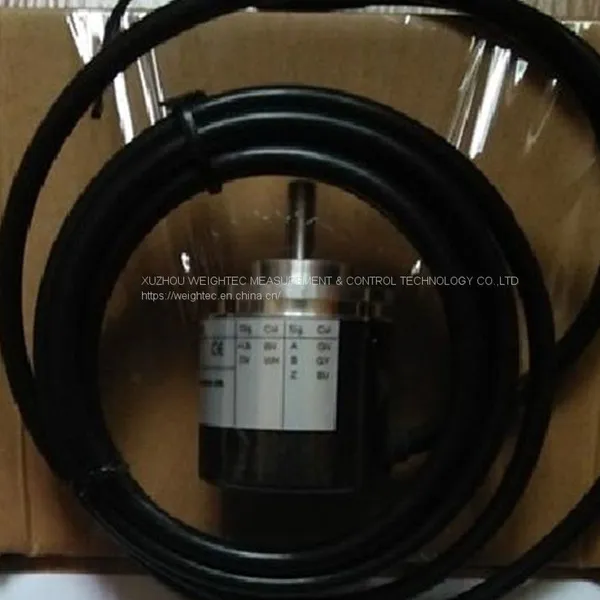

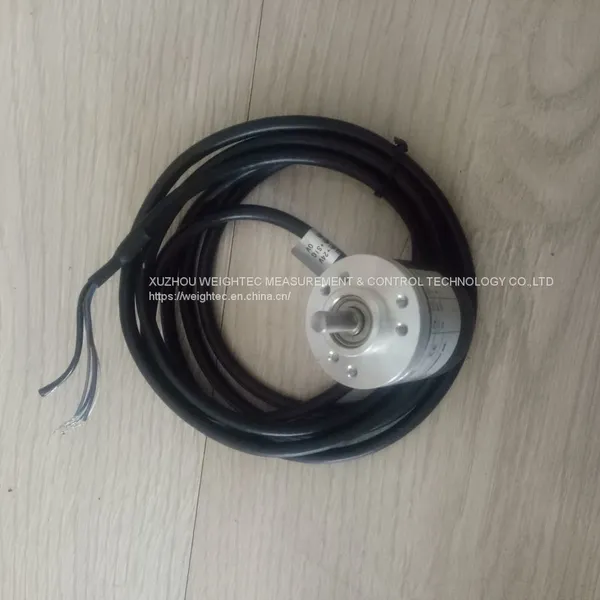

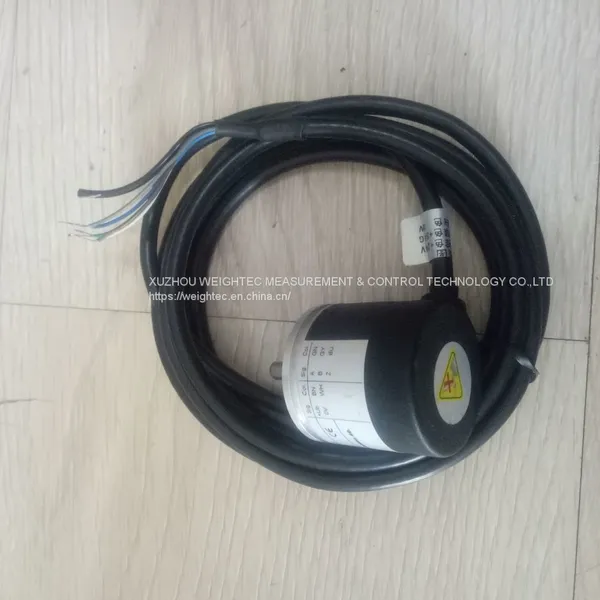

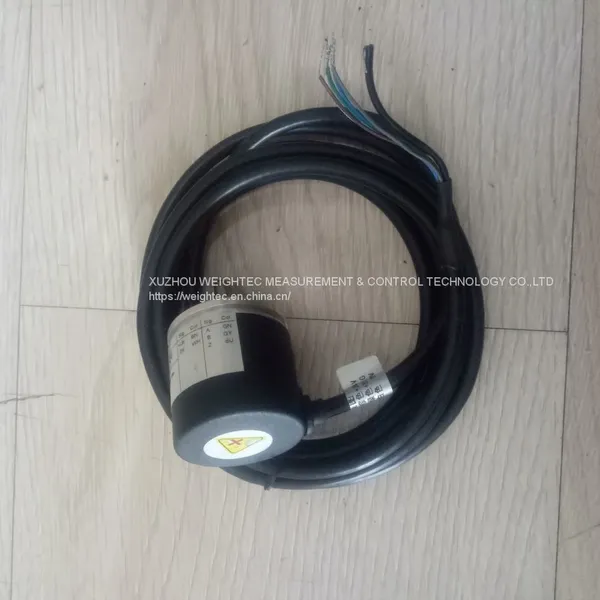

WPLR2300 SPEEDSENSOR SPEEDCELL

PLR2300 Speed measurement sensor, PLR2300 speed probe, PLR2300 speed sensor:

PLR2300 Axis-type encoder series

Axle diameter 6mm overall size 38mm is easy to install and the safe mechanical structure is solid

Resolution up to 2048 pulse / rpm

Multiple electrical signal output modes

Power supply up to 30VDC

Output frequency is up to 100 KHz

Higher speed up to 3000 RPM

Protection level: IP54

electrical character

Resolution 1-2048 pulse / turn

Power supply and power source 5-30,

No-load input current of 100ma is larger

5 Large current of 50ma per channel

Electric signal output mode of push and pull, long line drive

Output frequency is 100KHz
