Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply

Name: Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply
Brand: MULVIEW
SKU: 171916029
Availability: InStock

Shenzhen Mulview Technology Co., Limited

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply thumbnail-1

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply thumbnail-2

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply thumbnail-3

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply thumbnail-4

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply thumbnail-5

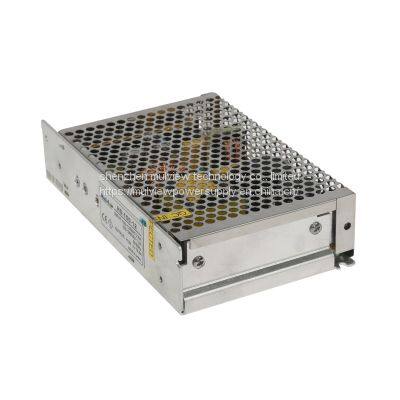

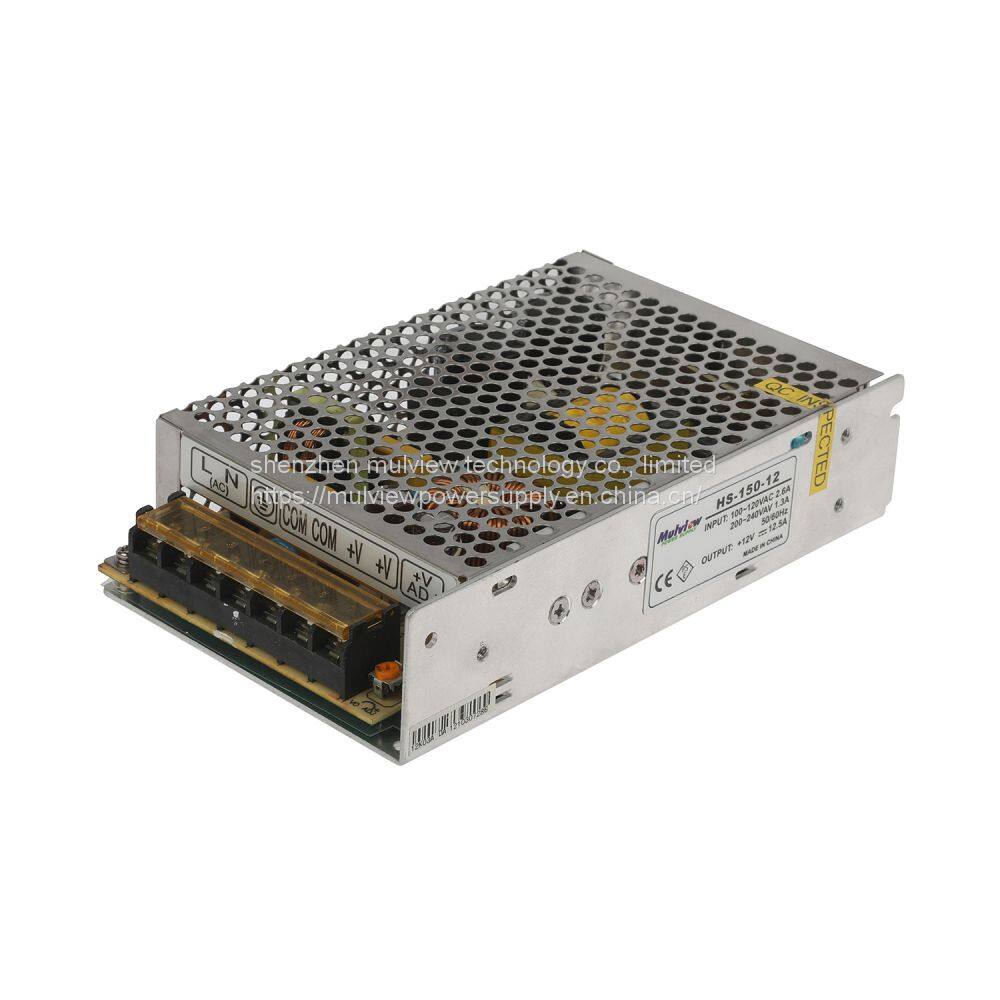

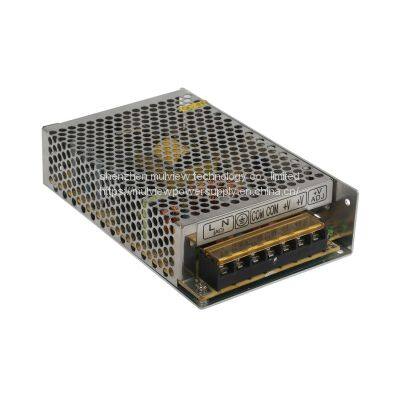

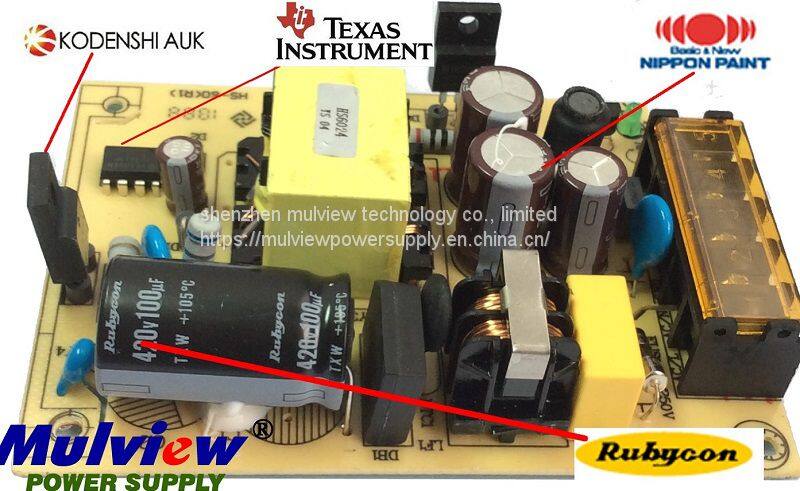

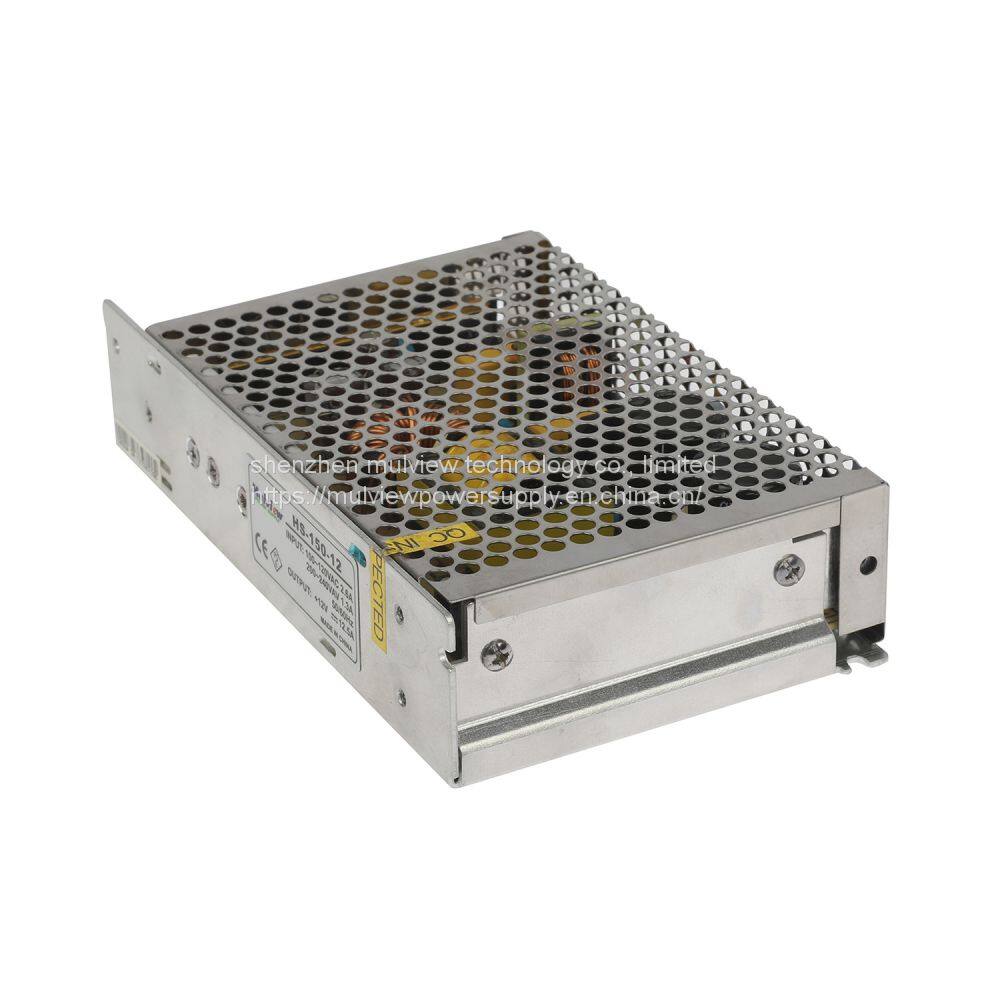

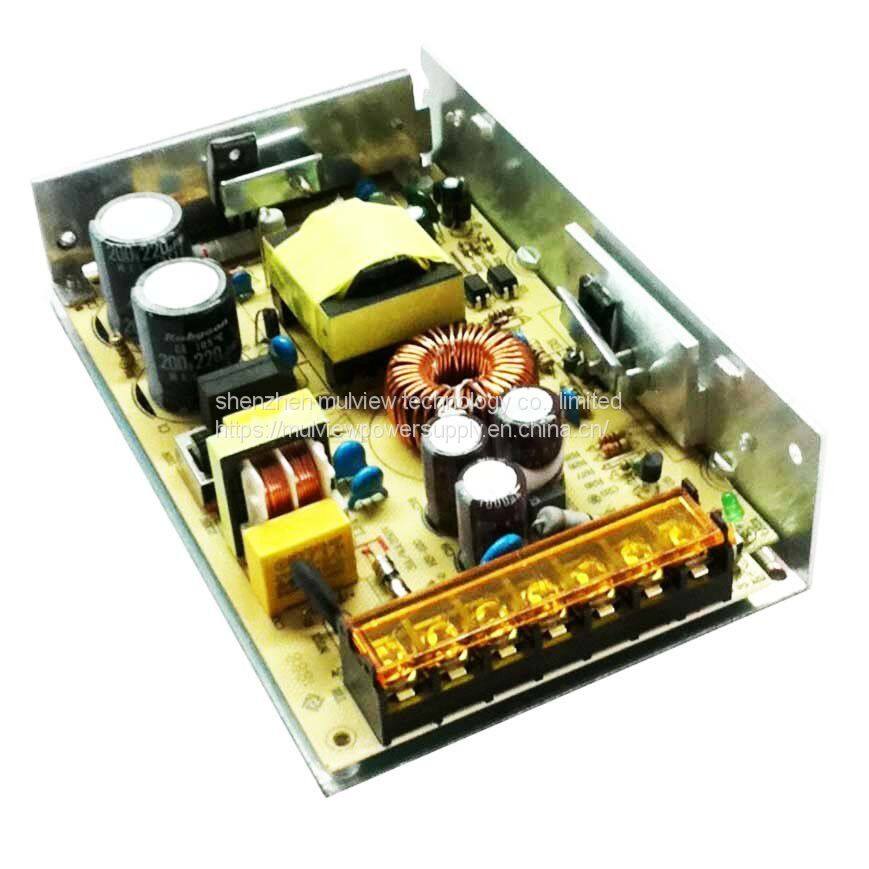

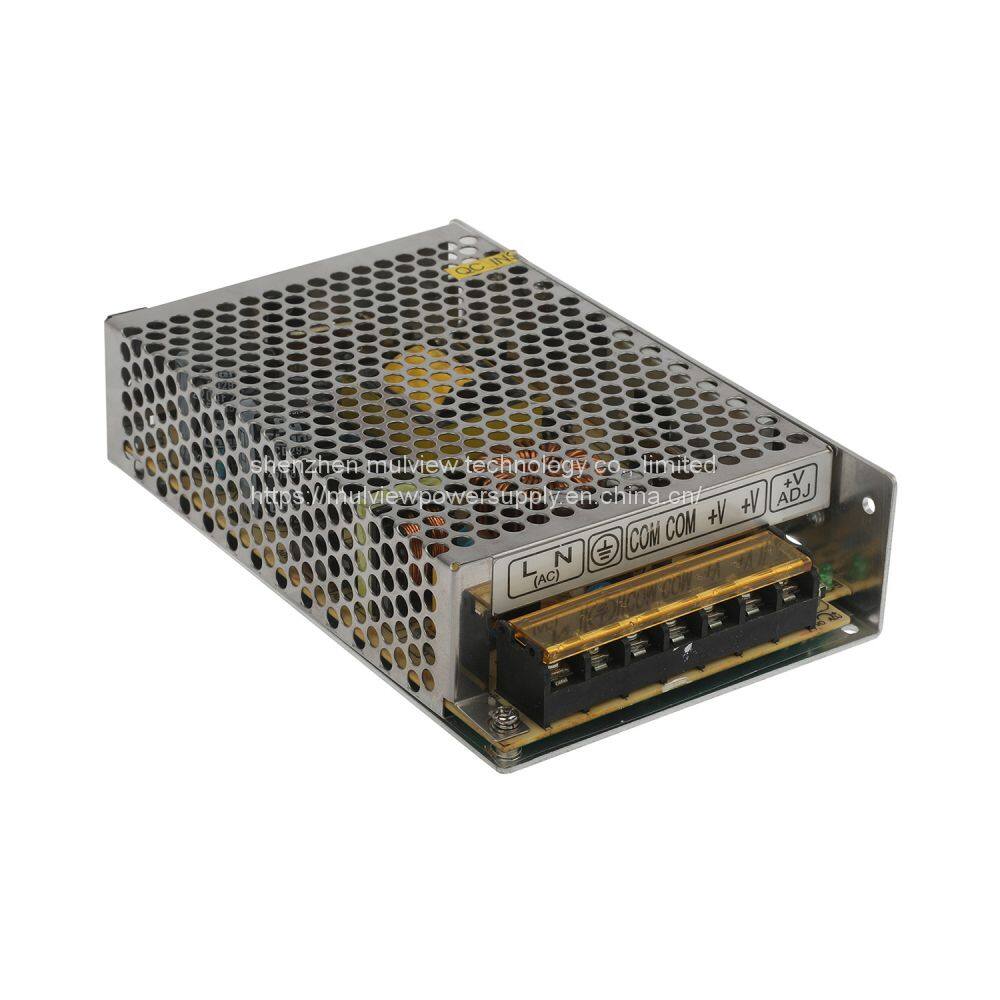

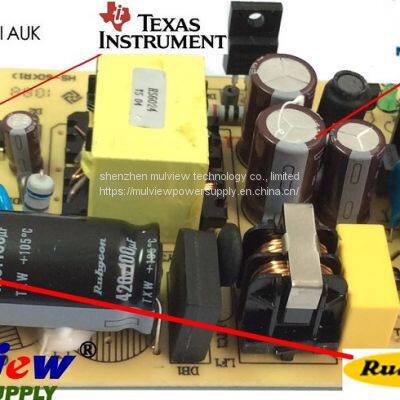

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply photo-1

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply photo-2

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply photo-3

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply photo-4

Ce RoHS FCC IEC 12V12.5A/24V6A150W AC DC Regulated LED Switching Power Supply photo-5

US$ 6.5 - 6.8 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

MULVIEW

Place of Origin:

China

Model Number:

HS-120-12

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name MULVIEW

Place of Origin China

Model Number HS-120-12

Connection Desktop

Output Type DC

Product Description

HS-150W series single output switching power supply
Features:
·Universal AC input voltage
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty

Model		HS-150-12	HS-150-15	HS-150-24	HS-150-36	HS-150-48
output	DC voltage	12V	15V	24V	36V	48V
	Voltage tolerance	±1%	±1%	±1%	±1%	±1%
	Rated current	12.5A	10A	6.5A	4.2A	3.2A
	Current range	0~12.5A	0~10A	0~6.5A	0~4.2A	0~3.2A
	Rated power	150W	150W	156W	151.2W	153.6W
	Ripple&noise	100mvp-p	120mvp-p	150mvp-p	150mvp-p	200mvp-p
	DCvoltage ADJ.range	±10%	±10%	±10%	±10%	±10%
input	Voltage range	90~132VAC/180~264VAC(selected by switch),254~373VDC
	frequency	47~63HZ
	AC current	3.2A/115VAC,1.6A/230VAC
	efficiency	83%	83%	85%	85%	86%
	Inrush current	Cold start current18A/115VAC,36A/230VAC
	Leakage current	<3.5mA/240VAC
protection	overload	Rated output power115%~135% start over load protection
	overload	protection type:hiccup mode,auto-recovery after fault condition is removed
	Over voltage	15.6~17.8V	18.6~20.8V	30.6~33.2V	42.6~44.2V	54.8~56.6V
	Over voltage	protection type:hiccup mode,auto-recovery after fault condition is removed
	-----	-----
	-----	-----
environment	Working temp,humidity	-10ºC~+60ºC,20%~90%RH
	Storage temp,humidity	-20ºC~+85ºC,10%~95%RH non-condensing
	Withstand vibration	10~500HZ,2G10min/1cycle,period for 60 minutes,each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
safety	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC
Fit standard	Safety standard	Compliance toUL1012
Fit standard	EMC standard	Compliance toEN55022,CLASSA
others	Dimension	1599738mm(LWH)
others	Weight/packing	0.54kg/45pcs/25kg/0.041 m³/1.45CUFT
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25ºCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.

Contact:

Web: www.mulview.com

Email: mulviewcctv@mtlcctv.com

Skype:lancle0601

We chat: 13760462930

FAQ

1. Q: What is your minimum order quantity?
A: The MOQ is 10 PCS.

2. Q: How does your factory do regarding quality control?
A: Our power adapters are real power and high efficiency. We do 100% full load aging and
testing before shipping.

3. Q: What is your warranty?
A: Our warranty is 2 years.

4. Q: What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to customers' requirements.

5. Q: What payment terms can be acceptable?
A:T/T, Western Union.

6. Q: How about your delivery time?
A: Bulk quantity within 10 working days normally.

7. Q: Do you provide samples of this product?
A: Yes, we can provide sample or trial order for test.

8. Q: Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels as customers' request.
