Home > Products > power adapter > Multiple Output 8CH 13.8V120W CCTV Camera UPS Uninterruptible Power Supply with Battery Charge Function Ce FCC

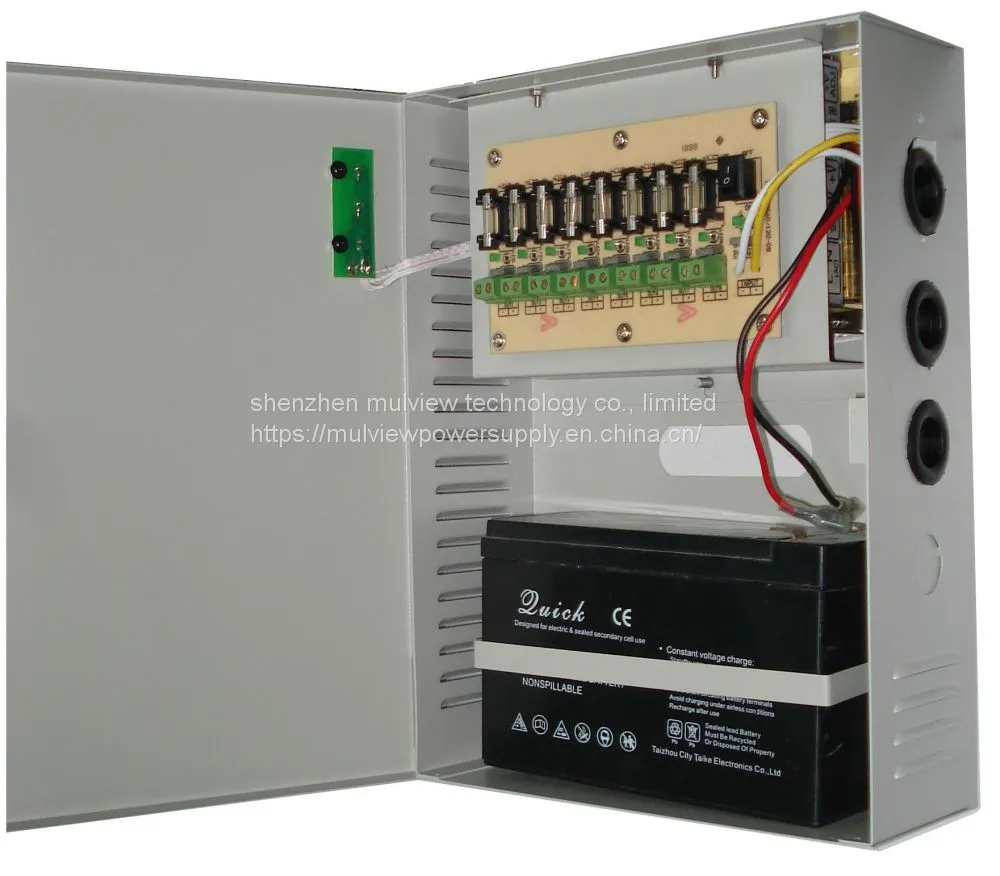

Multiple Output 8CH 13.8V120W CCTV Camera UPS Uninterruptible Power Supply with Battery Charge Function Ce FCC
- 5000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
-
Multiple Output 4CH 13.8V60W CCTV Camera UPS Uninterruptible Power Supply with Battery Charge Function Ce FCC
-
19 Inch 1u 16CH Outputs 12V20A 250W AC DC Central Rackmount Power Supply Distribution Box
-
19 Inch 1u 16CH Outputs 12V40A 500W AC DC Central Rackmount Power Supply Distribution Box
-
Multiple Outputs 18CH 12V25A 300W Access Control CCTV Camera Central Power Supply Unit Ce IEC
-
12V 1A Euro Desktop AC/DC Swtiching Power Adapter
-
12V 1A Euro Desktop AC/DC Power Charger
Product Details
Brand Name | MULVIEW | Place of Origin | China | |
Model Number | MPS-120-8C | Connection | Desktop | |
Output Type | DC |
Product Description
12VDC individually fused outputs
Circuit Short protection
Over-load protection
AC power LED indicator
Individual LED's for each output
Power ON/OFF switch
Unit maintains camera synchronization
Easy installation saves time and eliminates costly labor
100% full load burn-in test
Spare fuses included
2 years warranty
Specification
Input Voltage | AC90-264V |
Input Voltage Frequency | 50/60Hz |
Output Specification | |
Output Voltage | 13.8VDC+15% |
Total Output Current | 8A(1A/output,8 channels for 8 sets security cameras) |
Total Outputs | 120W |
Fuse Type | Glass Fuse |
Fuse Rating | 1Amps/250VAC |
Protection | |
General Protection | each output has individual fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working |
Circuit Short Protection | when short condition occurs, individual fuse will open the circuit,when condition removed, replacing another new fuse will back to close. |
Over-load proctection | 105-135%hiccup mode,auto-recovery |
Over-voltage protection | 115-135%,Shut down o/p voltage, re-power on to recover |
UPS function | High efficiency charge, Battery can be charged more than 90% full |
Cut charging automatically when finish charge, protect battery from overcharge | |
Utility Power and battery switch automatically | |
Cold start function, battery can start UPS when utility power cut | |
General Specifications | |
Working temperature and humidity | -10ºC~+60ºC,20%~80%RH |
Store temperature and humidity | -20ºC~+85ºC,10%~90%RH |
Application | |
CCTV | Camera, PTZ, IR Illuminators, Video Process Equipment, etc. |
Contact:
Web:
Email: mulviewcctv@mtlcctv.com
Skype:lancle0601
We chat: 13760462930
1. Q: What is your minimum order quantity?
A: The MOQ is 10 PCS.
2. Q: How does your factory do regarding quality control?
A: Our power adapters are real power and high efficiency. We do 100% full load aging and
testing before shipping.
3. Q: What is your warranty?
A: Our warranty is 2 years.
4. Q: What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to customers' requirements.
5. Q: What payment terms can be acceptable?
A:T/T, Western Union.
6. Q: How about your delivery time?
A: Bulk quantity within 10 working days normally.
7. Q: Do you provide samples of this product?
A: Yes, we can provide sample or trial order for test.
8. Q: Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels as customers' request.
