Home > Products > power adapter > 13.8V10A/27.6V5A 120W UPS Power Supply with Battery Charger Function Ce FCC Certificate
13.8V10A/27.6V5A 120W UPS Power Supply with Battery Charger Function Ce FCC Certificate
- 5000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
-
13.8V10A/27.6V5A 120W battery back up UPS Power Supply Ce FCC Certificate
-
13.8V60W UPS Uninterruptible Power Supply with Battery Charge Function Ce FCC Certificate
-
4CH 12V4a 50W Outdoor Waterproof Access Control Voltage Stabilizer CCTV Power Supply Unit
-
9CH outputs 12V 10A 120W CCTV Central AC DC Power Supply Distribution Box
-
9CH outputs PTC auto reset fuse 12V 10A 120W CCTV Central AC DC Power Supply Distribution Box
-
Multiple Output 8CH 13.8V120W CCTV Camera UPS Uninterruptible Power Supply with Battery Charge Function Ce FCC
Product Details
Brand Name | MULVIEW | Place of Origin | China | |
Model Number | SC-120-12 | Connection | Desktop | |
Output Type | DC |
Product Description

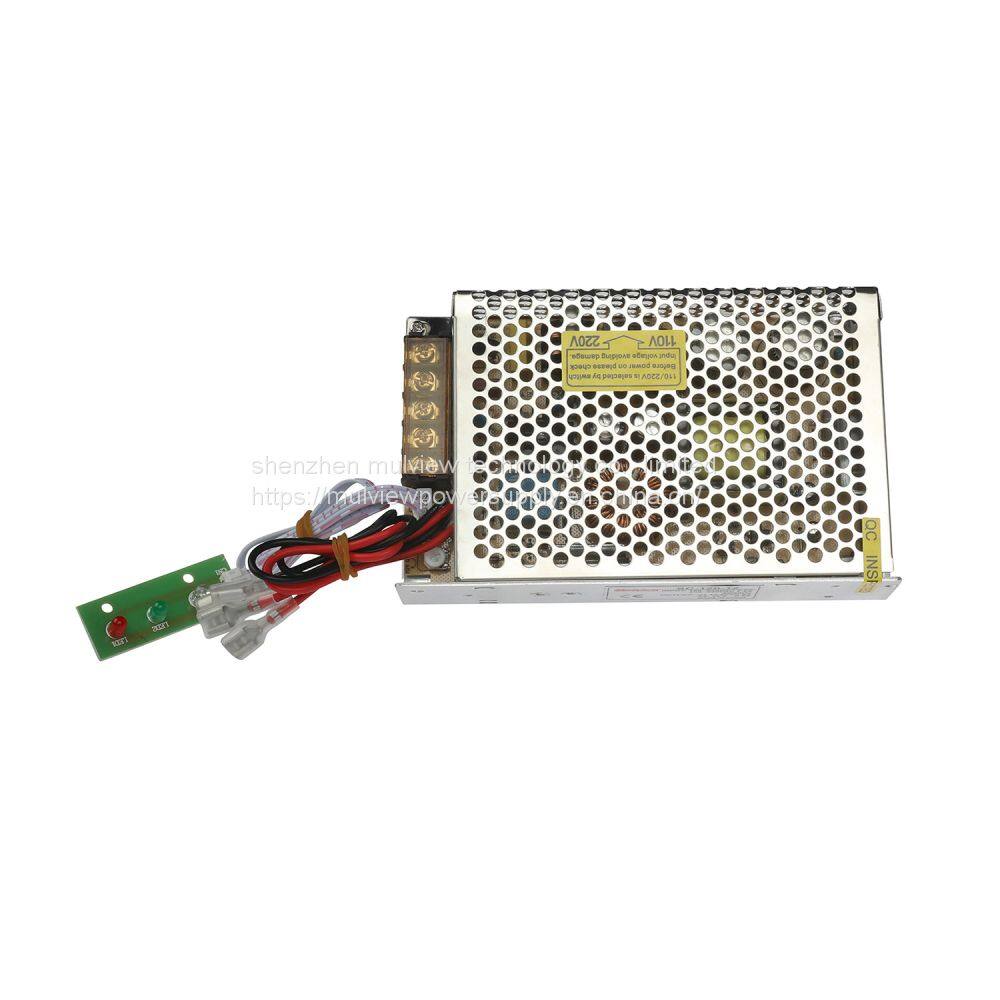

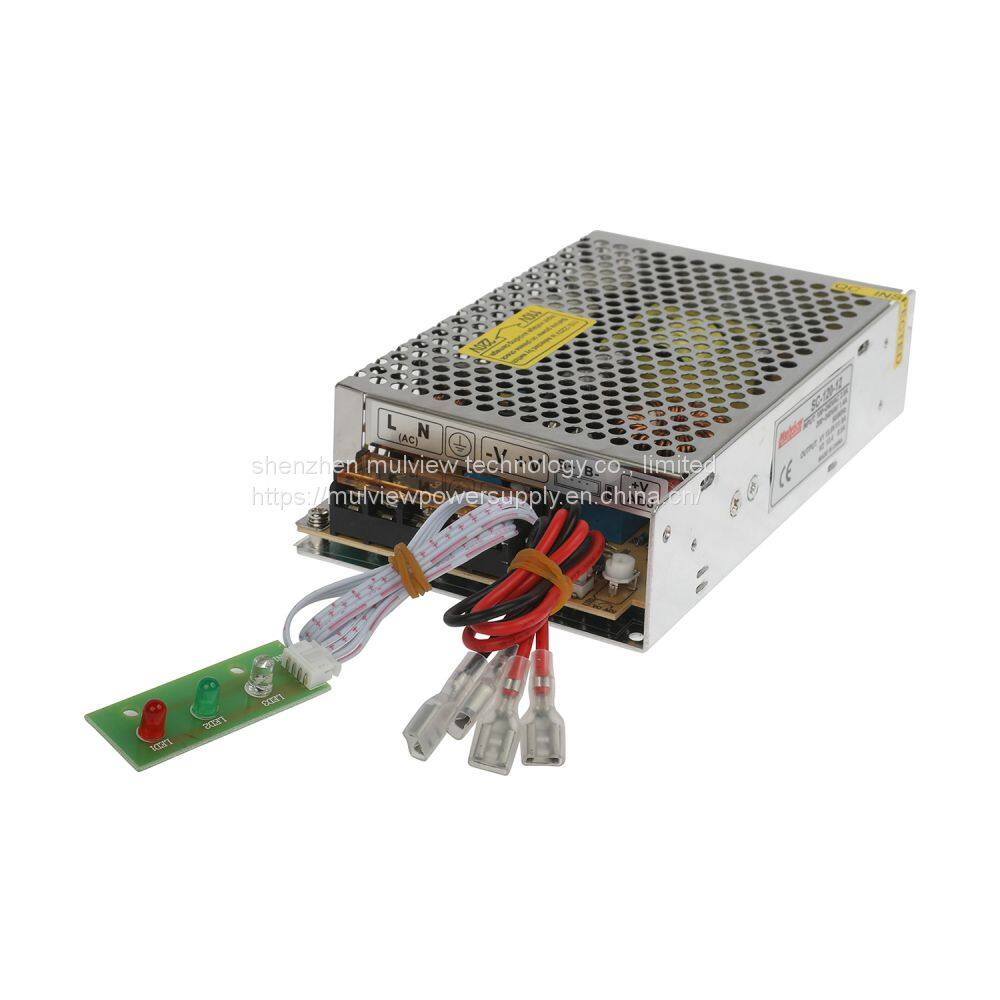

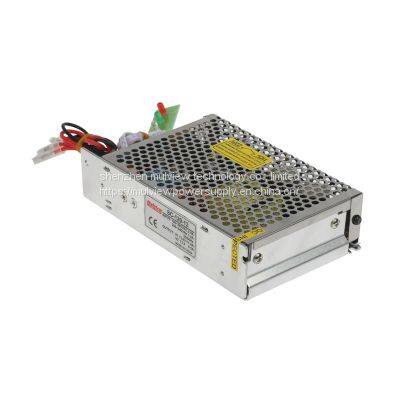

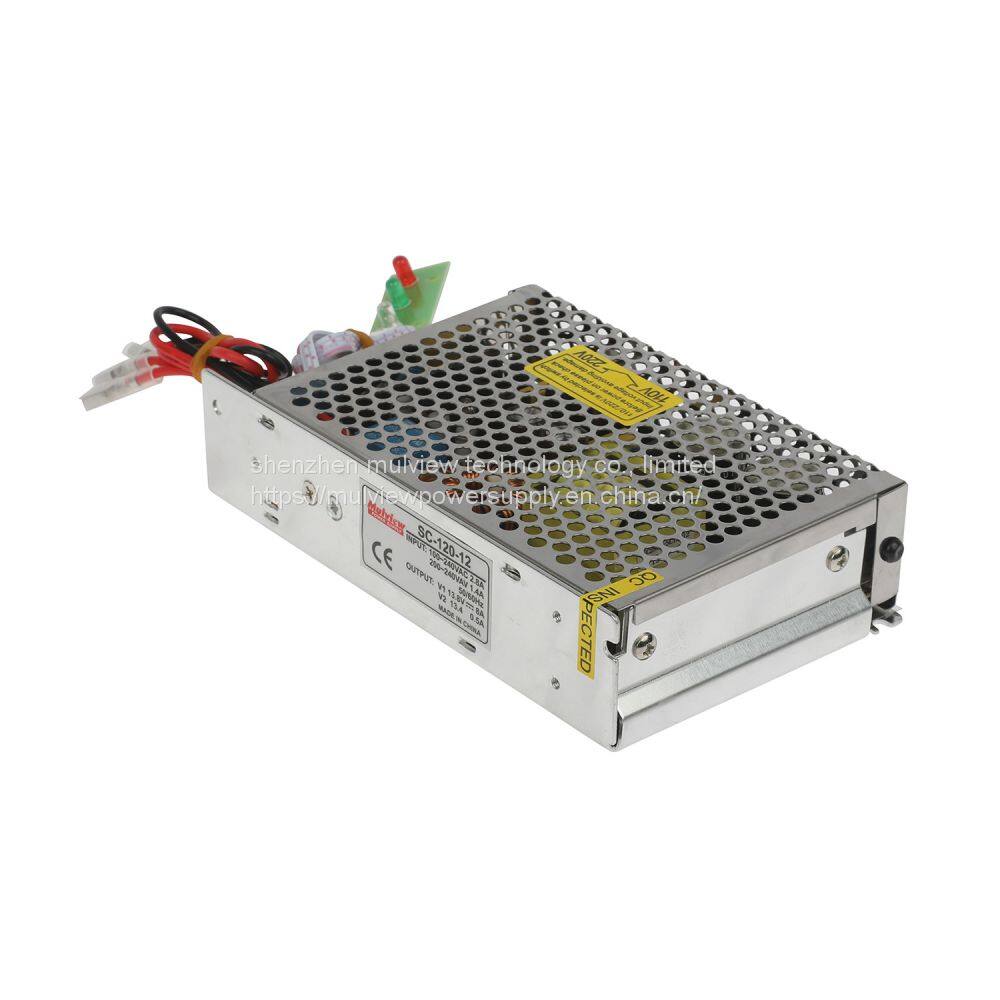

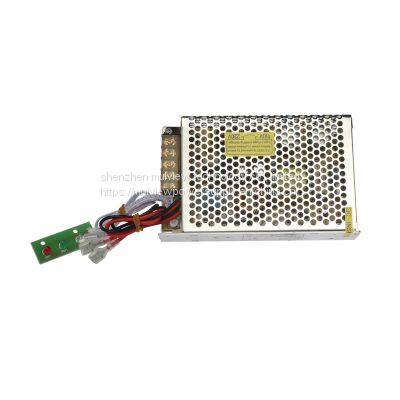

SC-120W series UPS function power supply
Features:
·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·Indicator for power on/charge/normal(LED)
·100% full load burn-in test
·Battery protection at low voltage
·2 Year warranty
Model | SC-120-12 | SC-120-24 | |||
output | DC voltage | CH1:13.8V | CH1:13.4V | CH1:27.6V | CH2:26.5V |
Voltage tolerance | ±1% | ----- | ±1% | ----- | |
Rated current | 8A | 0.5A | 4A | 0.3A | |
Current range | 0~8A | ----- | 0~4A | ----- | |
Rated power | 117.1W | 118.4W | |||
Ripple&noise | 120mvp-p | ----- | 180mvp-p | ----- | |
DCvoltage ADJ.range | CH1:11.3~14.9V | CH1:21.3~29.8V | |||
input | Voltage range | 90~264VAC,127~370VDC | |||
frequency | 47~63HZ | ||||
AC current | 2.8A/115VAC,1.4A/230VAC | ||||
efficiency | 81% | 83% | |||
Inrush current | Cold start current 30A/115VAC,50A/230VAC | ||||
Leakage current | <1mA/240VAC | ||||
protection | Over load | Rated output power110%~150% start over load protection | |||
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed | |||||
Batteryprotection At low voltage | 9.5~11V | 20~22V | |||
protection mode:cutoff output | |||||
Function | UPS introduction | long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs | |||
environment | Working temp,humidity | -10ºC~+60ºC,20%~90%RH | |||
Storagetemp,humidity | -20ºC~+85ºC,10%~95%RH non-condensing | ||||
Withstand vibration | 10~500HZ,2G10min/1cycle,period for 60 minutes,each axes | ||||
safety | Withstand voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC | ||||
Fitstandard | Safety standard | Compliance to UL60950-1 | |||
EMC standard | Compliance to EN55022,CLASSB | ||||
others | Dimension | 159*97*38mm(L*W*H) | |||
Weight/packing | 0.56kg/45pcs/26kg/0.041m³/1.45CUFT | ||||
note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25ºCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
Contact:
Web: www.mulview.com
Email: mulviewcctv@mtlcctv.com
Skype:lancle0601
We chat: 13760462930
1. Q: What is your minimum order quantity?
A: The MOQ is 10 PCS.
2. Q: How does your factory do regarding quality control?
A: Our power adapters are real power and high efficiency. We do 100% full load aging and
testing before shipping.
3. Q: What is your warranty?
A: Our warranty is 2 years.
4. Q: What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to customers' requirements.
5. Q: What payment terms can be acceptable?
A:T/T, Western Union.
6. Q: How about your delivery time?
A: Bulk quantity within 10 working days normally.
7. Q: Do you provide samples of this product?
A: Yes, we can provide sample or trial order for test.
8. Q: Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels as customers' request.
