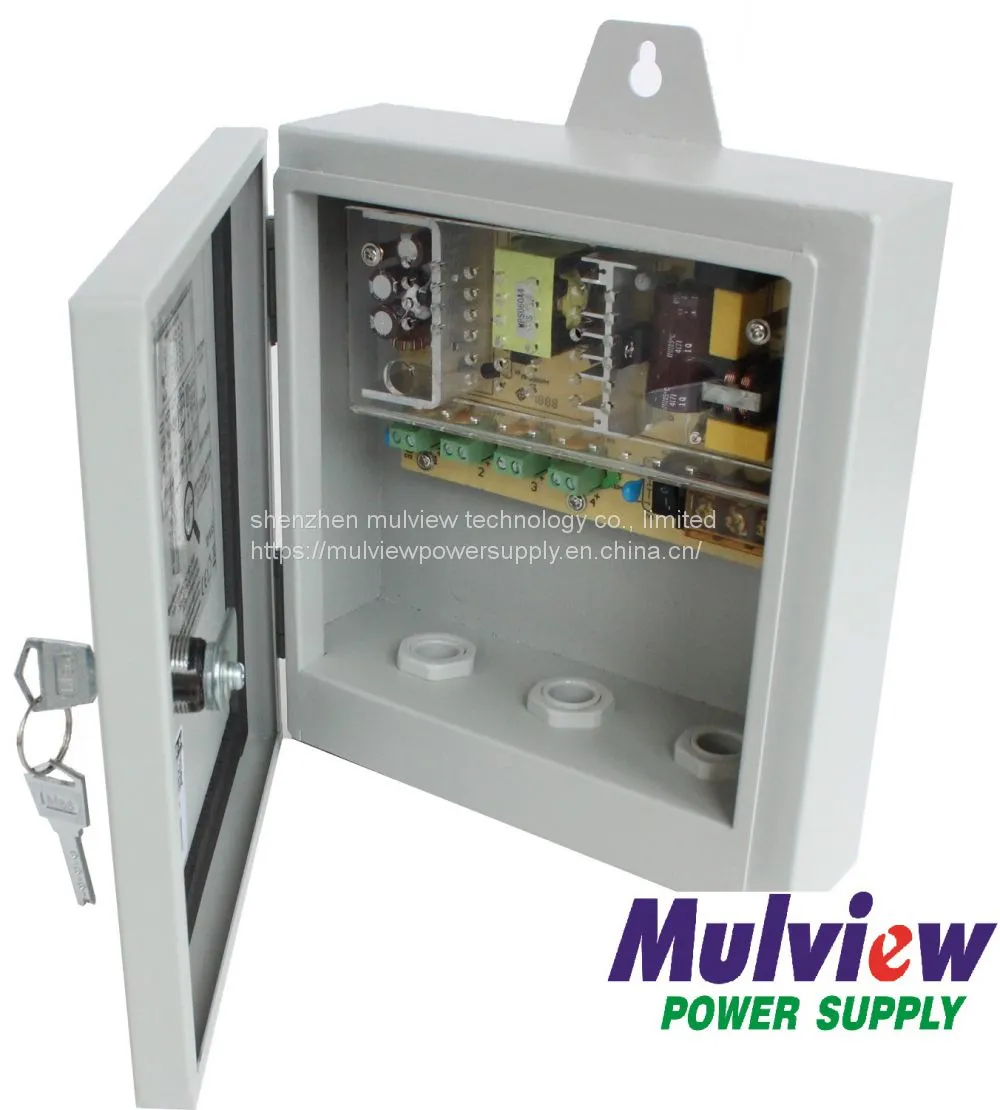

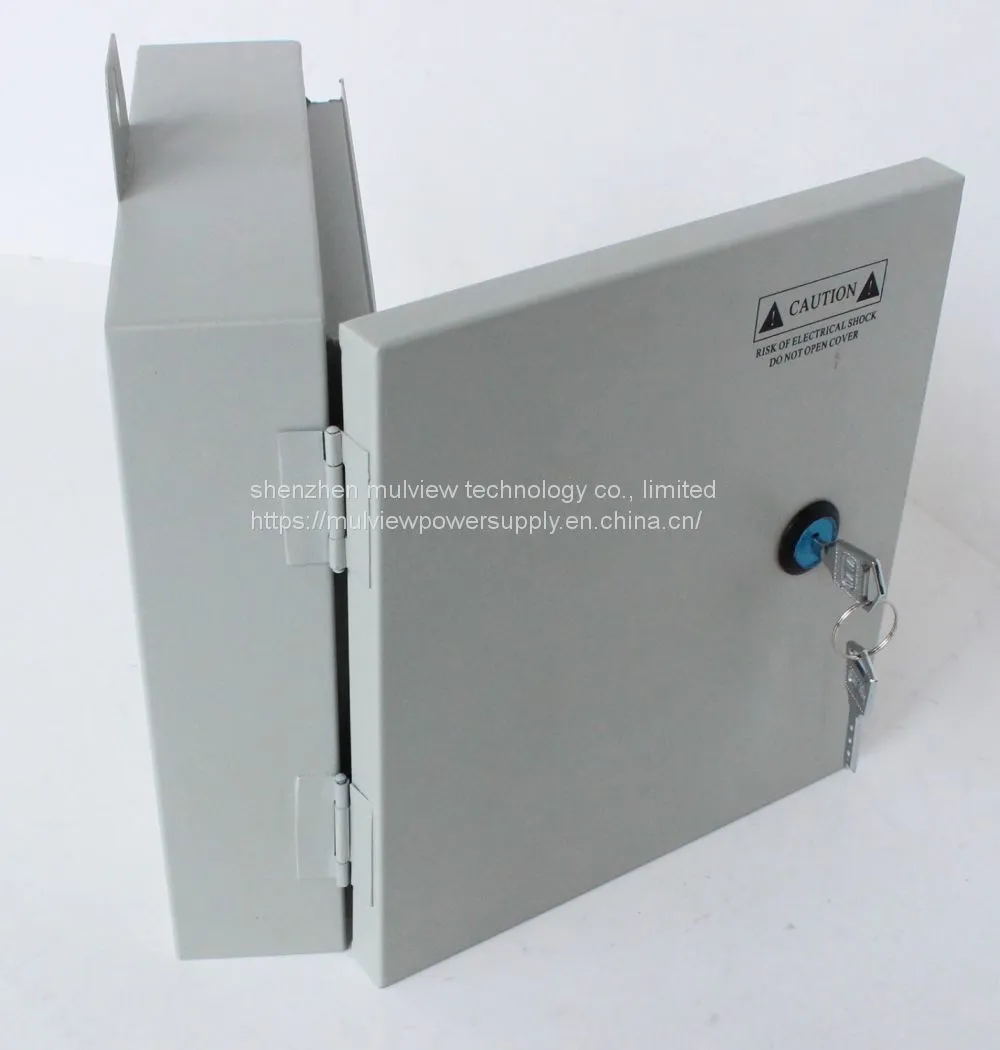

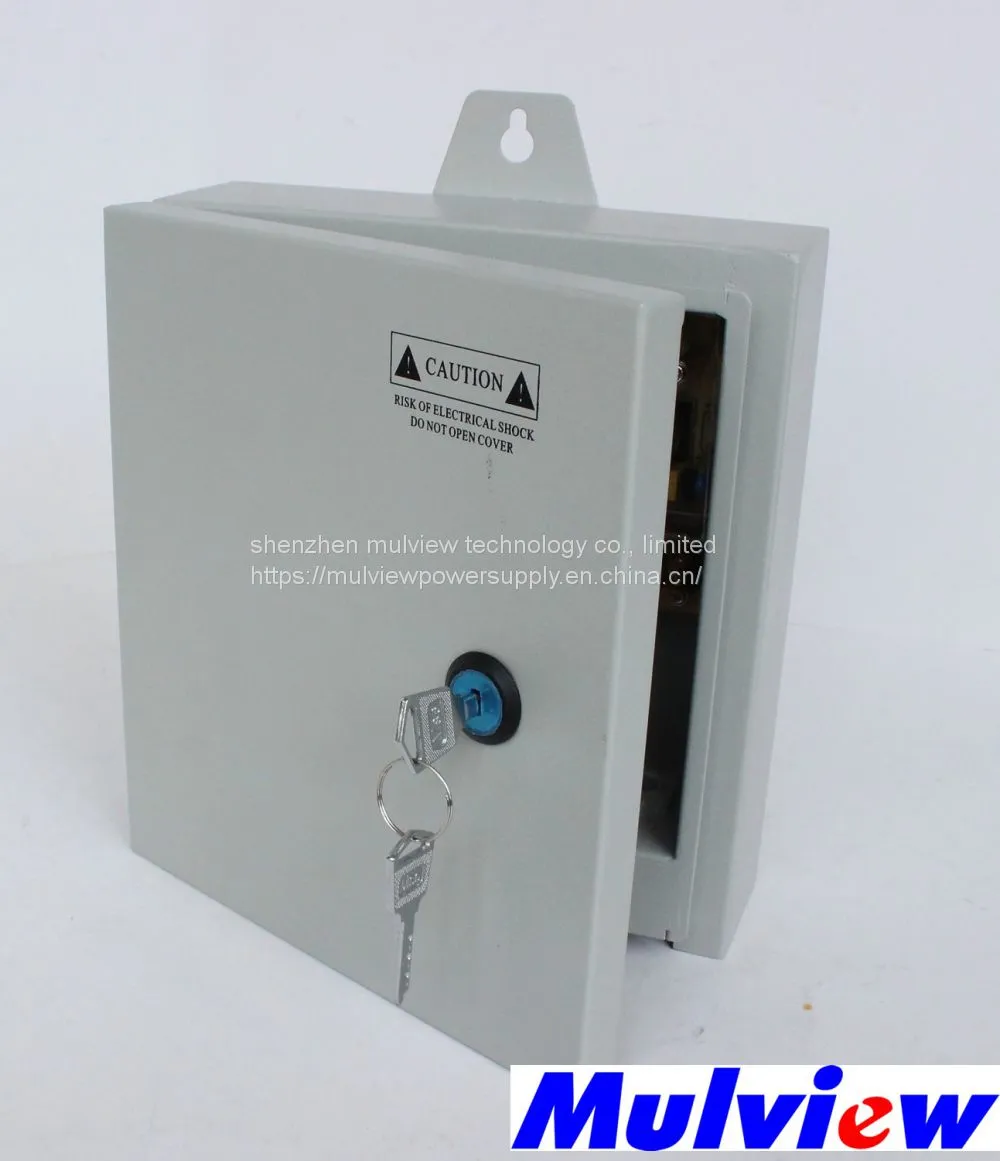

Help Center4CH 12V4a 50W Outdoor Waterproof Access Control Voltage Stabilizer CCTV Power Supply Unit
Related Products
-
9CH Outputs 12V 10A 120W CCTV Central AC DC Power Supply Distribution BoxUS$ 14.5 - 15MOQ: 1 Piece -
9CH Outputs PTC Auto Reset Fuse 12V 10A 120W CCTV Central AC DC Power Supply Distribution BoxUS$ 14.5 - 15MOQ: 1 Piece
-
Multiple Output 8CH 13.8V120W CCTV Camera UPS Uninterruptible Power Supply With Battery Charge Function Ce FCCUS$ 22 - 23MOQ: 1 Piece
-
Multiple Output 4CH 13.8V60W CCTV Camera UPS Uninterruptible Power Supply With Battery Charge Function Ce FCCUS$ 19 - 21MOQ: 1 Piece
-
19 Inch 1u 16CH Outputs 12V20A 250W AC DC Central Rackmount Power Supply Distribution BoxUS$ 45 - 46MOQ: 1 Piece
Features
Four 12VDC individually fused outputs
Circuit Short protection
IP65 weatherproof rank
Individual LED's for each output
Power ON/OFF switch
Unit maintains camera synchronization
Easy installation saves time and eliminates costly labor
Spare fuses included
2 years warranty
Specification
Specification
| Input Voltage | AC90-264V |
| Input Voltage Frequency | 50/60Hz |
| Output Specification | |
| Output Voltage | 12VDC+10% |
| Total Output Current | 4A(1A/output,4 channels for 4 sets security cameras) |
| Total Outputs | 48W |
| Fuse Type | Glass Fuse |
| Fuse Rating | 1Amps/250VAC |
| Protection | |
| General Protection | each output has individual fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working |
| Circuit Short Protection | when short condition occurs, individual fuse will open the circuit, when condition removed, replacing another new fuse will back to close. |
| Over-load protection | 105-135%hiccup mode, auto-recovery |
| Over-voltage protection | 115-135%,Shut down o/p voltage, re-power on to recover |
| Outdoors Use | double waterproof design, waterproof rank IPX65 |
| General Specifications | |
| Working temperature and humidity | -10ºC~+60ºC,20%~80%RH |
| Store temperature and humidity | -20ºC~+85ºC,10%~90%RH |
| Application | |
| CCTV | Camera, PTZ, LED lighting, Video Process Equipment, etc. |
Contact:
Web:
Email: mulviewcctv@mtlcctv.com
Skype:lancle0601
We chat: 13760462930
1. Q: What is your minimum order quantity?
A: The MOQ is 10 PCS.
2. Q: How does your factory do regarding quality control?
A: Our power adapters are real power and high efficiency. We do 100% full load aging and
testing before shipping.
3. Q: What is your warranty?
A: Our warranty is 2 years.
4. Q: What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to customers' requirements.
5. Q: What payment terms can be acceptable?
A:T/T, Western Union.
6. Q: How about your delivery time?
A: Bulk quantity within 10 working days normally.
7. Q: Do you provide samples of this product?
A: Yes, we can provide sample or trial order for test.
8. Q: Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels as customers' request.
