Help CenterCe RoHS FCC IEC 12V30A/24V15A350W AC DC Regulated LED Switching Power Supply
Related Products
-
Ce RoHS FCC IEC 12V25A/24V12.5A300W AC DC Regulated LED Switching Power SupplyUS$ 12.5 - 12.6MOQ: 1 Piece -
12V5A/24V2.5A 60W LED AC DC Switch Power Supply Unit PSU With Ce RoHS FCC IEC CertificateUS$ 4.5 - 4.7MOQ: 1 Piece
-
13.8V10A/27.6V5A 120W UPS Power Supply With Battery Charger Function Ce FCC CertificateUS$ 9.3 - 9.5MOQ: 1 Piece
-
13.8V10A/27.6V5A 120W Battery Back up UPS Power Supply Ce FCC CertificateUS$ 9.3 - 9.5MOQ: 1 Piece
-
13.8V60W UPS Uninterruptible Power Supply With Battery Charge Function Ce FCC CertificateUS$ 8.3 - 8.5MOQ: 1 Piece

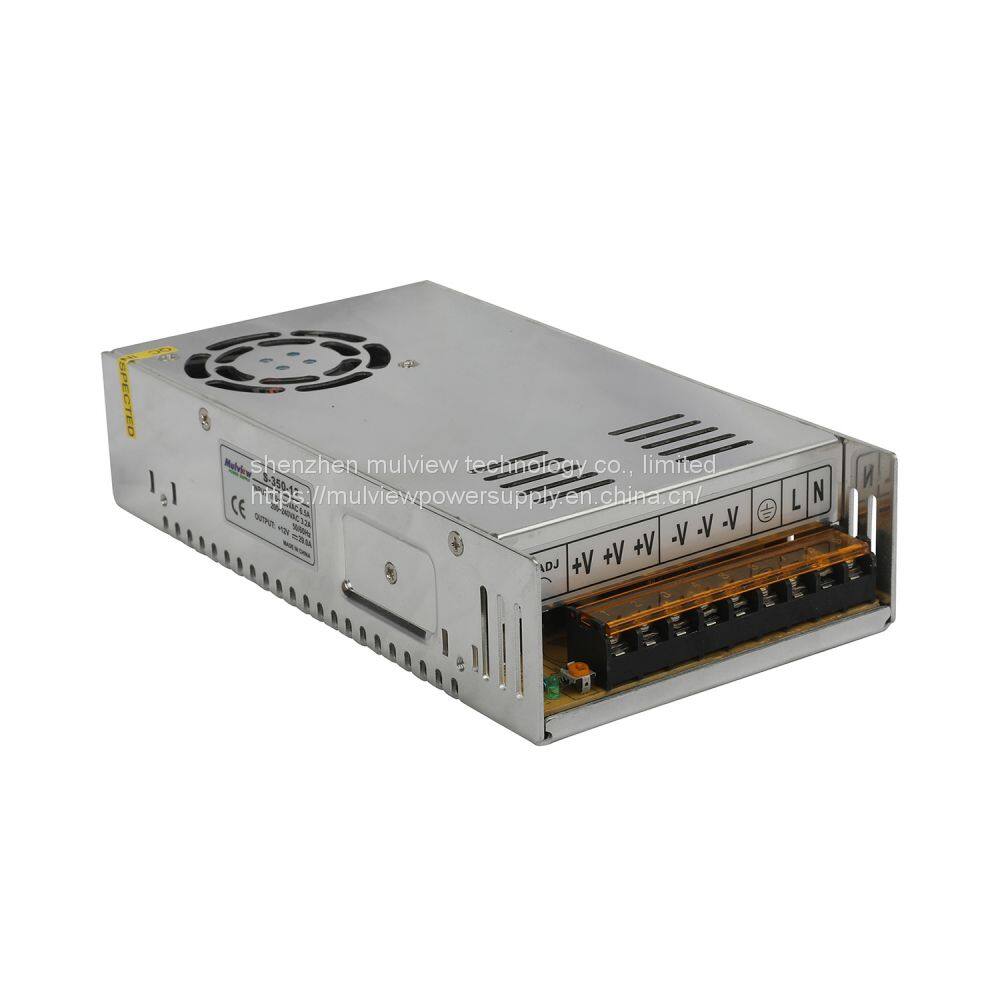

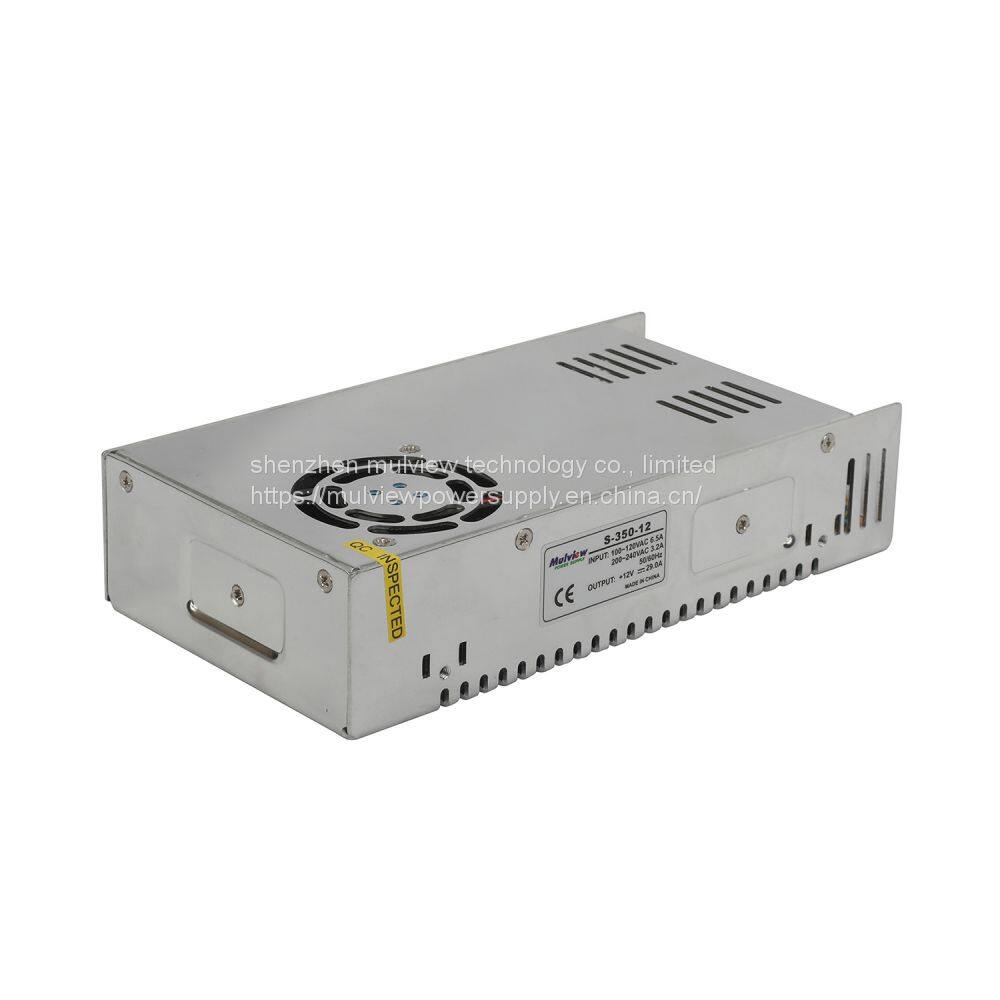

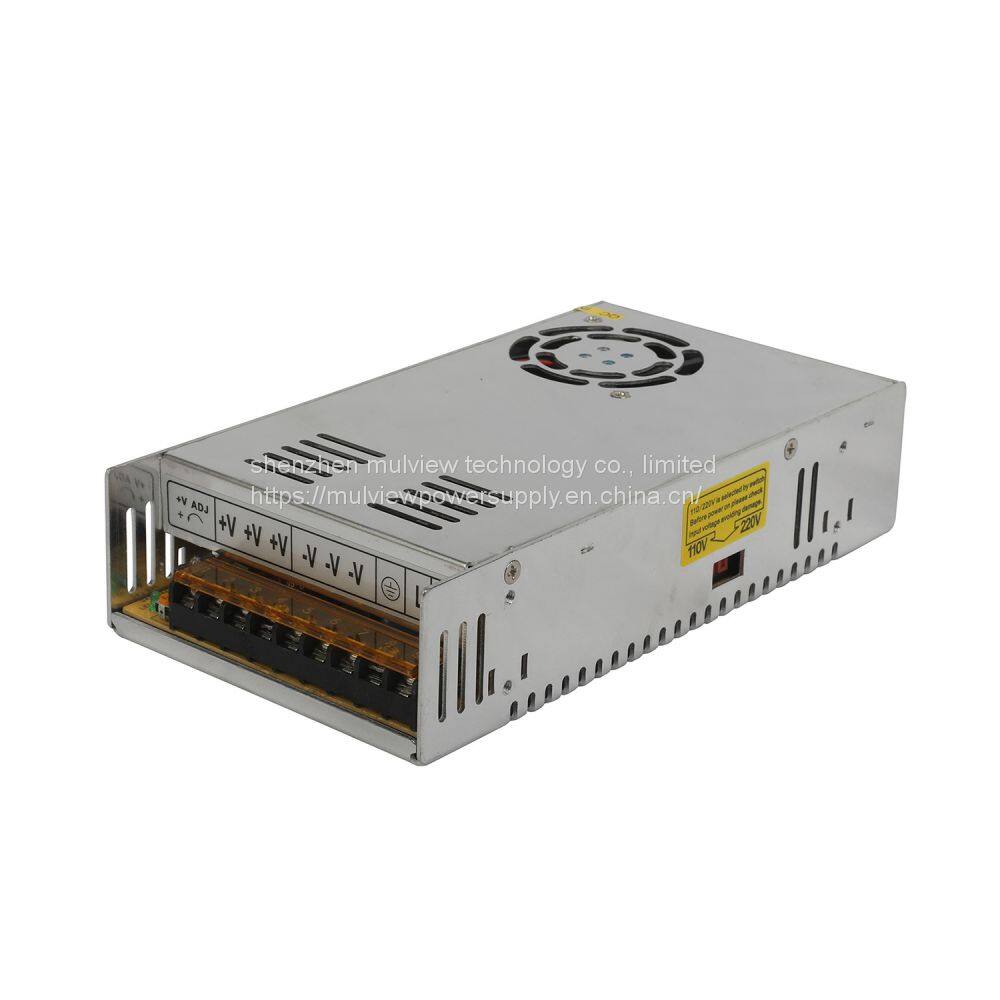

S-350W series single output switching power supply
Features:
·Universal AC input voltage
·Small volume,low weigh,high efficiency
·Protections:short circuit/over load/over voltage
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
| Model | S-350-5 | S-350-12 | S-350-15 | S-350-24 | S-350-27 | S-350-48 | |
| output | DC voltage | 5V | 12V | 15V | 24V | 27V | 48V |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Rated current | 50A | 29A | 23.2A | 14.6A | 13A | 8.3A | |
| Current range | 0~50A | 0~29A | 0~23.2A | 0~14.6A | 0~13A | 0~8.3A | |
| Rated power | 250W | 348W | 348W | 350.4W | 351W | 398.4W | |
| Ripple&noise | 100mvp-p | 150mvp-p | 150mvp-p | 150mvp-p | 150mvp-p | 200mvp-p | |
| DCvoltage ADJ.range | -9%~+10% | ±10% | ±10% | ±10% | ±10% | ±10% | |
| input | Voltage range | 90~132VAC/180~264VAC(selected by switch),255~373VDC | |||||
| frequency | 47~63HZ | ||||||
| AC current | 6.5A/115VAC,4.0A/230VAC | ||||||
| efficiency | 78% | 80% | 80% | 82% | 82% | 83% | |
| Inrush current | Cold start current25A/115VAC,50A/230VAC | ||||||
| Leakage current | <3.5mA/240VAC | ||||||
| protection | overload | Rated output power105%~135% start over load protection | |||||
| protection type :rated current limit,auto-recovery after fault condition is removed | |||||||
| Over voltage | 6.8~8.2V | 15.6~17.8V | 18.6~20.8V | 30.6~33.2V | 33.2~35.6V | 54.8~56.6V | |
| Protection type:hiccup mode,auto-recovery after fault condition is removed | |||||||
| Over temperature | ≥55ºCfan on,≤50ºCfan off,≥85ºCstart over temperature protection | ||||||
| Protection mode:cutoff output,auto-recovery after temperature become normal | |||||||
| environment | Working temp,humidity | -10ºC~+60ºC,20%~90%RH | |||||
| Storagetemp,humidity | -20ºC~+85ºC,10%~95%RH non-condensing | ||||||
| Withstand vibration | 10~500HZ,2G10min/1cycle,period for 60 minutes,each axes | ||||||
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC | ||||||
| Fitstandard | Safety standard | Compliance to UL1012 | |||||
| EMC standard | Compliance to EN55022,CLASSA | ||||||
| others | Dimension | 215*115*50mm(L*W*H) | |||||
| Weight/packing | 1.0kg/24pcs/25kg/0.049 m³/1.72CUFT | ||||||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25ºCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation | ||||||
Contact:
Web: www.mulview.com
Email: mulviewcctv@mtlcctv.com
Skype:lancle0601
We chat: 13760462930
1. Q: What is your minimum order quantity?
A: The MOQ is 10 PCS.
2. Q: How does your factory do regarding quality control?
A: Our power adapters are real power and high efficiency. We do 100% full load aging and
testing before shipping.
3. Q: What is your warranty?
A: Our warranty is 2 years.
4. Q: What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to customers' requirements.
5. Q: What payment terms can be acceptable?
A:T/T, Western Union.
6. Q: How about your delivery time?
A: Bulk quantity within 10 working days normally.
7. Q: Do you provide samples of this product?
A: Yes, we can provide sample or trial order for test.
8. Q: Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels as customers' request.
