Home > Industrial Equipment & Components > Fastener & Fitting > Flange > Customized Forged Carbon Steel Flat Face Flange With Non Passing Thread As per the Drwing
Customized Forged Carbon Steel Flat Face Flange With Non Passing Thread As per the Drwing
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
FLRS
Place of Origin:
China
Model Number:
FLRS-F006
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
FLRS
Place of Origin
China
Model Number
FLRS-F006
Material
Carbon Steel
Size
18“
Standard
Other, Customized Drawing
Standard or Nonstandard
Nonstandard
| Pressure Rating: | 30LB | Surface: | Anti-Rust Oil |
| Size: | 18" | Type: | Flat |
| Material: | A105 | Package: | Plywood Pallet Or Cases |
| High Light: | Forged Carbon Steel Flange | ||
| Flat Face Flange | |||
| Customized Steel Flange | |||
Product Description

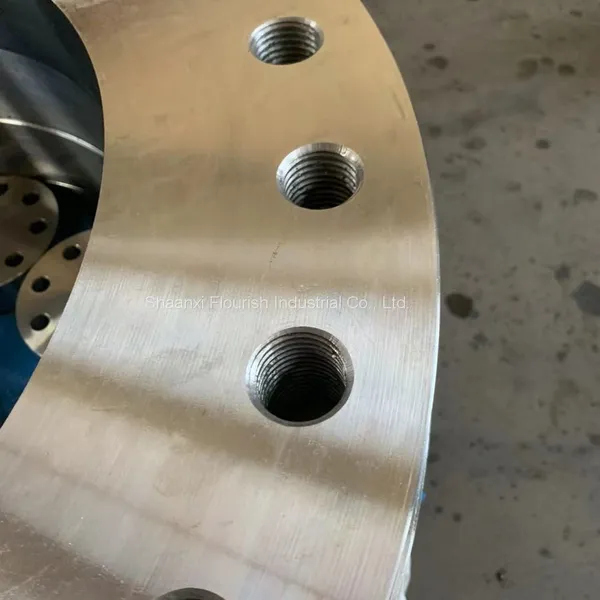

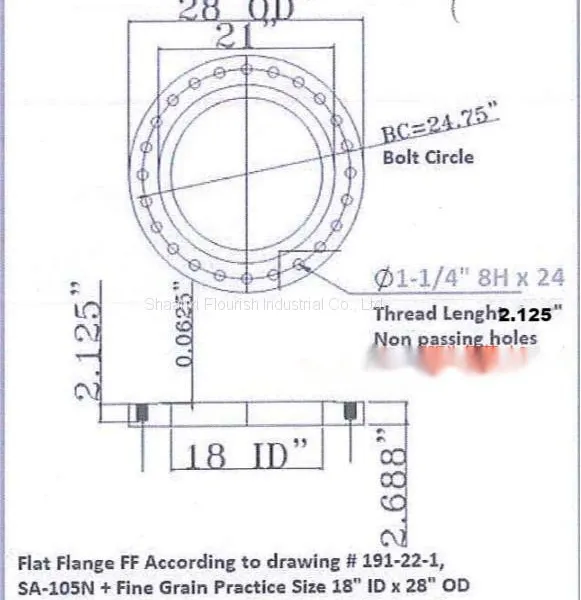

Customized Forged Carbon Steel Flat Flange With Non-passing Threaded SA105N+ Fine Grain Practice As Per Drawing
Flanges are used when the piping joint needs dismantling. These are used mainly at equipment’s, valves and specialties. In certain pipelines where maintenance is a regular feature, breakout flanges are provided at definite intervals. A flanged joint is composed of three separate and independent although interrelated components; the flanges, the gaskets and the bolting. Special controls are required in the selection and application of all these elements to attain a leak-proof joint.
Flanges can be classified based on the method of attachment to the piping as below: Welding-Neck, Slip-on, Blind, Threaded, Socket-Weld, Flat, Lap-Joint, Reducing Flange
Flange technical parameters:
| Facing Type | Raised-Face, Flat-Face, Ring Type Joint, Tongue and Groove, Male and Female |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
