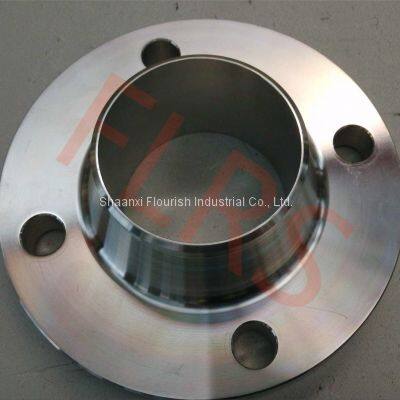

A182 F304 / 304L Raised Face Welding Neck Stainless Steel Pipe Flange SCH10S 3 Inch
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
FLRS
Place of Origin:
China
Model Number:
FLRS-F004
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Annealing and Normalizing Pipe Flanges Painted Black Size From 1/2 Inch To 24 Inch Standard ASME B16.5NegotiableMOQ: 5 Pieces -
Customized Forged Carbon Steel Flat Face Flange With Non Passing Thread As per the DrwingNegotiableMOQ: 5 Pieces
-
Slip on FlangeNegotiableMOQ: 1 Piece
-
Welding Neck FlangeNegotiableMOQ: 1 Piece
-
Blind FlangeNegotiableMOQ: 1 Piece
Brand Name
FLRS
Place of Origin
China
Model Number
FLRS-F004
Material
Carbon Steel
Size
3“
Standard
ASME
Standard or Nonstandard
Standard
| Pressure Rating: | 150LB | Wall thickness: | SCH10S |
| Size: | 3" | Type: | WN |
| Material: | A182 F304/304l | Package: | Plywood Pallet Or Cases |
| High Light: | Forged Stainless Steel Flange | ||
| Welding Neck Raised Face Flange | |||
| Smooth Finish Forged Steel Flange | |||
Product Description
Size 3 inch Wall Thickness SCH10S Stainless Steel A182 F304/304L Raised Face Welding Neck Pipe Flange
Flanges are used in place of welded connections to enable maintenance operations since they can be dismantled quickly and conveniently, unlike other mechanical connectors. As a result, they are commonly used in temporary or moving installations, dismantling piping systems, transitions between dissimilar materials, or connections in areas unfit for solvent cementing.
Flange technical parameters:
| Facing Type | Raised-Face, Flat-Face, Ring Type Joint, Tongue and Groove, Male and Female |
| OD | 15mm-6000mm. 1/2"to 80".DN10-DN3600 |
| Pressure | 150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc |
| Wall thickness | SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Stainless steel | A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc. |
| Carbon steel | A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc. |
| Duplex steel | UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc. |
| Pipeline steel | A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc |
| Nickel alloy | inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc. |
| Cr-Mo alloy | A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc. |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform |
| Attention | ready stock,faster delivery time;available in all sizes,customized;high quality |
