| Pressure Rating: | 150LB | Standard: | ASME B16.5 |
| Size: | 6" | Type: | Blind |
| Material: | A182 F316 | Package: | Plywood Pallet Or Cases |
| High Light: | Forged Stainless Steel Flange | ||
| Blind Raised Face Flange | |||
| Smooth Finish Forged Blind Flange | |||

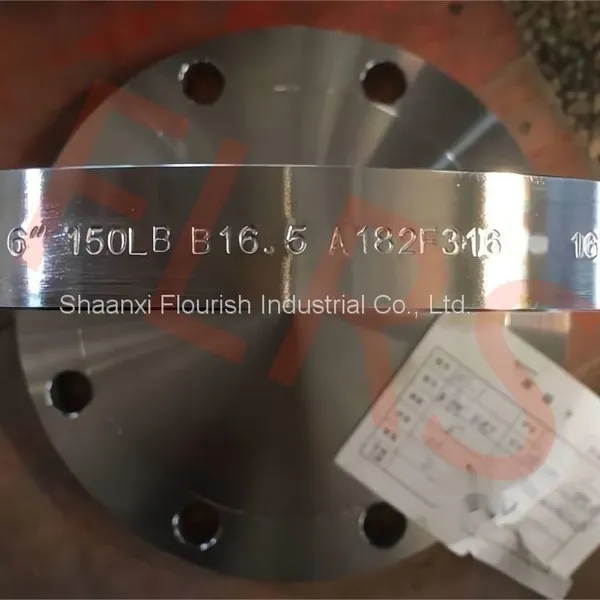

Forged Stainless Steel Pipe Flanges Material ASTM A182 F316 Size 6 Inch as Per Standard ASME B16.5

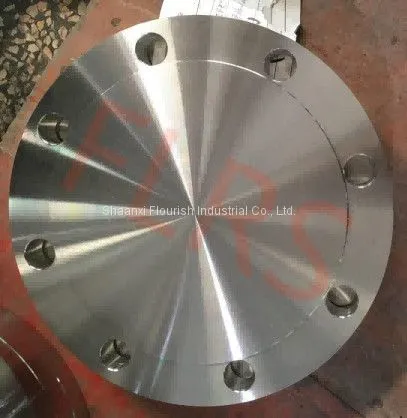

A blind flange is a solid disk used to block off a pipeline or to create a stop. Similar to a regular flange, a blind flange has mounting holes around the perimeter and the gasket sealing rings are machined into the mating surface. The difference is that a blind flange has no opening for fluids to pass through.
The ASME B16.5 standard covers pressure-temperature ratings, materials, dimensions, tolerances, marking, testing and methods of specifying openings for pipe flanges and flange connections. ASME B16.5 covers pipe flanges and flange connections with NPS 1/2 through NPS 24 metric/inch pressure 150LB to 2500LB. This specification requires that the flange surface (convex and flat) be of a specific roughness to ensure that the surface is compatible with the gasket and provides a high quality seal. Serrated finishes, both concentric and helical, require between 30 and 55 notches per inch, resulting in a roughness between 125 and 500 microinches. This allows flange manufacturers to provide different levels of surface finish for gasket contact surfaces of metal flanges.
Product Features:
1. Flange Types: Slip-On Flange, Welding Neck Flange, Blind Flange, Socket Welding Flange,
Threaded Flange, Lap Joint Flange and Plate etc;
2. High quality flanges;
3. Compective price;
4. Fast delivery;
5. High resistant to pressure;
6. Well sealing;
7. Flat welding and butt welding;
Advantage:
(1)Reasonable price with excellent quality
(2)Abundant stock and prompt delivery
(3)Rich supply and export experience, sincere service
(4) Reliable forwarder, next to the Tianjin port
Application:
1. Steel structures,multi-floor,high-rise steel structure,
2. Buildings,industrial buildings,high-way,railway,
3. Steel steam,tower,power station,and other structure workshop frames
