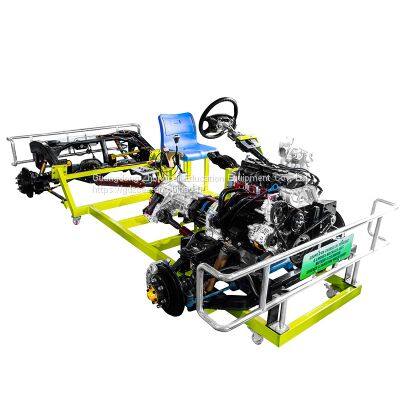

Four-wheel Drive Chassis System Experimental Vehicle

I. Product introduction

The equipment uses the automobile four-wheel drive chassis systems as the basis, fully demonstrating the composition structure of the automobile chassis systems. Including automobile front and rear suspension system, steering system, transmission system, manual transmission and gear mechanism, braking system and other systems, the installation of casters movable table and other components.

Applicable to the teaching needs of the theory and maintenance training of the chassis systems in schools.

II. The functional characteristics

1. Install the real car chassis systems (including front and rear suspension system, steering system, transmission system, manual transmission and gear mechanism, braking system), fully demonstrate the composition of the car chassis systems structure.

2. Can be true to the car chassis systems show and disassembly training.

3. Dissected manual transmission can be dynamic demonstration and testing, reducer motor input power, the transmission can be shifted and dynamic testing.

4. The base of the training table is welded with steel structure, the surface is treated with spraying process, with self-locking casters, flexible movement, safe, reliable, durable.

III. Technical specifications

Dimension: 2600×1700×1500mm(L×W×H)

Power supply: 220V

Working temperature: -40℃～+50℃

Host: the original device

Electric motor: 220V/250W 15rpm

Steel pipe: 60 * 40 * 3mm

Mobile casters: 100*50mm
