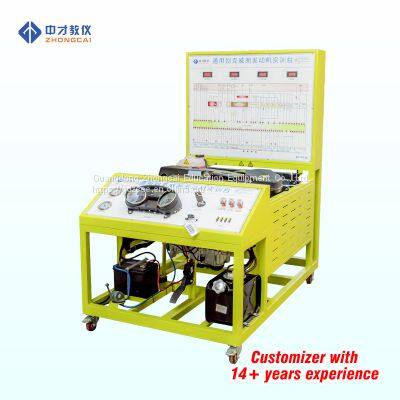

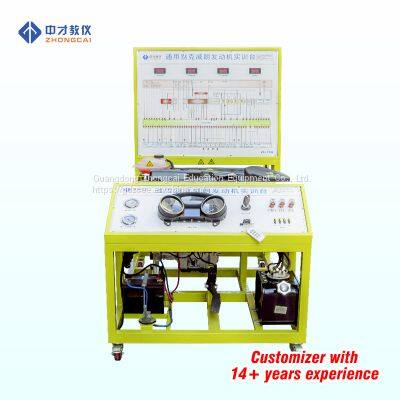

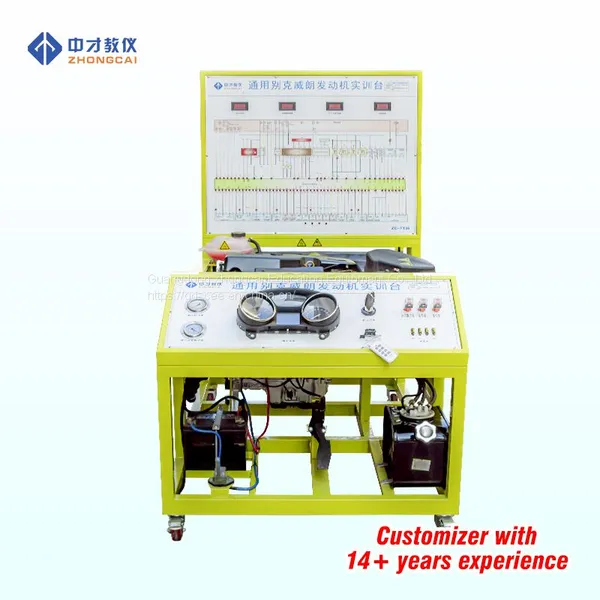

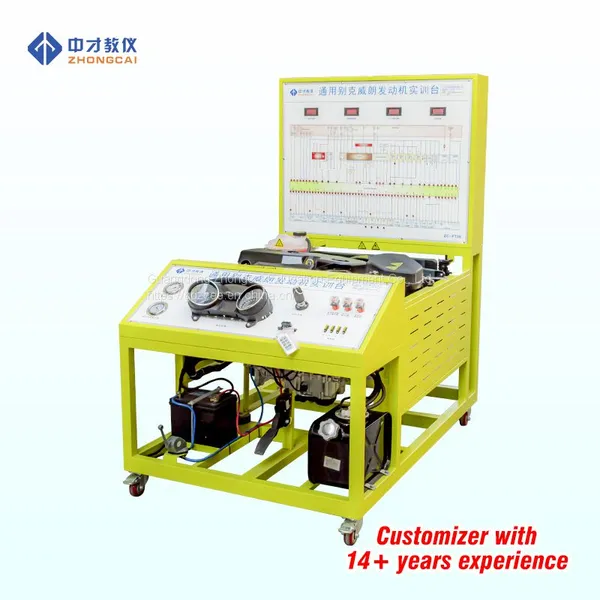

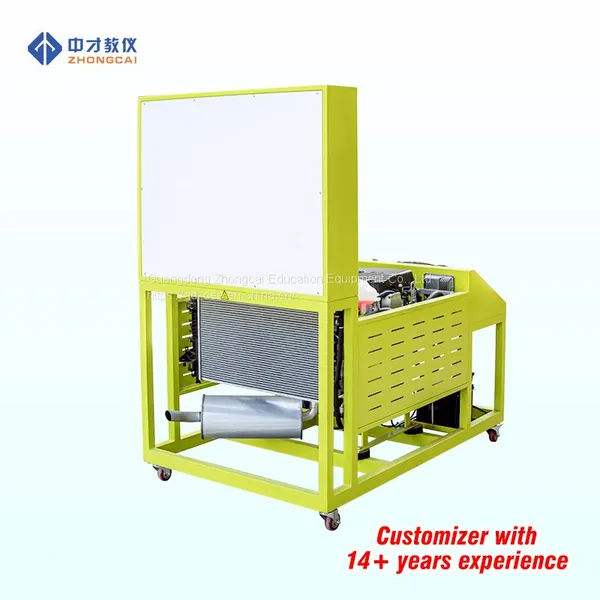

Buick General Veracruz engine training bench

Product Overview:

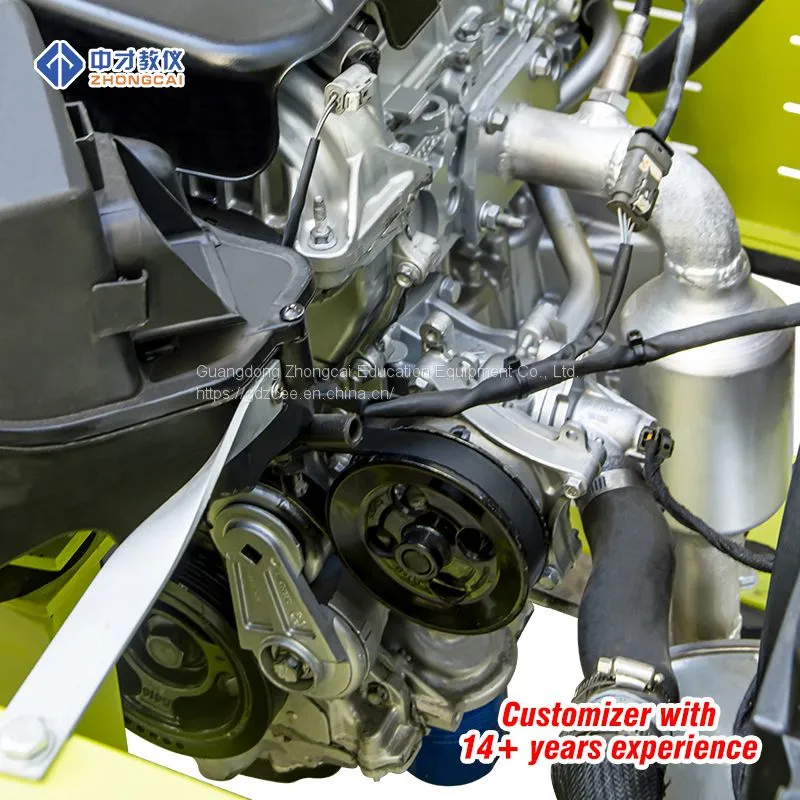

The training bench is composed of Buick Verano LG3 electronically controlled gasoline engine assembly, the training bench can start the engine, run experiments, the teacher combined with the training bench teaching panel to teach the control principle of the engine to train students to analyze and solve the actual fault ability, forming an organic combination of theory and practice; suitable for secondary and higher vocational and technical schools and automotive training institutions of automotive engine construction and maintenance training Practical teaching, to meet the different levels of schools on the structure of electronically controlled gasoline engine components, working principles, fault settings and diagnosis of teaching needs.

The main components:

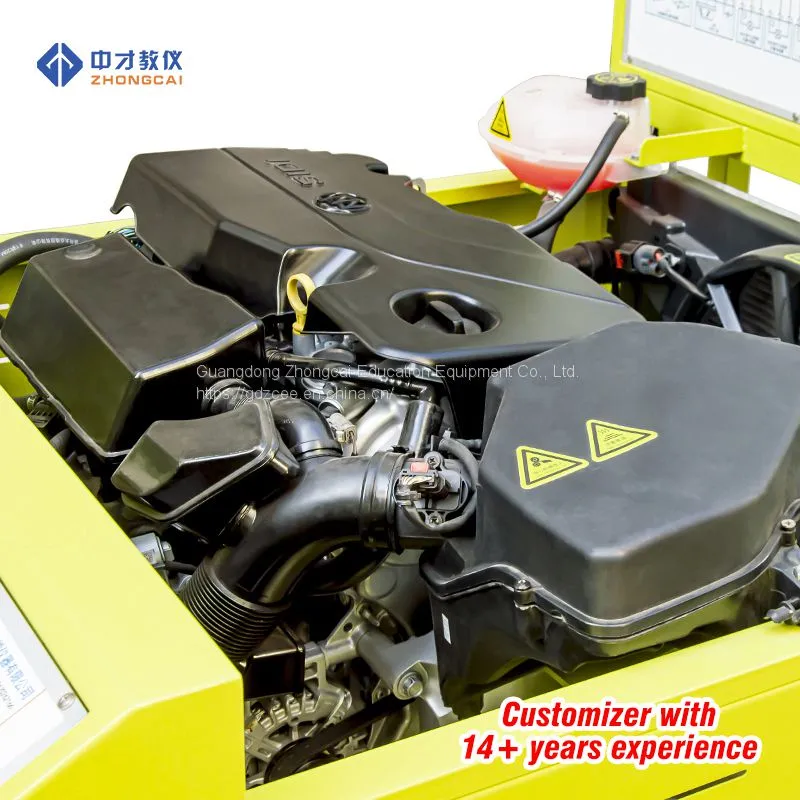

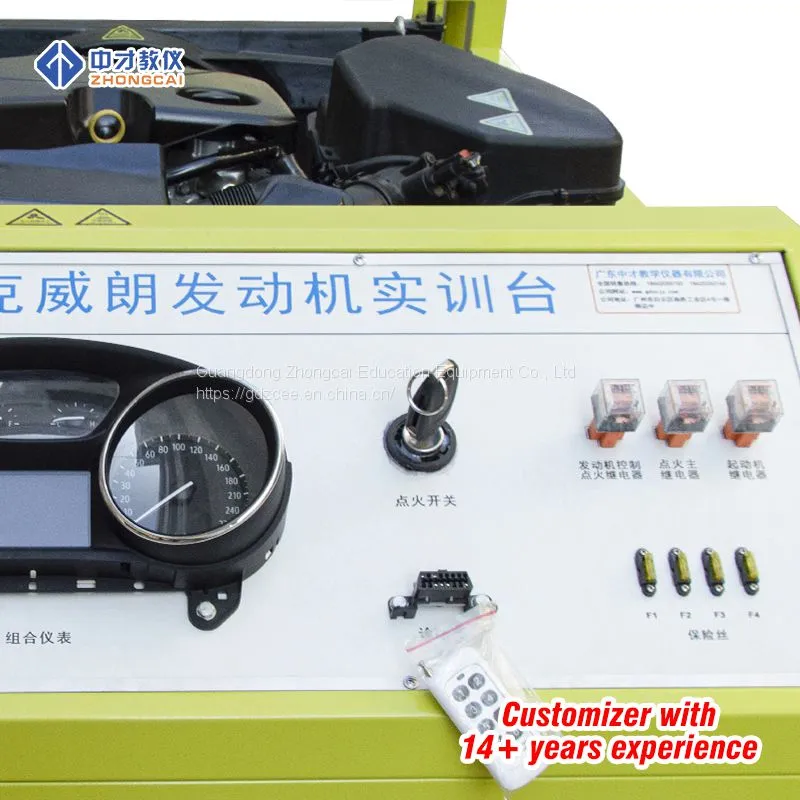

engine assembly, engine electronic control unit, instrumentation, ignition switch, fault setting system, oil pressure gauge, vacuum gauge, fuel tank, battery, diagnostic seat, cooling system (water tank, fan, fan cover, upper and lower water pipe), exhaust system, and the engine computer pin one to one correspondence of the signal detection area, LED lights, signal table, safety cover, removable table, etc.

Functional features :

(1) The engine works normally, a real response to the structural composition and working process of the EFI gasoline engine.

(2) Engine training table with dynamic operation and display functions, the original instrumentation, digital table real-time display of dynamic and static engine signal parameters.

(3) Assembled with LED lights to show the working state of injector pulse and ignition pulse-related components.

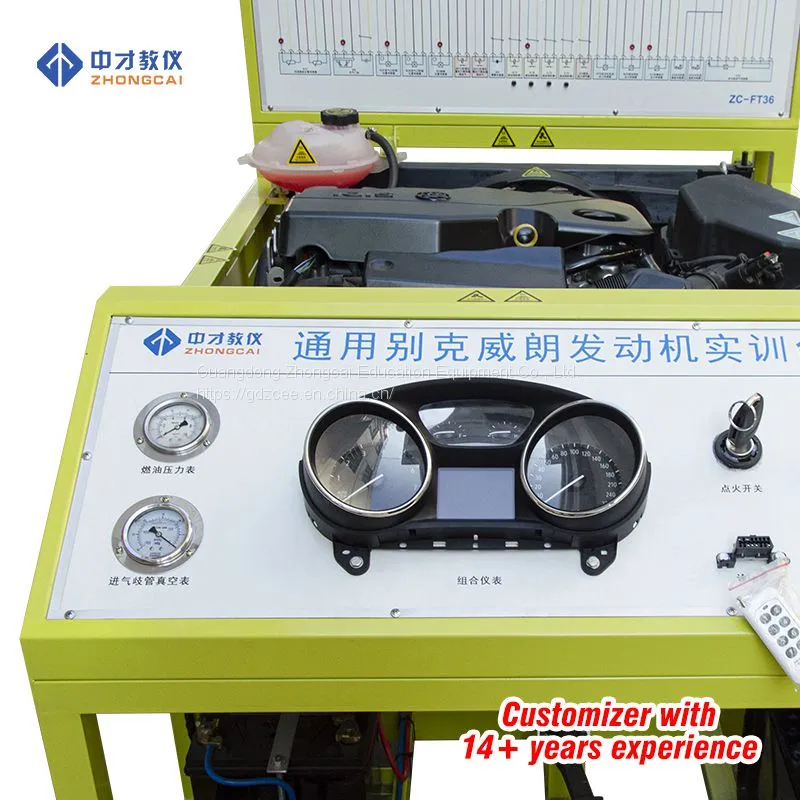

(4) Teaching panel installed with a complete color engine electronic control system circuit working principle diagram, ECU terminal function, injection system LED indication, etc., to facilitate the teacher to explain the system knowledge more intuitively.

(5) The training table is installed with a diagnostic socket, which can be connected to a special or general-purpose car decoder to read fault codes, clear fault codes, read data streams and other engine self-diagnostic functions for the engine electronic control system.

(6) Self-diagnostic functions: dynamic and static data stream reading, fault code reading, waveform analysis, actuating element action test, etc.

(7) Electronic control system detection function: the teaching panel is installed with computer lead terminals, which can use multimeter and oscilloscope to detect each sensor and actuator resistance, voltage, frequency, waveform.

(8) The training table is equipped with a fault-setting assessment device suitable for teaching, which can set one and more common faults to meet the assessment requirements of vocational skills teaching.

(9) The training table measurement panel is painted with colorful spray-painted circuit diagrams, using 4mm thickness of high-strength aluminum spray-painted panels, with a large temperature difference, wear-resistant, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright colors, not easy to fade and other characteristics.

(10) Training table using international standard steel welding, with light quality, high strength, corrosion resistance, long life, etc., after spraying process, the appearance of more beautiful high-grade, the table with self-locking casters device, mobile and flexible, safe, reliable, durable.

Technical parameters:

Table size: 1500 * 1000 * 1700mm (L * W * H)

Working power: 12VDC

Fuel standard: 92#

Weight 150KG
