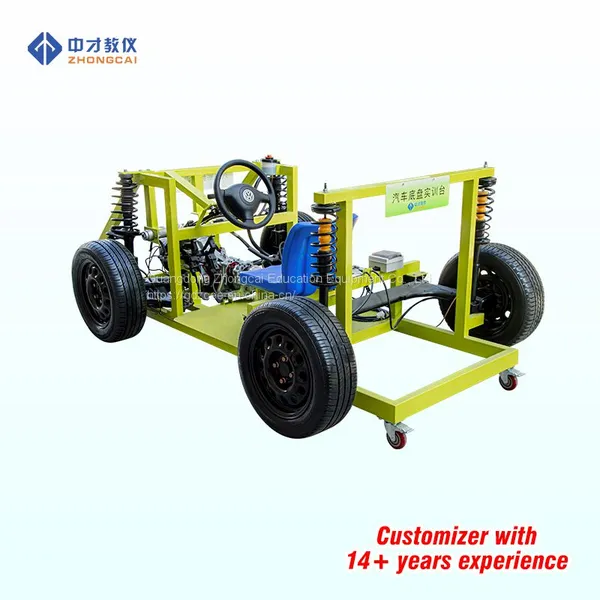

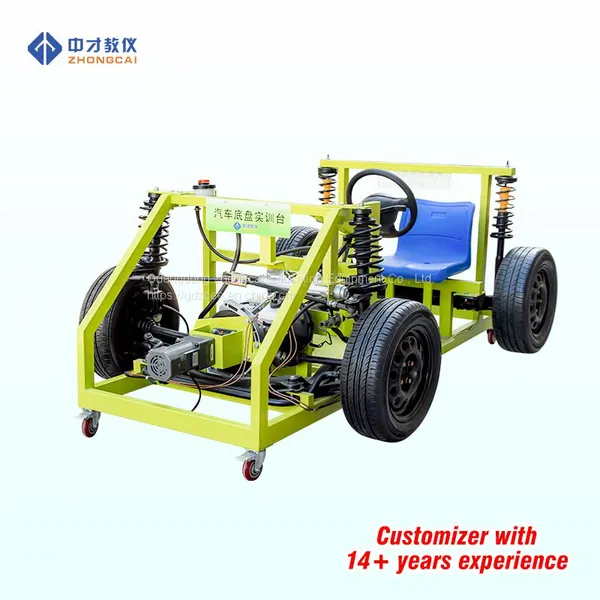

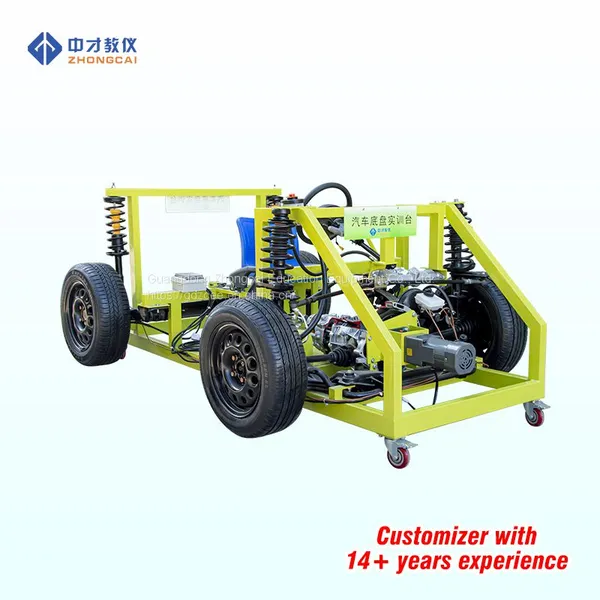

Automobile rear drive chassis comprehensive training table

Product introduction

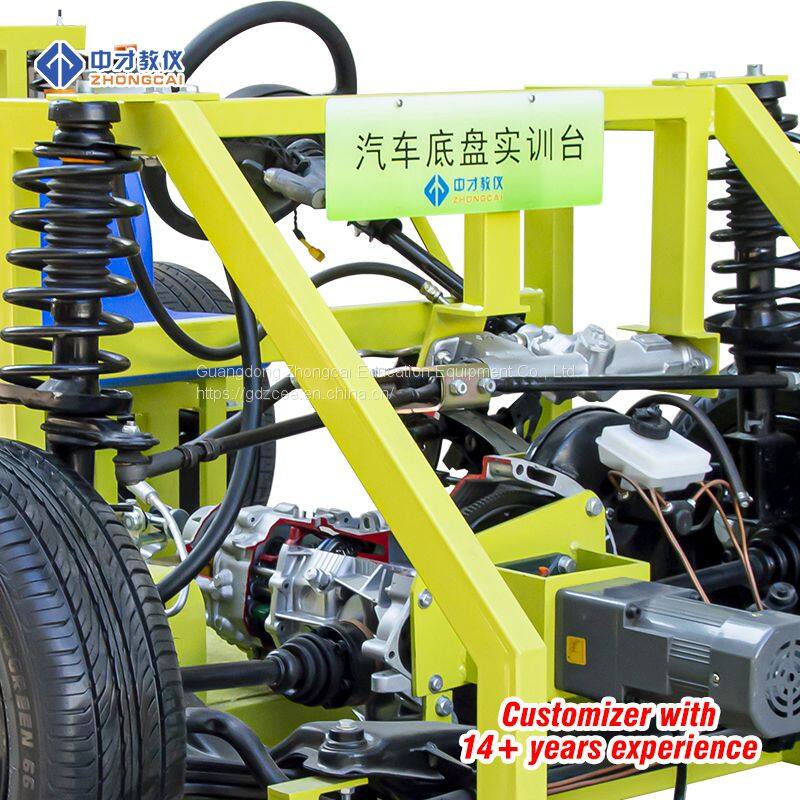

The equipment adopts the rear-drive automobile chassis systems as the basis, fully demonstrating the composition structure of the chassis systems.

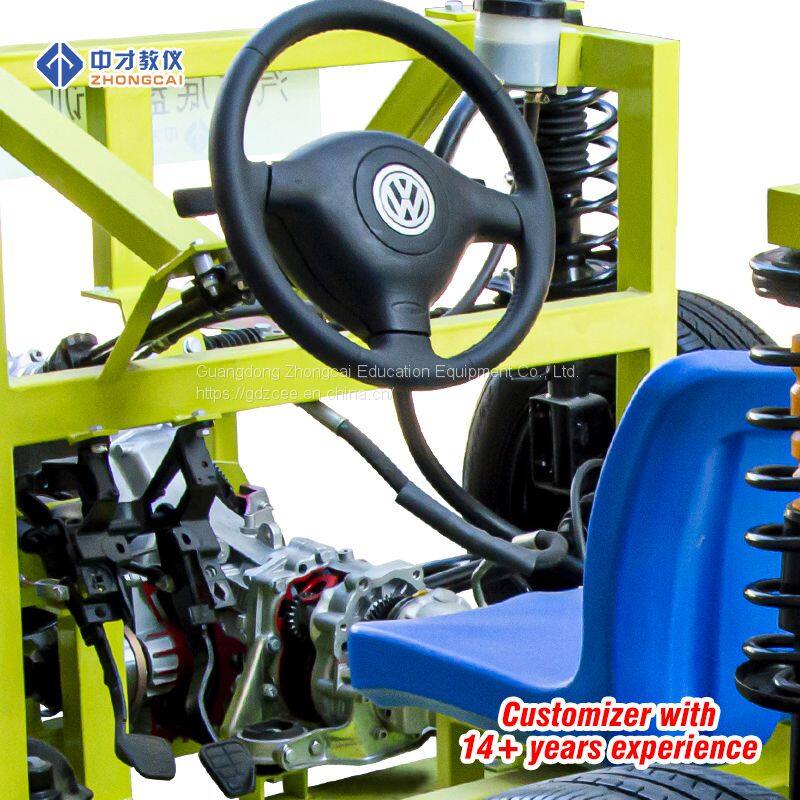

Including front and rear suspension system, steering system, transmission system, manual transmission and gear mechanism, braking system and other systems, the installation of casters removable table and other components.

Applicable to the teaching needs of the school for the theory and maintenance of the chassis systems practical training.

The functional characteristics

1. Install the real chassis systems (including front and rear suspension, steering, transmission, manual transmission and gear mechanism, braking system), fully demonstrate the composition of the structure of the chassis systems.

2. Can be true to the car chassis systems show and disassembly training.

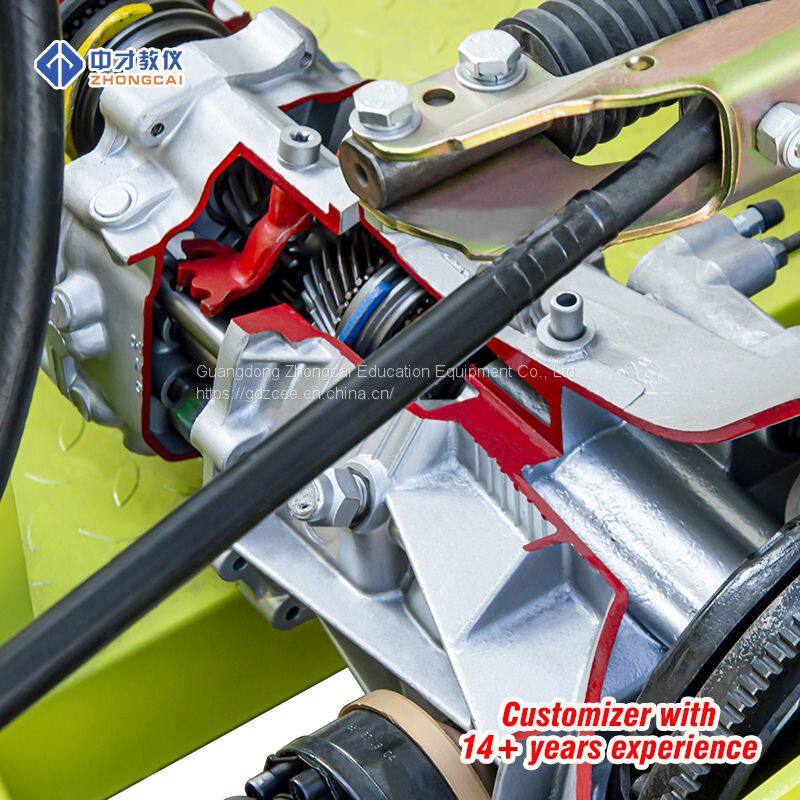

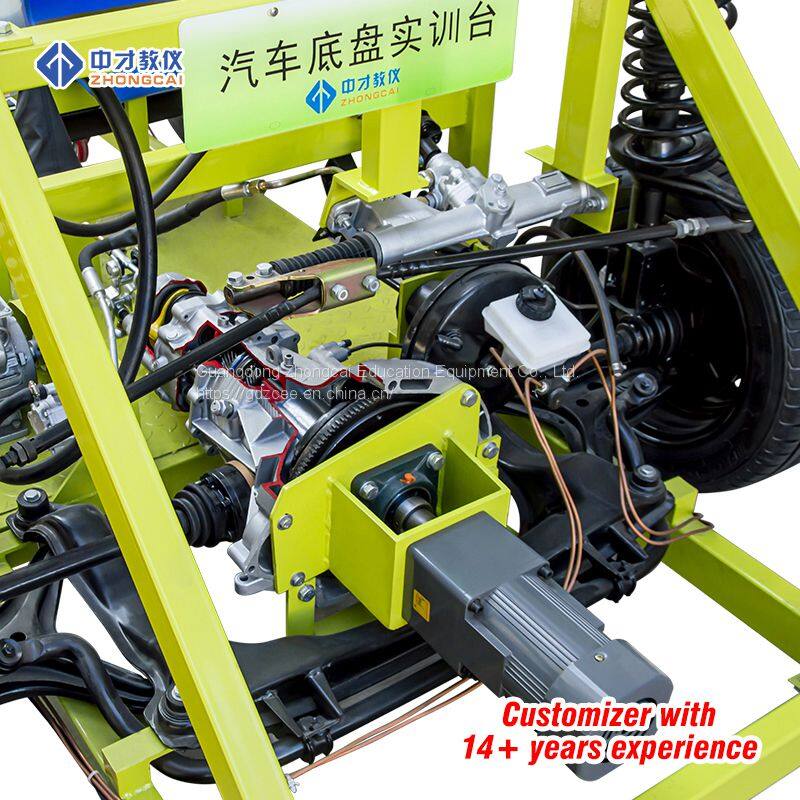

3. Dissected manual transmission can be dynamic demonstration and testing, reducer motor input power, the transmission can be shifted and dynamic testing, four wheel contact with the ground can be slow driving demonstration.

4. Motor-driven directional power pump, real demonstration of power steering work process.

5. The base of the training table is welded with steel structure, the surface is treated with spraying technology, with self-locking casters, flexible movement, safe, reliable, durable.

Technical specifications

Power supply: 220V

Working temperature: -40℃～+50℃

Host: the original device

Electric motor: 220V/250W 15rpm

Leakage protection switch: DZ47LE-32

Steel pipe: 60*40*3mm

Mobile casters: 100*50mm

Weight: 500KG

Size: 3500mm * 2000 * 1200
