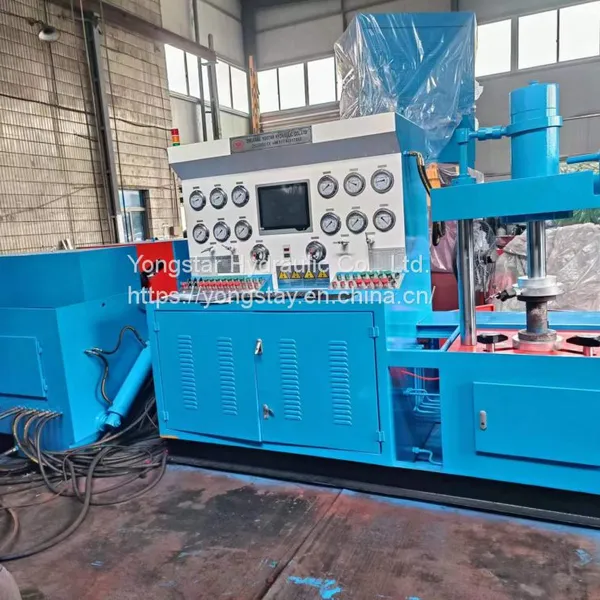

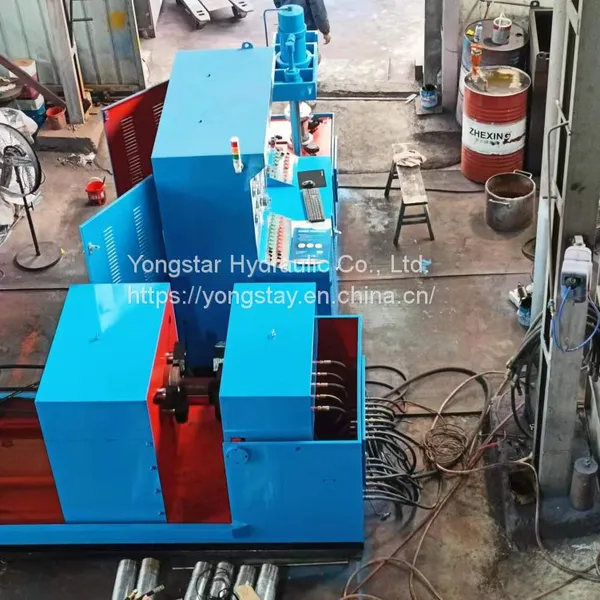

Designed by Yongstar Combined Type PLC Control Valve Pressure Test Machine
US$ 35000 - 40000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YONGYE
Place of Origin:
China
Model Number:
YFT-400B150
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
60 days
Related Products
-
Yongstar Provides High End Butterfly Valve Test StandUS$ 30000 - 50000MOQ: 1 Set -
Made by Zhejiang Yongstar PLC Control Valve Seal Test EquipmentUS$ 20000 - 25000MOQ: 1 Set
-
Highly Automated High Quality High Accuracy PLC Control Horizontal Valve Test InstrumentUS$ 20000 - 30000MOQ: 1 Set
-
YONGYE Brand High End Dn16"-32" Horizontal Valve Body Test MachineUS$ 35000 - 45000MOQ: 1 Set
-
Provided by Yongstar High Quality Diving Type Valve Leakage Test RigUS$ 18000 - 25000MOQ: 1 Set
Brand Name
YONGYE
Place of Origin
China
Model Number
YFT-400B150
Power
Hydraulic
Usage
Auto Testing Machine

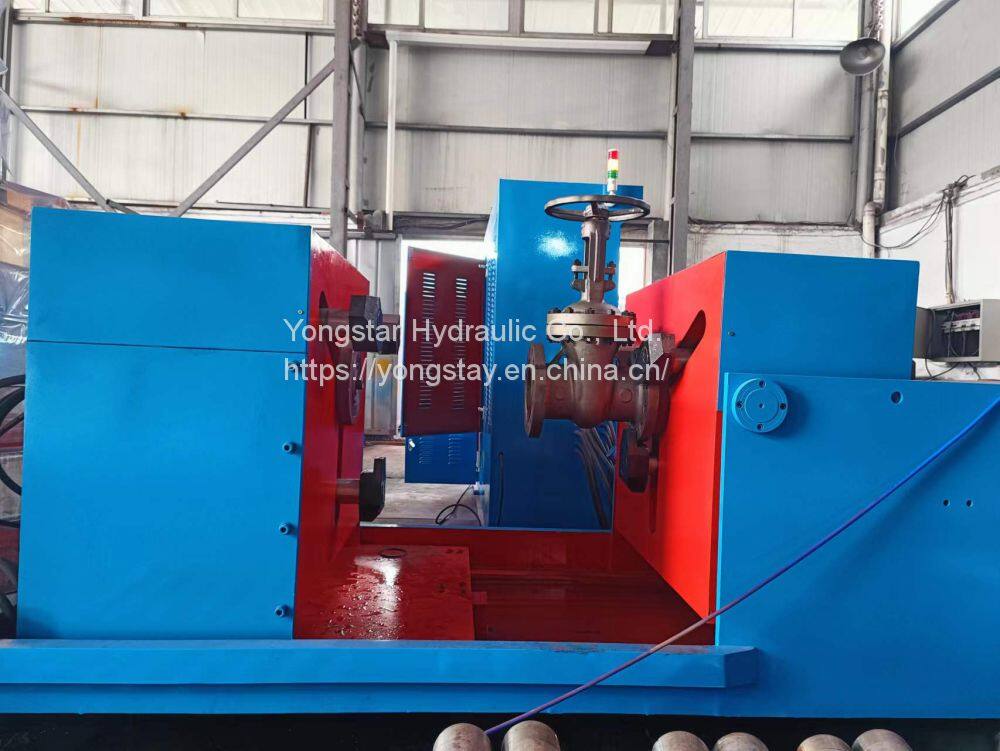

Technical performance and feature (YFT-400 part)
1. Y FT series hydraulic valve test bench is suitable for the shell test, seal test and back seal test of flange ends valves.
2. It adopts the sealing method of flange blind plates and uses claws to hold the flange end，so there is no external force on the tested valves, which is in accordance with the requirements of GB/T 1392-92JB/T 909-99 and API 598.

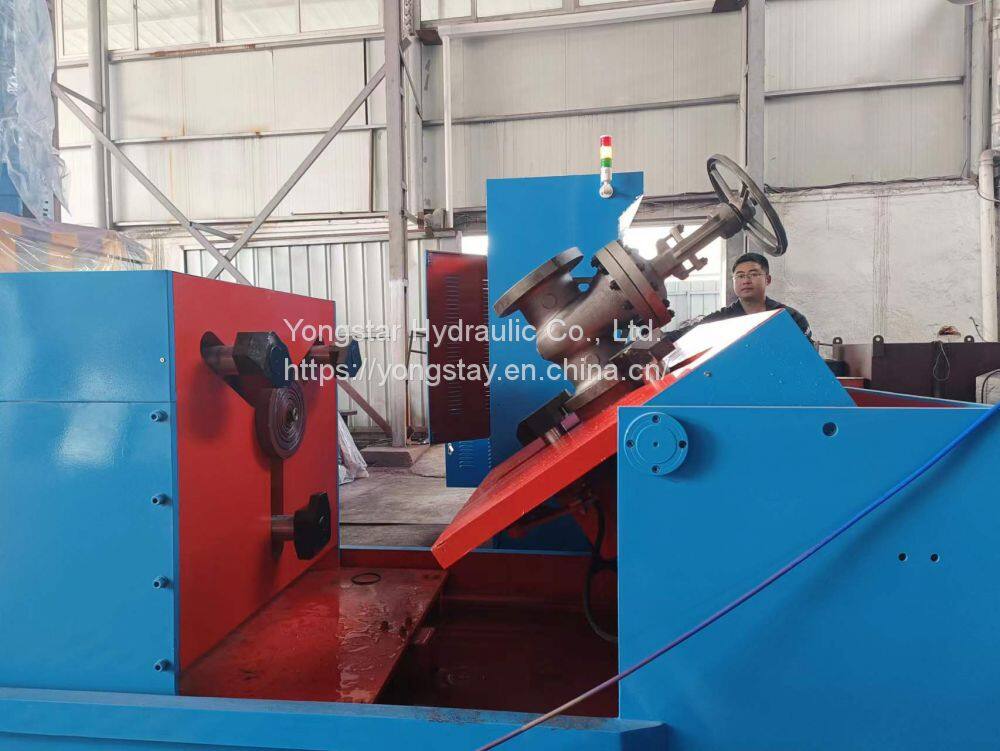

3. The right workbench can be turned over 90 degrees，for the convenience of carrying valve and seal test.
4. Test medium can be chosen by user. It can be water air or kerosene.
5. Test bench has low pressure water pump and water booster.There is an air source interface reserved for air pump.
6. Water and hydraulic coil can be cycle used.
7. The test bench has an automatic oil pressure discharge system.When using it，the high pressure condition and the relief
pressure condition can be changed by itself. So it can reduce oil temperature, elongate the life of valve test bench.

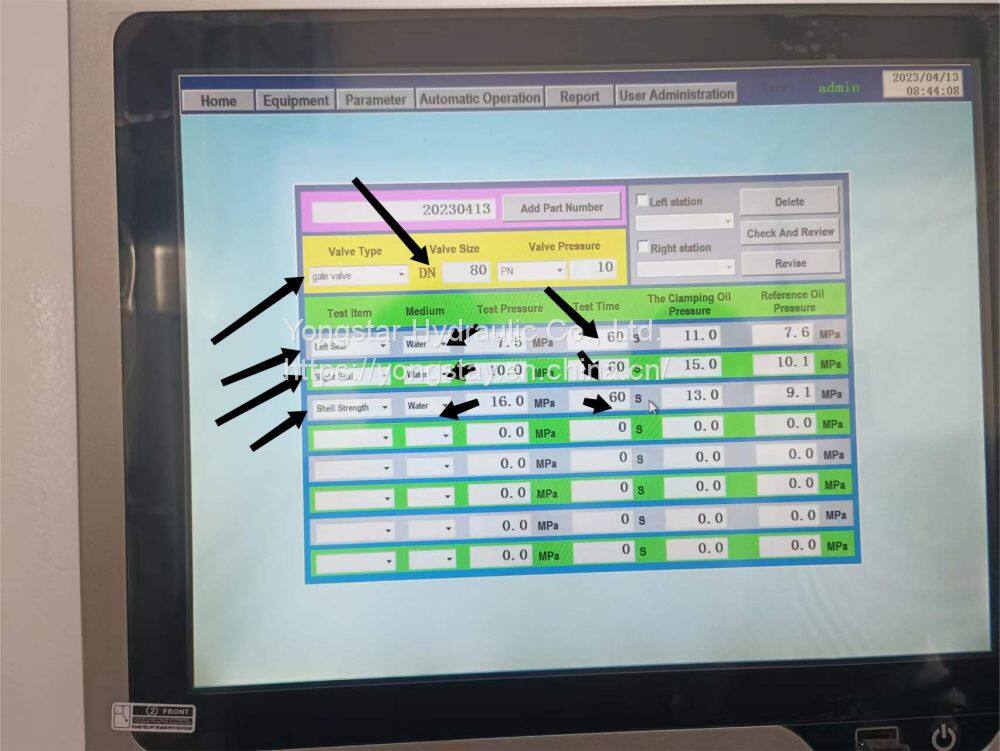

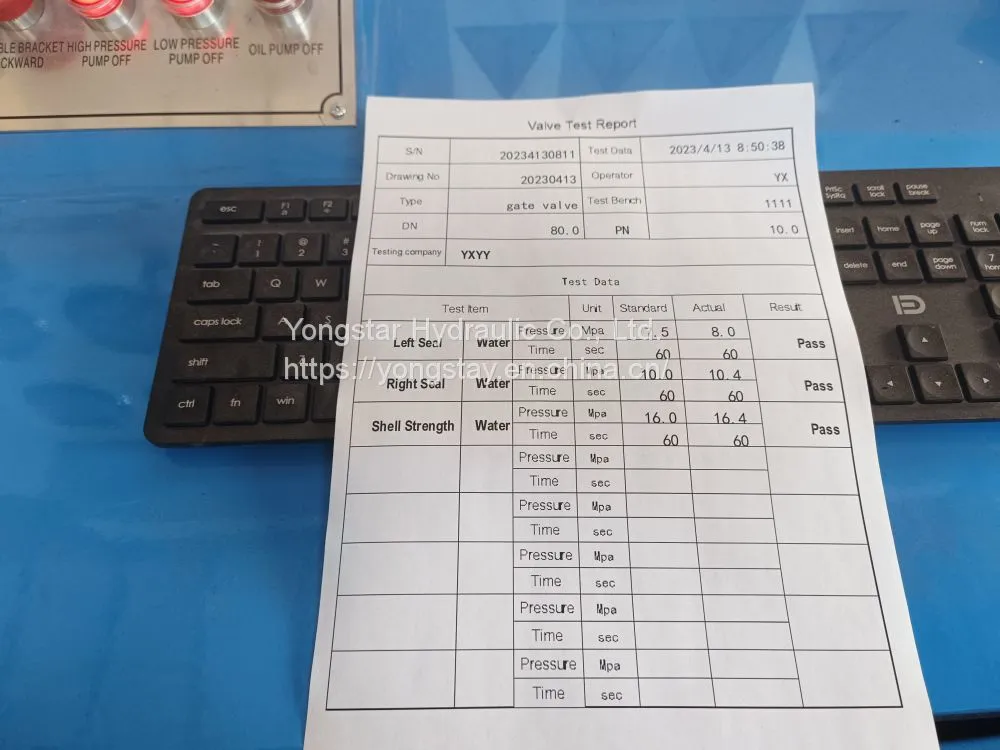

8. PLC control touchscreen display pressure diagram and printer system is optional.
9.Safety door is optional.
2. It adopts the sealing method of flange blind plates and uses claws to hold the flange end，so there is no external force on the tested valves, which is in accordance with the requirements of GB/T 1392-92JB/T 909-99 and API 598.
3. The right workbench can be turned over 90 degrees，for the convenience of carrying valve and seal test.
4. Test medium can be chosen by user. It can be water air or kerosene.
5. Test bench has low pressure water pump and water booster.There is an air source interface reserved for air pump.
6. Water and hydraulic coil can be cycle used.
7. The test bench has an automatic oil pressure discharge system.When using it，the high pressure condition and the relief
pressure condition can be changed by itself. So it can reduce oil temperature, elongate the life of valve test bench.
8. PLC control touchscreen display pressure diagram and printer system is optional.
9.Safety door is optional.

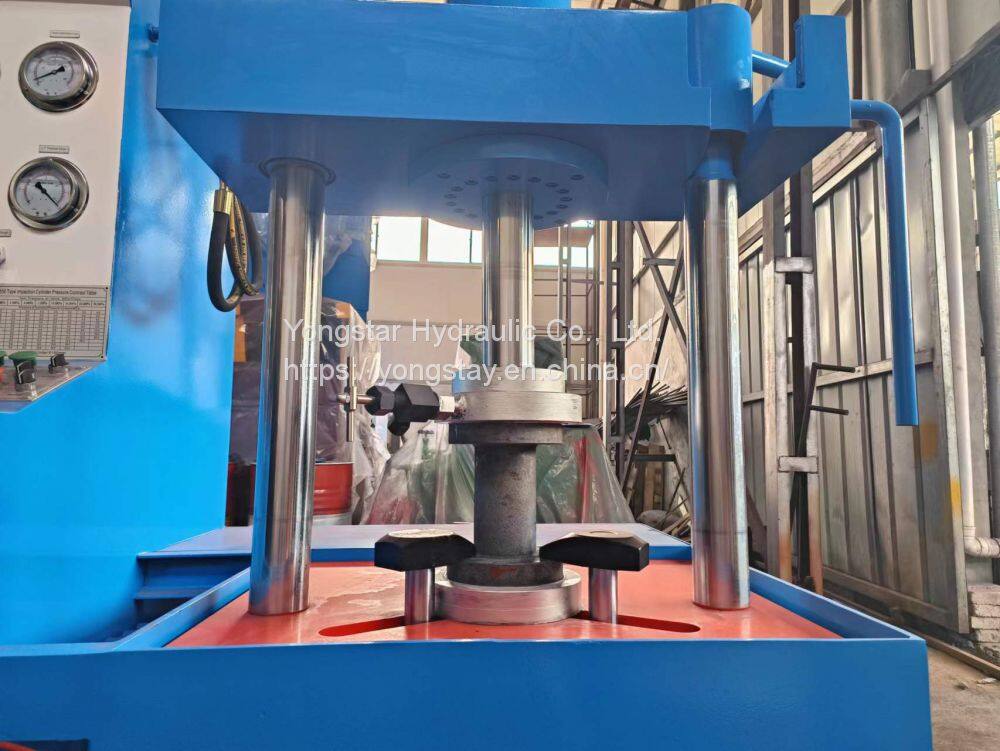

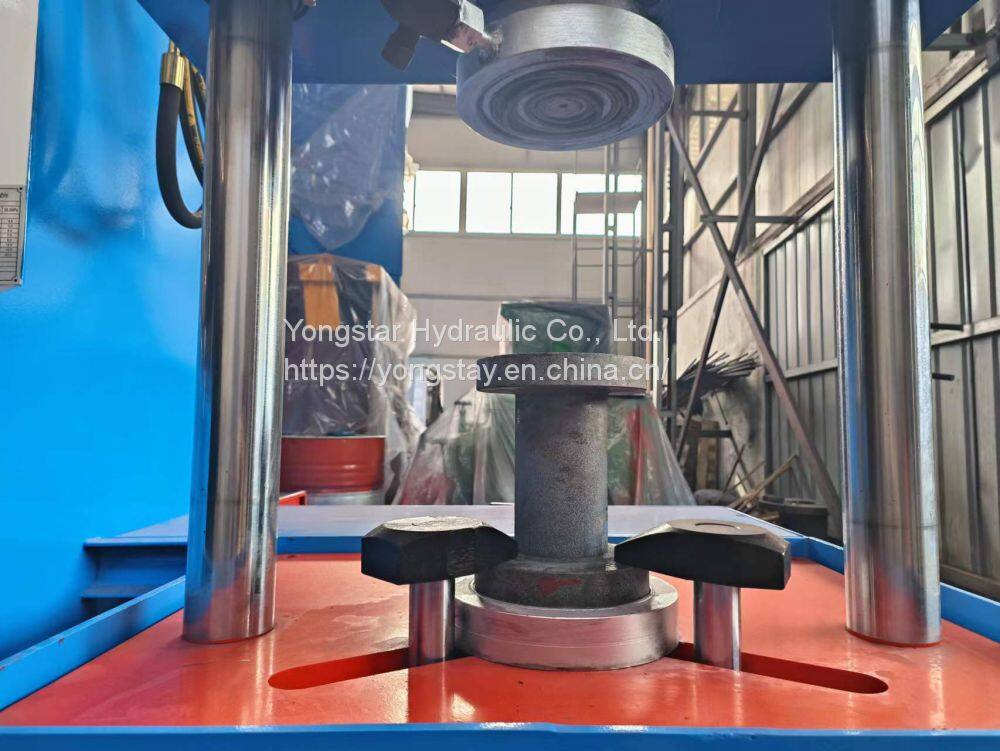

Technical performance and feature (YFT-B150 part)

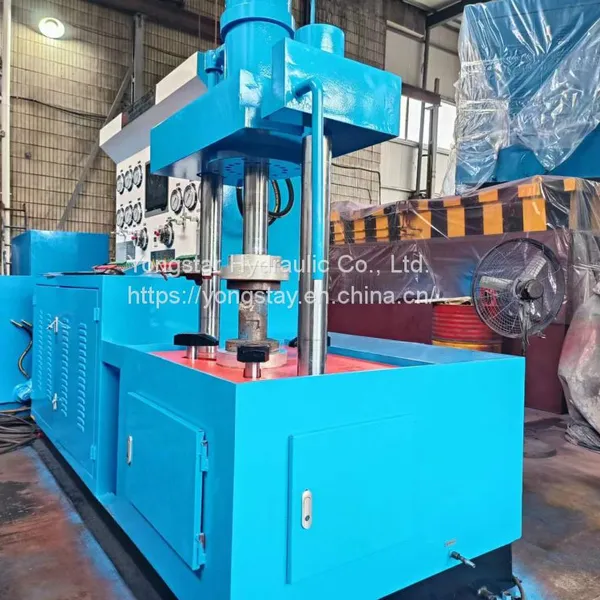

1. YFT-B vertical series hydraulic valve test bench is suitable for the shell and seal test of the valves below DN-300, it has two types of plane blind plates: plastic seal plates for non-flange valve test and O rings seal plates for flange valve test.

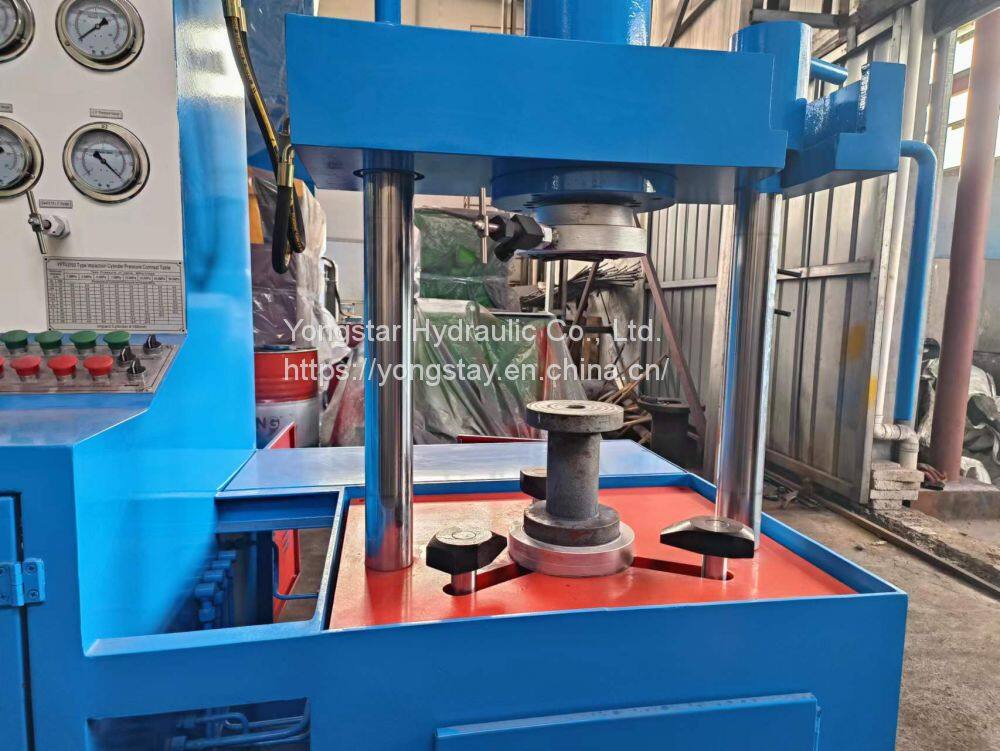

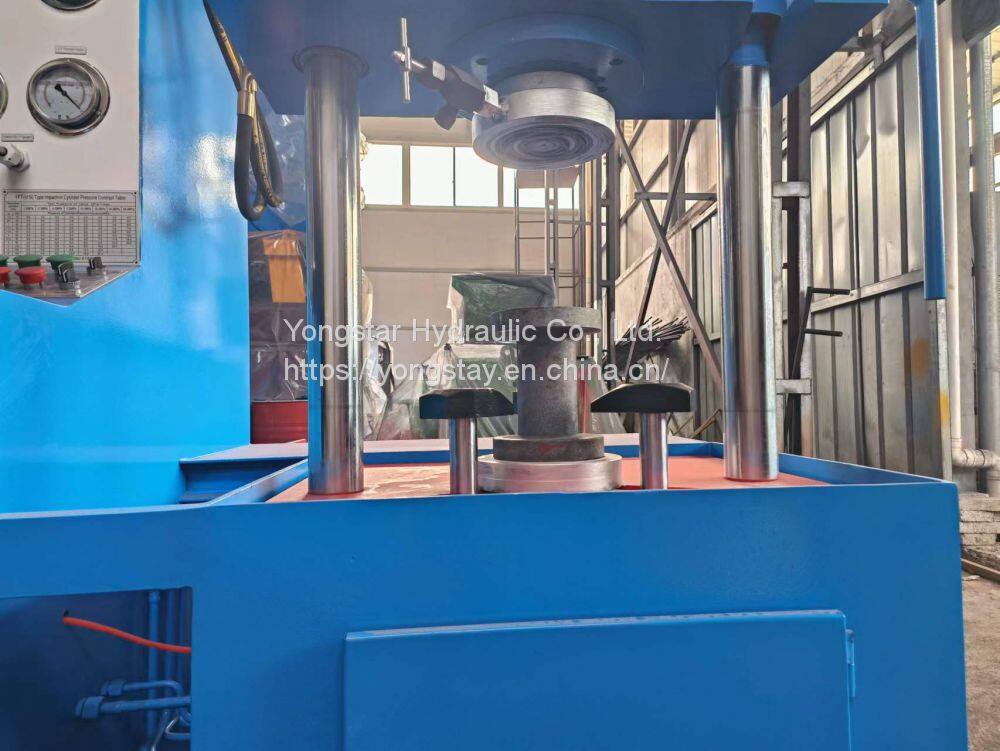

2. The work panel has claws and the upward side has an impact cylinder.
3. The top beam can be turned over 90 degrees, which is easy for operation.
4. Test medium can be chosen including water, air or kerosene.
5. Test bench has low pressure water pump and water booster. There is an air source interface reserved for air pump.
6. Water and hydraulic oil can be reused.
7. the test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief
pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of the test bench.

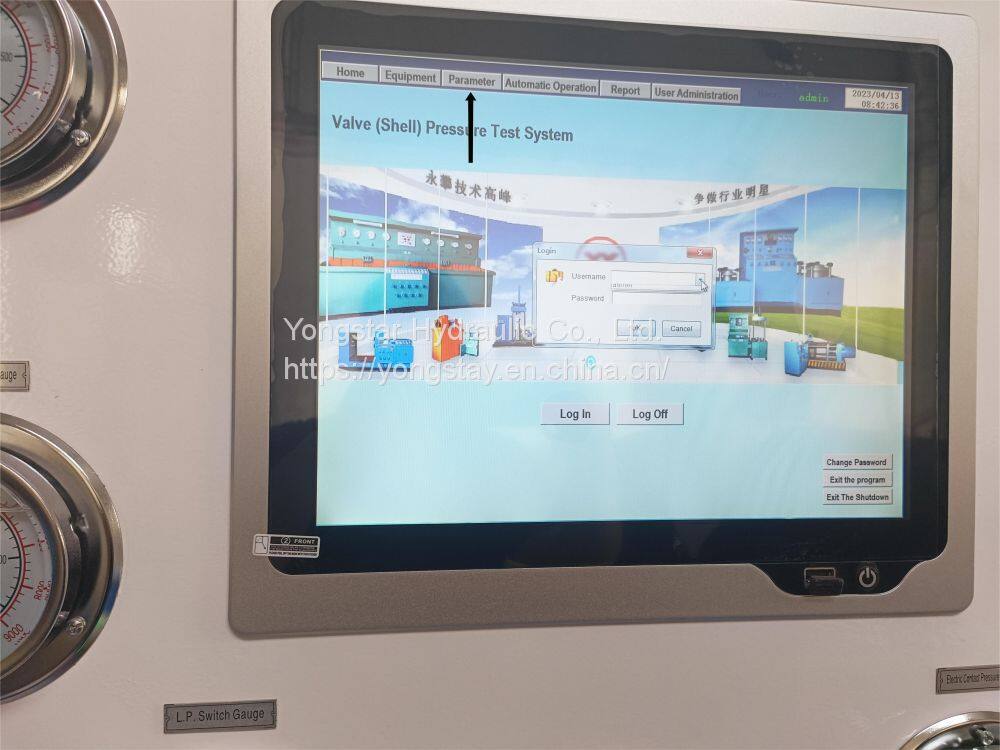

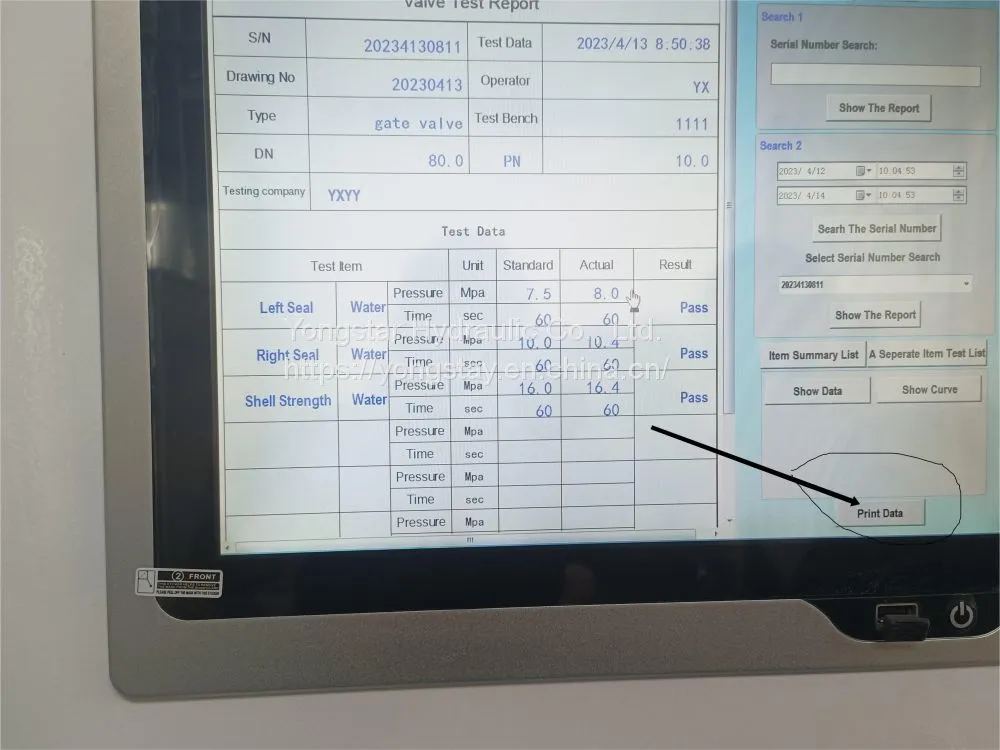

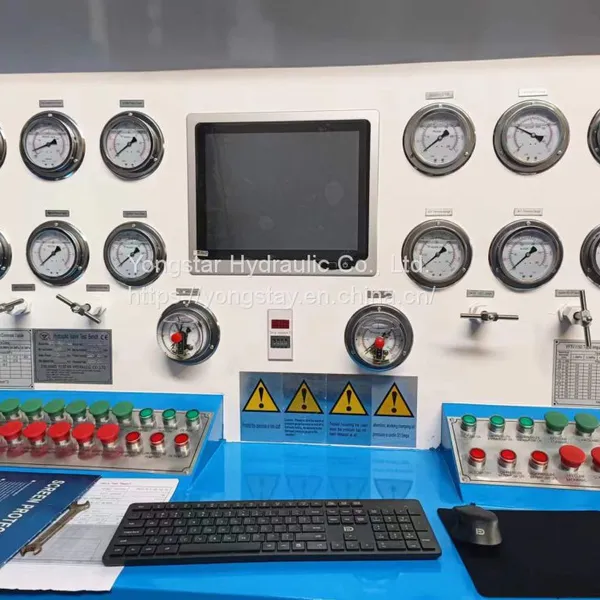

8. PLC control, touch screen display pressure diagram and printer system is optional.
3. The top beam can be turned over 90 degrees, which is easy for operation.
4. Test medium can be chosen including water, air or kerosene.
5. Test bench has low pressure water pump and water booster. There is an air source interface reserved for air pump.
6. Water and hydraulic oil can be reused.
7. the test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief
pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of the test bench.
8. PLC control, touch screen display pressure diagram and printer system is optional.

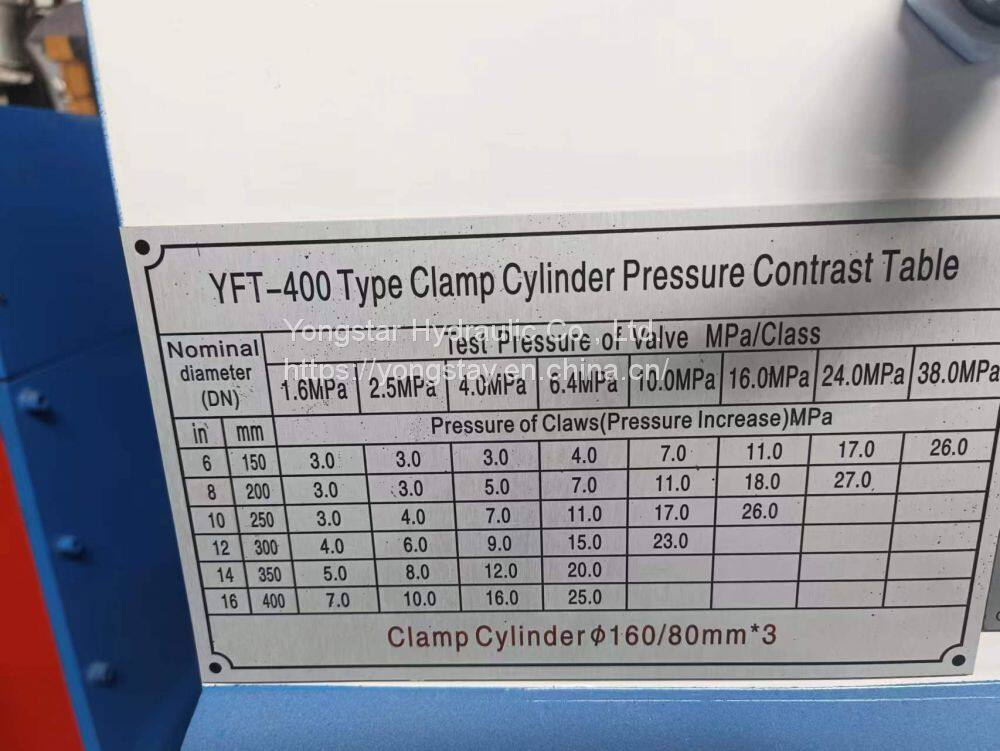

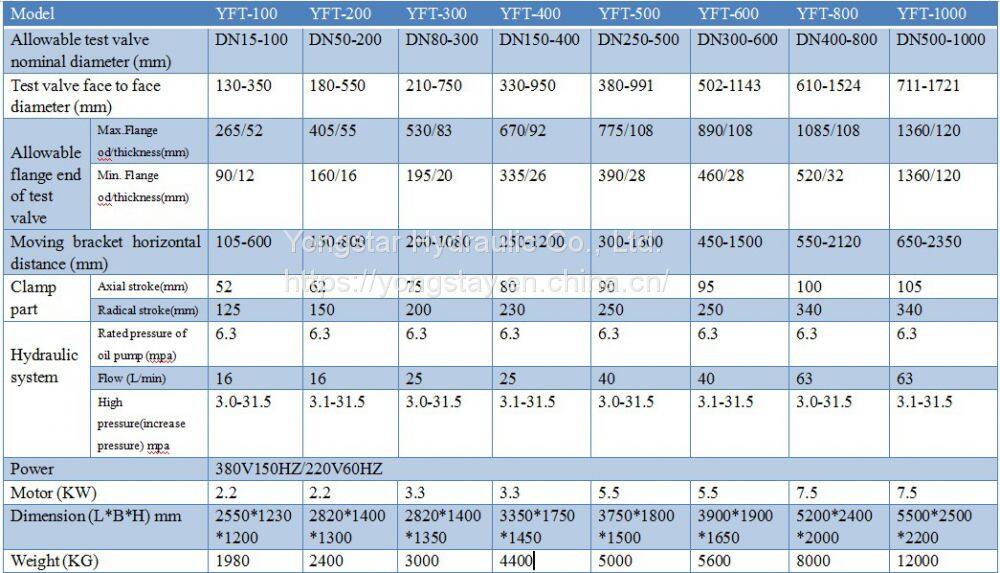

Main parameters and sizes (YFT-400 part)

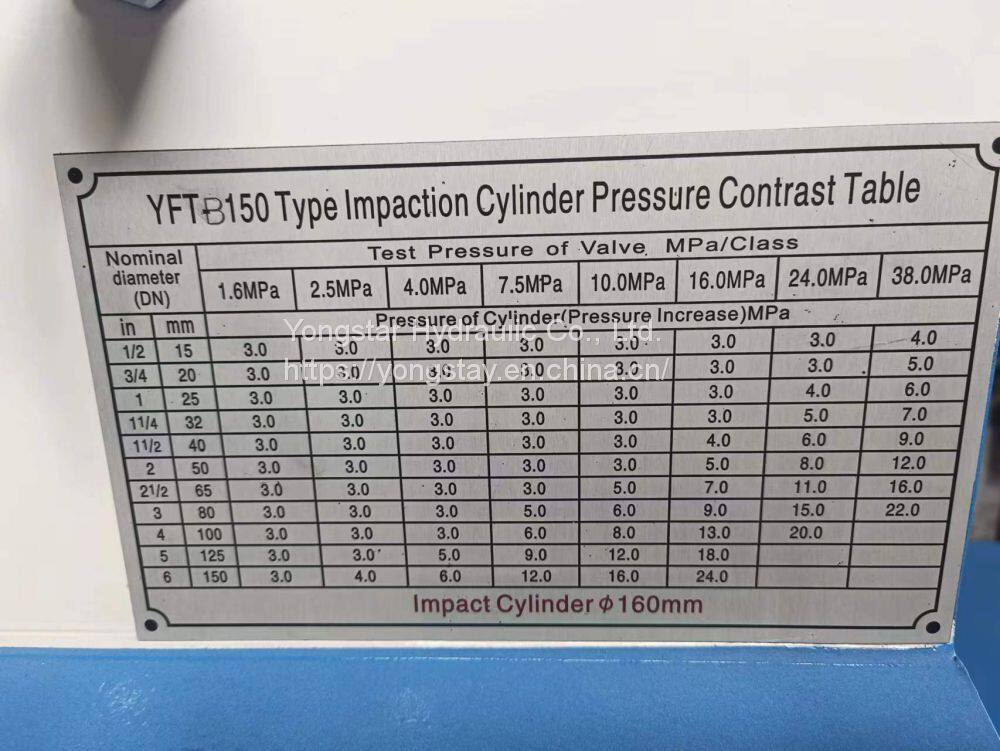

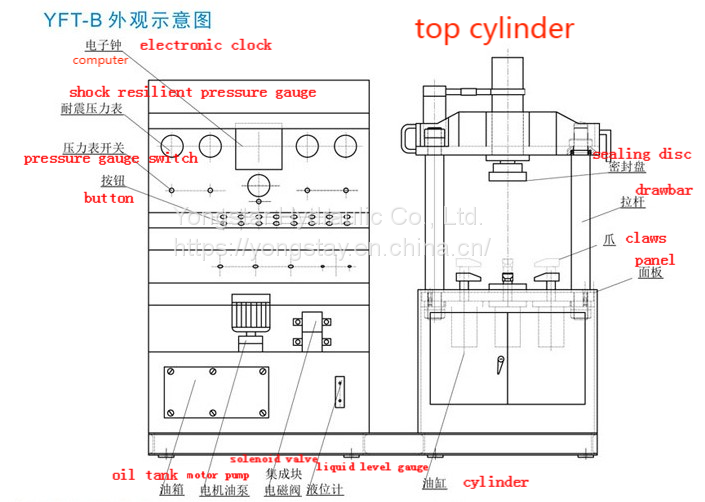

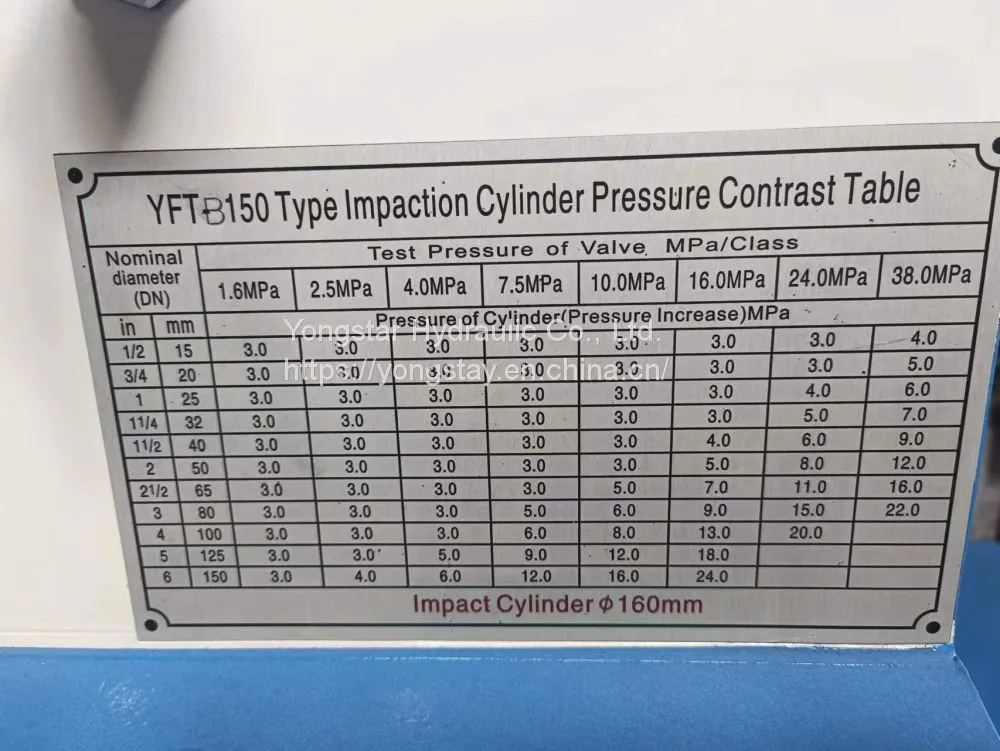

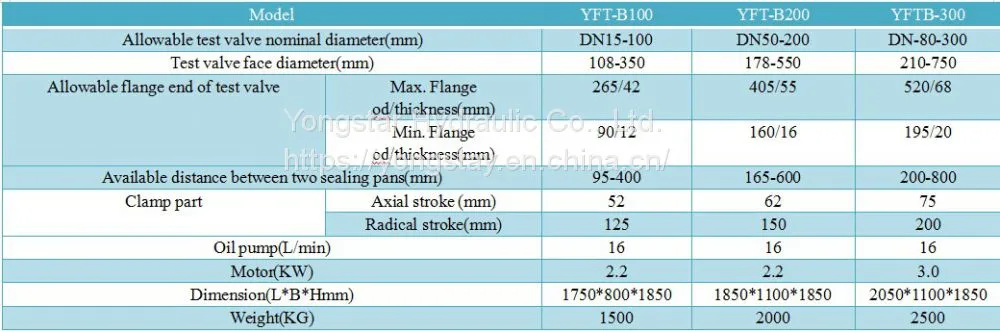

YFT-B150 part

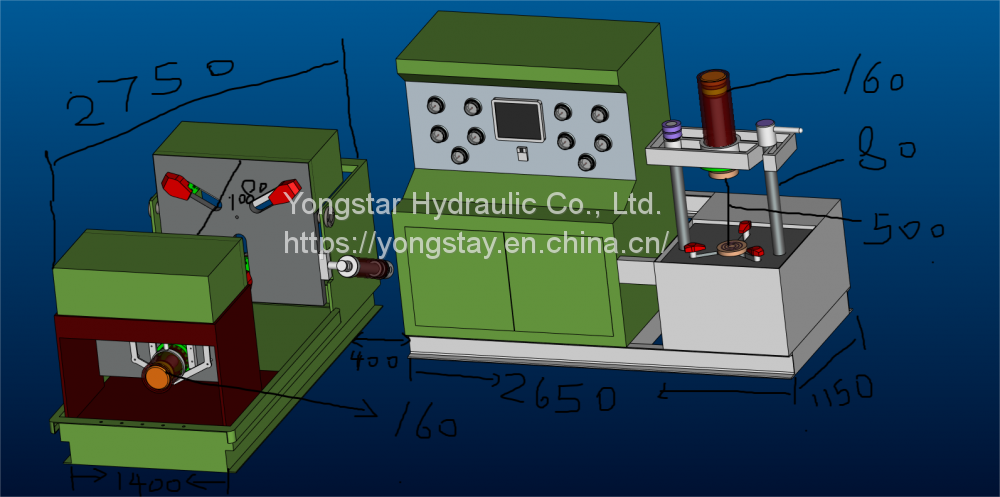

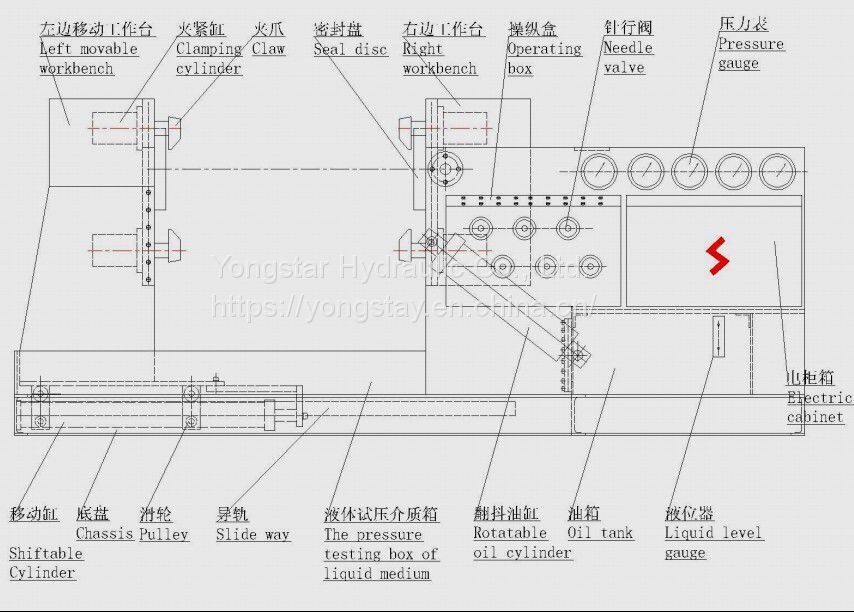

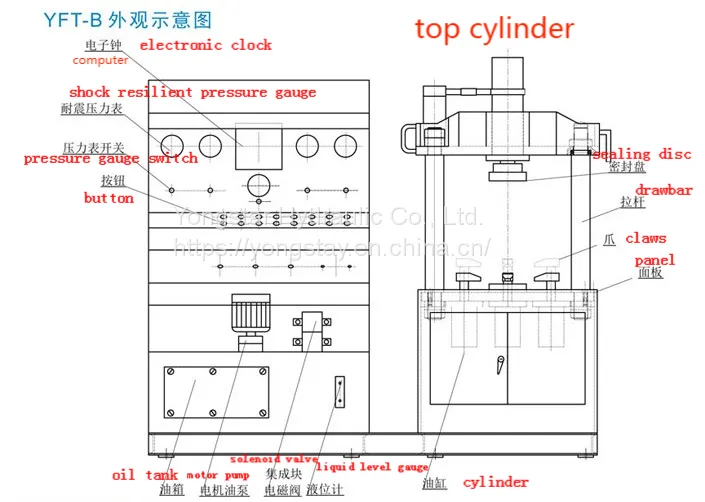

Schematic diagram

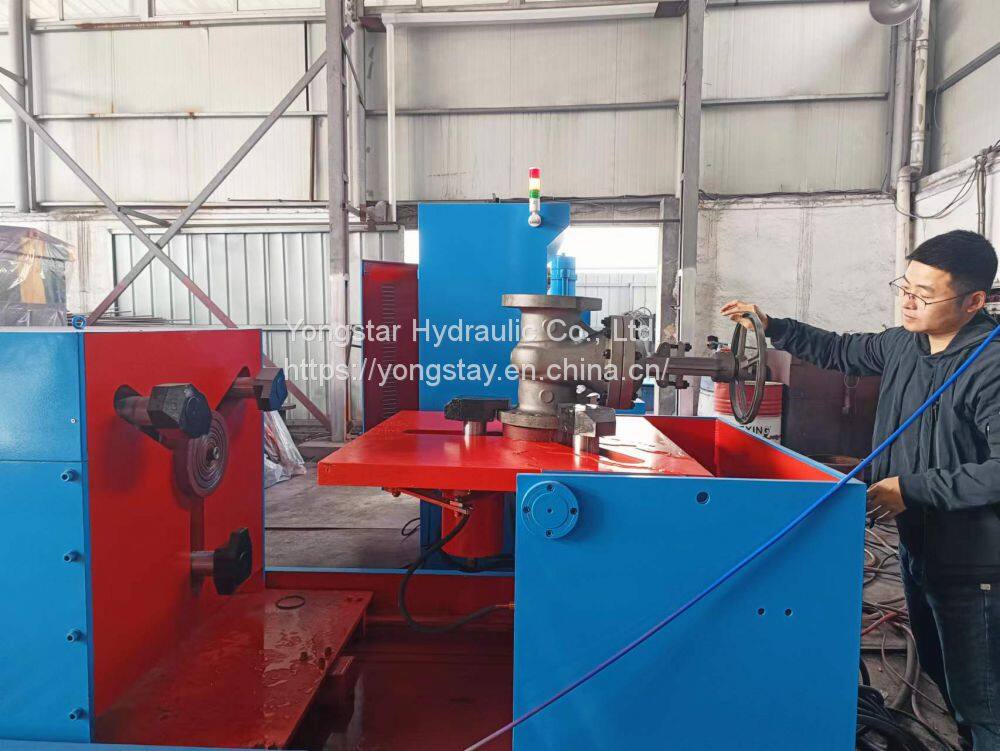

Detailed Images
