Provided by Yongstar High Quality Diving Type Valve Leakage Test Rig
US$ 18000 - 25000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YONGYE
Place of Origin:
China
Model Number:
YFT-Z-B100
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
45 days
Related Products
-
Manual Control YFT-Z100 Submerged Claws Clamping Type Hydraulic Valve Sealing Test Machine for Valve Sealing TestUS$ 12000 - 16000MOQ: 1 Set -
Factory Supplies High Quality Impacting Type Control Valve Test BenchUS$ 35000 - 45000MOQ: 1 Set
-
Supplied by Zhejiang Yongstar High End Valve Body Test MachineUS$ 15000 - 20000MOQ: 1 Set
-
Factory Directly Sells Good Quality Butterfly Valve Test EquipmentUS$ 15000 - 25000MOQ: 1 Set
-
PLC Control Automatic Valve Test Bench for Flange Valve TestUS$ 15000 - 20000MOQ: 1 Set
Brand Name
YONGYE
Place of Origin
China
Model Number
YFT-Z-B100
Power
Hydraulic
Usage
Auto Testing Machine
Technical performance and feature

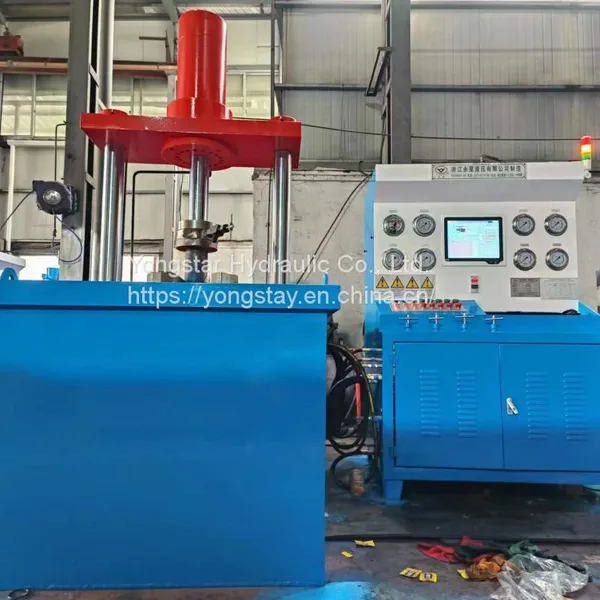

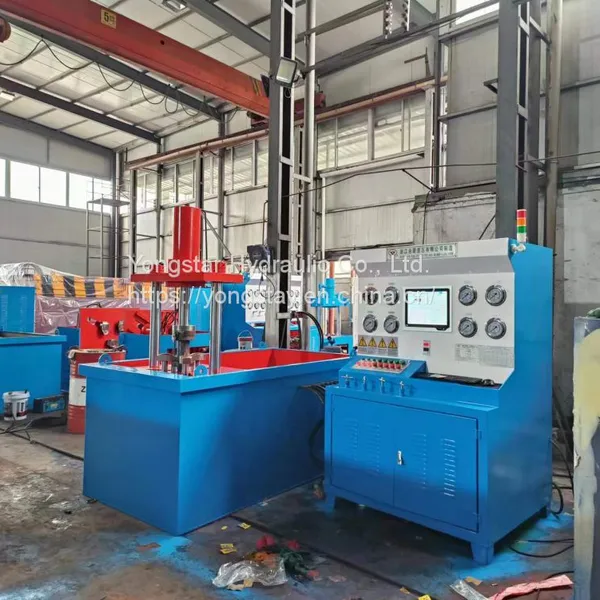

1. YFT-Z-B vertical series hydraulic valve test bench is suitable for the shell and seal test of the valves below DN-300(12"), it has two types of plane blind plates: plastic seal plates for non-flange valve test and O rings seal plates for flange valve test.
2. The work panel has claws and the upward side has an impact cylinder.

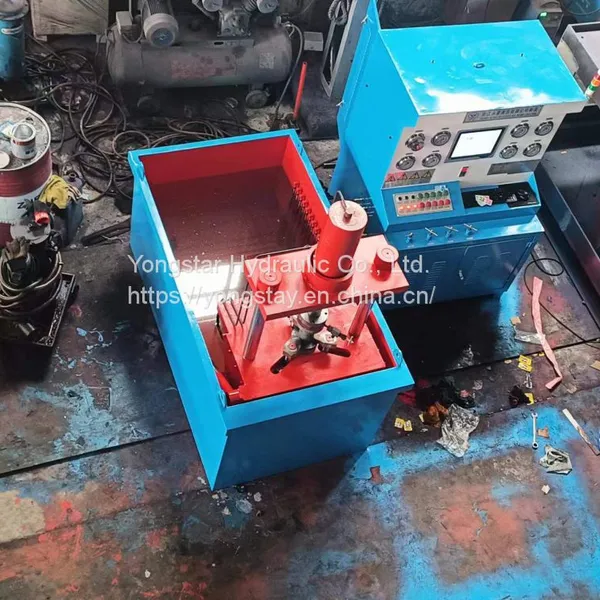

3. YFT-Z series has two parts：control part and clamp part(water tank). the whole claws clamp part can be submerged into water, which is controlled by hydraulic system.
4. Test medium can be chosen including water, air or kerosene.
5. Test bench has low pressure water pump and water booster. There is an air connection reserved for air pump.
6. Water and hydraulic oil can be reused.
7. the test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of the test bench.

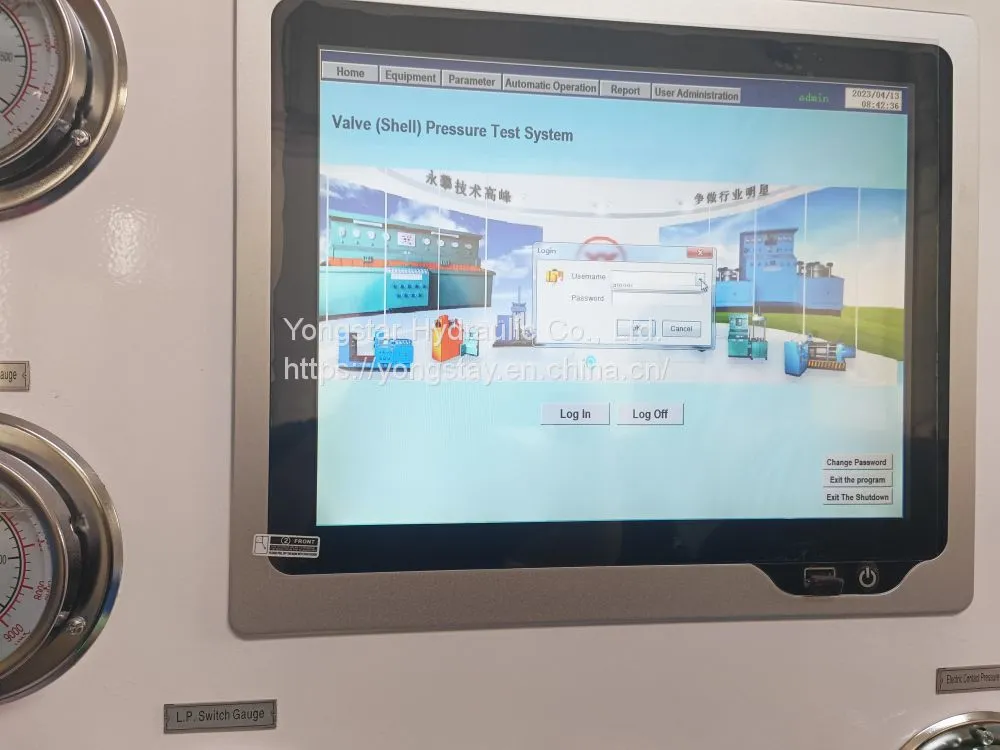

8. PLC control, touch screen display pressure diagram and printer system is optional.
1. YFT-Z-B vertical series hydraulic valve test bench is suitable for the shell and seal test of the valves below DN-300(12"), it has two types of plane blind plates: plastic seal plates for non-flange valve test and O rings seal plates for flange valve test.

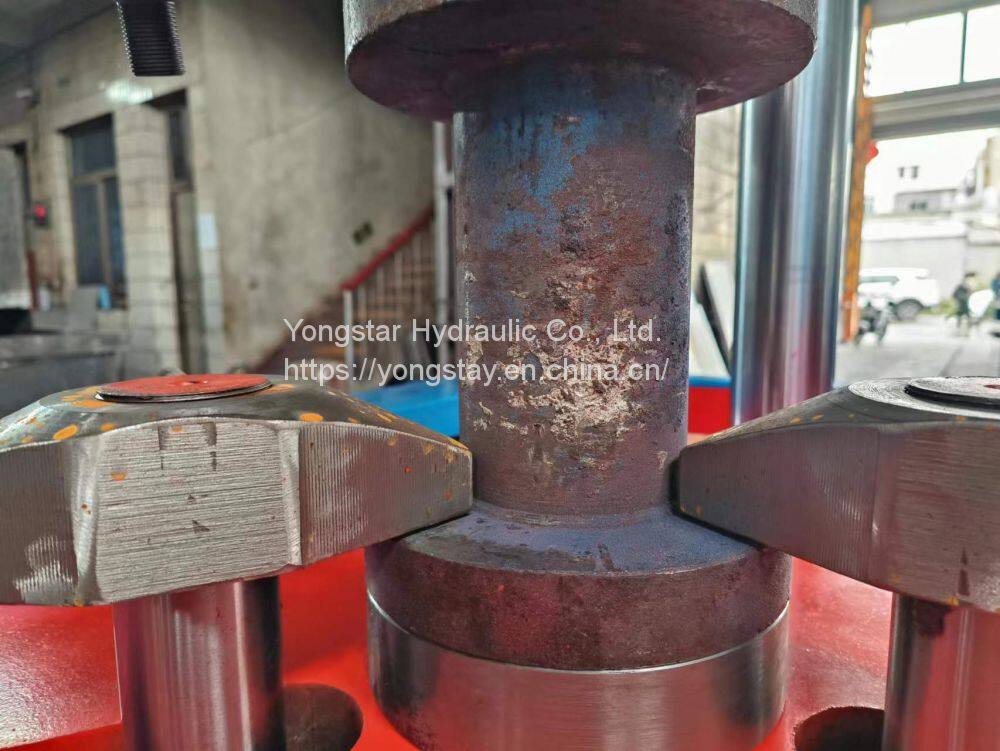

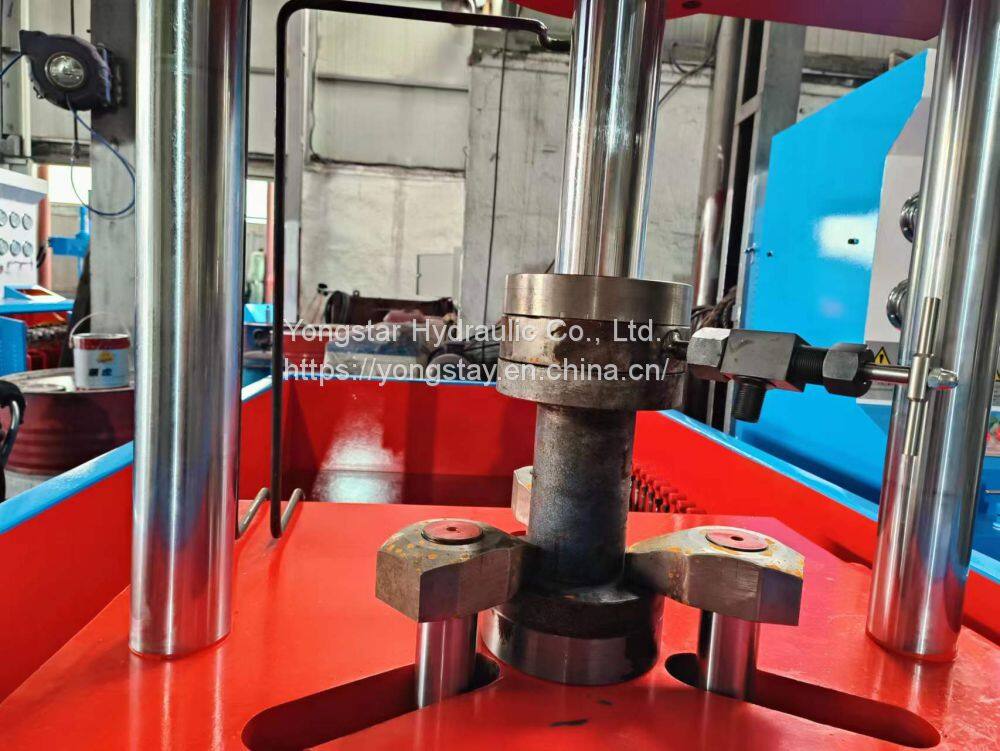

2. The work panel has claws and the upward side has an impact cylinder.

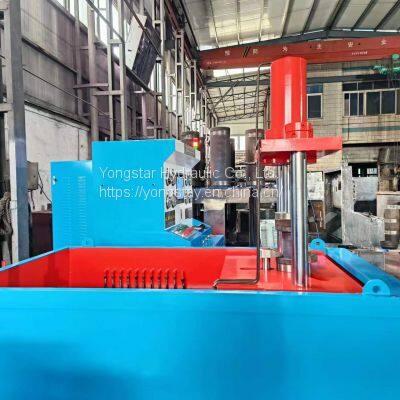

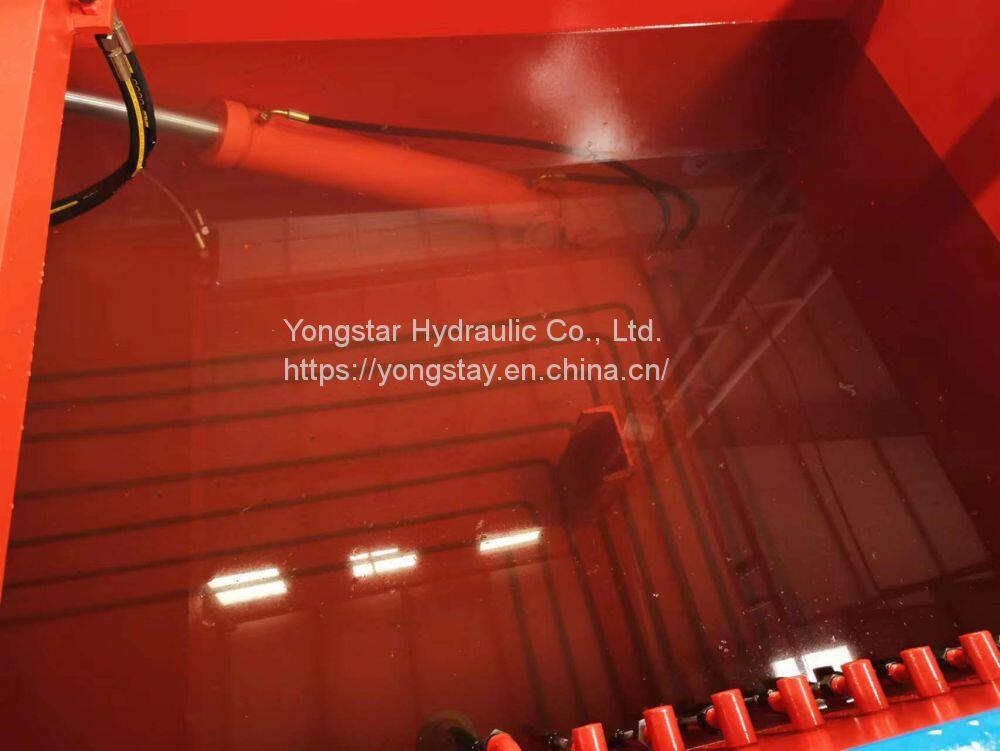

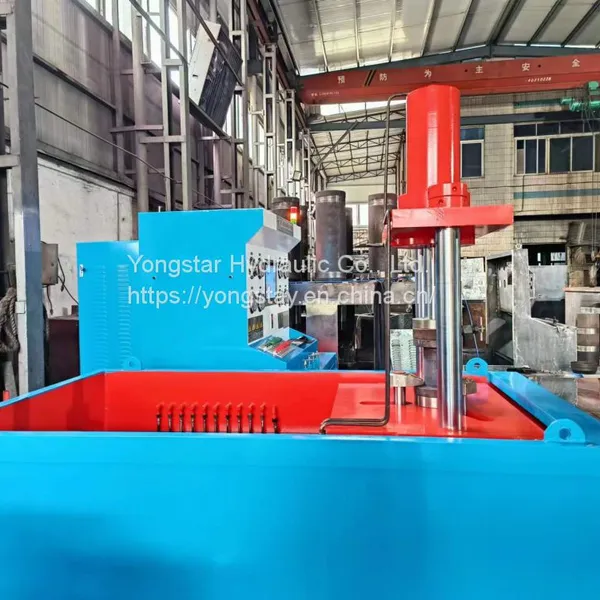

3. YFT-Z series has two parts：control part and clamp part(water tank). the whole claws clamp part can be submerged into water, which is controlled by hydraulic system.
4. Test medium can be chosen including water, air or kerosene.

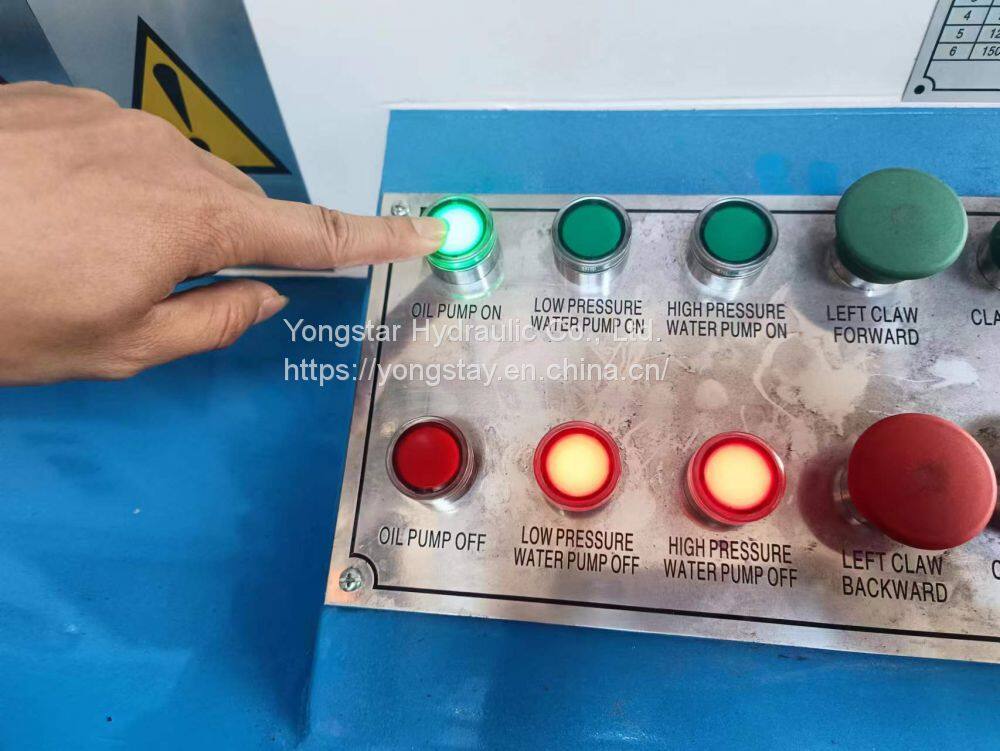

5. Test bench has low pressure water pump and water booster. There is an air connection reserved for air pump.
6. Water and hydraulic oil can be reused.
7. the test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of the test bench.

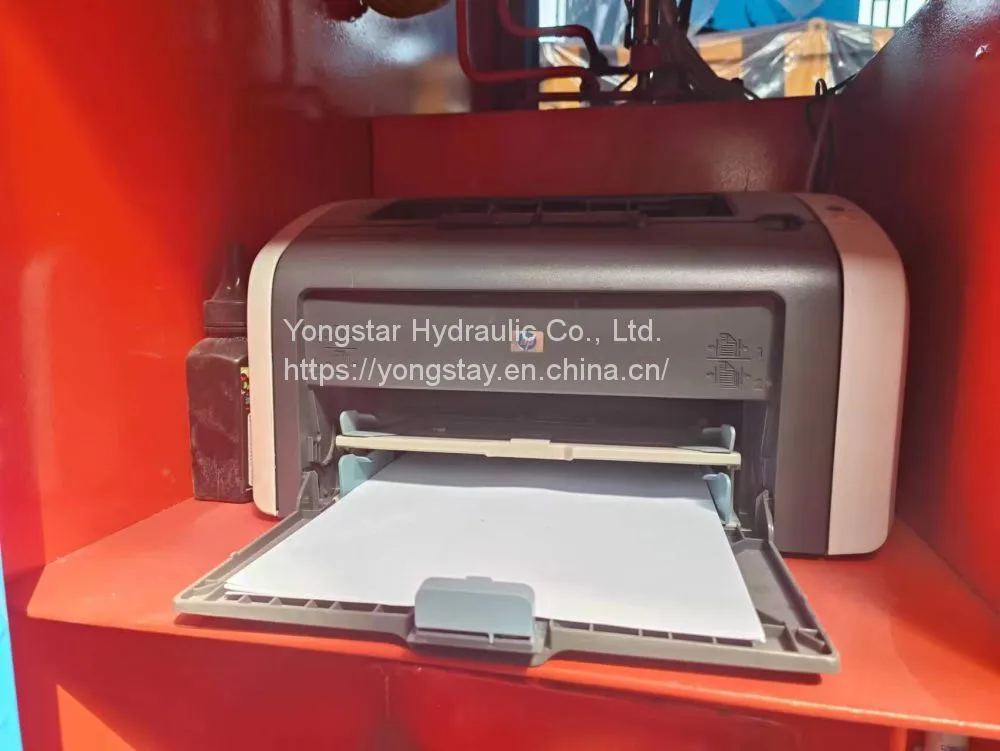

8. PLC control, touch screen display pressure diagram and printer system is optional.

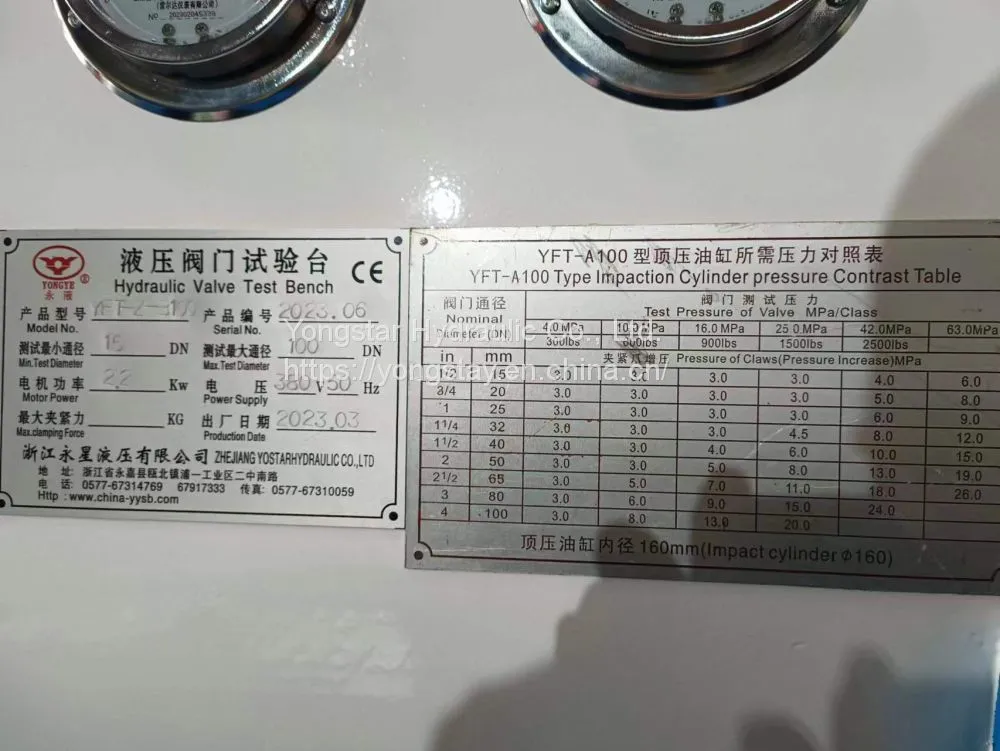

Main technical parameters and sizes
Schematic diagram
Product details
Product configuration
