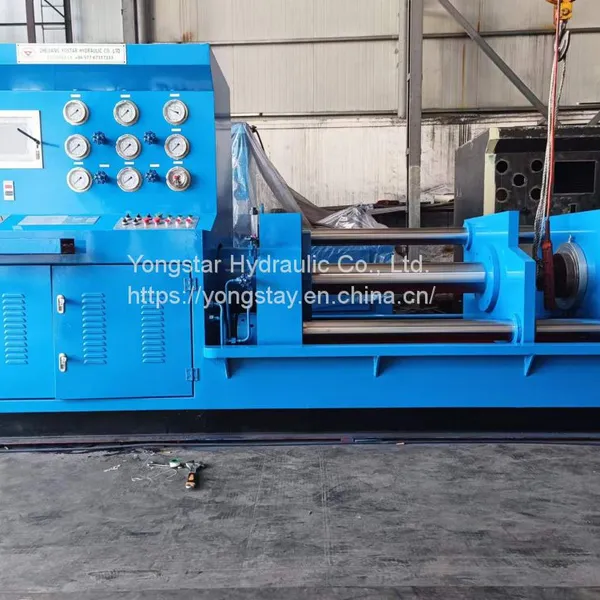

Highly Automated High Quality High Accuracy PLC Control Horizontal Valve Test Instrument

Technical performance and feature：

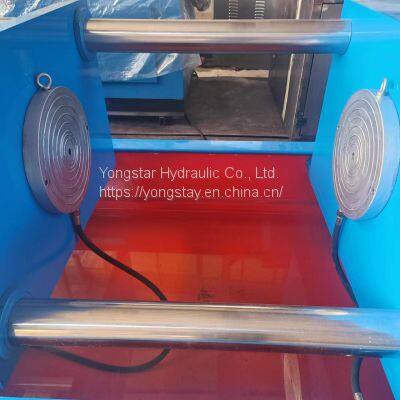

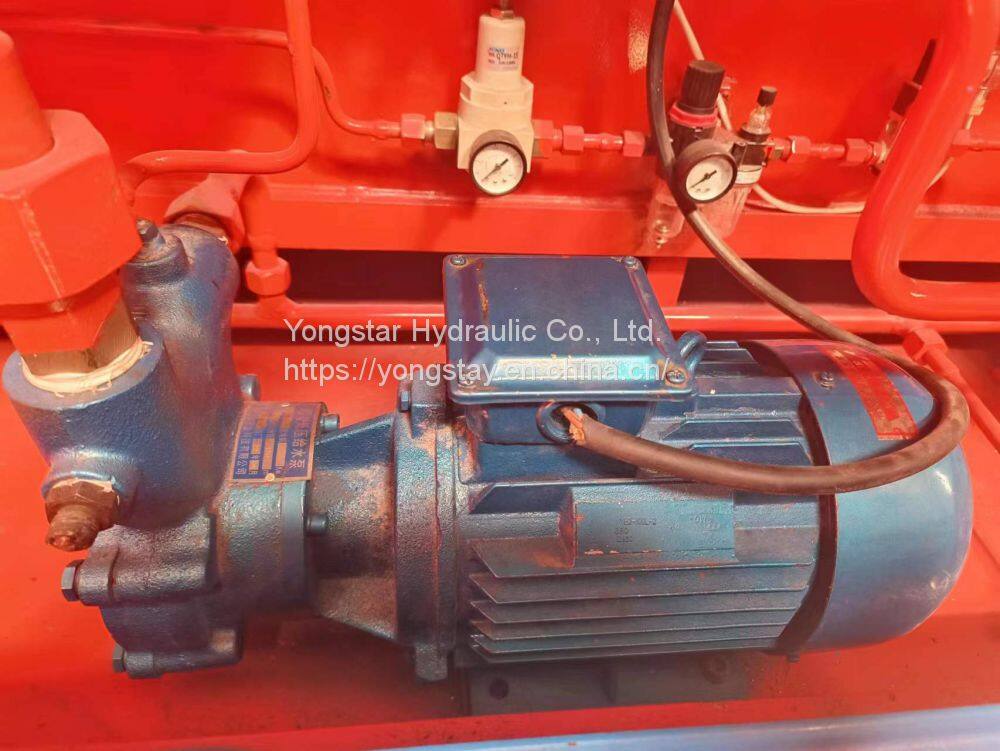

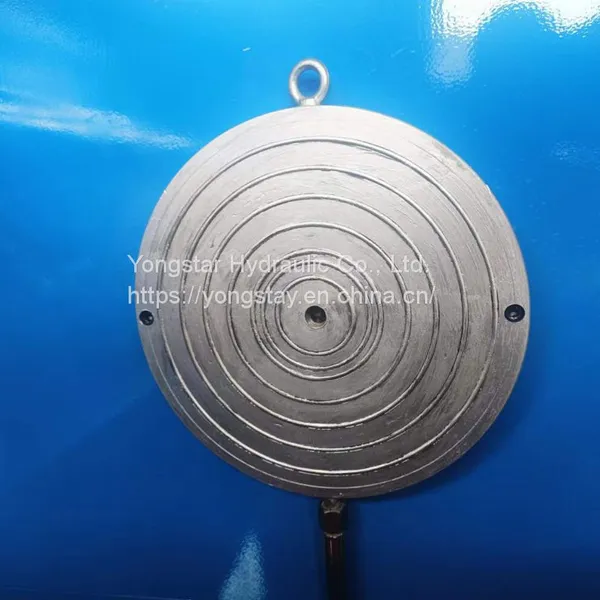

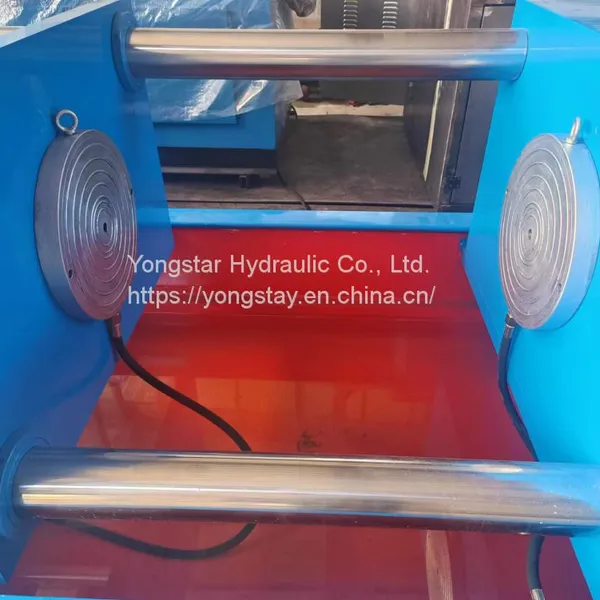

     1.  Y FT-A series hydraulic valve test bench is suitable for the seal test and shell test of welding，threaded valves(None-flanged valves) There are types of flat blind plates plastic: seal plates for non-flanged valve testing and O rings seal plates for flanged valve testing
   2. Test medium can be chosen by user, air, or kerosene

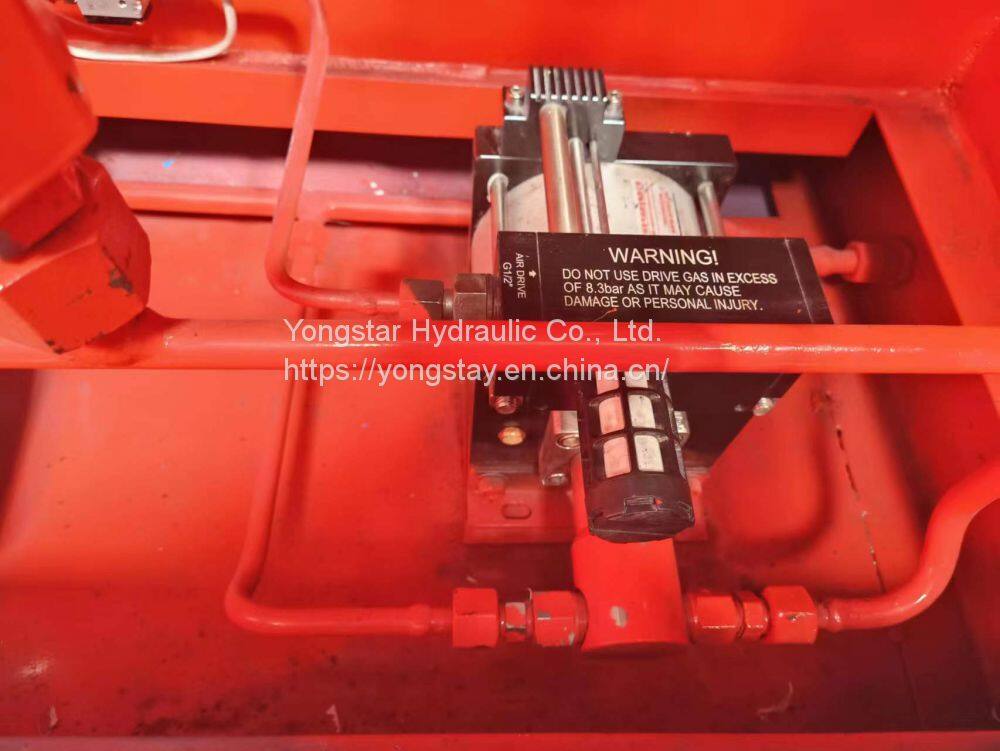

   3. Test bench is a already equipped with low pressure water pump and high pressure water booster.
   4. There is an air connection reserved for air pump
   5. Water and hydraulic oil can be cycle used
   6. The test bench has an automatic oil pressure discharge system.when using it， the high pressure condition and the relief
   pressure can be changed by itself. So it can reduce air temperature， elongate life of test bench.

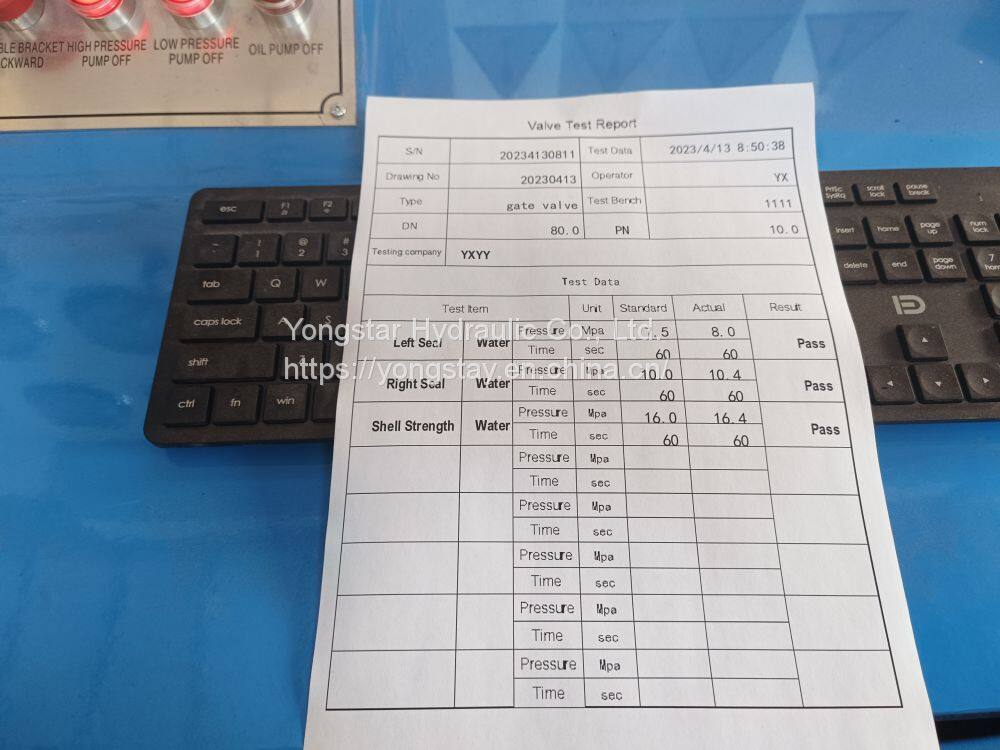

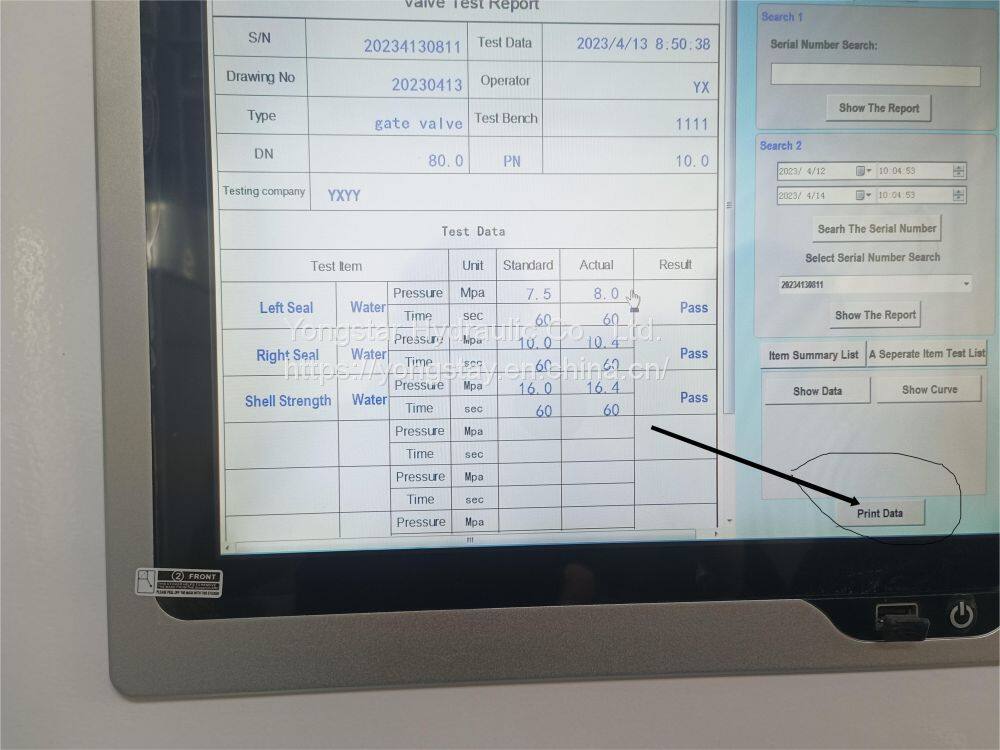

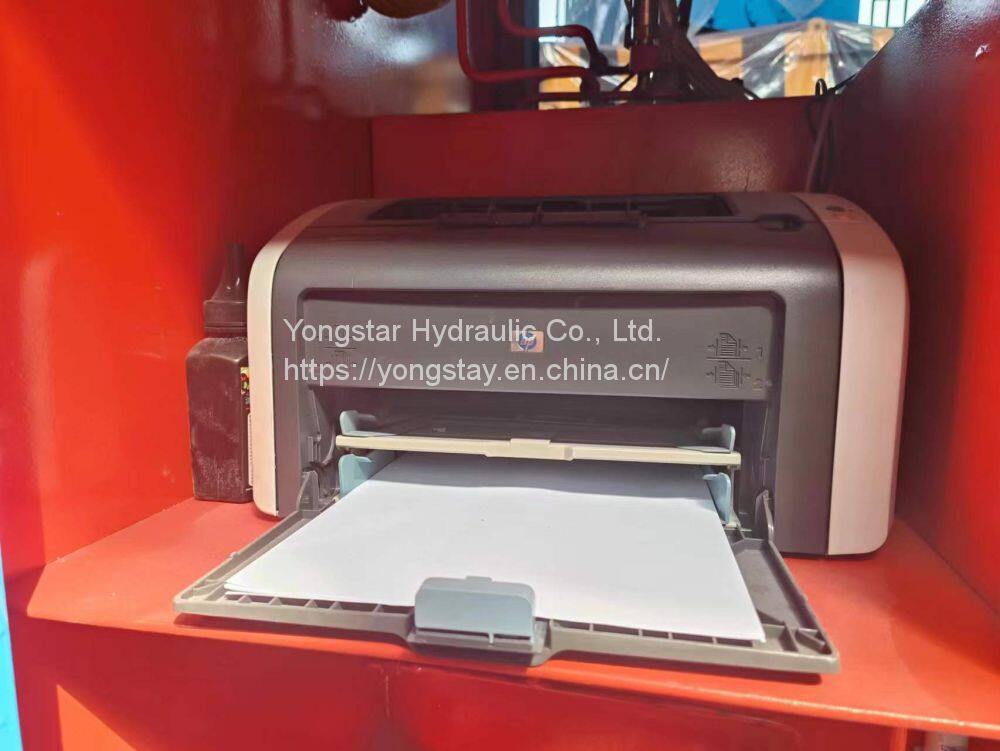

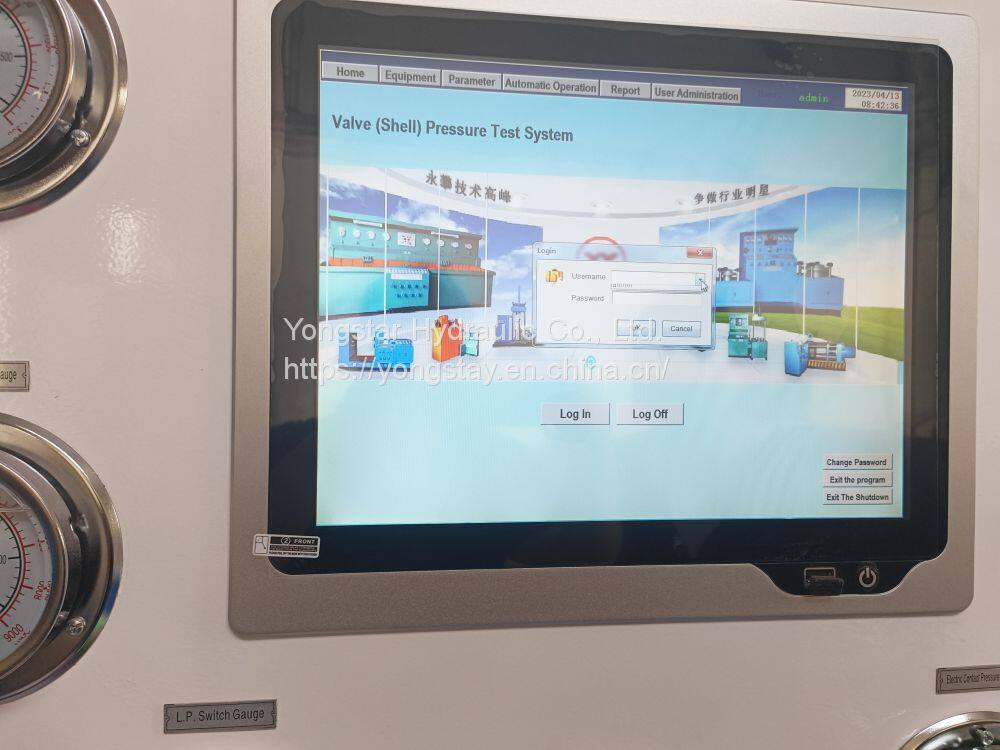

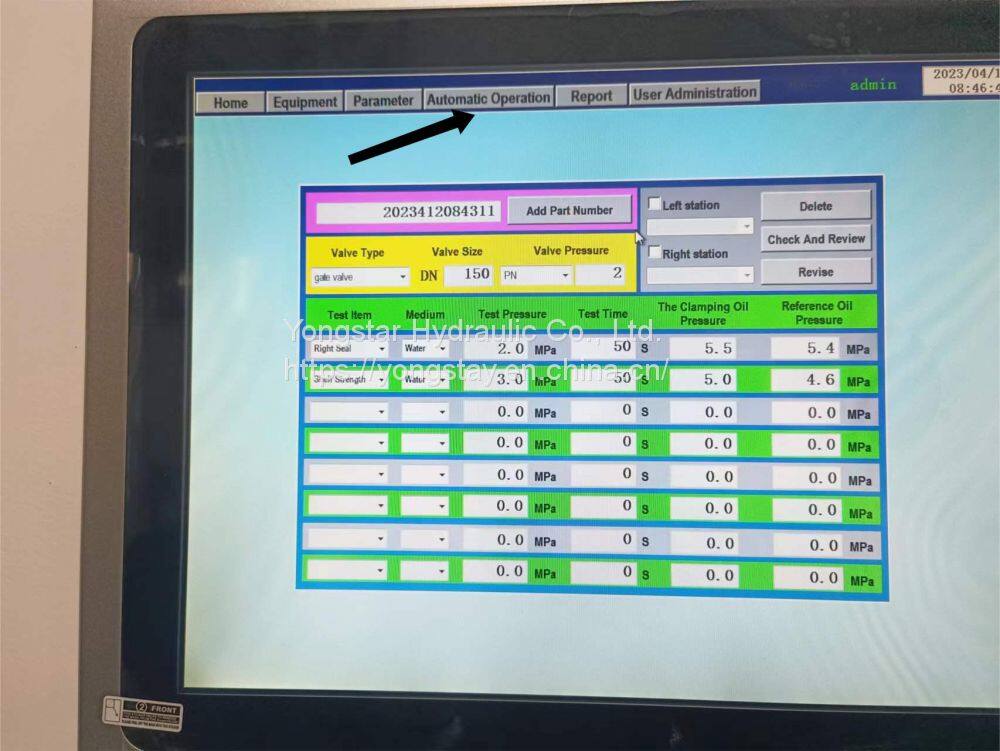

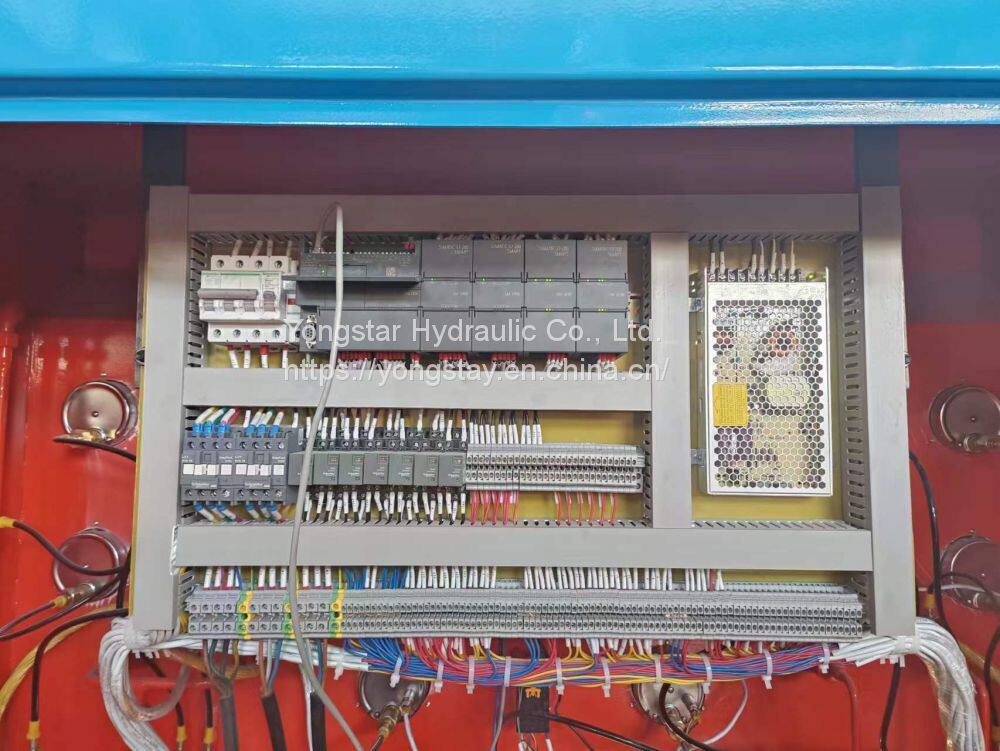

   7. PLC control touch screen display pressure diagram and printer system is optional.
   8.Safety door device is optional

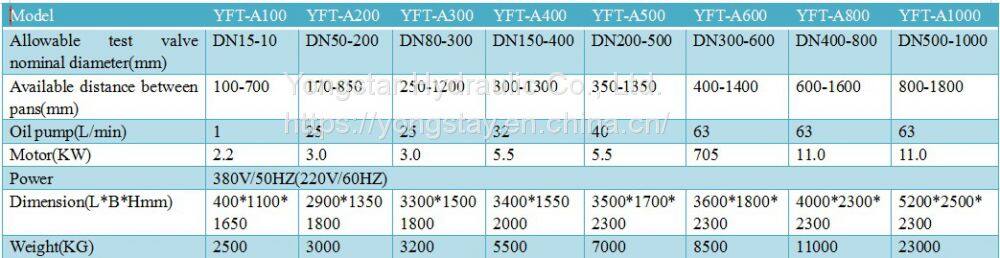

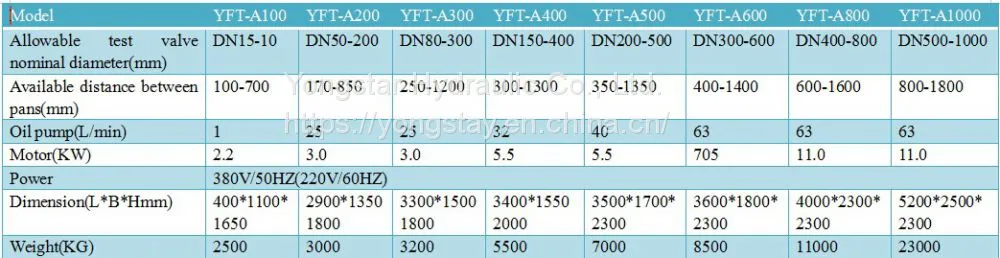

Main technical parameters and sizes

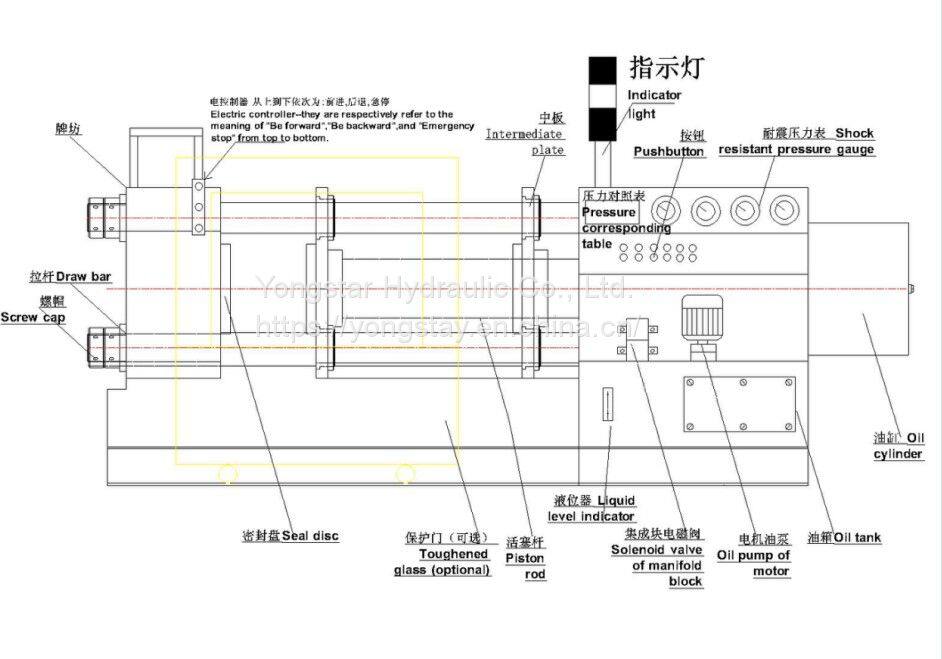

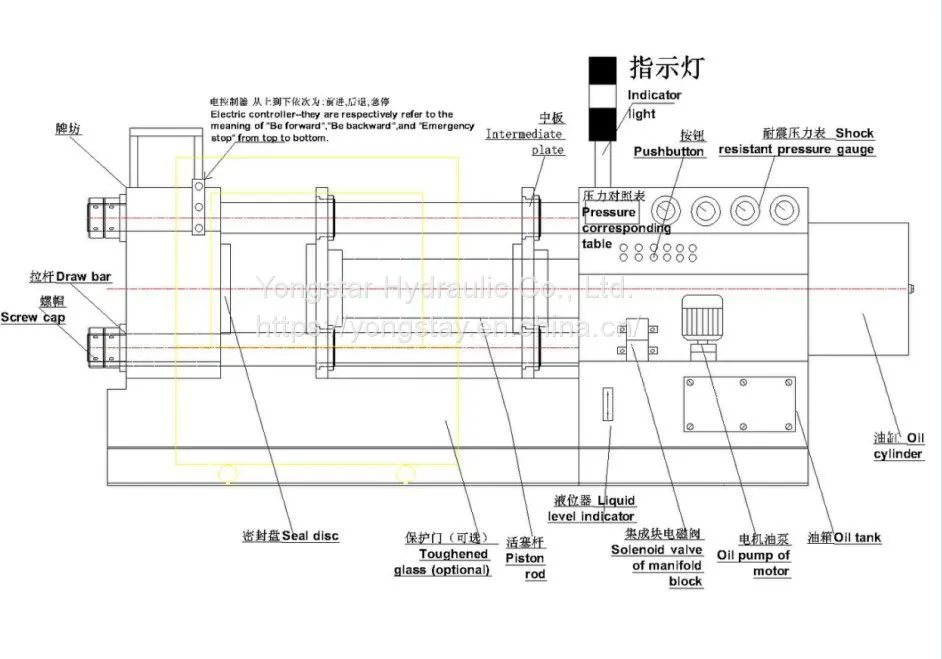

Schematic diagram

Product configuration
