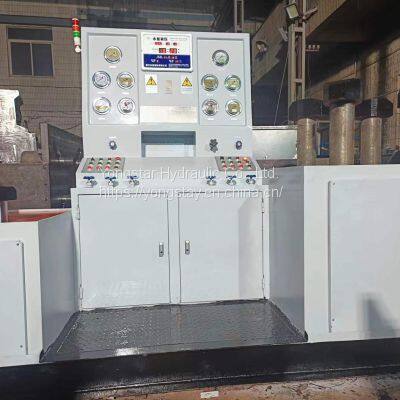

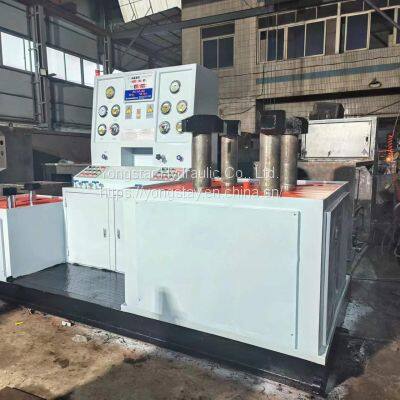

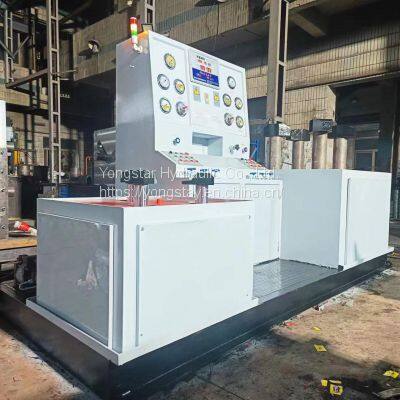

Factory directly sells good quality butterfly valve test equipment

Technical performance and feature

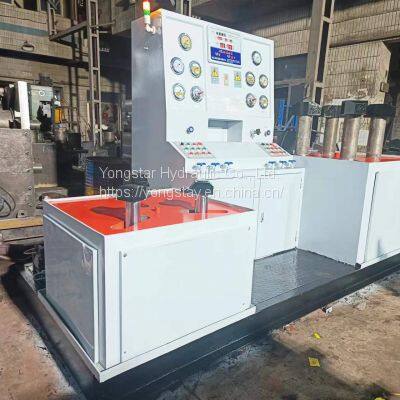

1. YFT-T series hydraulic butterfly valve test bench is suitable for the test of flange butterfly valves,wafer check valves and knife gate valves.
2. Clamping claws are simultaneously moving and tightening.
3. There are two types for the YFT-T series bench: single type and couple type.
4. Test medium are optional including water, air or kerosene.
5. It has low pressure water pump and water booster. There is an air connection reserved for air pump.
6. Water and hydraulic oil can be reused.
7. The test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature and prolong the life of test bench.
8. PLC control, touch screen display pressure diagram and printer system is optional.

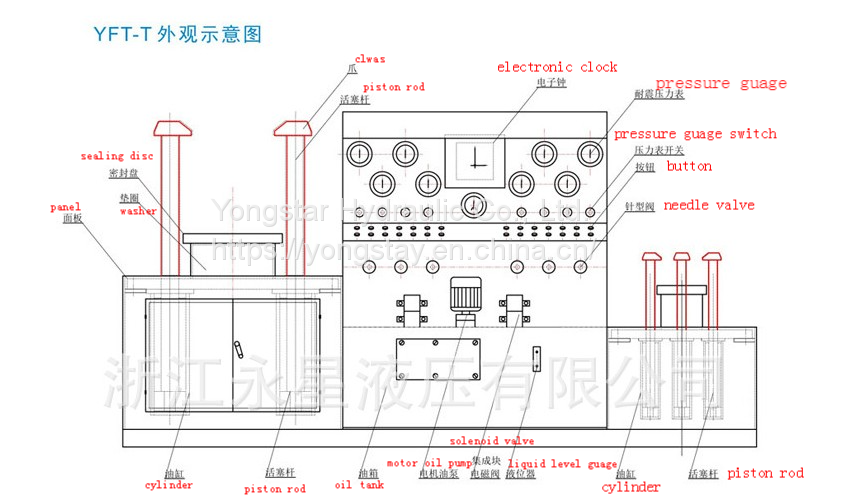

Schematic diagram
