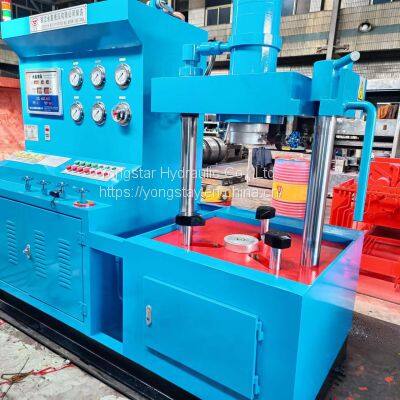

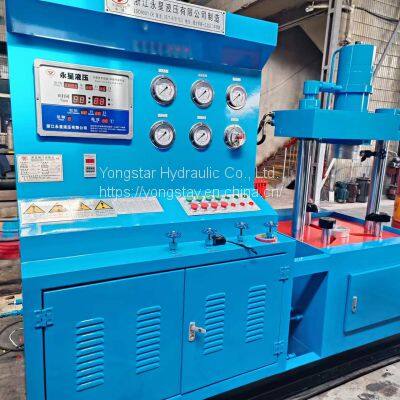

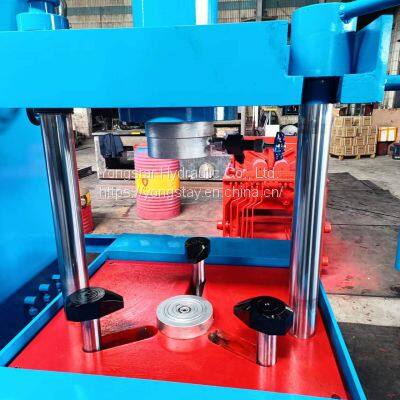

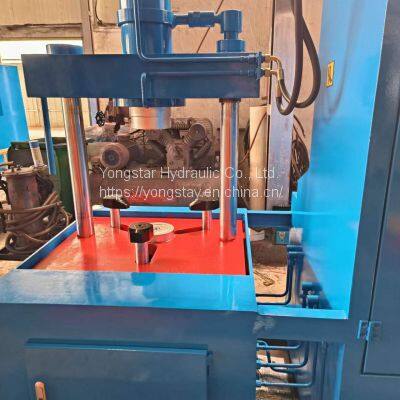

Help CenterManual Control YFT-B100 Vertical Valve Pressure Testing Machine for Flange Welding Threaded Valve Test
Related Products
-
Computer Control YFT-T1200 Hydraulic Butterfly Valve Test Bench for Butterfly Valve Seal and Shell TestUS$ 28000 - 32000MOQ: 1 Set -
Manual Control YFT-Z100 Submerged Claws Clamping Type Hydraulic Valve Sealing Test Machine for Valve Sealing TestUS$ 12000 - 16000MOQ: 1 Set
-
Manual Control Type YFT-400 Horizontal Claws Clamping Type Hydraulic Ball Valve Test Bench for Flange Valve TestUS$ 14000 - 18000MOQ: 1 Set
-
Top Selling PLC Control Touch Screen Operation YFT-A600/250 Combined Impacting Type Hydraulic Valve Testing EquipmentUS$ 45000 - 52000MOQ: 1 Set
-
Automatic Control YFT-T1000 Hydraulic Butterfly Valve Test Machine for Flange End Butterfly Valve TestUS$ 25000 - 35000MOQ: 1 Piece
Technical performance and feature

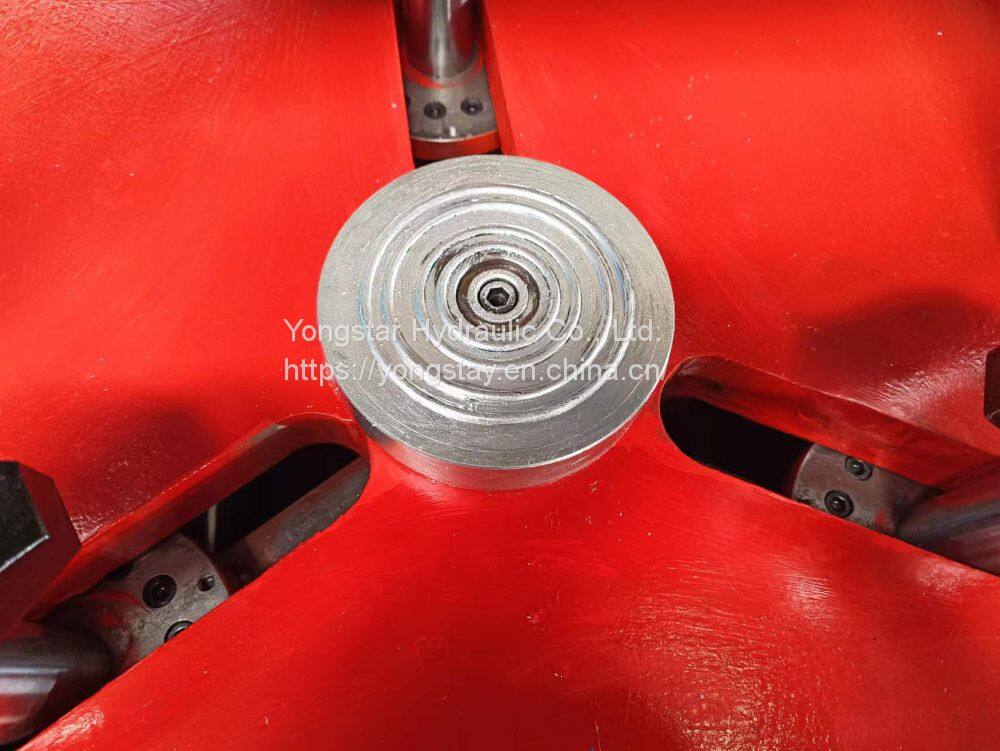

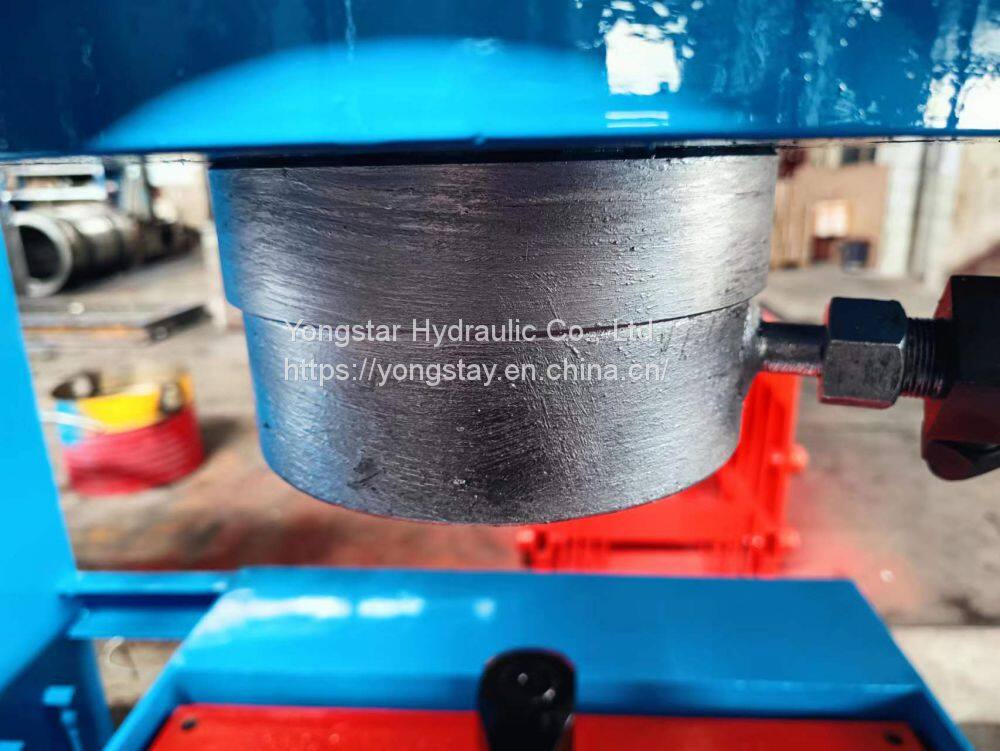

1. YFT-B vertical series hydraulic valve test bench is suitable for the shell and seal test of the valves below DN-300, it has two types of plane blind plates: plastic seal plates for non-flange valve test and O rings seal plates for flange valve test.
2. The work panel has claws and the upward side has impact cylinder.
3. the top beam can be turned over 90 degrees, which is easy for operation.
4. Test medium can be chosen including water, air or kerosene.
5. Test bench has low pressure water pump and water booster. There is an air connection reserved for air pump.
6. Water and hydraulic oil can be reused.
7. the test bench has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of the test bench.
8. PLC control, touch screen display pressure diagram and printer system is optional.

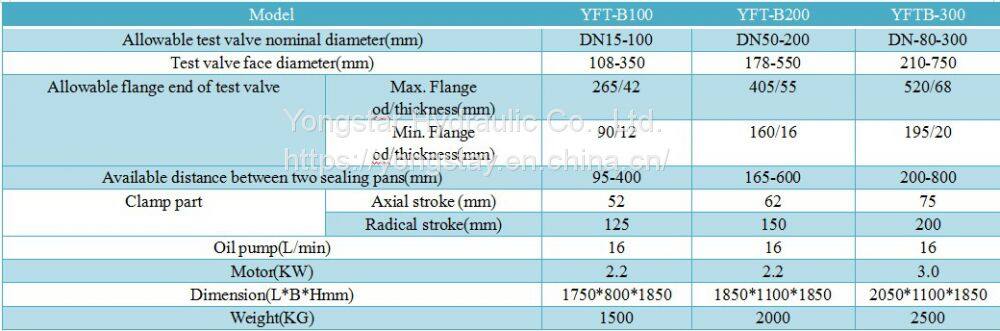

Main technical parameters and sizes

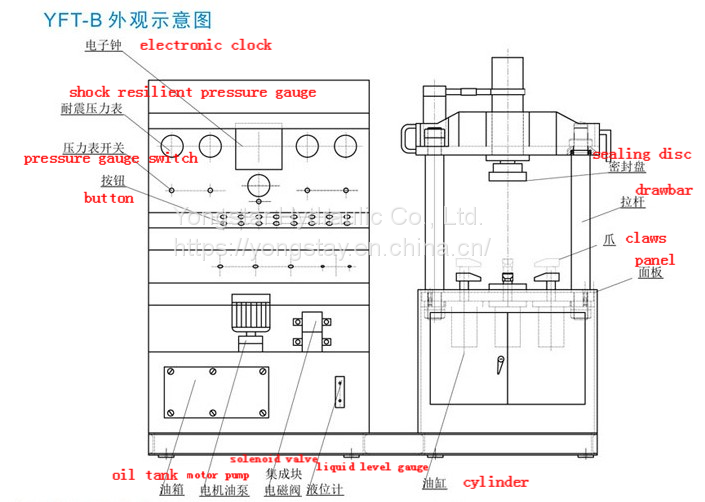

Schematic diagram

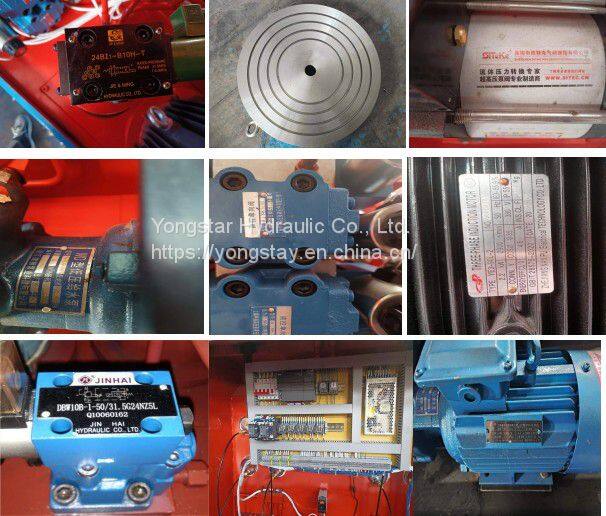

Product configuration
Certificates and Patents

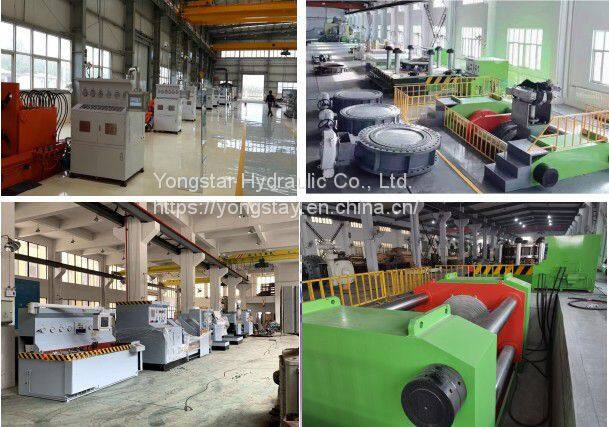

Showroom

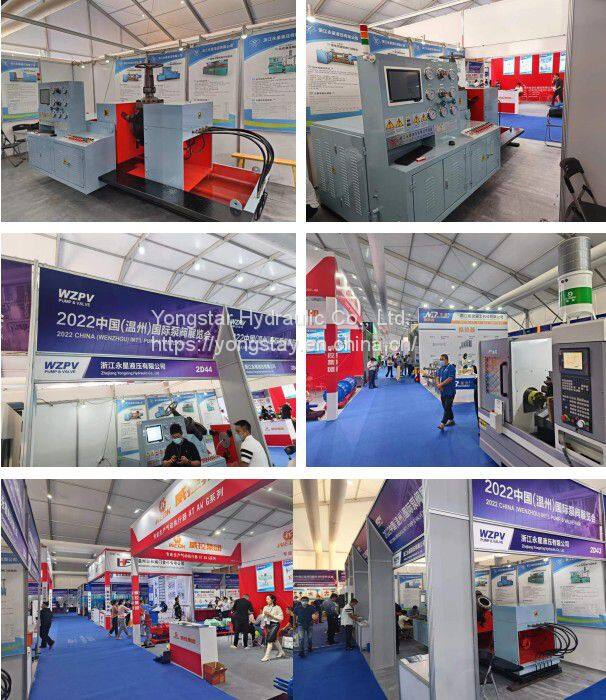

China Pump & Valve Exhibition
vertical valve pressure testing machine
