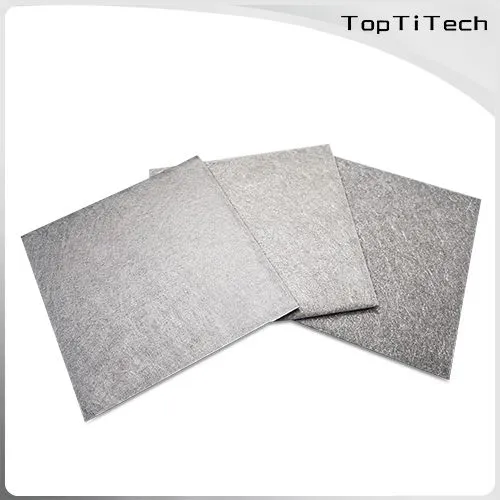

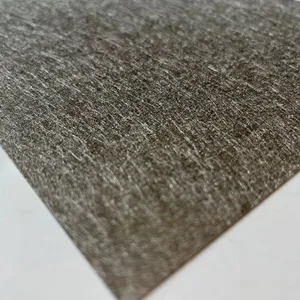

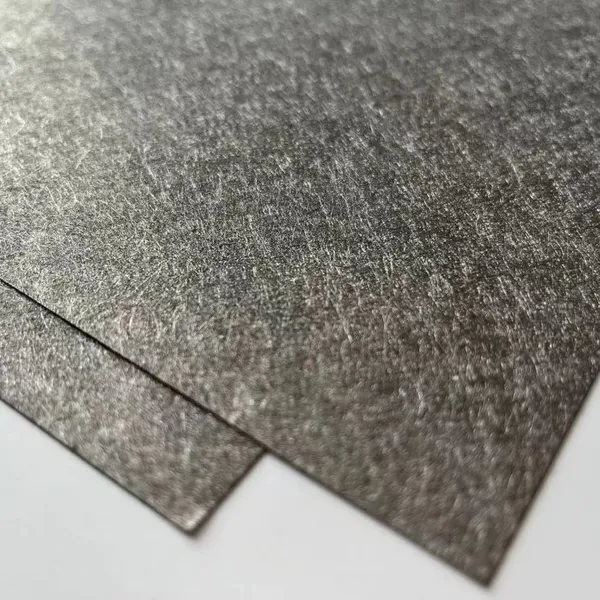

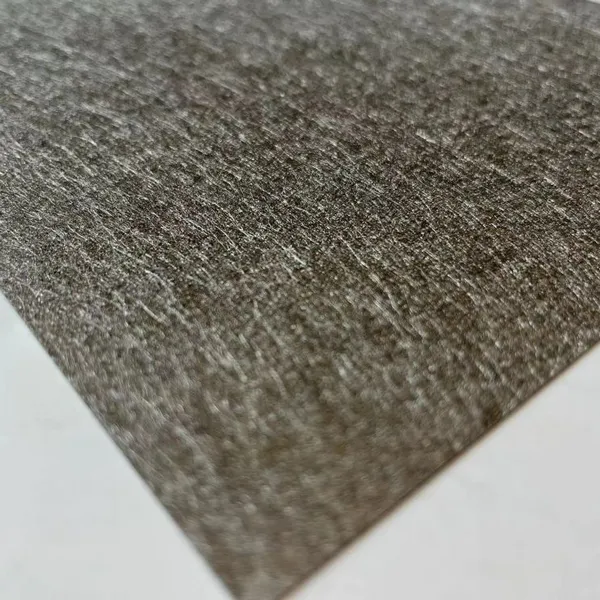

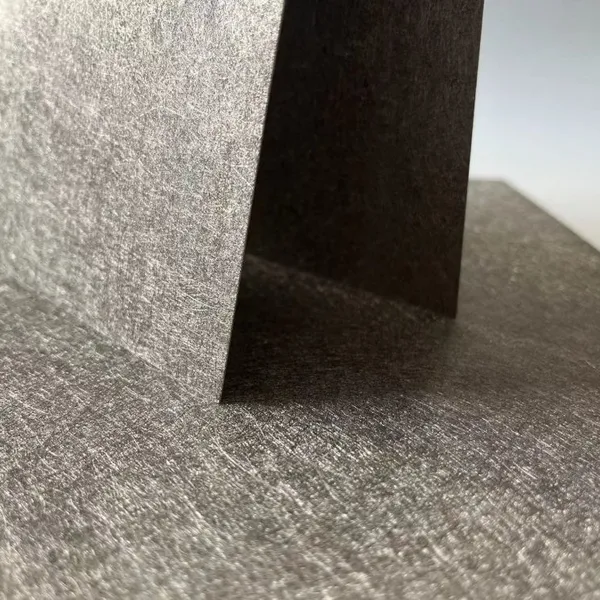

Sintered titanium fiber felt for fuel cell

Product Introduction

Customized titanium fiber felt for the fuel cell is a high-performance material made through a process of sintering titanium fibers. The result is a porous and lightweight material that is exceptionally strong and corrosion-resistant. The material is commonly used in industries such as aerospace, chemical processing, and medical equipment manufacturing.

Customized titanium fiber felt for the fuel cell is a versatile and high-performance material that has a wide range of applications in PEM and GDL. Its unique combination of properties, including high porosity, good electrical conductivity, and thermal stability, make it an attractive material for various industrial applications.

Parameters

Material: Ti

Porosity: 50%-80%

Size: ≤1000*2000mm

Thickness: 0.2mm-1.0mm(0.2mm 0.4mm 0.8mm 1.0mm)

Filtration rate: 10um 20um 30um and so on

Features:

Sintered titanium fiber felt is a unique material that possesses several features that make it ideal for various industrial applications.

Firstly, the material has a high strength-to-weight ratio, making it an attractive choice for applications where weight is a critical factor.

Additionally, sintered titanium fiber felt is highly resistant to corrosion, even in harsh environments, making it an excellent choice for chemical processing applications.

The material is also highly durable and can withstand high temperatures, making it a suitable choice for aerospace applications.

Application

Sintered titanium felt has a wide range of applications in the field of proton exchange membrane (PEM) and gas diffusion layer (GDL). Here are some of the applications of sintered titanium felt in these fields:

PEM fuel cells: Sintered titanium felt is used as a gas diffusion layer in PEM fuel cells. It is an excellent material for this application because it is highly porous and has good electrical conductivity. The high porosity of the sintered titanium felt allows for uniform gas distribution and efficient mass transport, which is critical for the performance of PEM fuel cells.

Electrolyzers: Sintered titanium felt is also used as an electrode substrate in water electrolysis systems. The high surface area of the sintered titanium felt provides a large active surface for the electrode reactions to occur, which enhances the efficiency of the electrolysis process.

Gas purification: Sintered titanium felt is used as a gas purification medium in gas separation and purification systems. Its high porosity and good thermal conductivity make it an ideal material for this application because it can effectively remove impurities from gases and maintain a stable temperature during the purification process.

Catalysis: Sintered titanium felt is also used as a catalytic support material in various chemical and industrial processes. Its high surface area and porosity make it an excellent substrate for supporting catalysts, which can enhance the efficiency and selectivity of chemical reactions.

Processing:

The process of sintering titanium fibers to create sintered titanium fiber felt is a complex process that involves several stages. The production process is as follows: select high-quality sponge titanium—customize the titanium crystal according to the metal content requirements of titanium felt—forge into the desired shape—machine the titanium plate into titanium fiber—lay the titanium fiber—high-temperature sintering. During this sintering process, the fibers are bonded together to form a porous and lightweight material. The resulting material is then shaped and cut to the desired size and shape.

Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
