Titanium Powder Diffuser Aerator for Ozone Hydrogen Oxygen Diffusion Oxygenating Water 100MM,150MM

Product Introduction

TopTiTech uses industrial pure titanium powder (purity 99.6%) and advanced technology to produce microporous pure titanium aerators. The aerator has a uniform structure with high porosity and pore diameter ranging from 0.22μm to 100μm, and porosity between 35% to 50%.

It is available in tube and spherical types, with the spherical type having a diameter of 100-400mm, and aeration bubble size of 0.1-2mm. The aerator generates uniform bubbles, has low aeration resistance, and a large gas-liquid interface area, reducing energy consumption by 40% compared to conventional aerators and nearly doubling sewage treatment volume.

The titanium aerator has strong corrosion resistance, high acid and alkali resistance, and a service life of up to 10 years, making it ideal for urban sewage, large-scale water plant construction and expansion, and old aeration tank transformation. It has 4' and 6'  interfaces with internal or external threads.

Feature:

The aerator has a uniform aperture distribution and high porosity, allowing for efficient separation and purification. It has low filtration resistance and no hole blockage, making it chemically stable, resistant to acid and alkali, and suitable for harsh working conditions. The titanium aerator is non-magnetic, non-toxic, and has good biological compatibility with a strong antimicrobial ability and no interaction with microorganisms.

Specification

Materials: pure titanium powder (99.6%).

Bore Diameter: 0.22–100 μm.

Porosity: 30% –50%.

Working Temperature: ≤ 280 °C.

Compressive Strength: 0.5－1.5 Mpa.

Aerator Plate

Diameter: 60mm, 100 mm, 150 mm, 180 mm.

Filter rating: 0.22 μm-100 μm.

Aerator Cylinder

Diameter: 22 mm-120 mm.

Length: 125 mm-1000 mm.

Filter rating: 0.22 μm-120 μm.

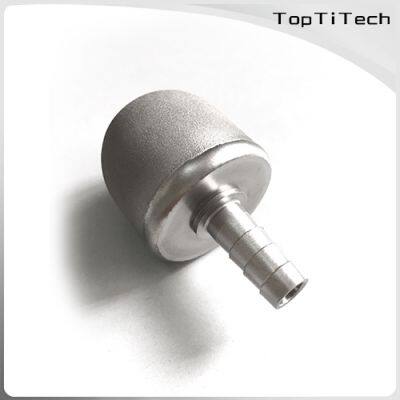

Mushroom Head Aerator

Diameter: 60mm, 100 mm, 150 mm, 180 mm.

Height: 50 mm, 35 mm, 28 mm.

Active area: 332.84 cm2, 215.09 cm2, and 103.12 cm2.

Inlet pipe size: 4', 6'.

Connection to the main pipe: pipe thread.

Application:

The titanium aerator is suitable for various applications, including ozone aeration and other high-temperature and strong alkali conditions. Sintered titanium powder filter elements are widely used in urban sewage, chemical, petrochemical, bioengineering, pharmaceutical, and food industries.

Overall, the titanium aerator offers a range of benefits, including uniform aperture distribution, high porosity, low filtration resistance, efficient separation and purification, and strong corrosion and acid/alkali resistance. Its suitability for a variety of applications and compatibility with harsh working conditions make it a versatile and reliable choice for various industries.

Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the customer's designated place without damage.
