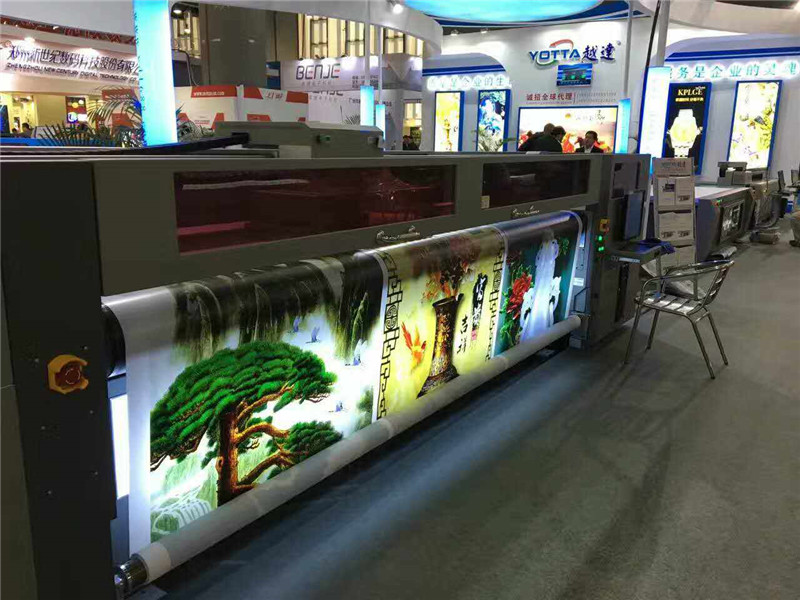

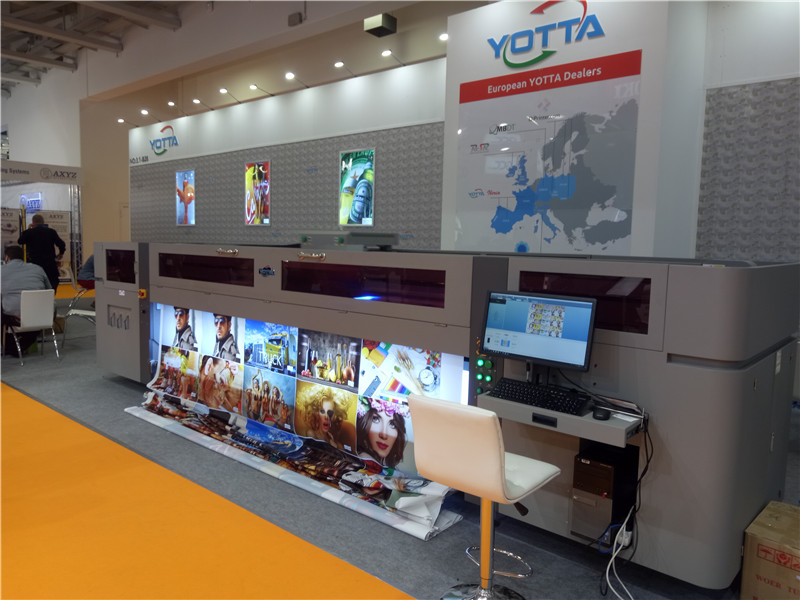

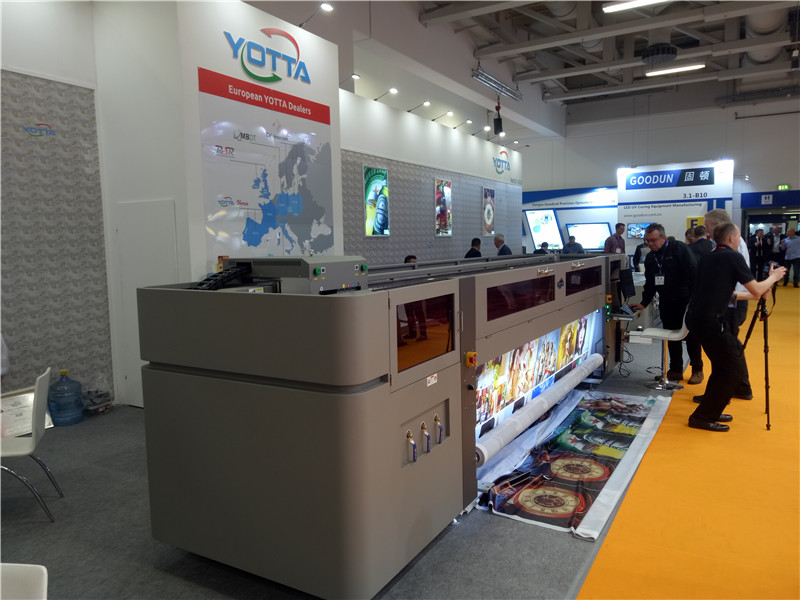

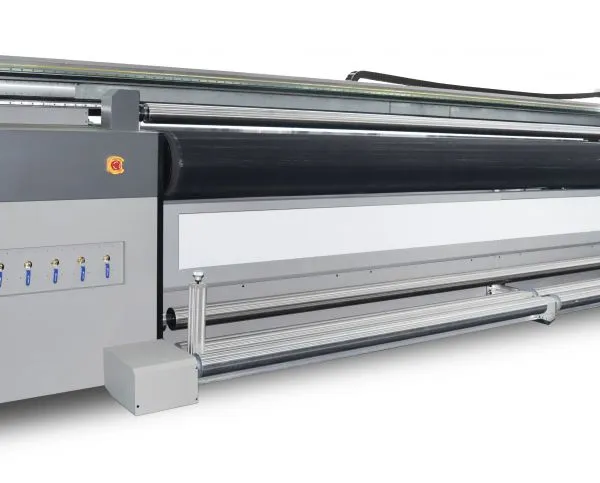

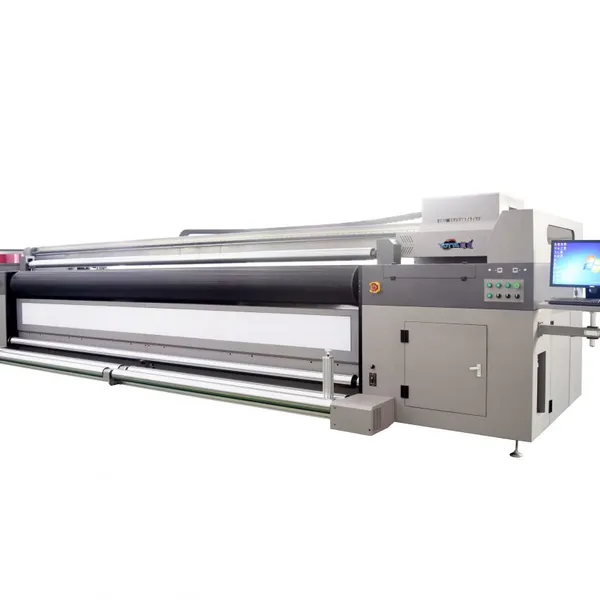

Super large 5m hybrid UV printer with Kyocera KJ4A heads
Printer
The 5M uv hybrid printer is the latest UV machine of YOTTA company.
This model is designed for industrial bulk production with high printing speed,which can print on almost any material directly .With UV LED curing during printing procedure, images on object surface dry fast and scratch resistance
Features
*High resolution Kyocera print head reach 4PL.
*Equipped with Kyocera Printerhead.The LED UV Printer realized the High-Definition photo with high resolution(2400dpi)

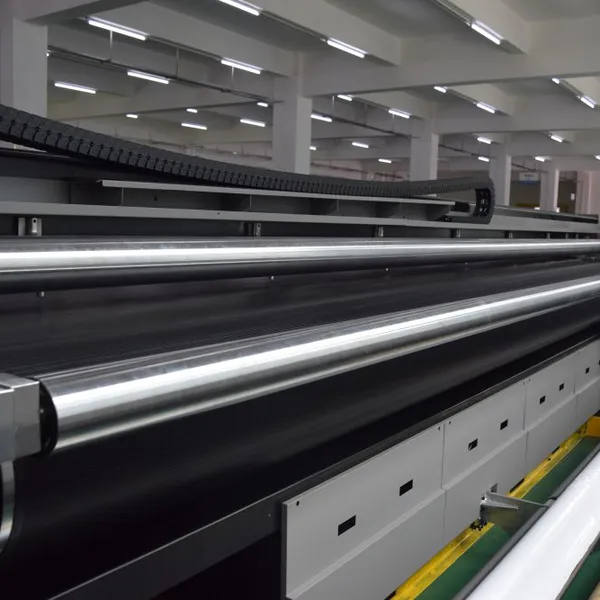

*Industrial Take up& feeding system.
*Pneumatic shaft can hold the material tightly. *Integration system for Media collect and sending .Rotation speed for sending and collecting material speed is adjustable.
*Design for reducing the derivation for material transferring not straight.
*LED light box for easy observing the printing quality during printing.
* Sucking area is divided into 4 areas to make sure material is flat on printing table.

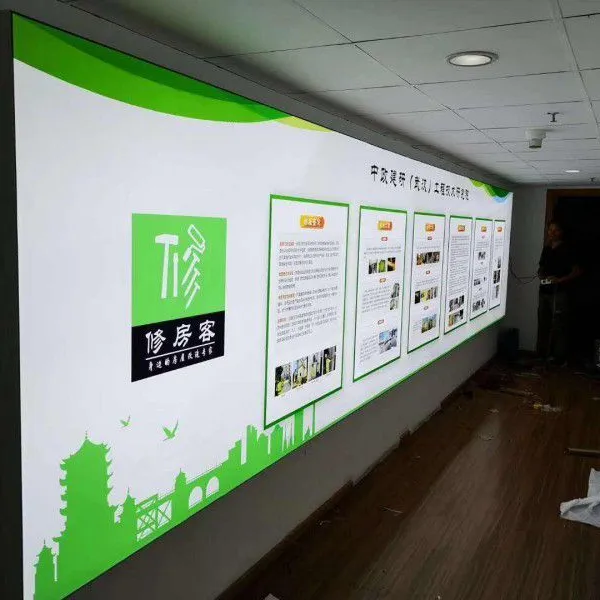

*Brilliant quality image output for back-lit. Pvc stretch ceiling.
*Infra-lights sensor for stop printing in case of emergency.

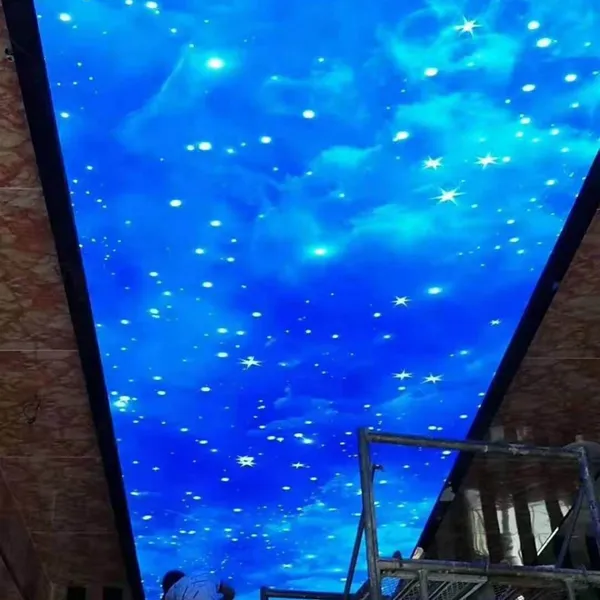

*Can print all types of flexible media include Polyethylene, paper, mesh, vinyl, textiles, blue back paper, SAV, banner material, synthetic paper, Tyvek, Yupo, and others Specially suitable for Pvc stretch ceiling.
*Multi roller can be printed at the same time
YD-H5000KJ |
|||
Printer model |
YD-H5000KJ 5m uv roll to roll printer |
||
Print size |
5M |
||
Printhead Type: |
Kyocera 4PL for white and color |
||
Number of nozzles |
2-8pcs |
||
|
Resolution
|
6 pass |
1200*1800DPI | |
8 pass |
1200*2400DPI | ||
Color System |
C,M,Y,K,LC,LC,W,V |
||
ink |
UV ink |
||
RIP Software |
Photoprint/Onyx |
||
Color management |
International standard ICC |
||
UV curing systems |
UV lamps |
||
Interface mode |
High speed USB |
||
Power requirement |
AC220V/3000W;50/6HZ |
||
Working environment |
the optimum temperature:20℃-28℃,Relative humidity:40%-60% |
||
Printer size |
8.6*2.3*1.9m |
||
Package size |
8.72*2.45*2m |
||
Printer weight |
5000KG |
||
Warranty:
·Warranty: one-year warranty and lifetime maintenance.
·Technical support: 7x24-hour telephone, online video technical support.
·Workshop venue construction: planning and design of professional engineers, providing along the way.
·Operator training: training to customer operations personnel who will operate.
Applications
