3.2m UV Roll to Roll Flatbed Printer Ricoh Kyocera Printheads

Name: 3.2m UV Roll to Roll Flatbed Printer Ricoh Kyocera Printheads
Brand: Yotta
Availability: InStock

FOB Price

US$ 26000 - 37000 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card Cash Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yotta	Place of Origin	China
Model Number	YD-H3200R6	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Weight	2300 KG
Voltage	220V	Usage	Other, advertising printer
Condition	New	Dimensions(LWH)	6.60 m1.50 m 1.60m
Gross Power	6KW	Color & Page	Multicolor
Plate Type	Flatbed Printer

Product Description

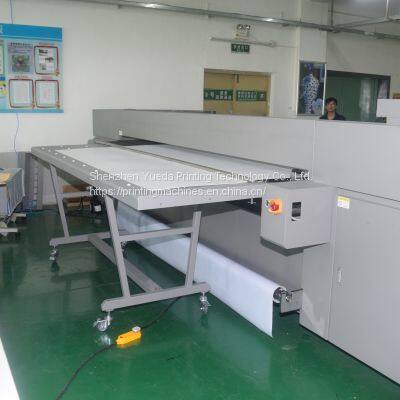

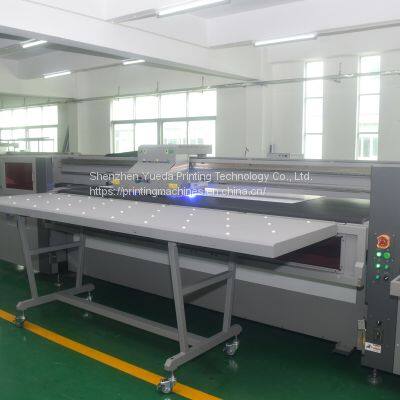

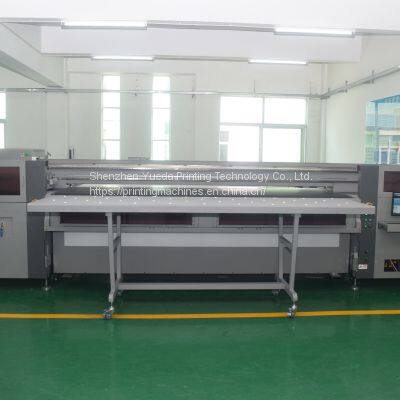

3.2m UV roll to roll flatbed printer Ricoh Kyocera printheads

The YD-H3200R6 large format uv hybrid printer is a combination of flatbed printer and roll to roll printer. It has the capability of printing onto both flat and coiled materials. With 3200mm maximum print width, it is ideal for the business that has an extensive printed materials.

Specifications

Model	YD-H3200R6
Print Width	3200 mm (11 ft)
Printhead	Ricoh GEN6 grey level Piezo print head
Printhead Quantity	2-12 pcs (4-8 colors optional)
Print Resolution	600×2400 dpi
Material Thickness	Up to 50mm (2in)
UV Curing System	LED UV lamp
Material Type	Rigid and flexible flat materials, flexible roll to roll material
Ink Color	C, M, Y, K, Lc, Lm, White ink, Varnish (optional)
Ink Type	Eco-friendly UV curing ink (NO VOC)
RIP Software	Onyx
Color Management	International standard ICC
Input Format	Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI
Printer Weight	2150KG
Printer Size	5800mm[L] × 1580mm[W] × 1530mm[H] (19ft×5.2ft×5ft)
Package Size	6000mm[L] × 1850mm[W] × 1930mm[H] (19.7ft×6ft×6.3ft)
Power Requirement	220 V/AC(±10%), 50/60 HZ; 8.5KW; (38A)
Working Environment	Separate, little sunlight, ventilated workshop, Temperature: 18ºC~30ºC(64ºF~86ºF); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm.

Sample shows

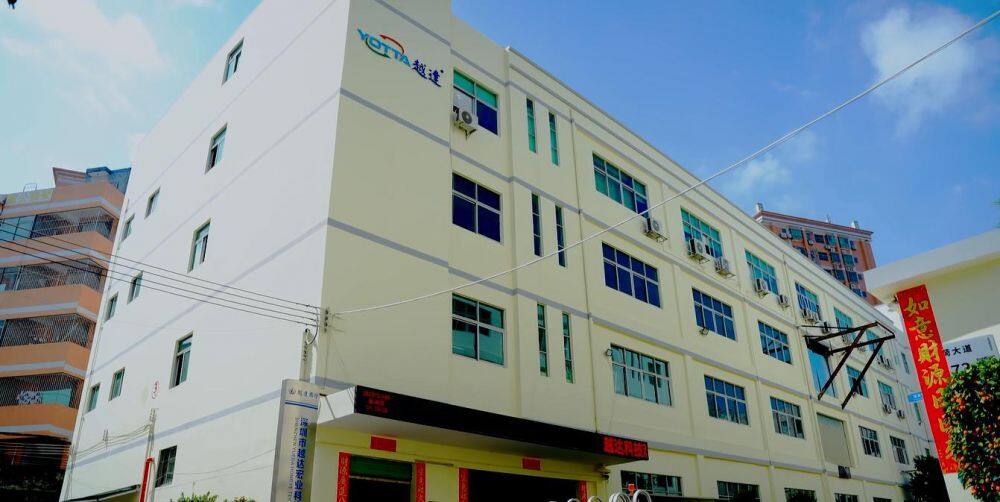

Company Information

Yotta is a new hi-tech Enterprise that combines Design, R&D, Production, Sales and Technical Service together.
We have successfully developed UV Flatbed printers, UV Roll to Roll printers and UV Hybrid printer with Ricoh and Kyocera print heads.

With company's development and growth, we also become one of top UV printer manufacturer in China, with over 11 years of rich experience.
We are committed to providing customers with world-class printing equipment as well as professional UV printing solutions. Because we are YOTTA, we will never let you down.

Certifications

Packing&Shipping details

Package details:

1. Export standard wooden package.

2. By ocean freight.

Delivery time: 5~7 working days(Except customized model)

FAQ

Q: What's the application of UV printer?

A: Extensively applied on various materials for all kinds of industries. For applied industry, see our solutions.

Q: How to buy yueda Printer?

A: List your detailed requirements and email to us,our sales representative will contact you soon. Or you can come to visit us at our plant in Shenzhen.

Q: How to get your service support?

A: Yueda offers easy and on time online service support to our customers.You can also get service through our Branch office in your local side.
