1. Industrial Kyocera print heads
This hybrid printer adopts 3-8pcs industrial Kycorea printheads, delivering exquisite results with 4pl ink droplet and 600 × 2400dpi. The printer head has powerful internal heating function to keep the constancy of ink viscosity. It jets 40,000 droplet per second with one nozzle, and overall one printhead can print over 1 billion droplet per second, specially suitable for large-area panel and fast production.
2. Dual function machine

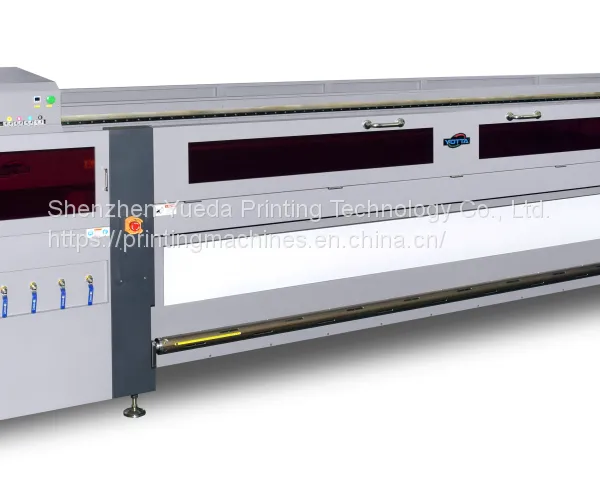

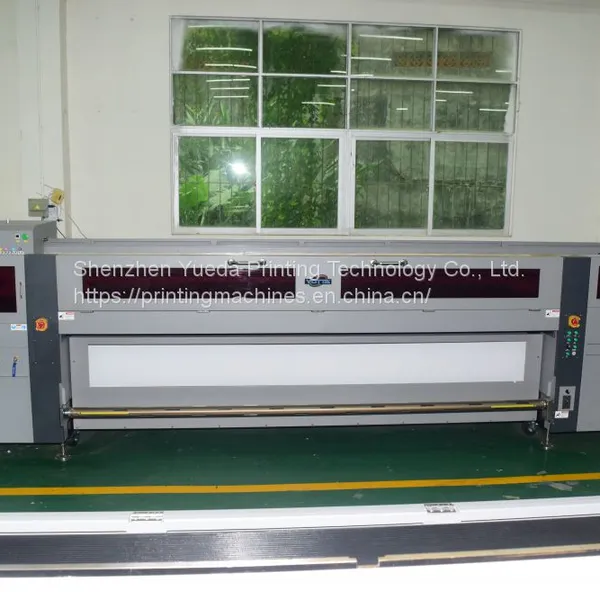

Our YD-H3200KJ has the dual purpose that not only keep most of advantages of flatbed printer, but new launch the function of roll-to-roll printer, which will specially suit for your different requirement.
3. Double negative pressure system
Separately control the negative pressure value of white ink and color inks, as individual viscosity and gravity with each other. It can ensure a smooth printing process and outstanding printing effect. The pressure value can be checked and adjusted according to production environment.
4. High Precise metal encoder grating
It adopts metal encoder grating which is more precise than the mormal. Besides, it is pretty anti-shake and easy to clean.
5. Constant tension control
With the constant tension control function, YD-H3200KJ hybrid UV LED printer can protect media from wrinkling when performing roll to roll UV printing.
6. New media positioning device
With this function, it is more convenient to position the substrates being printed. It can achieve more accurate positioning and printing easily.
7. Anti-collision device
When colliding with obstacles, the carriage will stop automatically to protect printheads as well as human safety.
8.UV LED curing system
Our digital printing machines employ UV LED curing technology, which won’t generate excessive heat, allowing fast UV ink curing and direct-to-substrate inkjet printing on almost anything, heat-sensitive materials included.
Specifications
| Model |
YD-H3200KJ |
| Print Width |
3200 mm (11 ft) |
| Printhead |
High-end Kyocera KJ4A grey level inkjet printhead |
| Printhead Quantity |
2-8pcs (4-7 colors optional) |
| Print Resolution |
635×2400 dpi |
| Material Thickness |
Up to 50mm (2in) |
| UV Curing System |
LED UV lamp |
| Material Type |
Rigid and flexible flat materials, flexible roll to roll material |
| Ink Color |
C, M, Y, K, Lc, Lm, White ink (optional) |
| Ink Type |
Eco-friendly UV curing ink (NO VOC) |
| RIP Software |
Onyx |
| Color Management |
International standard ICC |
| Input Format |
Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI |
| Printer Weight |
2050KG |
| Printer Size |
5800mm[L] × 1550mm[W] × 1500mm[H] (19ft×5ft×4.9ft) |
| Package Size |
6100mm[L] × 1790mm[W] × 1660mm[H] (20ft×6ft×5.4ft) |
| Power Requirement |
220 V/AC(±10%), 50/60 HZ; 5 KW |
| Working Environment |
Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃（64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm. |
