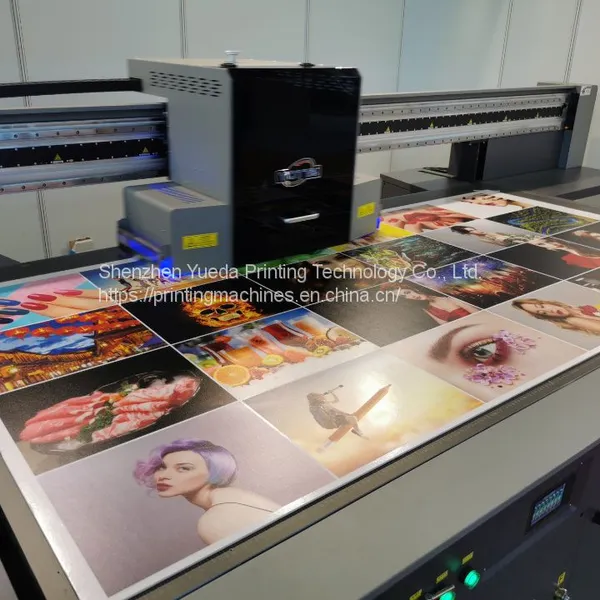

Hot Sale Ricoh MH5420 Gen5 heads 2513 UV large format printer
1. Adopting Ricoh Gen5 industrial printhead, original imported Panasonic servo.
2. Maximun print size of 2500mm × 1300mm (8′ × 4′), print thickness of 100mm.
3. Wide applications and high print resolution of 600 × 2400 DPI.
4. Print C, M, Y, K, Lc, Lm, White ink, Varnish.
5. Cost-effective, Eco-friendly and Easy to operate.
Specifications
| Model | YD-P20R5 |
| Print Size | 2500 × 1300 mm (8 × 4 ft) |
| Printhead | Ricoh-Gen5 grey level Piezo print head |
| Printhead Quantity | 2-8 pcs (4-8 colors optional) |
| Print Resolution | 600×2400 DPI |
| Material Thickness | Up to 130mm (4in) |
| UV Curing System | LED UV lamp |
| Ink Type | Original imported UV curable ink |
| Ink Color | C, M, Y, K, Lc, Lm, White ink, Varnish (optional) |
| Interface Mode | High Speed USB |
| RIP Software | Photoprint |
| Color Management | International standard ICC |
| Input Format | PDF, JPEG, TIFF, EPS, AI |
| Printer Weight | 1250KG |
| Printer Size | 4510mm[L] × 2500mm[W] × 1400mm[H] (14.8ft×6.7ft×4.7ft) |
| Package Size | 4700mm[L] × 2250mm[W] × 1730mm[H] (15.4ft×7.4ft×5.7ft) |
| Power Requirement | 220V/AC(±10%), 50/60 HZ, 6KW |
| Working Environment | Separate, little sunlight, ventilated workshop, Temperature: 18ºC~30ºC(64ºF~86ºF); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm. |
Machine details
|
Integrated steel frame structure |
|
1.5kw vortex type high pressure air pump fan |
|
Ink circuit negative pressure control system
|
|
Intelligent ink mixing system |
|
Ink shortage alarm system and double negative pressure independent system |
|
Import Germany IUGS towline |
|
Transmission beam guide with linear motor |
|
6 suction areas |
|
The suction and blowing platform. |
|
Anti crash and automatically measure the height |
Samples Show:
Yotta is a new hi-tech Enterprise that combines Design, R&D, Production, Sales and Technical Service together.
We have successfully developed UV Flatbed printers, UV Roll to Roll printers and UV Hybrid printer with Ricoh and Kyocera print heads.
With company's development and growth, we also become one of top UV printer manufacturer in China, with over 11 years of rich experience.
We are committed to providing customers with world-class printing equipment as well as professional UV printing solutions. Because we are YOTTA, we will never let you down.
Certifications
Packing&Shipping details
1. Export standard wooden package.
2. By ocean freight.
Delivery time: 5~7 working days(Except customized model)
Q: What's the application of UV printer?
A: Extensively applied on various materials for all kinds of industries. For applied industry, see our solutions.
Q: How to buy yueda Printer?
A: List your detailed requirements and email to us,our sales representative will contact you soon. Or you can come to visit us at our plant in Shenzhen.
Q: How to get your service support?
A: Yueda offers easy and on time online service support to our customers.You can also get service through our Branch office in your local side.
