Large Format UV Flatbed Printer 2513 With Ricoh GEN6

Imported from Japan, Ricoh Gen6 print head is the high level print head in the industry. With the variable ink droplet range of 5-15pl, it’s highest print resolution is 600 × 2400dpi. Besides, the lifetime of Ricoh printhead can be longer than 5 years if it is well maintained.

YD-P20R6 digiatal UV flatbed printer adopts brand-new ink tank design, easy to use and maintain.

YD-P20R6 digital uv flatbed printer automatically measure with senses thickness of media, which eliminate the procedure that we measure thickness by ourselves, avoiding damage caused by human error. It is very efficient and accurate.

The new anti-collision structure is sensitive and pratical, when coming across with collision ,the print head carriage will stop automatically in order to protect printheads and the whole machine from damage.

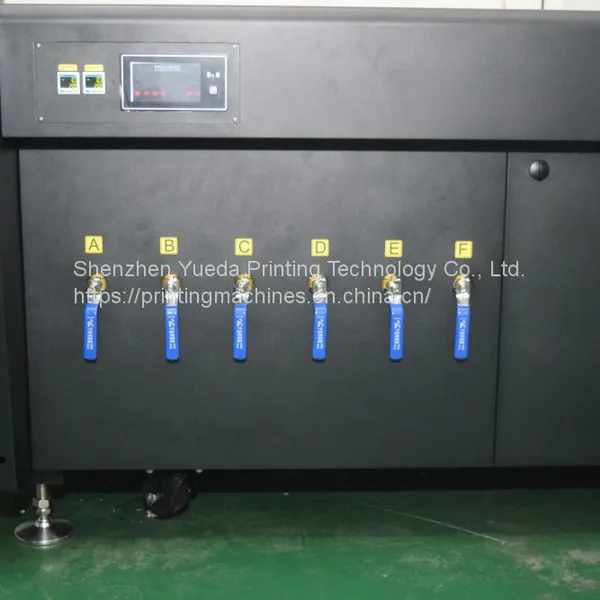

The suction platform has an area-controlled suction function with six new ABCDEF areas, which  use more flexible layout increased application surface for different formats of printing media.

Convenient to check the ink level of the main ink tank in a timely manner with integrating vision and hearing, which is convenient and practical.

The operator can place printing materials at close distances for easy loading and unloading with a recessed tail design.

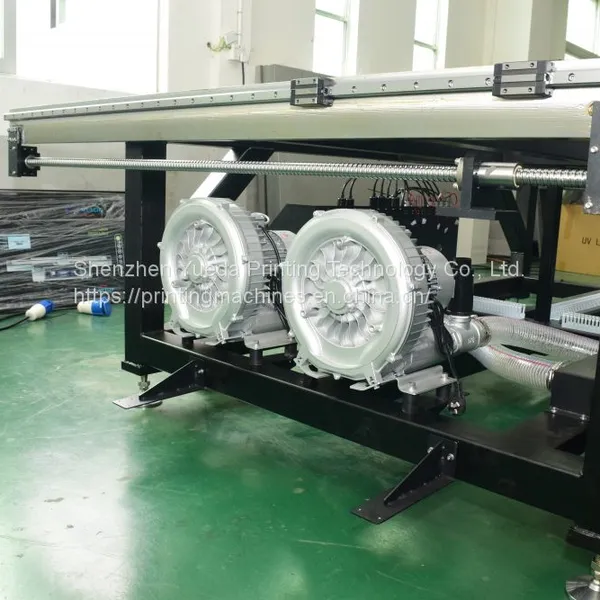

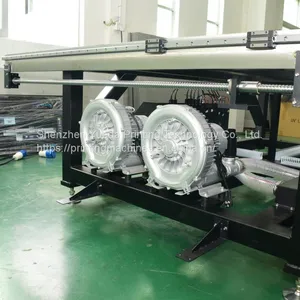

Ultra-high stable dual negative pressure system, white varnish color independent negative pressure system to make the negative pressure more accurate.

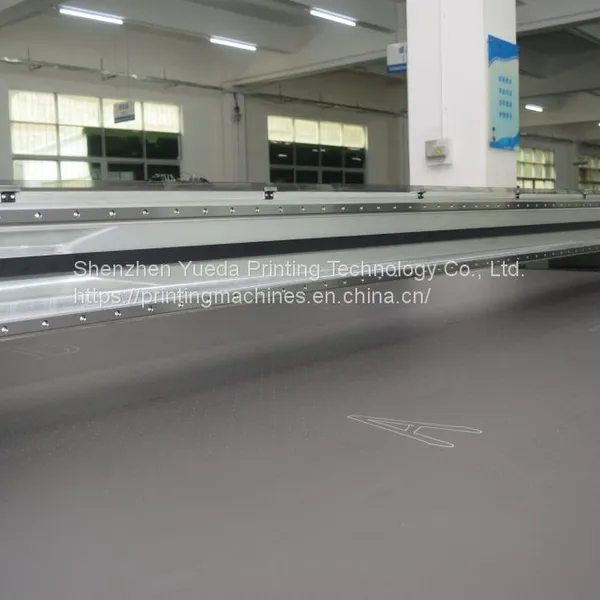

The X beam is upgraded to 20 guide rails and running more smoothly, the bearing capacity is doubled, and the running accuracy is higher.

YOTTA’s P20R6 employs UV LED light for ink curing system, can help ink dry quickly and save more energy. It is environmental, effective, and has a long using life.
