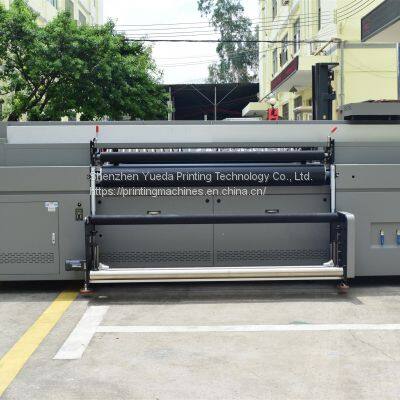

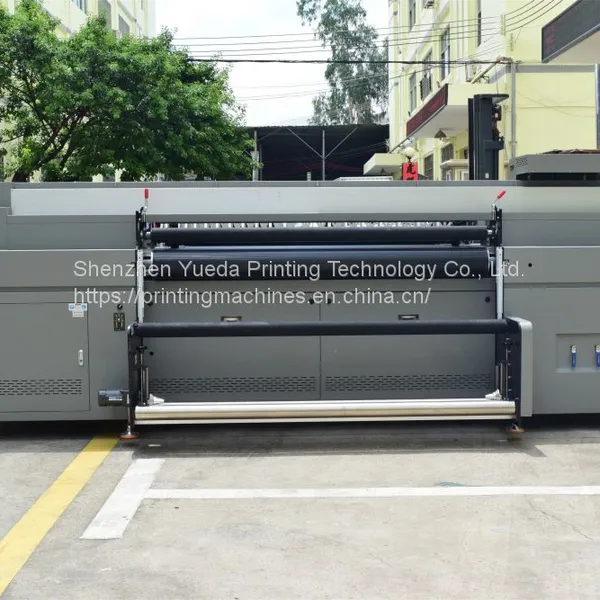

1800mm UV hybrid printer with White Varnish Colors GEN6 Heads TH5320
Description:

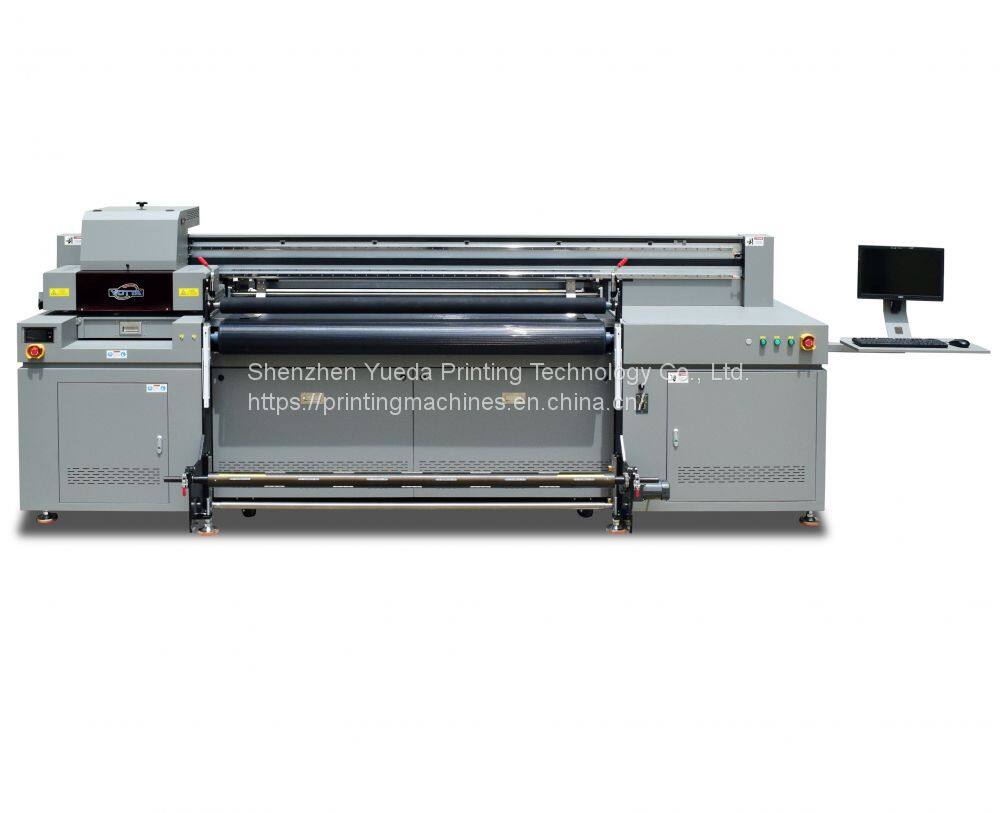

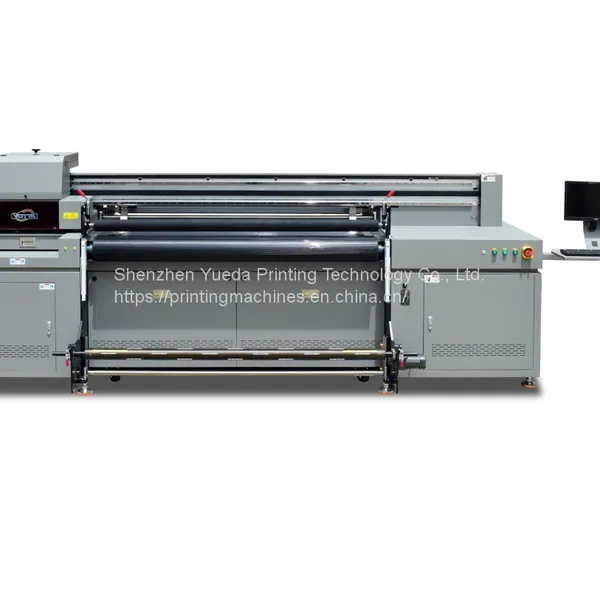

YOTTA's YD-H1800R6 small format uv hybrid printer adopts Ricoh Gen6 print head (Ricoh GEN5 and Kyocera KJ4A print head optional), fast speed and high resolution are its prominent advantages. It's able to increase print head according to customer requirement, which can enhance the performance of machine. Its highest configuration is 12 print heads that can achieve printing of CMYK,LcLm+W+V. What's more, it can print special effect of varnish. YOTTA's YD-H1800R6 small format uv hybrid printer is more suitable for personalized customization and mass production. Furthermore, it is easy to operate by computer, which is very efficient and stable.
Decoration: ceramic, ceiling, window, door…
Advertisement: billboard, bulletin board, photo…
Packaging: box, carton, some special appearance…

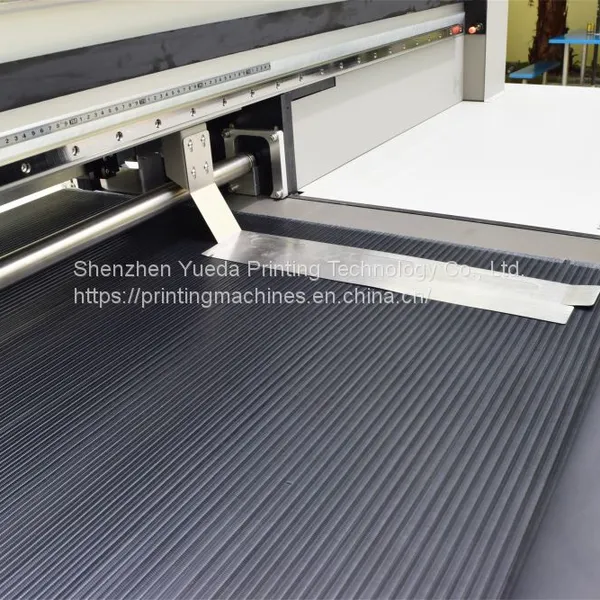

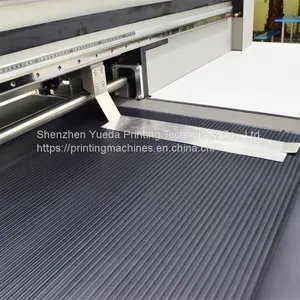

Polyester made belt, it can make a trace less printing effect when printing thin material like pvc film.
2. Lead railLead rail, which is HIWIN from Taiwam, can make machine running stable and reduce noise during the running process. What is more. It is easy to maintain and its lifetime can keep ten years under normal working environment.
3. Germany IGUS towlineYD-H1800R6 small format uv hybrid printer is suitable to high speed, which can protect wires from abrasion and can prolong service life.Besides, It can work stably in a long time.
4. White Ink Circle and stirWhite Ink is special and will subside so that it will affect printing color or will be easy to block print head. After installing this, white Ink can circle automatically. If there is sediment at ink box, stir can work auto to prevent ink sediment.
5. Automatic measurement systemThis function can measure the distance between print head and materials that will reach the best printing effect. It is precision and also can save time that we measure materials thickness by ourselves. Besides, that can avoid damage caused by human mistakes.

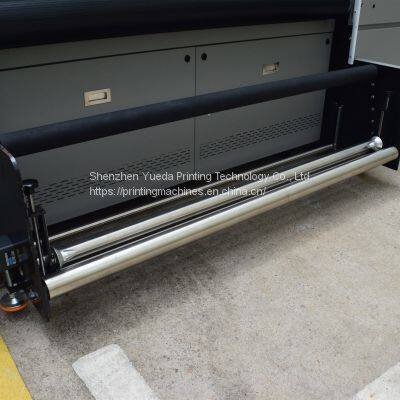

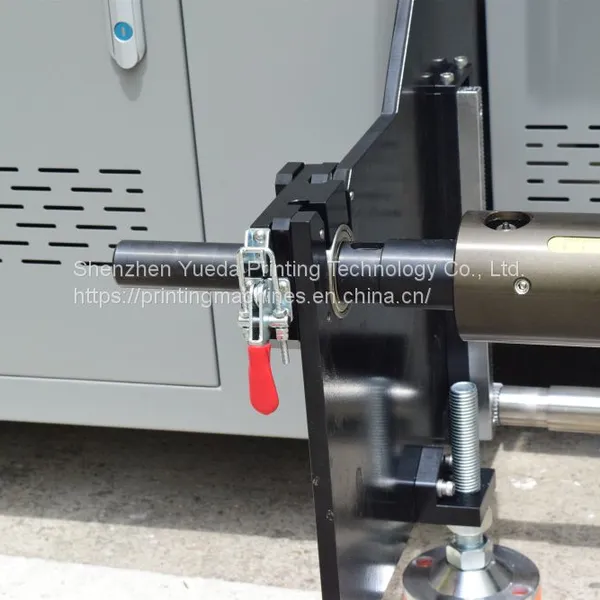

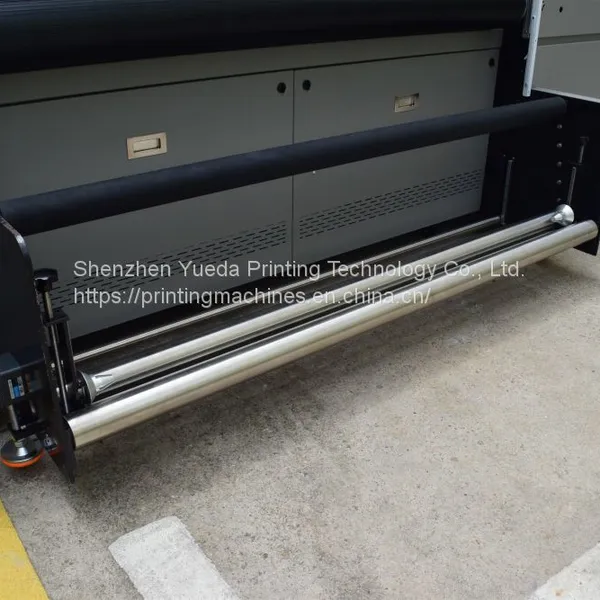

6. Feeding and taking up systemFeeding and taking up systems all adopt torque motor, it can adjust the tension strength while printing depends on the material thickness, while printing different materials all has a reasonable torque value to ensure the printing quality.
7. Secondary ink cartridge thermostatThe printing temperature of print head is normally at 45-50ºC. In winter or some cold places, the print head temperature gradually rises after machine is started, and finally reaches 45ºC, which will takes time to preheat. With the device, it can be kept at around 45ºC, and it can work normally after machine is started. And there is a temperature display to know the temperature of the current secondary ink cartridge.
8. Anti-static functionWhen printing material with static, ink will spray over and the printing effect won't be good enough. With anti-static bar, it can remove the static from material for best printing effect.
9. Double negative pressureIndependent negative pressure system for White and color, making suitable individual viscosity and gravity for both of them, finally gets best printing result.
Specifications
Model |
YD-H1800R6 |
| Print width | 1800mm |
| Print head | GEN6 grey level piezo print head |
| Print resolution | 600*2400 DPI |
| Print speed | 4Pass,34M2/h 6Pass,23M2/h 8Pass,18M2/h |
| Ink color | CMYK, Lm, Lc, W, V(Optional) |
| Ink type | UV ink (Eco-Friendly) |
| Number of heads | 2-8 pcs |
| Material thickness | 0-50MM |
| Material type | Rigid and flexible materials |
