Metal Porous Gas Sparger/diffuser From Toptitech

Product Introduction

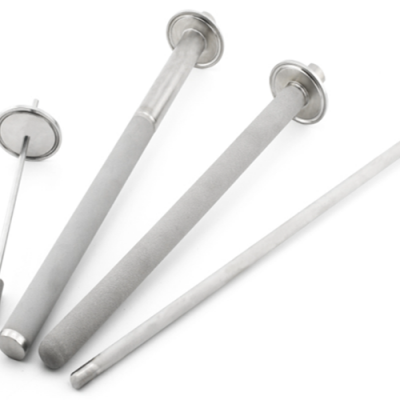

Stainless steel porous gas sparger/diffuser is also called sintered metal distributor, also known as porous metal distributor. In order to make sure that the air bubbles are distributed equally throughout the container, it is an industrial sparger instrument that distributes gas into a liquid tank. The surface is normally metallic gray, the dense part is a bright surface, the powder sintered part is a normal matte surface, the sintered part does not add any additives in the production process, normal vacuum sintering, the powder is naturally bonded and formed, the aperture is formed naturally, and there is a certain pressure ability.

Stainless steel porous gas spargers/diffusers are commonly used for stripping, mixing, or diffusion in many gas-liquid contacting applications. So whether it´s for beverage carbonation, ozone treatment, or chlorine bleaching, it can always help you to increase the efficiency of spraying. The sintered porous metal media is durable enough to last a long time, providing repeatable performance cycles.

Product parameters

Materials: Stainless Steel 304L/316L, Inconel, Hastelloy, Copper

Connection Type: M5 thread with O-ring groove, 10-32 UNF thread, hose barb, NPT, butt weld end

Porosity: 15%-55%

Thread size: 1/8″, 1/4″, 3/8″, 1/2″, 3/4″, 1″

Micron rating: 0.2-100 μm

Working temperature: up to 600°C

Features

High micron level, uniform, and stable gas distribution

High diffusivity for increased filtration efficiency

SS material is resistant to high temperatures and corrosion

Various configuration types to meet most process requirements

Maximum gas/liquid contact surface area for more air bubbles

The Sintered Sparger has many applications for a variety of gas sparger such as;

1. Nitrogen Sparger

2. Oxygen Sparger

3. Ozone Sparger

4. Nitrogen Sparger

5. Carbon Dioxide Sparger

Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
