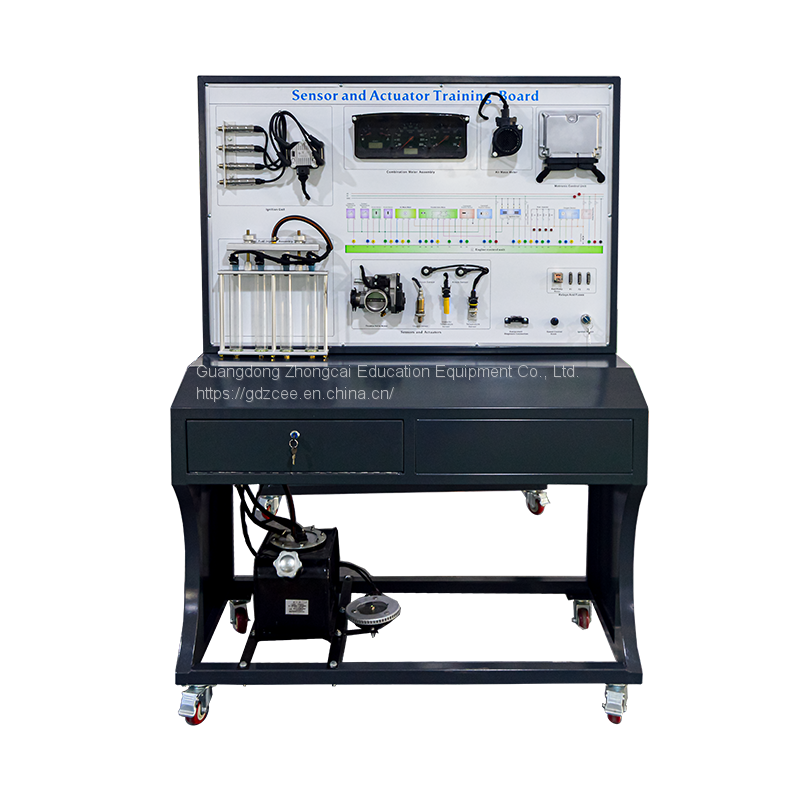

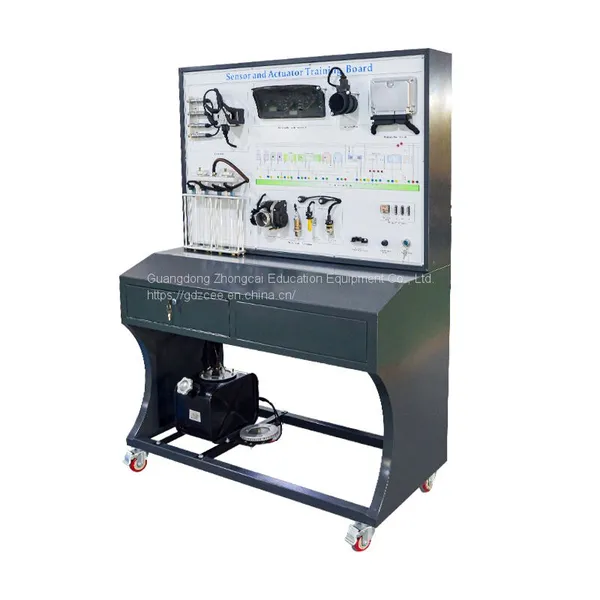

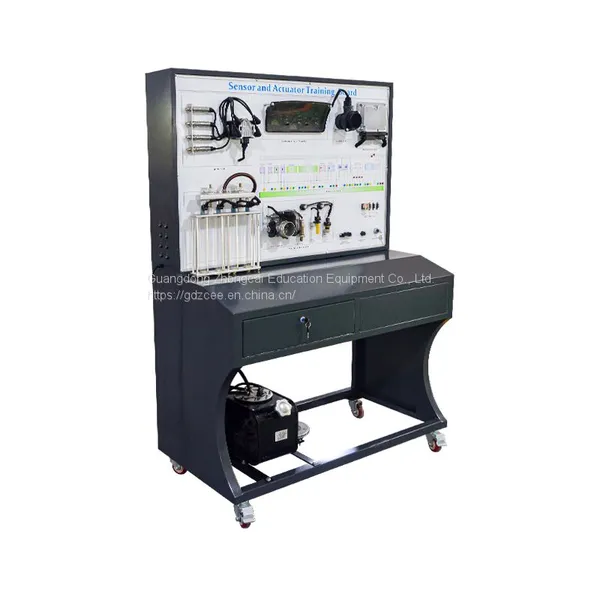

Automotive Sensors and Actuators Practical Training Equipment

I. Product requirements

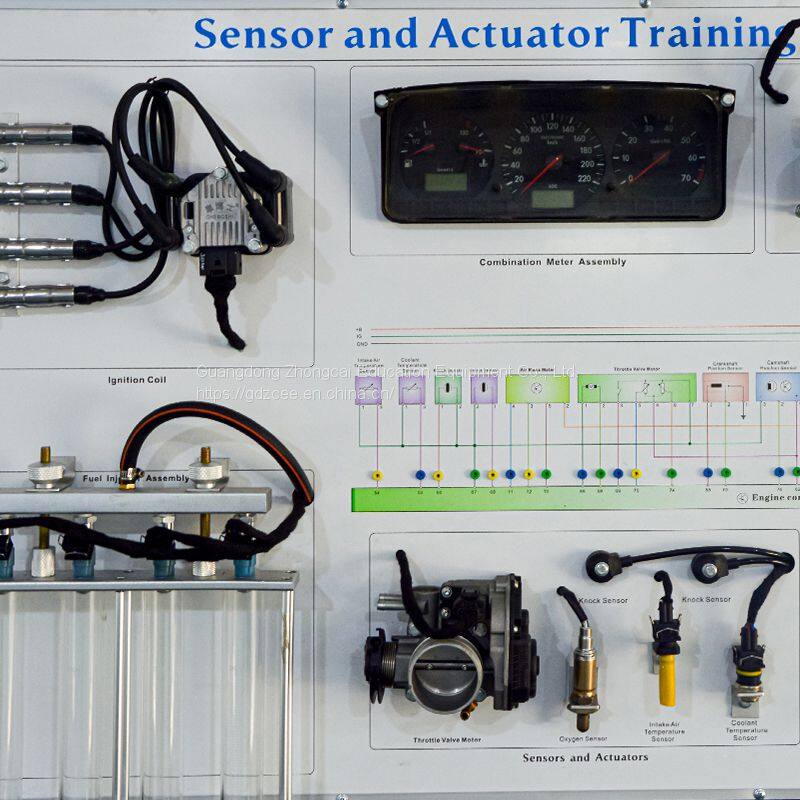

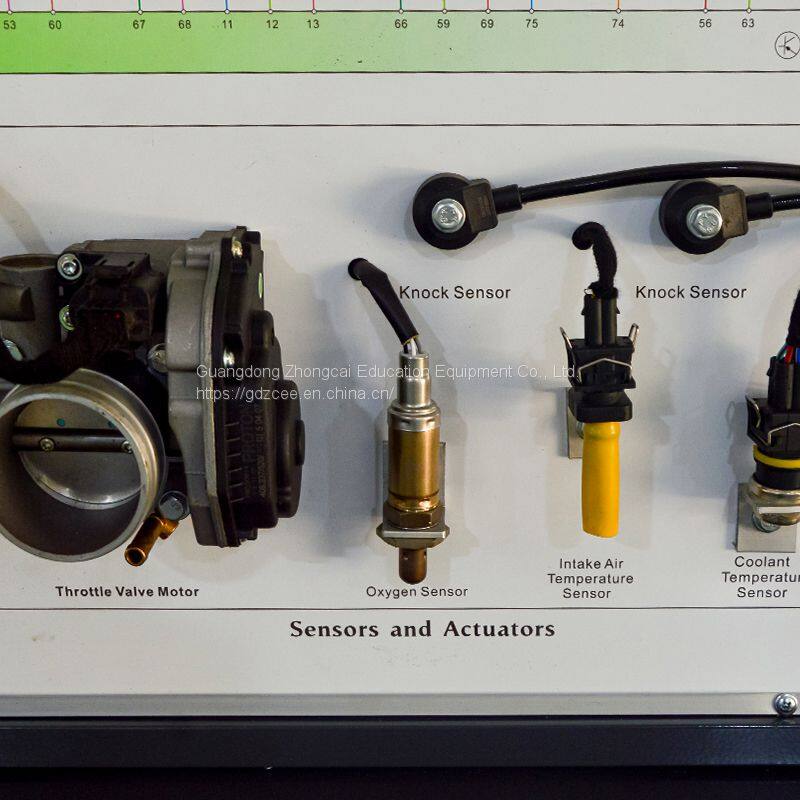

The equipment adopts the real parts of the electric control system of Volkswagen Jetta ATK engine to fully demonstrate the composition structure and working process of the engine electric control system.

II. The functional requirements

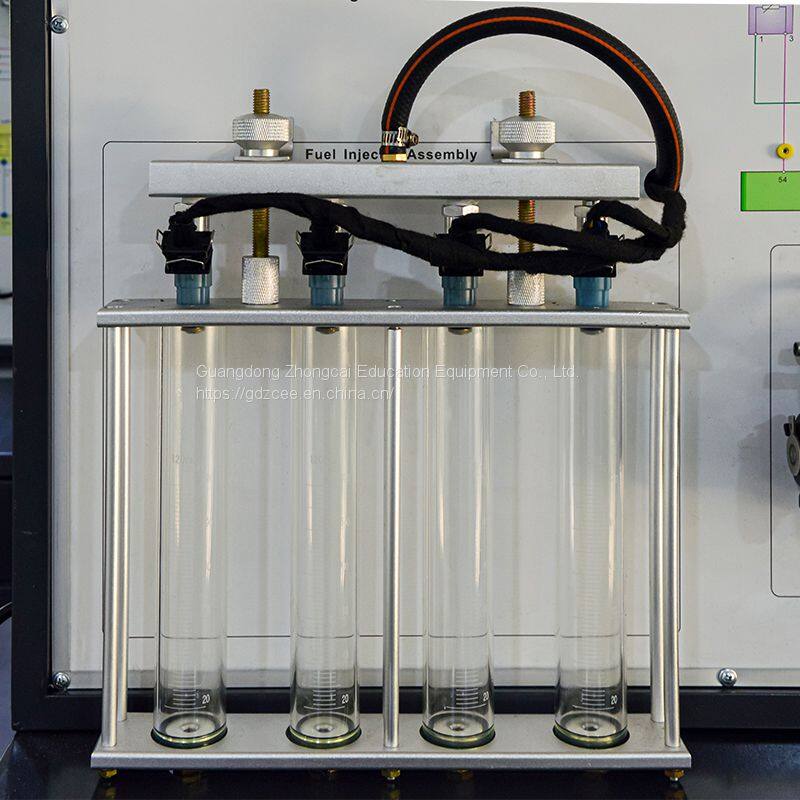

1. The real runnable engine electronic control system, simulating the engine crankshaft operation, can produce spark plug ignition, fuel pump work, injector injection and other executive components work, fully demonstrate the composition of the engine electronic control system structure and work process.

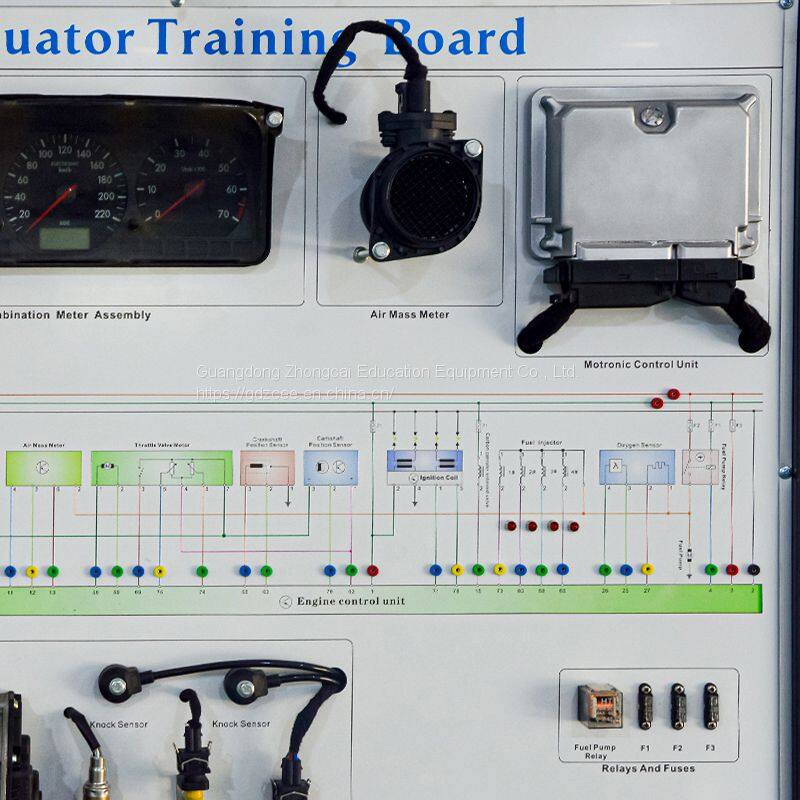

2. The training table measurement panel is painted with colorful spray-painted circuit diagrams, using 4mm thickness of high-strength aluminum plastic plate spray-painted, with a large temperature difference, wear-resistant, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright colors, not easy to fade, etc.; students can intuitively control the circuit diagrams and physical, recognize and analyze the working principle of the engine electronic control system.

3. The teaching board panel is installed with detection terminals, which can directly detect the electrical signals of the engine electric control system circuit components on the panel, such as resistance, voltage, current, frequency signals, etc.

4. There is a diagnostic socket installed on the panel of the teaching board, which can be connected to a special or general-purpose car decoder to read fault codes, clear fault codes and other self-diagnostic functions of the engine electronic control system.

5. The training table is built of high-grade steel, with high strength, corrosion resistance, long life, etc., without the need to go through the spraying process, more environmentally friendly, more beautiful and high-grade appearance, the table frame with self-locking casters, mobile and flexible, safe, reliable, durable.

6. The teaching board works with ordinary 220V AC power supply, converted into 12V DC power supply by internal circuit voltage rectification, without battery, reducing the trouble of charging, 12V DC power supply has anti-short circuit function.

III. Specifications

Size: 1600 * 800 * 1800mm (L * W * H)

Power supply: AC220V
