Super Large Format Digital UV Flatbed Printer 3220
US$ 30000 - 40000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yotta
Place of Origin:
China
Model Number:
P30KJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Heightened 400mm Media Thickness UV Flatbed Printer 2513US$ 20000 - 30000MOQ: 1 Set -
Large Format UV Flatbed Printer 2513 With Ricoh GEN6US$ 20000 - 30000MOQ: 1 Set
-
Small UV Flatbed Printer 9060 With Ricoh GEN5i for Sheets and BottlesUS$ 7000 - 10500MOQ: 1 Set
-
New Model Large Format UV Flatbed Printer 2513 With Ricoh GEN6 MH5320 HeadsUS$ 20000 - 30000MOQ: 1 Set
-
Small UV Flatbed Printer A1 9060 Ricoh Epson Heads 400mm Print HeightUS$ 7000 - 10500MOQ: 1 Set
Brand Name
Yotta
Place of Origin
China
Model Number
P30KJ
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
2500 KG
Voltage
220V
Usage
Other, advertising printer
Condition
New
Dimensions(L*W*H)
5250mm*2750mm*1500mm
Gross Power
6KW
Color & Page
Multicolor
Plate Type
Flatbed Printer

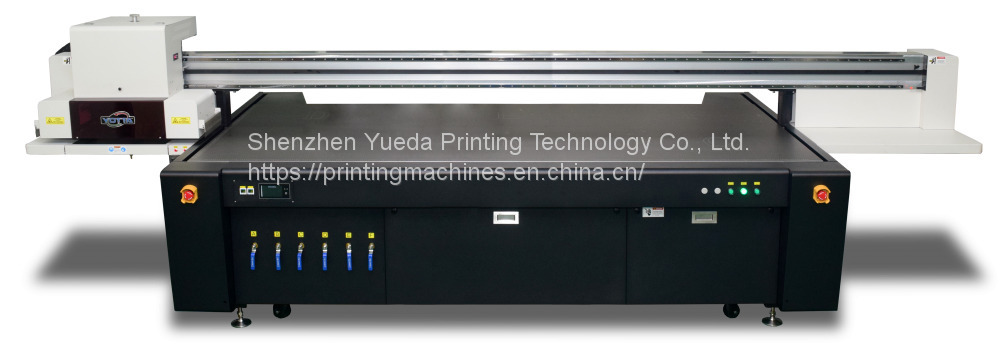

Super large format digital UV flatbed printer 3220
Applicable Materials of P30KJ UV Flatbed Inkjet Printer:
High speed uv led flatbed printer can print on almost all flat materials, including glass, ceramic tile, wood, aluminum, acrylic sheet, PVC sheet, EVA, fora board, corrugated board, etc.
Advanced Features:
• UV Flatbed Inkjet Printer adopts high speed industrial Kyocera inkjet print head.
• ultra large format 3.0×2.0M maximum print size.
• multi-color printing, able to print CMYKW and varnish, 3D, embossed, glossy effect achievable.
• wide application, can print on almost all flat materials.
• simple printing process, direct print on surface technology, suitable for small batch and mass production.
• fast and delicate LED-UV ink curing.
• long-life parts and machine, delivering excellent performance.
• …
| Model | P30KJ |
| Print Size | 3200 × 2000 mm (10.5 × 6.6 ft) |
| Printhead | Kyocera grey level Piezo print head |
| Printhead Quantity | 2-8 pcs (4-8 colors optional) |
| Print Resolution | 635 × 2400 DPI |
| Material Thickness | Up to 130mm (4in) |
| UV Curing System | LED UV lamp |
| Ink Type | Original imported UV curable ink |
| Ink Color | C, M, Y, K, Lc, Lm, White ink, Varnish (optional) |
| Interface Mode | High Speed USB |
| RIP Software | Photoprint |
| Color Management | International standard ICC |
| Input Format | PDF, JPEG, TIFF, EPS, AI |
| Printer Weight | 2500KG |
| Printer Size | 5250mm[L] × 2750mm[W] × 1500mm[H] (17.2ft×9.0ft×4.9ft) |
| Package Size | 5550mm[L] × 2950mm[W] × 1900mm[H] (18.2ft×9.7ft×6.2ft) |
| Power Requirement | 220V/AC(±10%), 50/60 HZ, 5.8KW |
| Working Environment | Separate, little sunlight, ventilated workshop, Temperature: 18℃~30℃(64℉~86℉); Humidity: 30%~70% (Non-condensing); Ventilation equipment: suggest overhead exhaust fan, displacement 600cfm. |
